Description
Volero Wave (Foam Shell):
8x 40w RGBW LED
100-240V 50/60 Hz ETL IP20
Claypaky CL3023 Volero Wave LED Bar
Overview

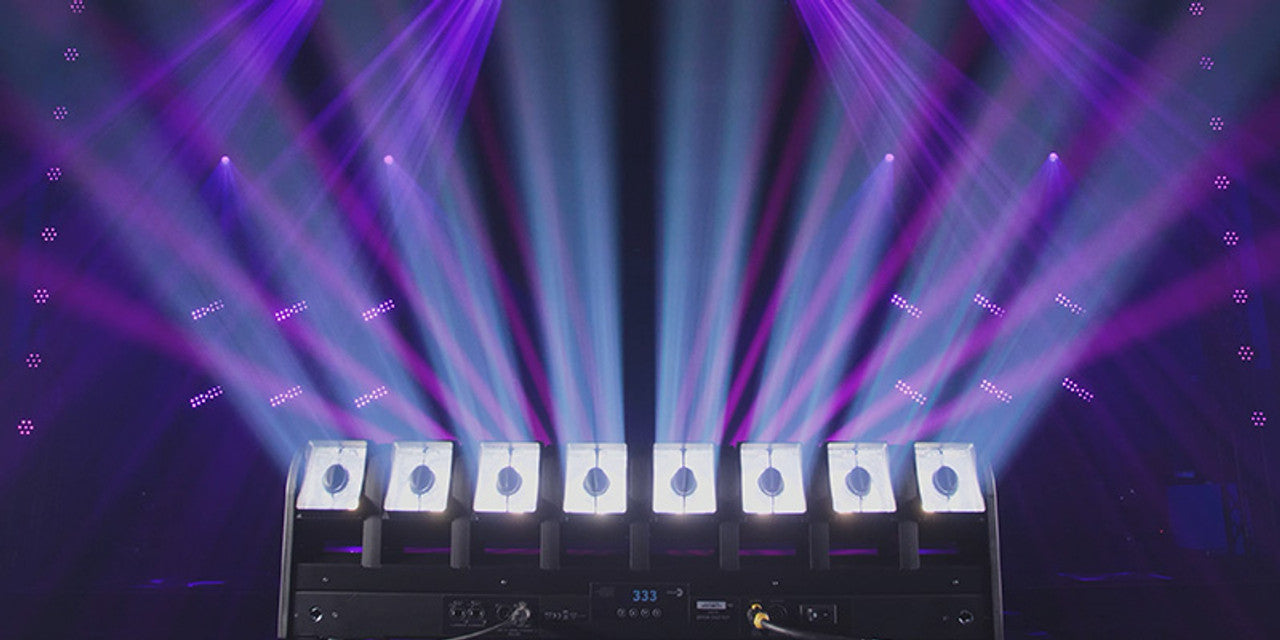

Volero Wave is an incredible LED bar with original and innovative features, because it is made up of a system of 8 independent moving bodies. With Volero Wave you will have eight separate heads at your disposal, each independently capable of moving on a 220° TILT and giving rise to three-dimensional and volumetric projections that have never been seen before.
Claypaky has always been known for its research and innovation skills, thanks to which it has often introduced on the market fixtures and solutions that revolutionized the world of Entertainment Lighting.
Today we are pleased to present Volero Wave, an incredible LED bar with original and innovative features, because it is made up of a system of 8 independent moving bodies.
In fact, with Volero Wave you will have eight separate heads at your disposal, each independently capable of moving on a 220° TILT and giving rise to three-dimensional and volumetric projections that have never been seen before.
Each of these heads contains a brand-new mirror-based optical system combined with 40W RGBW LEDs, which express a higher light intensity than any of the LED bars currently on the market. The innovative concept behind Volero Wave, as well as the main challenge for the Claypaky R&D team, was to be able to move the entire light source on its axis, thus preserving the same intensity of the light flux in any position of the tilt range.
The beams always appear extremely sharp and collimated, parallel to each other thanks to the 2.9° projection angle. The synchronized movement produces an impressive wave of light, all the more overwhelming the more Volero Wave fixtures are seamlessly connected to each other.
Claypaky has designed a system that would allow the Volero Waves to be aligned with each other with extreme precision. They are easily set up and mounted on the truss to create the “wave effect”. Mounted on the Claypaky Panify, they even add an endless PAN rotation at variable speed, making Volero Wave the most dynamic light effect fixture on the market.

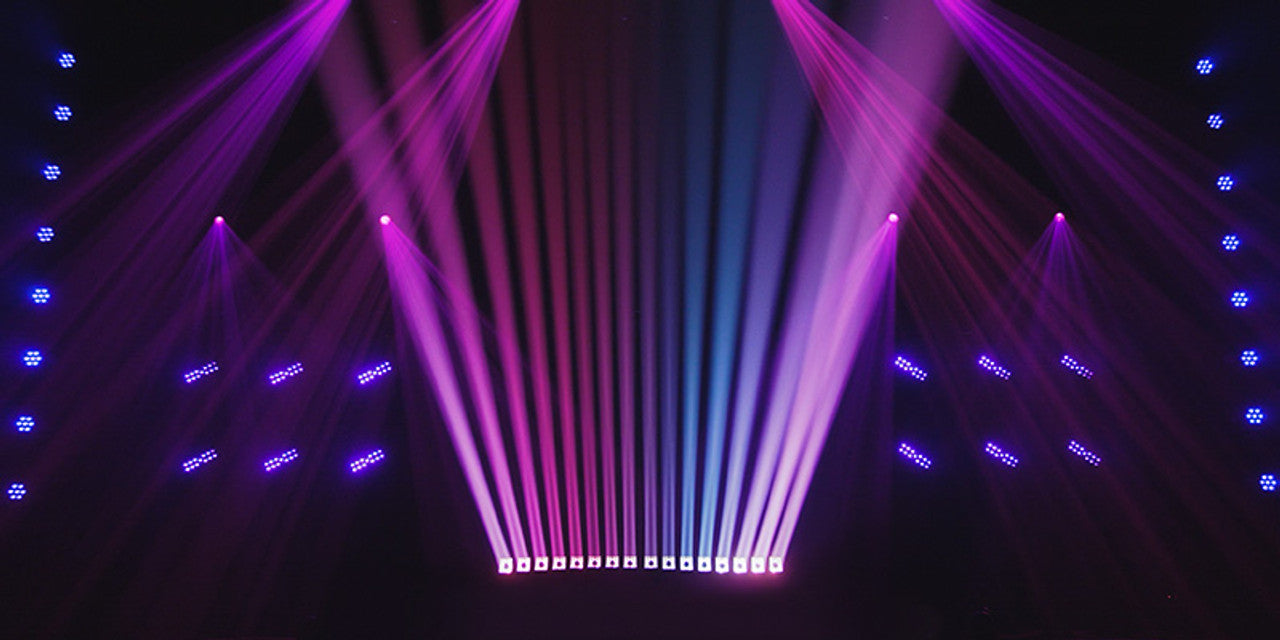

Volero Wave adopts all the most important functions that characterize a product for first-class spectacular effects. We have the pixel mapping for the control of each parameter for each single LED pixel and the exclusive Advanced Layers Management, which allows the operator to use simultaneously three levels of effects.
Volero Wave is a totally new lighting effect that adds a distinctive trait to any lighting design. It offers the lighting designer the power to create truly original and three-dimensional light scenes within television and film productions, musicals, live events, touring and any show that you want to stand out. It is a must see product.
Features
Light Source
8x40W RGBW Osram LEDs (8600K)
Light Output
292 Lumens (single pixel - integrating sphere)
Zoom range
2.9° (Fixed Aperture)
Effects
RGBW Colour Mixing 16 bit; Linear 16bit CTC 2500 – 8000K; Tilt 220° (each module can move independently); High Resolution Electronic Dimmer – 24-bit; High Speed Electronic Shutter and Strobe
Specifications
Light Source Type
8 Each 40W RGBW LED Engine
LED Colour Temperature: 8600K
LED Life Expectancy: 50000 Hours L70*
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom: 2.9° (Fixed Aperture)
292 Lumens (single pixel - integrating sphere)
Front lenses (8 Each): 86 x 114mm
Noise Level
Standard mode: 41.8 dBA
Control and Connections
Personalities: 4 Modes: 23/24/29/32 Control Channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM Connectors: Locking 5 pin XLR IN/THRU
Ethernet Switch: RJ45 IN/OUT
Power Connector: Power Con True1 IN/OUT
Built In Web Server
Dynamic Effects
Colours:
RGBW Colour Mixing 16 bit
Linear 16bit CTC 2500 – 8000K
Movement:
Tilt 220° (each module can move independently)
Accuracy ±0.08° (Range 0.16°)
Smooth & Fast Speed Selectable by Function Channel
Dimmer/Shutter:
High Resolution Electronic Dimmer – 24-bit.
High Speed Electronic Shutter and Strobe
Hardware and Software
Long Life Self-charging Battery
Display Graphic LCD backlit Monochrome Display
Firmware Upload from Another Fixture
Firmware Upgrade via Web Server or CloudIO
Diagnostics
DMX Monitoring
Remote Access through RDM
CloudIO Compatible
Housing
Aluminum and Steel Structure with Plastic covers
IP20 Rated
Working Position
Operates in any Position
Hanging System: Supplied with Fast-lock Omega Brackets (1/4 turn)
Electrical
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 4(2) fixtures @ 200-240Vac (@ 100-120Vac)
Max Power Consumption: 400VA
Max Power Output: 1600VA (for connecting fixture in daisy-chain)
Power Supply: Electronic Auto Ranging with active PFC
Thermal Specification
Operating Temperature 40°C (104°F)
Minimum Temperature -10°C (14°F)
Maximum Temperature of 60°C (140°F)
Total Heat Dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 8 meters (26’ 3”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T10A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE: Conforms to the European Directives
UKCA: Conforms to UK Regulations
cETLus Listed
Packaging
Carton box + Polystyrene
Carton Box + Foam shell
Flight Case + Foam Shell (2 position)
Weight - Size
20.8 Kg (46 lbs)
1000 x 329 x 182mm
Accessories
Omega Brackets: 2x 415102-801 (included)
Power Cord: CAB0K1-802 (included)
PowerConTrue1 IP65: CON03O (optional)
Foam Shell: F21330-001 (optional)
Flight Case (2 pos.): CF1015 (optional)
Safety Chain: 105041-003 (optional)
Frost Lens Kit 1°: CA30090001A2 (optional)
Frost Lens Kit 2°: CA30090001B2 (optional)
Frost Lens kit 3.5°: CA30090001C2 (optional)
Panify Long Bracket: CA3023000102 (optional)
Clamp: C21070 (optional)
