Description
Volero Batten Aqua:
10x 60w RGBW LED
100-240V 50/60 Hz ETL IP66
Claypaky CL3002 Volero Batten Aqua LED Bar
Overview
First one in the Volero line of high-performance LED bars, Volero Batten Aqua is a new fixture that brings all the Claypaky quality but now for outdoor use in all weathers.

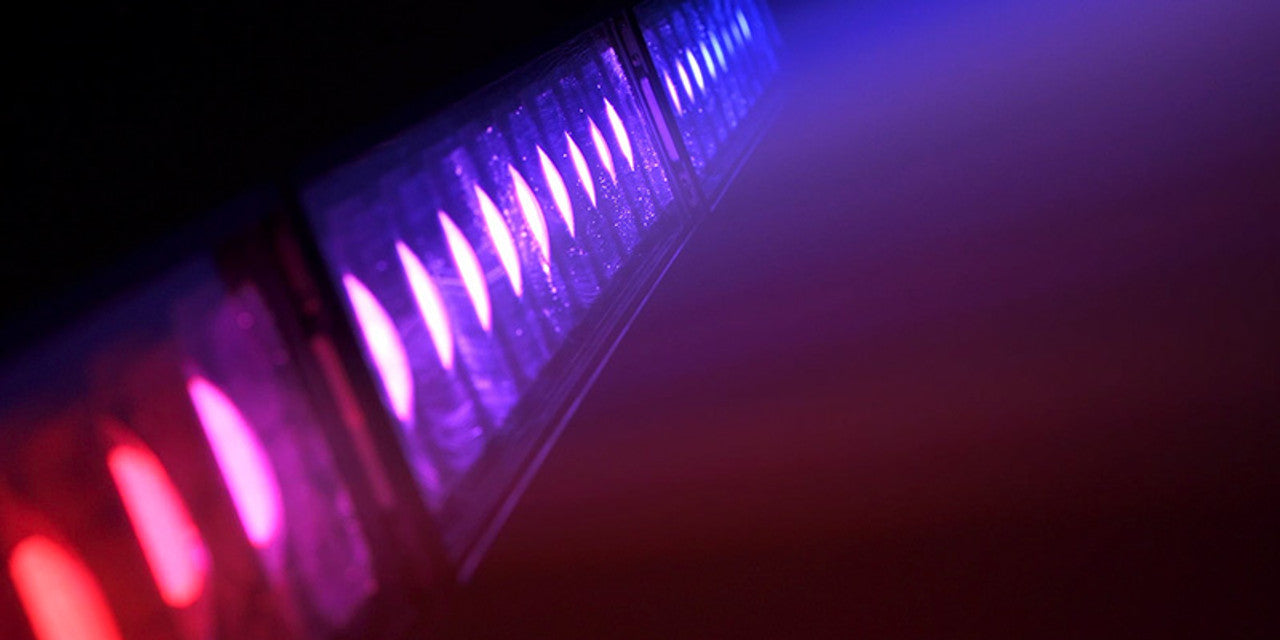

From the first glance you will notice that Volero Batten Aqua is a different moving batten than usual. The light source is in fact made up of 10 x 60W Osram RGBW LEDs, capable of emitting a much higher light power than most of the LEDs bars on the market. Each LED adopts 80x80mm lenses, a very unusual width that allows you more versatility with focussing the power of the LEDs, optimizing their luminous efficiency and resolution.

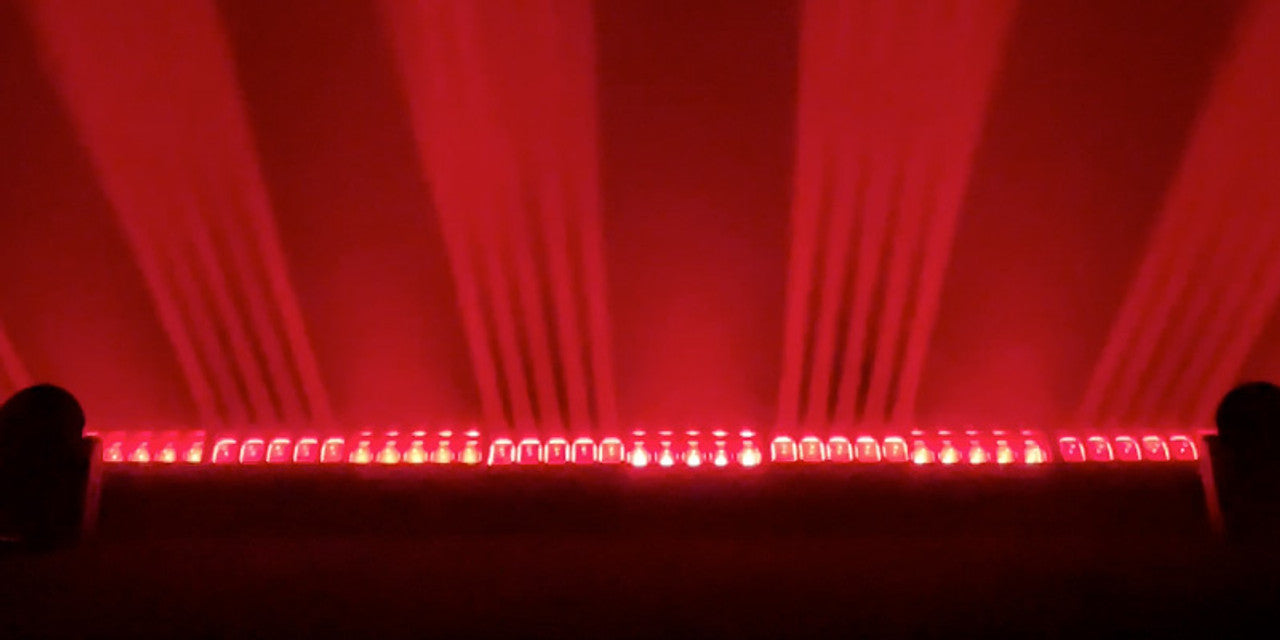

Volero Batten Aqua offers another important feature, it allows separate control of the Zoom in 2 groups from 5 adjacent lenses, creating a dynamic movement of the light beam that is truly unique and unmatched on the market. It is spectacular to see in operation.
In addition, as an exclusive feature of the entire new Claypaky “Effect Lighting” line, Volero Batten Aqua also offers Advanced Layers Management, with which the operator can choose to use different levels of effects simultaneously.
All these optical, constructive and advanced firmware characteristics give the product an unmistakable appeal, this is particularly stunning when multiple bars connected in seamlessly and for backlight effects.
With its IP66 protection rating, optional Wireless DMX control, a large amount of effects and built-in macros it is the perfect product for the touring, event, television and installation market, and works equally well for both indoor and outdoor applications.
Features
Light Source
10 x 60W Osram RGBW LEDs
Light Output
7518 Lumen Output (Integrating Sphere)
Zoom range
4°- 52°
Effects
RGBW color mixing system; White CT emulation 8000K to 2500K; 16bit resolution with 5 different dimmer curves; Electronic strobe/stop from 1 to 25 f/sec; Pixel mapping control; Advanced Layer Management
Specifications
Light Source Type
• 10 x 60W RGBW Osram LEDs
80x80mm square lenses
Color Temperature: 8000K to 2500K
LED life expectancy: 50000Hrs L70*
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 4°- 52°
7518 Lumen Output (Integrating Sphere)
High efficiency optical system
Noise Level
Theatre mode: 48.9 dBA
Auto mode: 49.8 dBA
Constant mode: 55.3 dBA
Control and Connections
Personalities: 3 modes with 16/34/33 control channels – Pixel Engine 30 and 40 channels
Wireless DMX system as standard (Wireless Solution)
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN/OUT
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Individual LED control for each parameter
White CT emulation 8000K to 2500K
Beam edge softening control (in wash mode)
Zoom Control:2 individual zooms 5 lenses each
Exclusive parallel beam consisting of an array of individually controllable-beams
RGBW color mixing system
Preprogrammed Shape macro pixel effects
16bit resolution with 5 different dimmer curves
Electronic strobe/stop from 1 to 25 f/sec
Pixel mapping control
Unique “Advanced Layer managing” selection (Just in Advanced mode)
Movement:
Tilt: 220° - 16bit
Fast/Normal speed selectable by Function channel
Mechanical Tilt lock for safe transportation and maintenance
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
Cloud/IO compatibility
Housing
Aluminum and steel structure with plastic parts
IP66 protection ra
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Fully compatible with Panify for volumetric projection
Electrical
Power Supply: Electronic auto range with active PFC
Max Power consumption: 800W
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2732 BTU/hr ±10% / 2880 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 0.2 meters (8”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T10A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 pos.)
Weight - Size
29.4 Kg (64.8 lbs)
244 x 1000 (base dimension) - 358mm with vertical head (h)
Distance between two fixture 1000mm
Accessories
Omega clamps x2: CA3024000102 (included)
Long bracket set: CA3039000102 (included)
ETL Power cord 1.5mt. (bare end with IP65 PowerConTrue1 connector): CAB02B-802 (included)
PowerConTrue1 connector: CON00O (optonal)
Floor bracket: CA3025000102 (optional)
Frost 2°: CA3026000102 (optional)
Frost 5°: CA3027000102 (optional)
Frost 10°: CA3028000102 (optional)
Frost: 20°: CA3029000102 (optional)
Frost: 10-60°: CA3030000102 (optional)
Foam shell: F21336-001 (optional)
Flight case (2 pos.): CF1021 (optional)
Safety Chain: 105041-801 (optional)
Clamp: C21070 (optional)
