Description
Tambora Linear 100:
400x RGB Background LED, 200x 3.7w High Output
White LED
100-240V, 50/60 Hz ETL IP20
Claypaky CL2019 Tambora Linear 100 LED Bar
Overview
Following on from its successful range of LED bars introduced last year, Claypaky has now expanded the Tambora family further and introduces Tambora Linear 100, an advanced line of static LED Pixel mapping bars designed for versatile lighting effects and artistic set decoration.
These are hybrid bars, which incorporate two complementary effects into one fixture. The first is driven by a system of 400 RGB pixel LEDs, which offer a background light very similar to that of a high definition LED wall in appearance. This LED array can be controlled as 16 LEDs in 25 groups to provide high quality motion graphics.
The second effect is created by a central line of 200 extremely powerful white LEDs for an overwhelming strobe effect, capable of reproducing the behavior of the most celebrated strobe fixtures on the market. This effect can also be controlled through 25 different areas, offering unparalleled versatility.

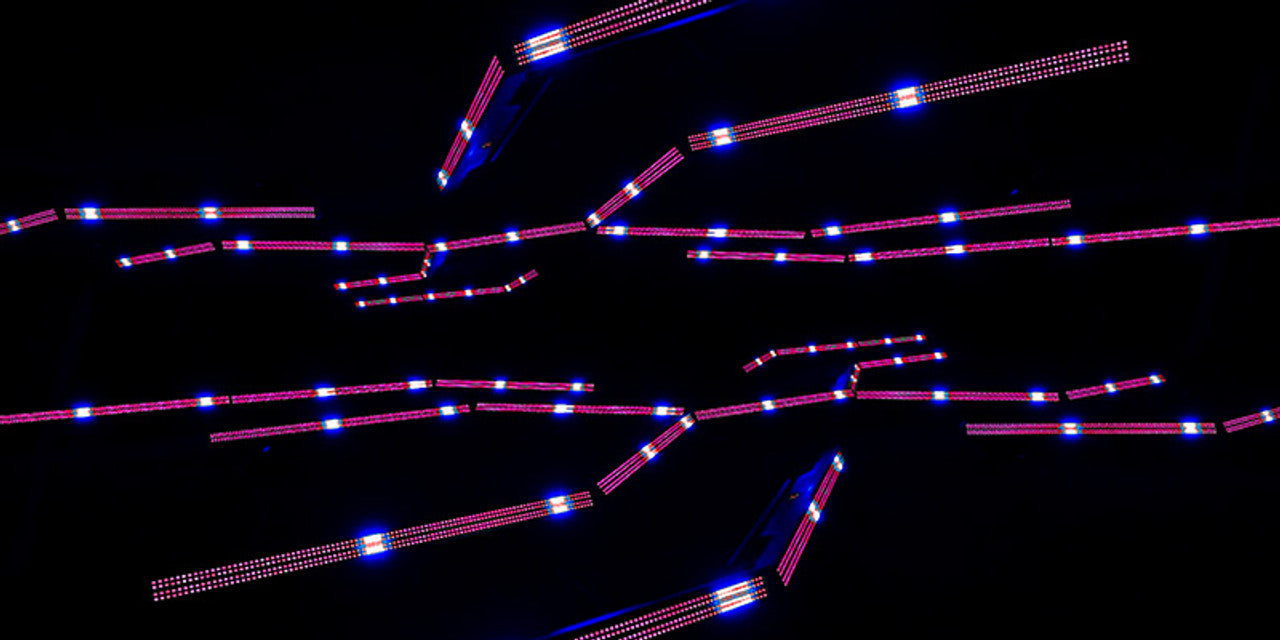

All graphic content can be managed through the Advanced Layers Management, an exclusive feature of Claypaky LED bars, with which you can choose to use different levels of effects simultaneously, giving free expression to your creativity.
Tambora Linear 100 features a large number of build-in effects, so it can be used not only in advanced mode but also in a simple mode for whenever a media server is not available, or the installation requires a speedy solution.
The Tambora Linear 100 can be easily connected mechanically with multiple units and then operated as one complete fixture from the control software. This is extremely easy and user friendly to use. For greater compositional modularity we also offer Tambora Linear 60, a compact model particularly suitable for applications in narrow environments.
Claypaky also offers a wide range of easy-to-apply accessory filters. These can shape the beam of light with a frost effect or increase the readability of the pixels with the “neutral density” filter, which is particularly useful for television applications and really enhances the on-camera performance.
Tambora Linear 100 is both sleek and lightweight and has been designed with a slim body, in order to better adapt to many applications. from TV studios to touring, where the need for pixel mapping light sets is increasingly in demand and appreciated. The “hybrid” nature of Tambora is perfect for this need and provides a two in one versatility. This is a truly distinctive product within each lighting set, at a truly competitive price.
Features
Light Source
400pcs 3-in-1 RGB LEDs and one line of strobe (200pcs white LEDs)
Light Output
9414 Lumen Output (Integrating Sphere)
Effects
400pcs 3-in-1 RGB leds, splitted into 25 areas; 200pcs white leds, splitted into 25 areas; Advanced Layer Management; White CT emulation 2800-8000K; RGB and Strobe Shape effect; Electronic linear dimmer, 24 bit and 5 curves; Electronic strobe/stop from 0.3 to 25 f/sec
Specifications
Light Source Type
400 RGB LEDs background and 200 white LEDs strobe
LED life expectancy: 50000Hrs L70*
*It may vary depending on various factors, as type of use and environment
Photometric Data
White strobe 120° of beam aperture
RGB LEDs 35°x63° @50% - 52°x65° @10%
9414 Lumen Output (Integrating Sphere)
Noise Level
Auto: 43.9 dBA
Sln: 26.2 dBA
Theatre: 26.2 dBA
Constant: 45.3 dBA
Control and Connections
5 Personalities: 9/13/31/33/39 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet ports: RJ45 IN/OUT
Power connectors: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
400pcs 3-in-1 RGB leds, splitter into 25 areas
200pcs white leds, splitted into 25 areas
Advanced Layer Management (Color – Internal Shape – Pixel Mapping - Strobe)
White CT emulation 2800-8000K
RGB and Strobe Shape effect
Electronic linear dimmer, 24 bit and 5 curves
Electronic strobe/stop from 0.3 to 25 f/sec
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic parts
One handle for transportation
IP20 protection rate
Built-in alignment fixture
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) + Long bracket
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 5(1) fixtures @ 200-240Vac (@ 100-120Vac) Max 2400W
Power Supply: Electronic auto range with active PFC
Max Power consumption: 440W
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 1503 BTU/hr ±10% / 1584 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 0.5 meters (1’ 8”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T10A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (4 positions)
Weight - Size
5.7Kg (10.4 lbs)
1000 x 740 x 172 mm (39.7" x 2.9" x 6.77")
