Description
Tambora Flash:
4x 100w RGBWarmWhite LED, 192x 3.7w High
Output White LED
100-240V, 50/60 Hz ETL IP66

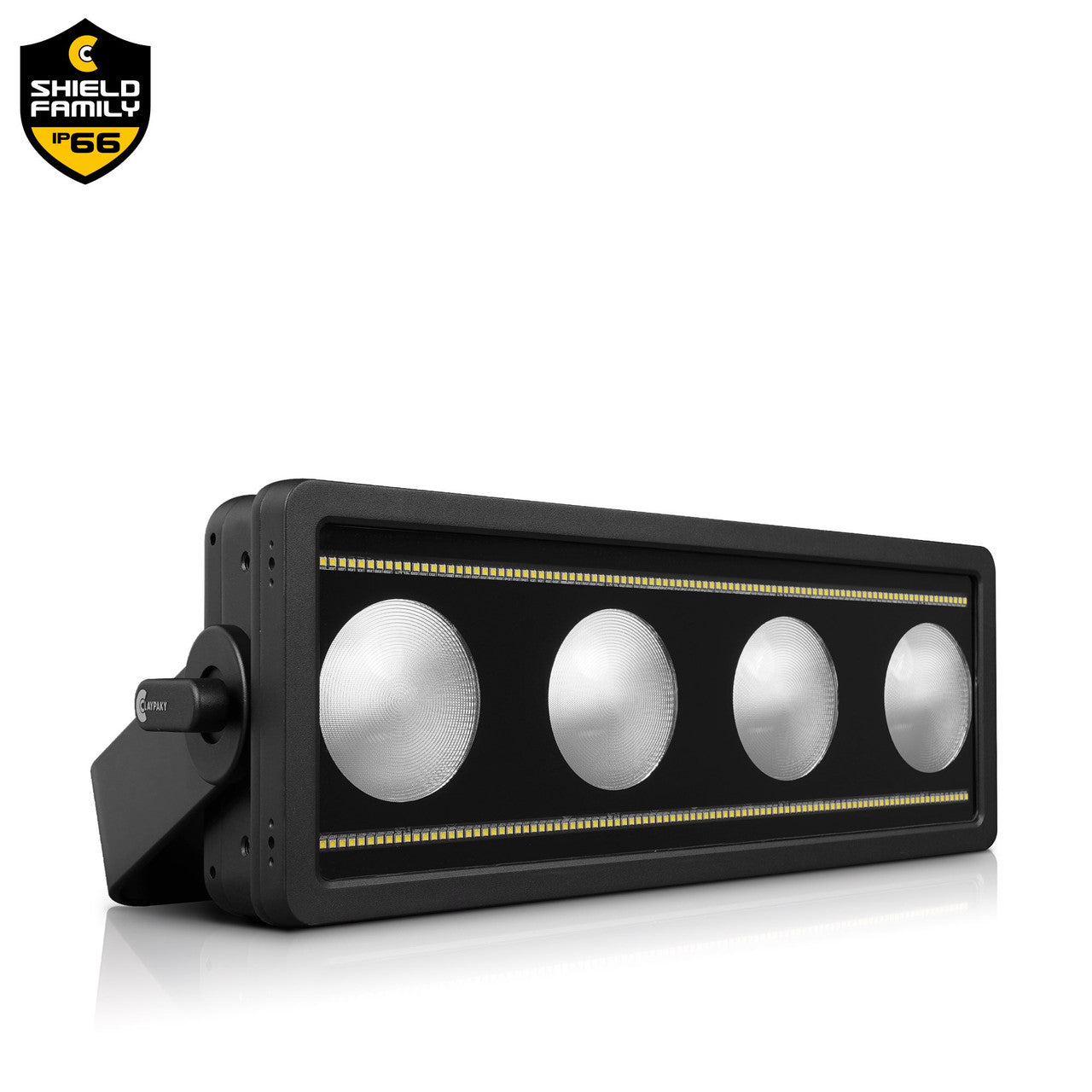

Claypaky CL2020 Tambora Flash Hybrid Fixture
Overview

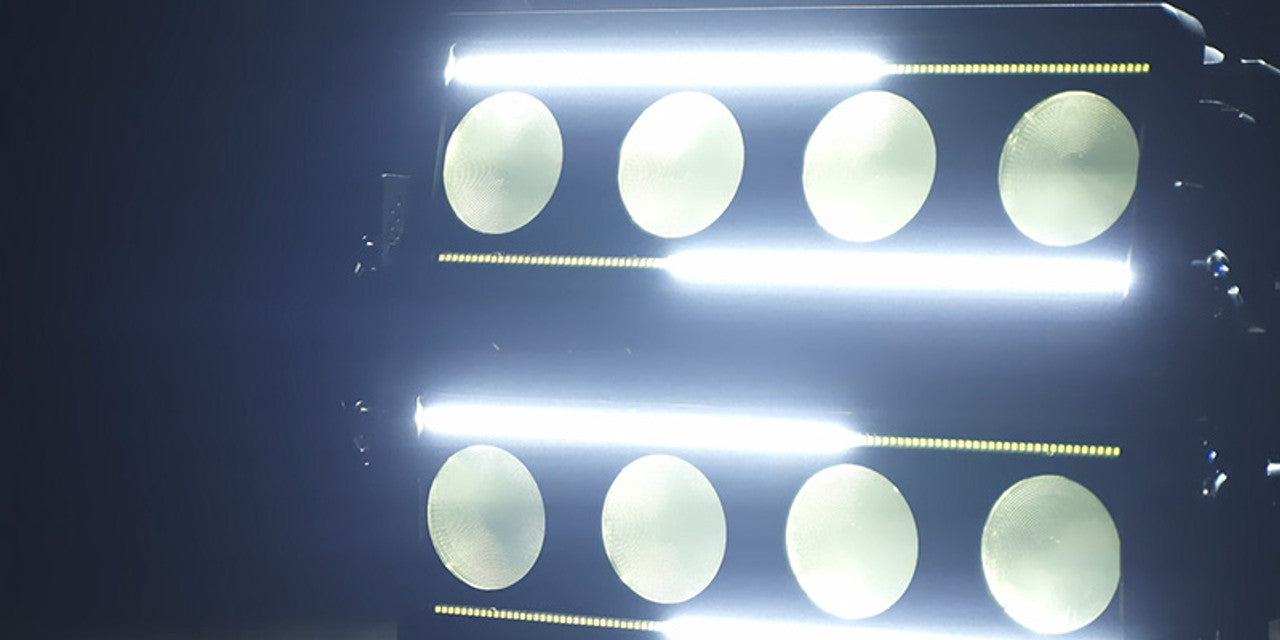

Tambora Flash is the only hybrid fixture on the market that can act simultaneously as a strobe, wash and blinder, specifically designed with a modular approach for use in a linear array, to offer new creative opportunities to lighting designers.
Following on from its successful range of LED bars introduced last year, Claypaky has now expanded the Tambora family further and introduces TAMBORA FLASH. It is the only hybrid fixture on the market that can act simultaneously as a strobe, wash and blinder, specifically designed with a modular approach for use in a linear array, to offer new creative opportunities to lighting designers.

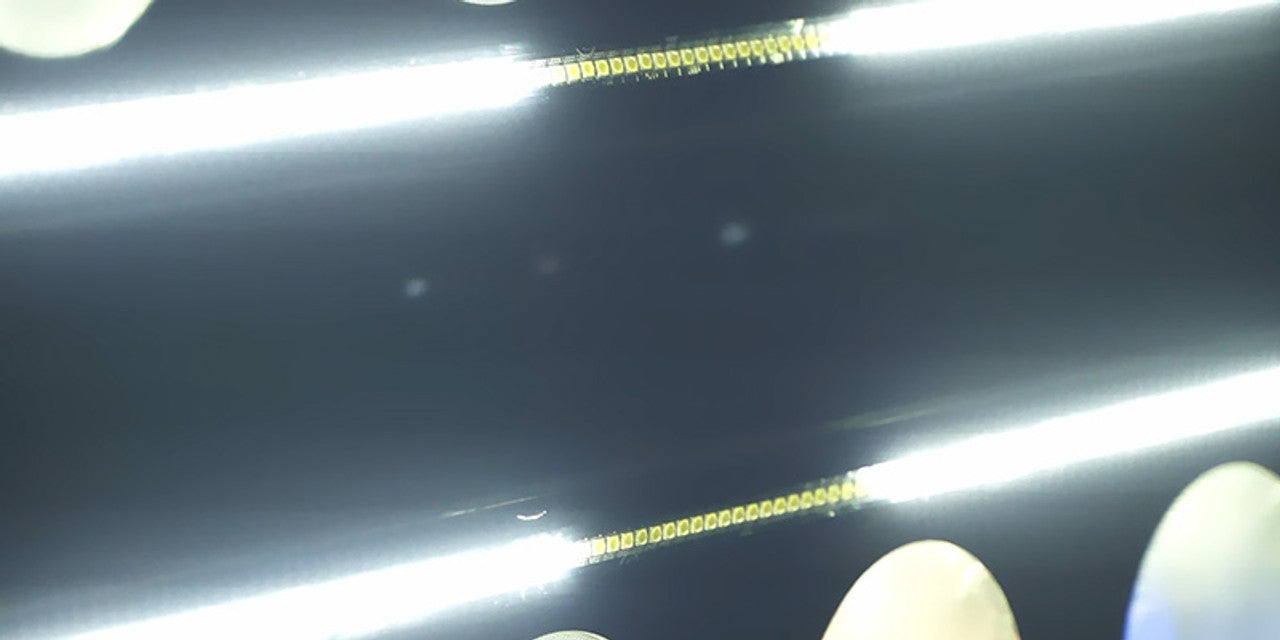

The strobe section is based on two strips of very powerful white LEDs and a large beam angle aperture, capable of bringing a real impact of light into the show.
The blinder and the wash functions are obtained thanks to 4 large central RGBWW LED reflectors of 100W each, individually controllable in each function through the Advanced Layers Management. The presence of Warm White LEDs allows the “warm” effect typical of blinders. However, the blinder effect can also be obtained by using colored LEDs, for a more dramatic effect than usual.
Both strobe and blinder effects are so visually striking that they can be perfectly appreciated in concerts and live events in broad daylight, even in bright sunlight!
Tambora Flash was conceived and developed with the idea of making several product units combinable horizontally and vertically, in order to obtain clusters that are conceptually like the line arrays of audio systems. Its core unit is suitable for smaller venues and this is contained in a modular design that can be quickly connected together to create larger units for use in big venues and stadiums.

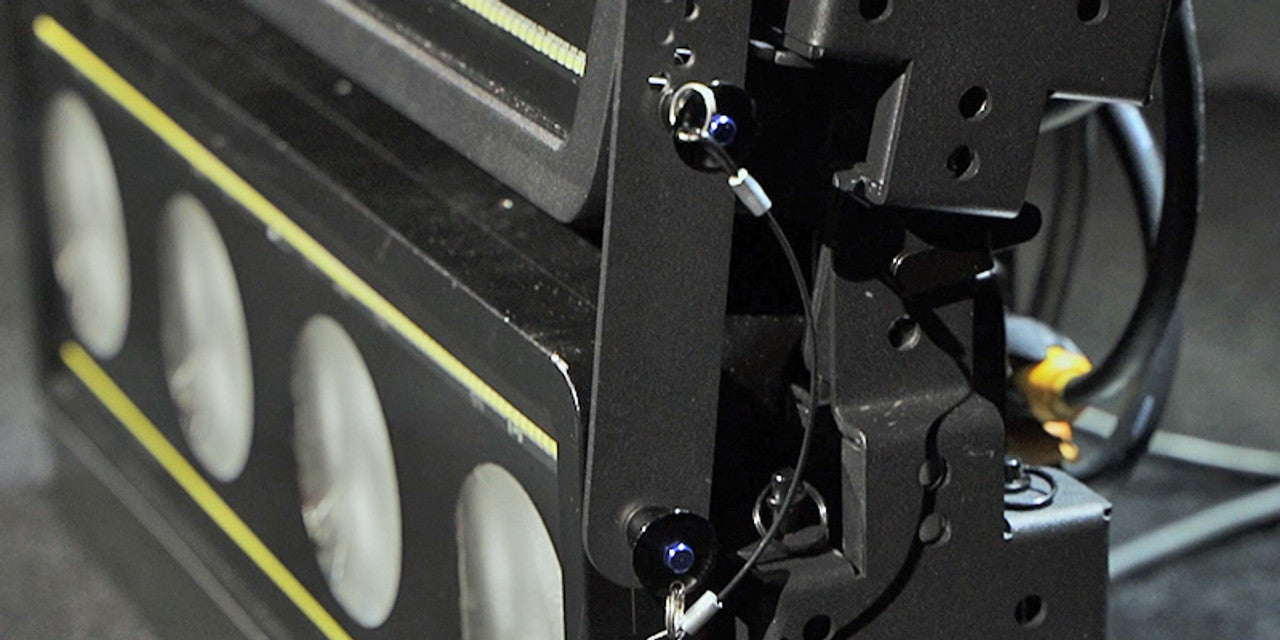

Claypaky Tambora Flashes offers two quick coupling modes and the adjustment of each single fixture within the cluster on a 30° angle, in order to adapt to every application.
The advanced mechanics and the ease of combining matrix products make Tambora Flash a truly versatile and fun to use system.
Tambora Flash offers an IP66 degree of protection, which guarantees its ideal use in outdoor applications.
Features
Light Source
4x 100W RBGWW LEDs and 2 lines of cold white strobe LEDs splitted into 16 areas (120° beam angles) 6000°K CCT
Light Output
8,458 lm (Integrating Sphere) @ full color
Zoom range
31° reflector
Effects
Advanced Layers Management; Electronic linear dimmer; Electronic strobe @25 f/sec; Pixel mapping and strobe split into 8 different areas per line (16 in total); Individual LED control of four central RGBWW LED with reflector; Pre-programmed shape selection of static and dynamic patterns, adjustable in color, speed, direction, fade, strobe.
Specifications
Light Source Type
4x 100W RBGWW LEDs with 31° reflector
2 lines cold white strobe LEDs splitted into 16 areas (120° beam angles) 6000°K CCT
LED life expectancy: 50000Hrs L70*
*It may vary depending on various factors, as type of use and environment
Photometric Data
4 RGBW LEDs 31°@50% - 45° @10% of beam angle aperture
8458 Lumen Output (Integrating Sphere) @ Full color
Noise Level
SLN mode: 36.7 dBA
Theatre mode: 36.7 dBA
Constant mode: 49.2 dBA
Auto mode: 49.3 dBA
Control and Connections
Personalities: Five different operating mode: 16/20/34/42/36
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
2 Ethernet ports: RJ45 IN/OUT
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Advanced Layers Management (Color – Internal Shape – Pixel Mapping + Strobe)
Electronic linear dimmer, 24 bit and 5 selectable curves
Electronic strobe @25 f/sec
Pixel mapping and strobe splitted into 8 different areas per line (16 in total)
Individual LED control of four central RGBWW LED with reflector
Pre-programmed shape selection of static and dynamic patterns, adjustable in color, speed, direction, fade, strobe
Red Shift
Strobe shape duration, speed, fade - rate from 0.3Hz to 25Hz
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum structure
IP66 protection rate
Working Position
Working in any position
Advanced mechanics for horizontal and vertical combination
Hanging system: with fast-lock omega clamp (1/4 turn)
Adjustable angle from 0° to 20°
Electrical
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 1(0) fixtures @ 200-240Vac (@ 100-120Vac)
Power Supply: Electronic auto range with active PFC
Max Power consumption: 1150VA @230Vac 50Hz
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 3928 BTU/hr ±10% / 4140 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 0.5 meters (1’ 8”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (4 position)
Weight - Size
5.7 Kg (12.5 lbs)
533 x 180 x 186 mm (19.68” x 7.08” x 5.03”)
