Description
Sharpy Plus:
330w Lamp, 8000k, 1500hrs
100-240V 50/60 Hz ETL IP20

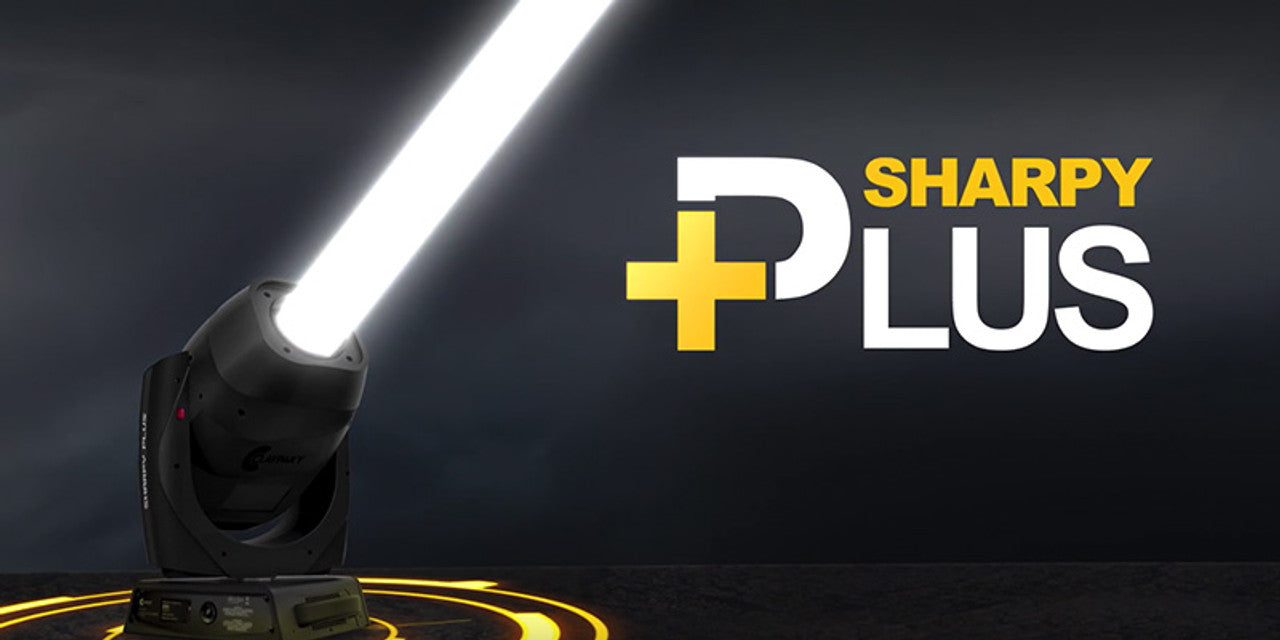

Claypaky CD3000 Sharpy Plus Moving Head Fixture
Overview
Sharpy Plus is the first true 100% HYBRID unit, able to be a perfect beam light and a perfect spotlight. It is suitable for every occasion, with an extraordinary luminous efficiency which ensures substantial savings through lower power consumption.
The Sharpy Plus fits a totally new, top-ranking-performance Osram Sirius HRI 330W X8 lamp and weighs only 23 kg (50.7 lbs). All its functions are extremely quick. Its body is slightly larger than the Sharpy’s, to house a high quality optical unit with a zoom that ranges from 3° to 36°. Its minimum beam angle of 3° makes it possible to generate the narrow parallel light beams essential for beam light mode. Its wide zoom range also allows large beam angles, which makes the Sharpy Plus a perfect spotlight for all purposes.
The Sharpy Plus has two independent operating modes. In BEAM mode, the aerial effects are enhanced by the way the Sirius lamp is made. It is capable of extraordinary power output (over 300,000 lux at 10mt distance), which the optical unit enhances through a marked hot spot. In SPOT mode, the light is diffused in a more even way which means visual effects can be projected with excellent uniformity.
Its 3° to 36° (1:9) zoom covers the entire range linearly, both in spot mode and in beam mode. This feature makes the Sharpy Plus unique on the market.
The Sharpy Plus has no match. With its wide range of effects and high light output, it beats all the lights in the same category and comes very close to those of higher wattages, but with a much more appealing price tag.
Features
Light Source
330W X8 HRI Sirius Osram arc lamp
Light Output
12000 lm
Zoom range
3°- 36°
Effects
CMY colour mixing; 15 colours on 3 wheels; 2 CTO filters; Rotating Gobo Wheel: 8 interchangeable glass gobos; Static Gobo Wheel: 18 static gobos; Rotating 4-facet prism; Rotating 8-facet prism; Animation Wheel; Linear soft edge frost filter; Dimmer and stop/strobe
Specifications
Light Source Type
330W X8 HRI Sirius Osram Arc Lamp
Colour Temperature: 8000K ±300
Lamp life expectancy: 1500 hrs
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 3°- 36°
12000 Lumen Output
Front lens diameter: 135mm
High efficiency optical system
Noise Level
Auto fan mode:49.0 dBA
Control and Connections
Personalities: Single mode with 31 control channels
Control Protocol: DMX, Art-Net, RDM, sACN.
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: Power Con True1 IN
Built In Web Server
Dynamic Effects
Colours:
Linear CMY colour mixing
5 colors on 3 wheels (2 CTO filters)
Gobos:
1 Static gobo wheel with 18 gobos, 6 beam reducers (down to 0.5°)
1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
Ext diam.15.9mm
Image diam. 12mm
Thickness 1.1mm
Frost:
Linear soft edge frost filter
Rotating Effects
Aluminum animation wheel with continuous rotation in both direction at variable speed
4 Facets prism with rotation in both direction at variable speed
8 Facets prism with rotation in both direction at variable speed
Movement:
Tilt: 270° - 16bit
Pan: 540° - 16bit
Accuracy: Resolution ± 0,28° (Range 0,56°)
Automatic repositioning
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance
Beam:
Motorized Zoom and Focus
Dimmer/Shutter:
High resolution Dimmer - 16 bit
High speed Shutter and Strobe
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
Max Power consumption: 540VA
Thermal Specification
Max ambient temperature 40°C (104°F)
Min ambient temperature -10°C (14°F).
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 1845 BTU/hr ±10% / 1944 kJ/hr ±10%
Safety Specs
Fuse T6.3A – 250V
Minimum distance of illuminated objects 8 meters (26’ 3”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE marking: In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
UKCA: conforms to UK legislation
cETLus Listed / cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)
Weight - Size
23.0 Kg (50.7 lbs)
307x375mm (base dimension) – 635mm with vertical head (h)
Distance between two fixtures 500mm
Accessories
Omega clamps: 2x183102/805 (included)
Power cord: CAB02B/802 (included)
Foam shell: F21312/001 (optional)
Flight case: CF1000 (optional)
Safety Chain: 105041/003 (optional)
Frost assembly 5°: 371081/802 (optional)
Linear Prism assembly: 371020/803 (optional)
