Description
Mini Xtylos (Foam Shell):
Custom RGB Laser Engine
100-240V, 50/60 Hz ETL IP20

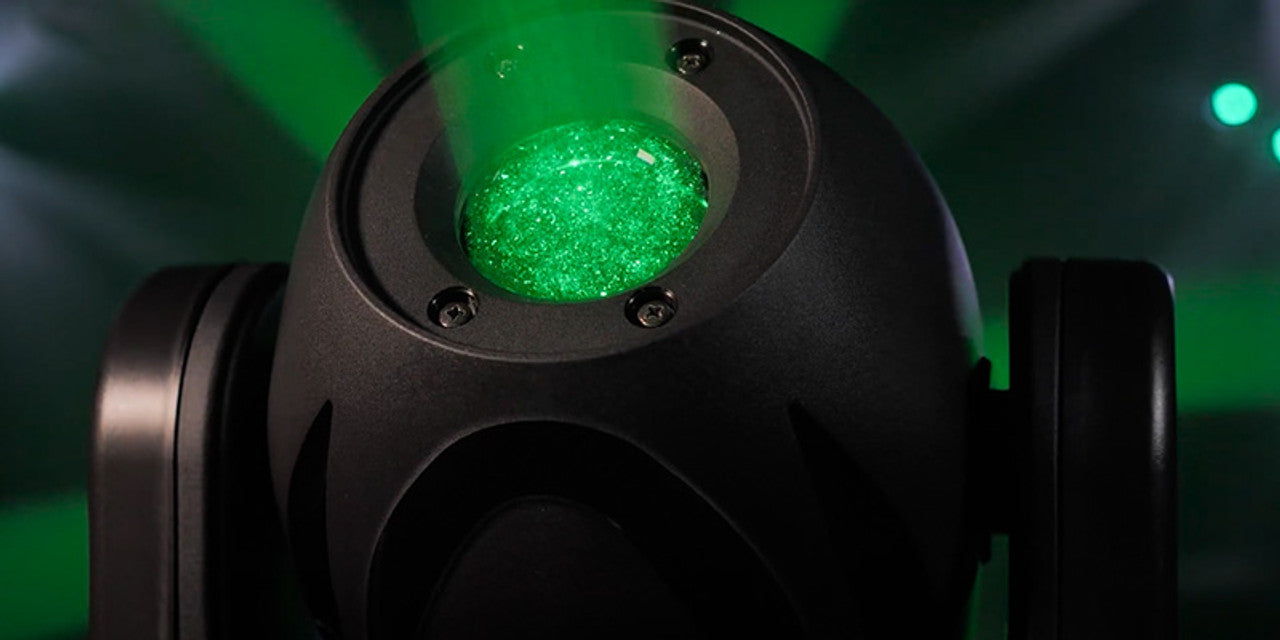

Claypaky CJ3003 Mini Xtylos Moving Head Fixture
Overview
Ever since the introduction of the Xtylos fixture, Claypaky has been focused on developing new, pioneering technologies that offer new ways to motivate designers to reach further to inspire audiences. The Mini Xtylos opens opportunities to bring this unique technology where smaller, energy efficient, yet powerful fixtures are required for small and large venues and events.
Features
Light Source
tailor-made RGB laser engine, enclosed in a sealed module
Light Output
Mini Xtylos HPE: 470 Lumen Output - Mini Xtylos: 292 Lumen Output
Zoom range
1° to 4°
Effects
RGB additive color mixing; Linear virtual CTO (3000K to 9000K); Medium frost on rotating prism wheel; Linear prism 6 facets; Circular multi-facet prism (16 facets); Pan: Endless rotation - 16bit; Motorized Zoom and Focus; High resolution electronic Dimmer - 24 bit; High speed electronic Shutter and Strobe
Specifications
Light Source Type
Tailor-made RGB laser engine, enclosed in a sealed module
Long lasting light source (20000 hrs) with minimal decay
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 1° to 4°
470 Lumen Output (Integrating Sphere)
Front lens diameter: 60mm
High efficiency optical system
Noise Level
Standard mode (Dimmer @ 100%): 45.0 dBA
Control and Connections
Personalities: Single mode with 27 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Colours:
RGB additive color mixing
Linear virtual CTO (3000K to 9000K color temperature control)
Gobos:
1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos Rotating gobo dimensions: Ext diam. 19 mm Image diam. 14.5 mm Thickness 1.1mm
1 Static Gobo Wheel with 18 gobos
Frost:
Medium frost on rotating prism wheel
Movement:
Pan: Endless rotation - 16bit
Tilt: 265° - 16bit
Accuracy: Resolution ± 0.30° (Range 0.60°)
Automatic repositioning
Fast/Normal speed selectable by Function channel
Beam:
Motorized Zoom and Focus
Dimmer/Shutter:
High speed electronic Shutter and Strobe
High resolution dimmer - 24 bit
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation (optional)
IP20 protection rate
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range
Max Power consumption: 80VA
Thermal Specification
Min ambient temperature -10°C (14°F).
Max ambient temperature 40°C (104°F).
Max temperature of the external surface 50°C (122°F)
Total heat dissipation: 273 BTU/hr ±10% / 288 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 4 meters (13’ 1”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE marking: In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
UKCA: conforms to UK legislation
cETLus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (6 position)
Weight - Size
9 Kg (19.8 lbs)
170x244mm (base dimension) – 415mm with vertical head (h)
Accessories
Omega clamps: ………………2x 183102/805 (included)
Power cord: ……………………CAB0K1/802 (included)
Foam shell (6 position): ……...F21328/001 (optional)
Flight case: ……………………CF1014 (optional)
Safety Chain: ………………….105041/001 (optional)
Two side handless: …………. CA3001000100 (optional)
