Description
Mini-B WW:
7x 40w RGBWarmWhite LED
100-240V 50/60 Hz ETL IP20 *On Demand*
Claypaky CL3020 Mini-B WW Moving Head Fixture
Overview

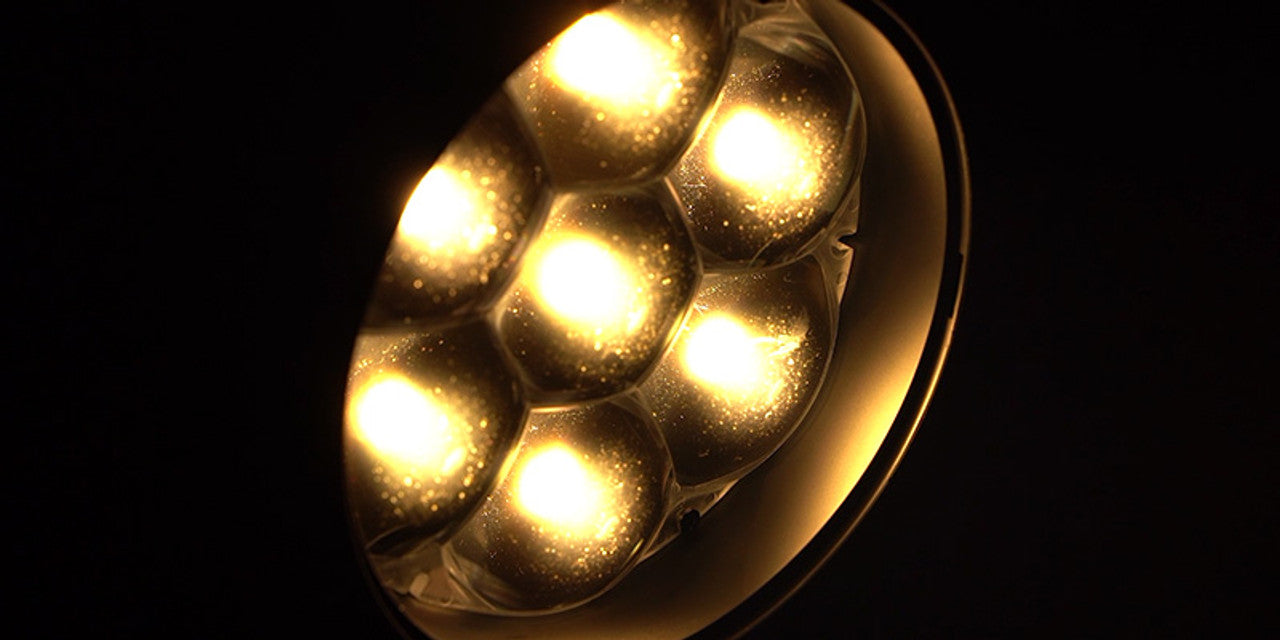

Following the success of the Mini-B Series, Claypaky has added lights equipped with Warm White RGB LEDs to its range. The power is the same as the original models but they have a natural colour temperature of 3200K. MINI-B WWs are bright, lightweight and compact, and are just right when warm colour tones and the possibility of enhancing the complexion of the artists on stage are crucial factors in the lighting designer’s choice of units.
Features
Light Source

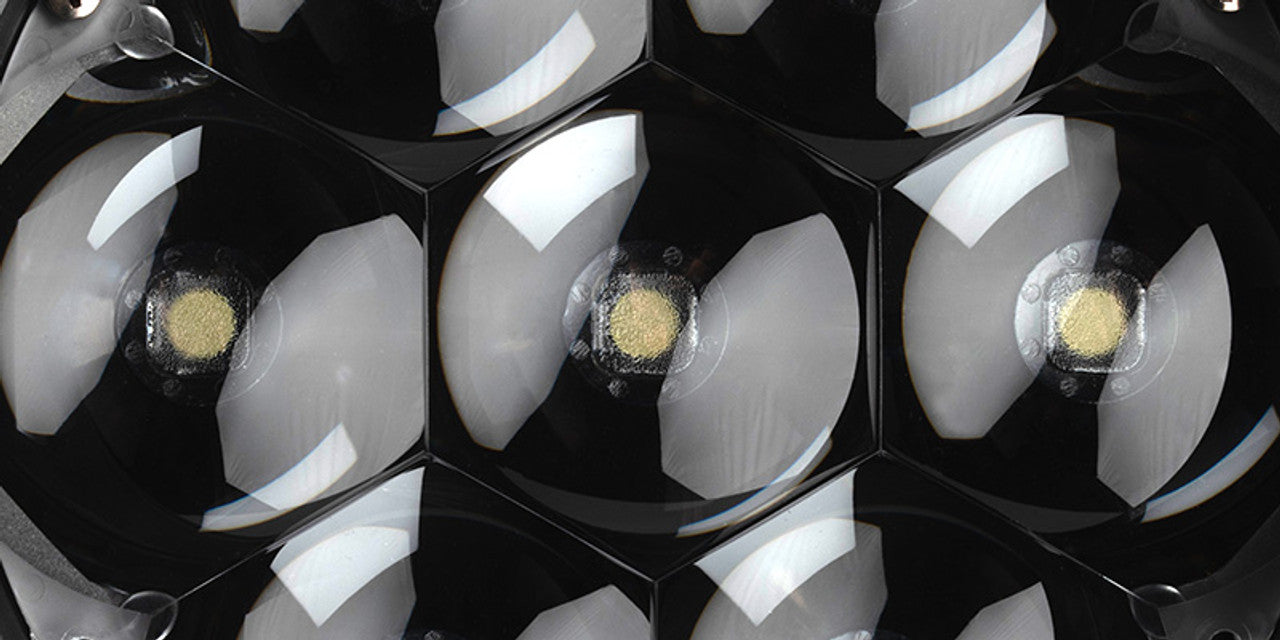

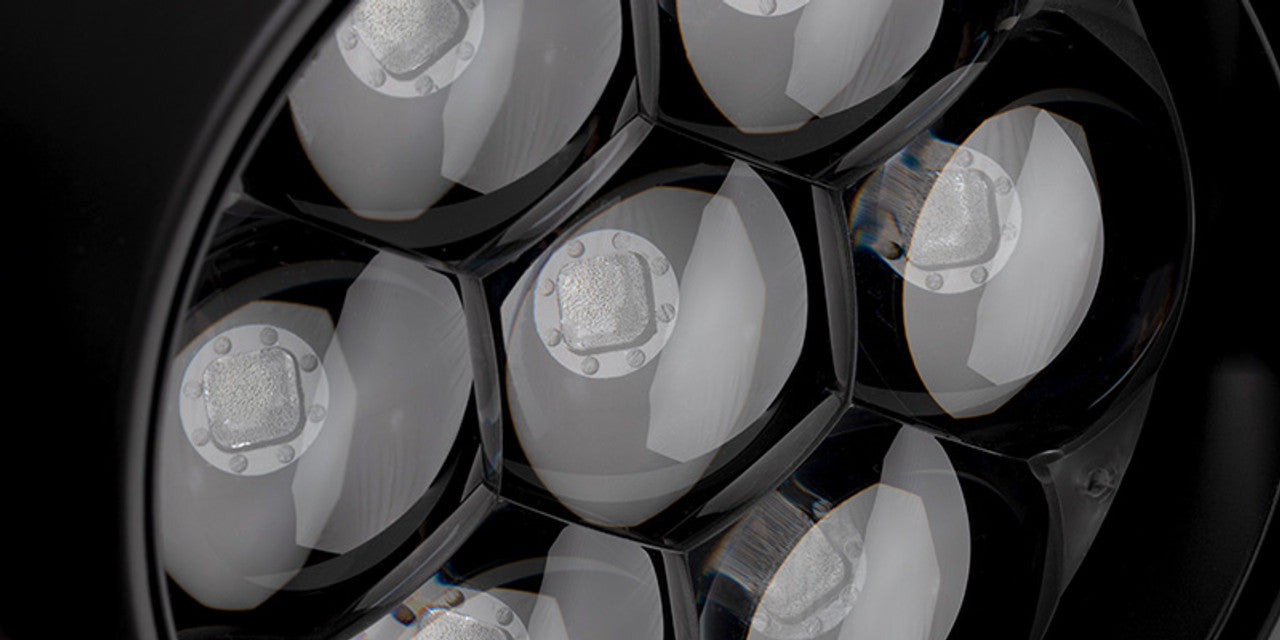

7 x 40W RGBW Osram Ostar LEDs
Light Output
3,420 lm
Zoom range
4°- 55°
Effects
RGB+W (or RGB+WW) color mixing, 16bit; Linear CTO 2500K to 8000K (RGBW version), 16bit; Linear CTB, 6500K to 2500K (RGBWW version); Preset macro colors; Motorized Zoom; High resolution electronic Dimmer - 24 bit, 5 curves; High speed electronic Strobe
Specifications
Light Source Type
7x Osram 40W RGBW LEDs
LED life expectancy: 50000Hrs (20000 L70*)
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 4°- 55°
3420 Lumen Output
Front lens assembly diameter: 140mm
High efficiency optical system
Noise Level
Constant fan mode: 45.9 dBA
AUTO fan mode: 43.2 dBA
Theatre fan mode: 40.2 dBA
SLN fan mode: 35.7 dBA
Control and Connection
Personalities: three modes with 17/21/29 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Colours:
RGB+W colour mixing 16bit
Linear 16bit CTO 2500K to 8000K
Preset macro colors
Movement:
Tilt: 260° - 16bit
Pan: 540° - 16bit
Automatic repositioning
Fast/Normal/Boost speed selectable by Function channel
Beam:
Motorized Zoom
Dimmer/Shutter:
High resolution electronic Dimmer - 24 bit, 5 curves
High speed electronic Strobe
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 6(2) fixtures @ 200-240Vac (@ 100-120Vac)
Power Supply: Electronic auto range with active PFC
Max Power consumption: 375VA
Thermal Specification
Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 956.5 BTU/hr ±10% / 1008 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 0.2 meters (8”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T6.3A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE marking: In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
UKCA: conforms to UK legislation
cETLus Listed / cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (8 position)
Weight - Size
6.5 Kg (14.5 lbs)
186x220mm (base dimension) – 346mm with vertical head (h)
Distance between two fixtures 340mm
Accessories
Power cord: CAB02B-802 (included)
Omega clamp: 1x 381014-801 (included)
Two side handless: CA3001000100 (optional)
Egg crate: CA3002000100 (optional)
Igloo Fast Fit bracket: CA3004000100 (optional)
Frost Filter 2°: CA3008000100 (optional)
Frost Filter 5°: CA3009000100 (optional)
Foam shell: F21316-001 (optional)
Flight case: CF1003 (optional)
Safety Chain: 105015-802 (optional)
Clamp: C21070 (optional)
PowerCon True1 connector: CON00O (optional)
