Description
Mini-B ParLED Aqua WW:
7x 40w RGBWarmWhite LED
100-240V, 50/60 Hz ETL IP66 *On Demand*
Claypaky CL2017 Mini-B ParLED Aqua WW LED Par Light Fixture
Overview
Following the success of the Mini-B Series, Claypaky has added models equipped with Warm White RGB LEDs to its range. The power is the same as the original models but they have a natural colour temperature of 3200K. Mini-B Parled Aqua WW are bright, lightweight and compact, and are just right when warm colour tones and the possibility of enhancing the complexion of the artists on stage are crucial factors in the lighting designer’s choice of units.
Features

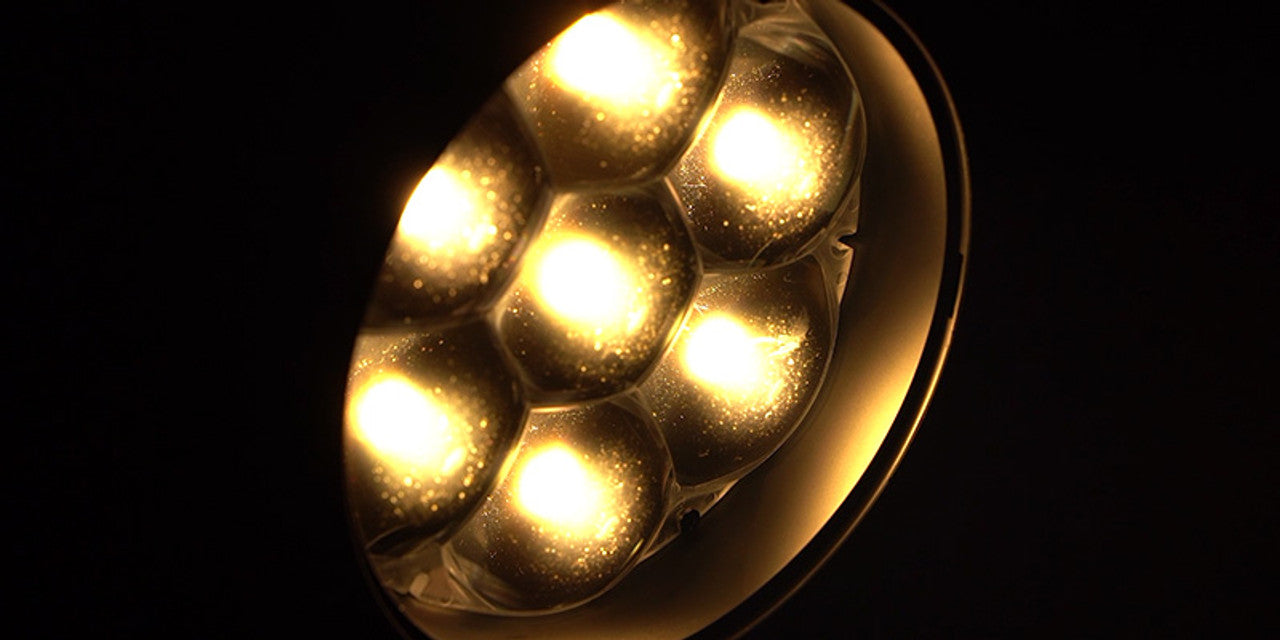

Light Source
7 x RGBW or RGBWW Osram LEDs
Light Output
3400 Lumen Output
Zoom range
4°- 53°
Effects
RGBW (or RGBWW) colour mixing 16bit; Linear CTO, 2500K to 8000K (RGBW version); Linear CTB 6500K to 2500K (RGBWW version); Preset macro colors; Motorized Zoom; High resolution electronic Dimmer - 24 bit; High speed electronic Strobe
Specifications
Light Source Type
7x Osram 40W RGBW LEDs (Mini B PARLED Aqua)
7x Osram 40W RGB+WW LEDs (Mini B PARLED Aqua WW)
LED life expectancy: 50000hrs (20000Hrs L70*)
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 4°- 53°
3400 Lumen Output (Integrating Sphere)
Front lens diameter: 160mm
High efficiency optical system
Noise Level
SLN mode: 36.4 dBA
Auto mode: 44.5 dBA
Constant mode: 47.9 dBA
Control and Connections
Personalities: Four different operating modes, 13/17/17 or 25 DMX control channel
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Colors:
colour mixing 16bit
RGBW (Mini B PARLED Aqua)
RGBWW (Mini B PARLED Aqua WW)
Linear CTO, 2700K to 8000K (Mini B PARLED Aqua)
Linear CTB 6500K to 2500 (Mini B PARLED Aqua WW)
Preset macro color
Beam:
Motorized Zoom
Dimmer/Shutter:
High resolution electronic Dimmer - 24 bit
High speed electronic Strobe
Hardware and Software
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure
Two built in brackets designed to stand on the floor
IP66 protection rate
IK08 impact energy
Working Position
Working in any position
Hanging system: built in brackets
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 9(4) fixtures @ 200-240Vac (@ 100-120Vac)
Power Supply: Electronic auto range with active PFC
Max Power consumption: 300VA
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 957 BTU/hr ±10% / 1008 kJ/hr ±10%
Safety
Minimum distance of illuminated objects 0.2 meters (8”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed
Packaging
Carton box + Polystyrene
Flight case + Foam shell (8 positions)
Weight - Size
7.4 Kg (16.3 lbs)
281mm x 345mm x 367mm
Distance between two fixtures 400mm
Accessories
Foam shell: F21320/001 (optional)
Flight case: CF1009 (optional)
Power cord: CAB0L1/802 (included)
Safety Chain: 105041/001 (optional)
