Description
Mini-B:
7x 40w RGBW LED
100-240V 50/60 Hz ETL IP20
Claypaky CL3005 Mini-B Moving Head Fixture
Overview
Mini-B is the smallest LED moving light ever made by Claypaky for the professional market. Although it weighs just 7 Kg and measures only 34 cm, Mini-B features the most advanced, modern optical and electronic technology. The light source is based on 40 Watt Osram RGBW LEDs, the same ones fitted in the new Claypaky HY B-EYE.
Mini-B features a wide zoom, ranging from 4° to 55° that makes this little luminaire extremely versatile. At the narrow angle, the beam produced is very solid and concentrated, superb for aerial effects. At full aperture, the Mini-B becomes an excellent wash light and it can replace much heavier and bulkier equipment, on stages, in TV studios, at multi-purpose venues and at clubs.
The Mini-B’s central LED may be controlled separately from the external ring of LEDs, making it ideal for graphic lighting effects too. More than fifty pre-installed effects/color macros, 2500K-8000K color temperature control, a 24 bit dimmer with five curves, an electronic strobe @ 25 f/sec, and Ethernet access complete this highly professional tool.
Features
Light Source

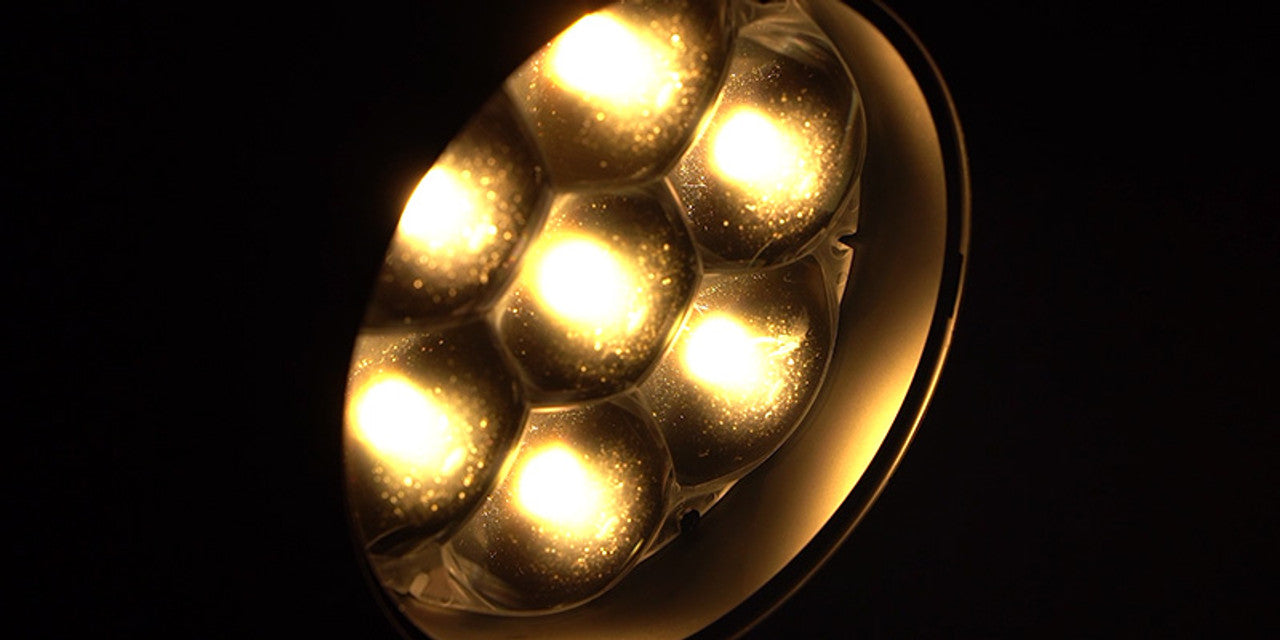

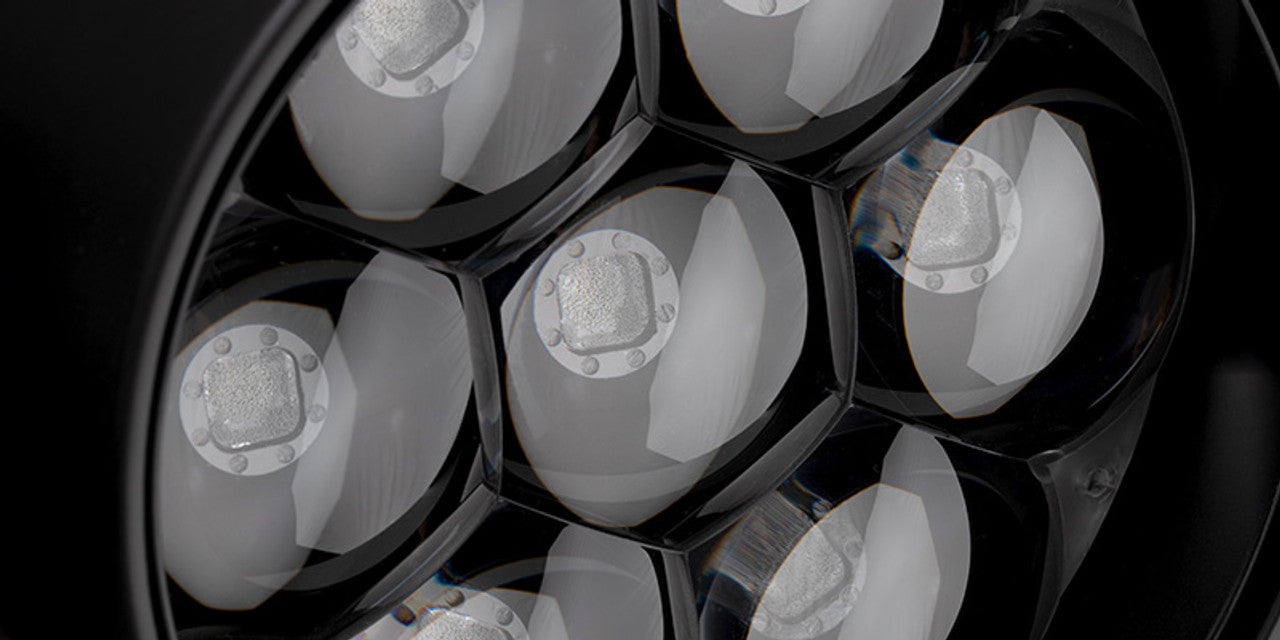

7 x 40W RGBW Osram Ostar LEDs
Light Output
3,420 lm
Zoom range
4°- 55°
Effects
RGB+W (or RGB+WW) color mixing, 16bit; Linear CTO 2500K to 8000K (RGBW version), 16bit; Linear CTB, 6500K to 2500K (RGBWW version); Preset macro colors; Motorized Zoom; High resolution electronic Dimmer - 24 bit, 5 curves; High speed electronic Strobe
Specifications
Light Source Type
7x Osram 40W RGBW LEDs
LED life expectancy: 50000Hrs (20000 L70*)
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 4°- 55°
3420 Lumen Output
Front lens assembly diameter: 140mm
High efficiency optical system
Noise Level
Constant fan mode: 45.9 dBA
AUTO fan mode: 43.2 dBA
Theatre fan mode: 40.2 dBA
SLN fan mode: 35.7 dBA
Control and Connections
Personalities: three modes with 17/21/29 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Colours:
RGB+W colour mixing 16bit
Linear 16bit CTO 2500K to 8000K
Preset macro colors
Movement:
Tilt: 260° - 16bit
Pan: 540° - 16bit
Automatic repositioning
Fast/Normal/Boost speed selectable by Function channel
Beam:
Motorized Zoom
Dimmer/Shutter:
High resolution electronic Dimmer - 24 bit, 5 curves
High speed electronic Strobe
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 6(2) fixtures @ 200-240Vac (@ 100-120Vac)
Power Supply: Electronic auto range with active PFC
Max Power consumption: 375VA
Thermal Specification
Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 956.5 BTU/hr ±10% / 1008 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 0.2 meters (8”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T6.3A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
CE marking: In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
UKCA: conforms to UK legislation
cETLus Listed / cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (8 position)
Weight - Size
6.5 Kg (14.5 lbs)
186x220mm (base dimension) – 346mm with vertical head (h)
Distance between two fixtures 340mm
Accessories
Power cord: CAB02B-802 (included)
Omega clamp: 1x 381014-801 (included)
Two side handless: CA3001000100 (optional)
Egg crate: CA3002000100 (optional)
Igloo Fast Fit bracket: CA3004000100 (optional)
Frost Filter 2°: CA3008000100 (optional)
Frost Filter 5°: CA3009000100 (optional)
Foam shell: F21316-001 (optional)
Flight case: CF1003 (optional)
Safety Chain: 105015-802 (optional)
Clamp: C21070 (optional)
PowerCon True1 connector: CON00O (optional)
