Description
Midi-B:
19x 40w RGBW LED
100-240V 50/60 Hz ETL IP20
Claypaky CL3011 Midi-B Moving Head Luminaire
Overview
MIDI-B is a new LED-based moving head luminaire with 19 Osram 40-Watt RGBW LEDs, the same ones used in the popular HY B-EYE and MINI-B fixtures. Its zoom range of 4° to 50° allows for a wide variety of applications.
Fixtures in this class are in high demand because they meet many needs, from the smallest venue to the largest show. With so many choices available, this category of fixture lends to highly competitive prices but also lowest common-denominator performance. This makes it difficult for customers to decide which fixture to choose without sacrificing performance.
Claypaky’s MIDI-B clearly addresses these needs thanks to its amazing cost/performance ratio. The MIDI-B is a new LED-based moving head luminaire with 19 Osram 40-Watt RGBW LEDs, the same ones used in the popular HY B-EYE and MINI-B fixtures. Its zoom range of 4° to 50° allows for a wide variety of applications. At the narrowest angle, the beam produced is ultra-dense and concentrated, ideal for aerial effects. At its widest zoom, the MIDI-B turns into an exceptional, uniform wash light and can replace much heavier and bulkier fixtures.The 19 LEDs are arranged in three independently controllable rings, which can be used for bright back lighting effects. Colour macros, 2500K to 8000K colour temperature control range, 16-bit dimmer with four curves, 25 flashes per second electronic strobe, Ethernet access complete the MIDI-B’s features.
Features
Light Source
19 RGBW (or RGBWW) Osram Ostar LEDs
Light Output
1900 lumen each LED
Zoom range
4°- 50°
Effects
Linear RGBW or RGBWW; Linear CTO 2500K to 8000K (RGBW version); Linear CTB 6500K to 2500K (RGBWW version); Preset Macro colors; Three independently controlled LED rings; Motorized Zoom; High resolution electronic Dimmer - 24 bit (5 curves); High speed electronic Strobe
Specifications
Light Source Type
19x Osram 40W RGBW LEDs.
1900 lumen each LED
LED life expectancy: 50000Hrs ( 20000Hrs L70* )
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 4°- 50°
11401 Lumen Output (Integrating Sphere)

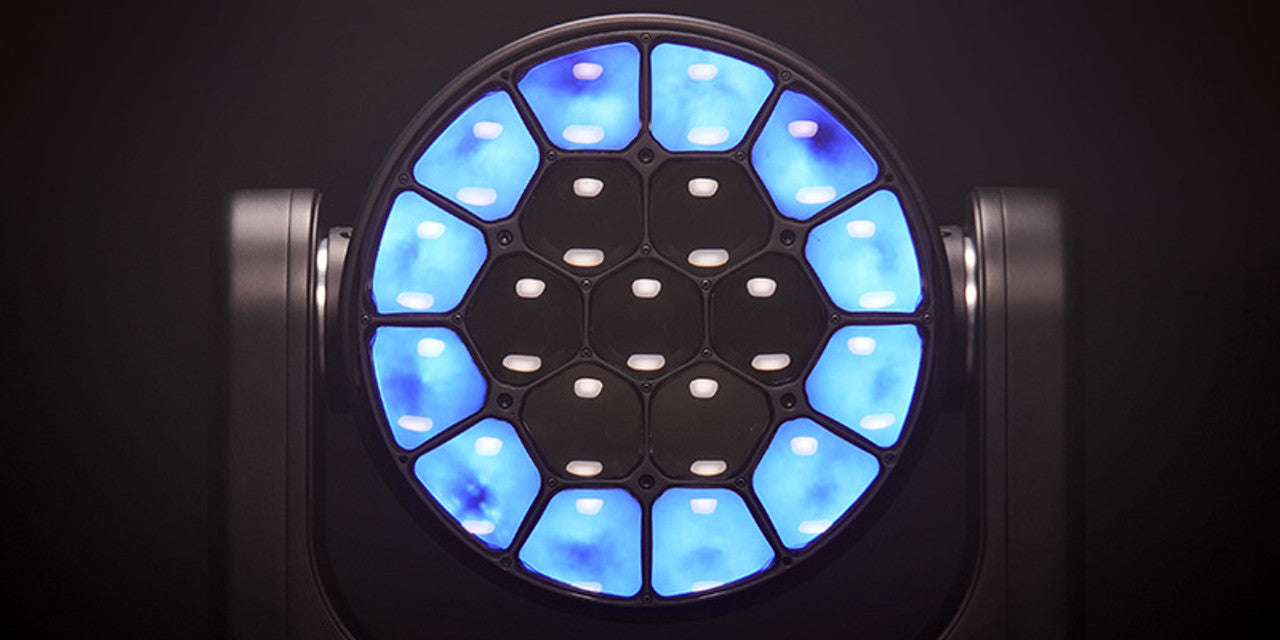

High efficiency optical system
Noise Level
Theatre Fan mode: 34.5 dBA
SLN Fan Mode: 35.2dBA
Auto Fan Mode: 39.2 dBA
Constant Fan mode: 41.2 dBA
Control and Connections
Personalities: 4 modes with 17/21/25/37 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN
Built In Web Server
Dynamic Effects
Colors:
Linear RGBW
Linear CTO (2500K to 8000K color temperature control)
Preset Macro colors

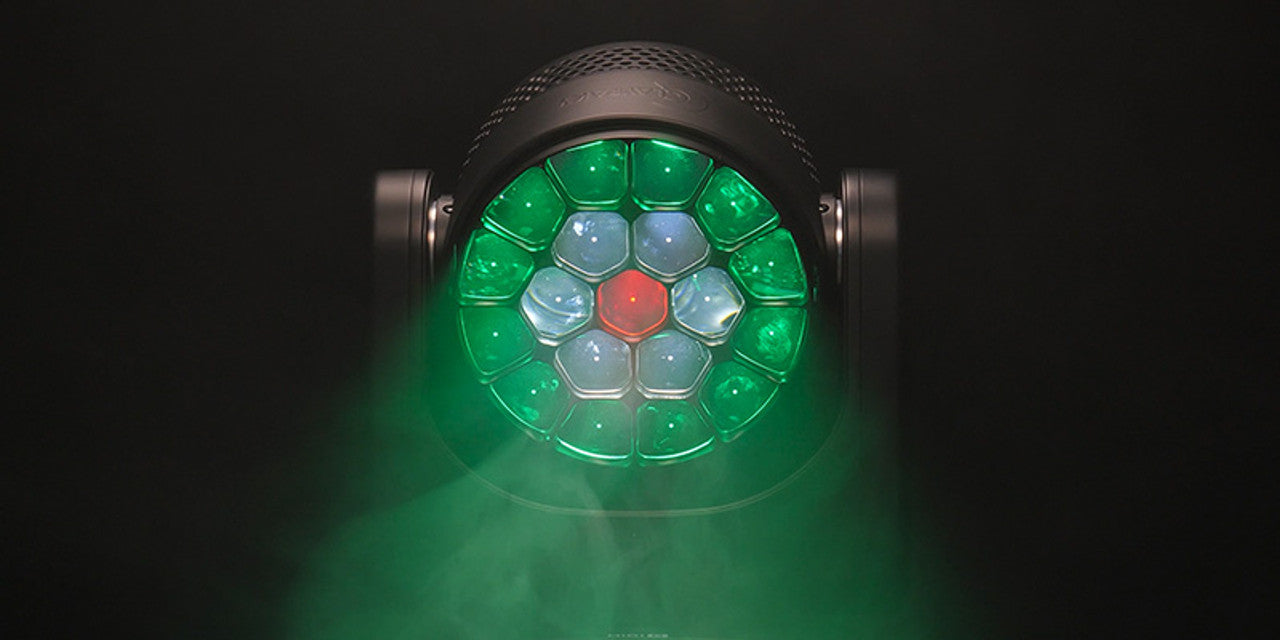

Three independently controlled LED rings
Movement:
Tilt: 270° - 16bit
Pan: 540° - 16bit
Automatic repositioning
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance
Beam:

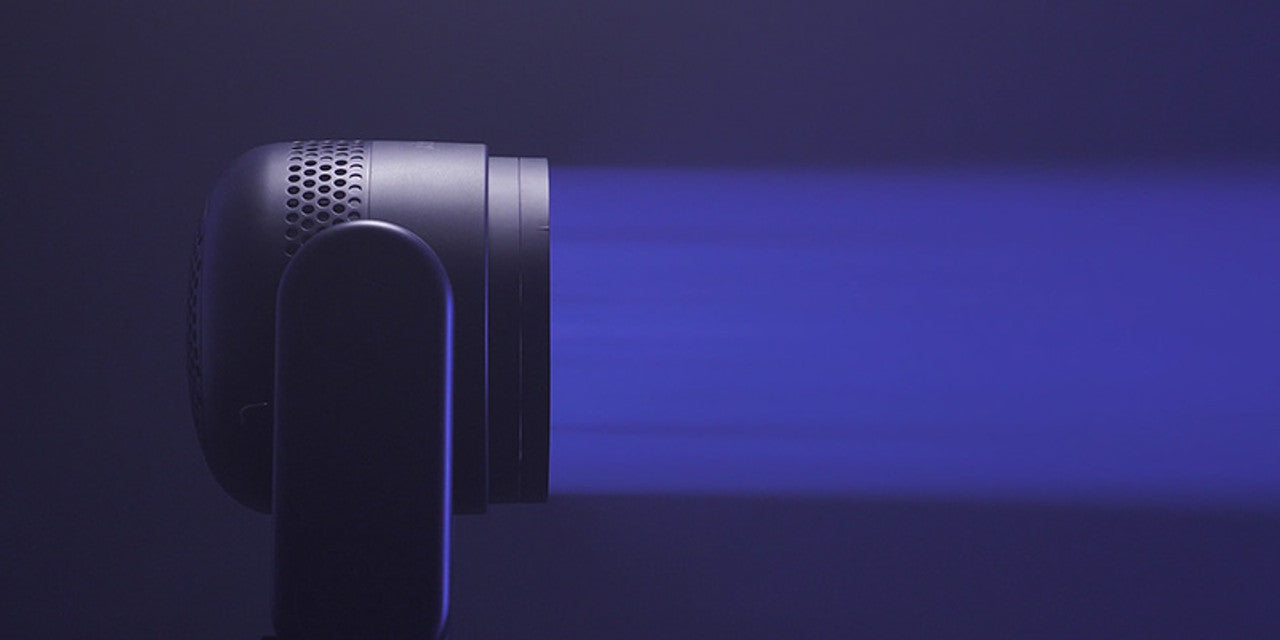

Motorized Zoom
Automatic repositioning when DMX is disconnected
Dimmer/Shutter:

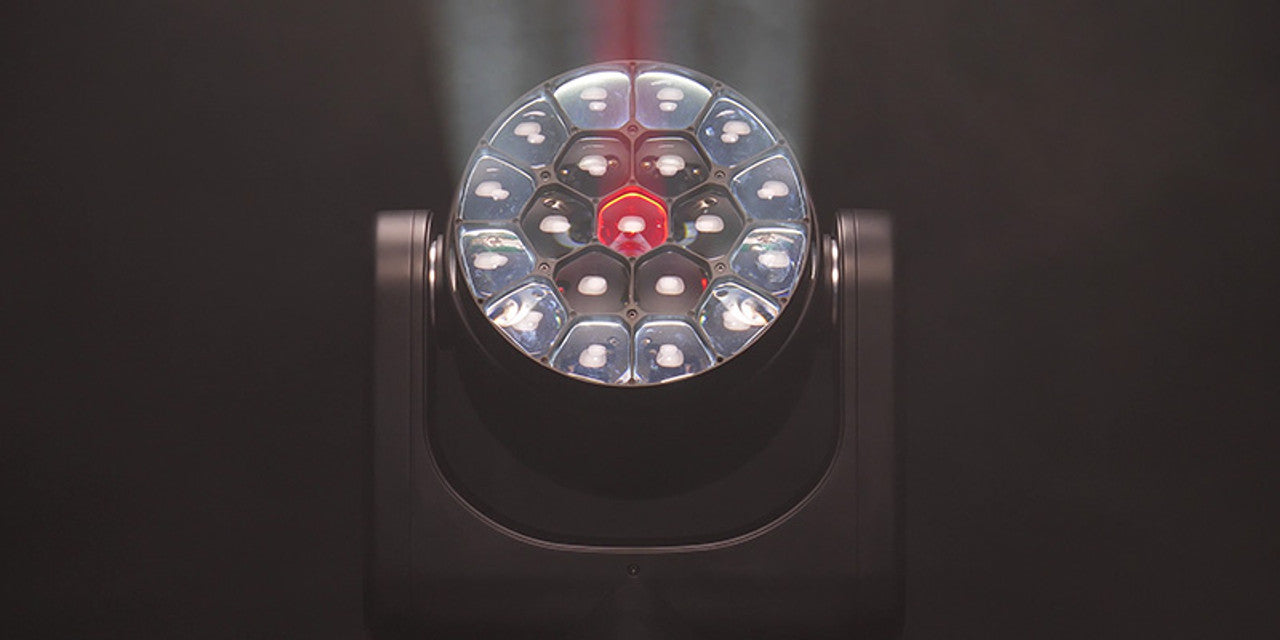

High resolution electronic Dimmer - 24 bit (5 curves)
High speed electronic Strobe
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
Max Power consumption: 830VA
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%
Safety Specs
In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed
Compliance
CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (4 positions)
Weight - Size
17 Kg (37.5 lbs)
252x390mm (base dimension) – 471mm with vertical head (h)
Distance between two fixtures 500mm
Accessories
Omega clamps: 2x183102/805 (included)
Power cord: CAB03D/802 (included)
Foam shell: F21321/001 (optional)
Flight case: F21321 (optional)
Safety Chain: 105041/003 (optional)
