Description
K-Eye K10 HCR (Foam Shell):
19x 15w RGBACL LED
100-240V 50/60 Hz ETL IP20
Claypaky C61440 K-Eye K10 HCR LED Wash Light
Overview

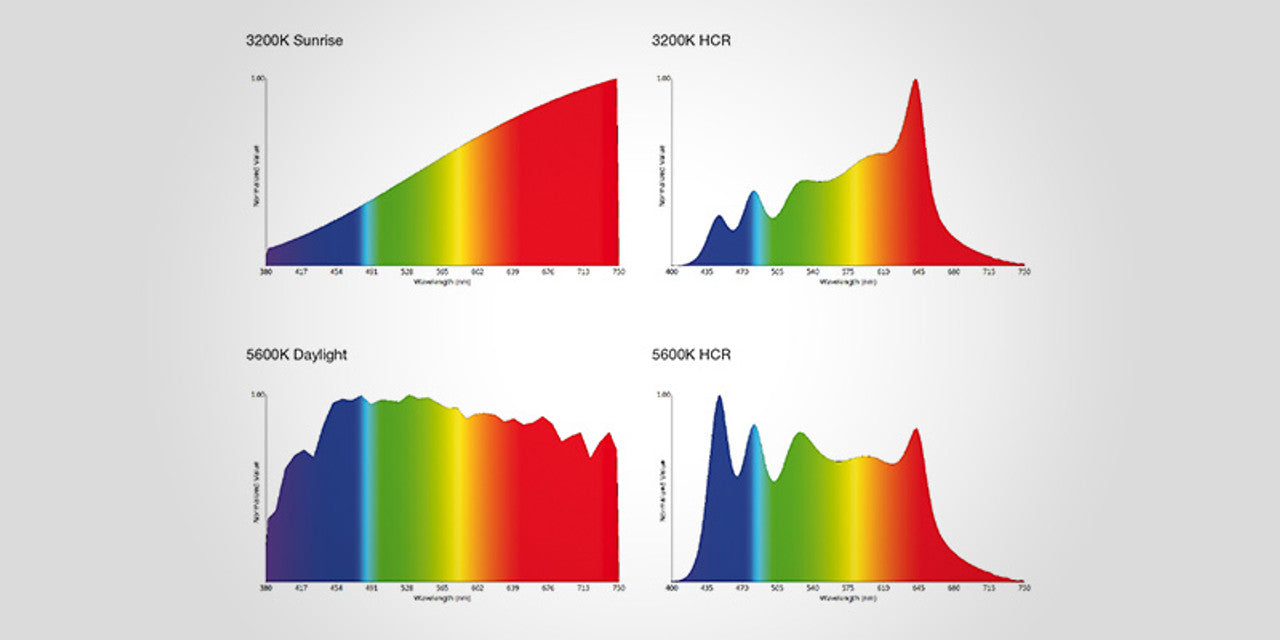

K-EYE HCR is an LEDwash light which provides total control over the quality of all forms of white or colored light. The new HCR technology used in the K-EYE is an exclusive electronic platform developed by Claypaky in conjunction with Osram to meet the needs of lighting designers all over the world who were not fully satisfied with the performance of LED devices in comparison with traditional lamps, in particular because of their incomplete color range, poor color rendering index and lack of consistency.
All these limitations have been overcome in the K-EYE HCR, and it is finally possible to produce every color, every nuance and every shade with satisfactory quality. The heart of the K-EYE HCR wash light is a LED light source consisting of a module with six chips, each for a different color: besides the three “classic” basic red, green and blue colors, Claypaky has added amber, cyan and lime. This exclusive Claypaky device provides a very wide color range with excellent color spectrum coverage.
Features
Light Source
19x6-color LED modules (R+G+B+Amber+Cyan+Lime)
Light Output
5,500 lm
Zoom range
6°- 50°
Effects
Color system: R+G+B+Cyan+Amber+Lime LED module; Color Temperature control: Linear from 2500K to 8000K (CTO controlled mode plus RAGCB correction); Control of the colors: RAW mode, HSL mode, RGB mode, CMY mode; Halo Emulation 750W, 1000W, 1200W, 2000W, 2500W lamp emulation; Gamma Wave: Different chromatic curves for each color Macro: Dedicated color macro channel with 80 preselected colors; Electronic and linear dimmer, 16 bit; Strobe 24 flash/sec. Electronic, instant open and blackout. Variable speed pulsation
Specifications
Light Source Type
Light sources: 6-color LED modules
LED module: R+G+B+Amber+Cyan+Lime
Number of LEDS: 19
LED life expectancy: min. 50,000h
Total lumen output: 5,500 lumen
Typical lumen manteinance: 70%@50,000 hours
Typical CRI value > 97 up to 99
*It may vary depending on various factors, as type of use and environment
Photometric Data
Optics featuring 6-color LED module system
rod-bar mixing system
6°- 50° linear electronic Zoom
Color System
Color system: R+G+B+Cyan+Amber+Lime LED module
Color Temperature control: Linear from 2500K to 8000K (CTO controlled mode plus RAGCB correction)
Control of the colors: RAW mode, HSL mode, RGB mode, CMY mode
RAW mode Enable specific control of each color
HSL mode function is based on algorithm. HSL parameters: HUE, HUE fine, Saturation, Crossfade, Path, Tint
RGB mode The projectors works in the same way as a classical RGB fixture
CMY mode The projectors works in the same way as a classical CMY fixture
Halo Emulation 750W, 1000W, 1200W, 2000W, 2500W lamp emulation
Gamma Wave: Different chromatic curves for each color
Macro: Dedicated color macro channel with 80 preselected colors
Control and Connections
19/32 DMX 512 control channels - Control signal: USITT DMX 512
Protocols: sACN, RDM, WebServer and Art-Net
Display: Graphic LCD backlit b/w display
Display battery: Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit - Dimmer Resolution 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Firmware update: Software upload through DMX input
Dynamic Effects
Electronic and linear dimmer, 16 bit
Strobe 24 flash/sec. Electronic, instant open and blackout. Variable speed pulsation
Movement: - PAN range: 540° - TILT range: 210°
Hardware and Software
Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-self-test function
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade with no power
Firmware transfer from one light to another
Housing
Structure in aluminium with die-cast plastic cover
Handles Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation
Optional frame for external gels and frost filters
Optional top hat (adjustable with the Zoom movement)
Working Position
Working position: Any
Hanging system: 2xfast-lock omega clamps (1/4 turn) on the base
Optional 48-51mm, max300Kg clamps; Ø 4mm, lenght680mm safety cable
Electrical
Operating Voltage: 100/240V 50/60 Hz
Max Power consumption: 750VA
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects: 0.2 meters (8”)
Minimum distance from flammable materials: 0.2 meters (8”)
Max ambient temperature: 40°C (104°F)
Max temperature of the external surface: 90°C (194°F)
Bipolar circuit breaker with thermal protection
Automatic break in power supply in case of overheating
Forced ventilation withaxial fans
Compliance
In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
ETL This product it is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166
standards.
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (4 positions)
Weight - Size
16.5 Kg (36.38 lbs)
Accessories
Omega clamps: 2x183102/805 (included)
Power cord: CAB03D/802 (included)
Foam shell: F21288/001 (optional)
Flight case 4 positions + Foam shell: F21292 (optional)
Top-Hat Kit for K-EYE K20 C21096
Filter/Gel holder Kit for K-EYE K10 C21094 (optional)
Safety Chain: 105041/003 (optional)
