Description
Hy B-Eye K25 Teatro (Foam Shell):
37x 40w RGBW LED
100-240V 50/60 Hz ETL IP20

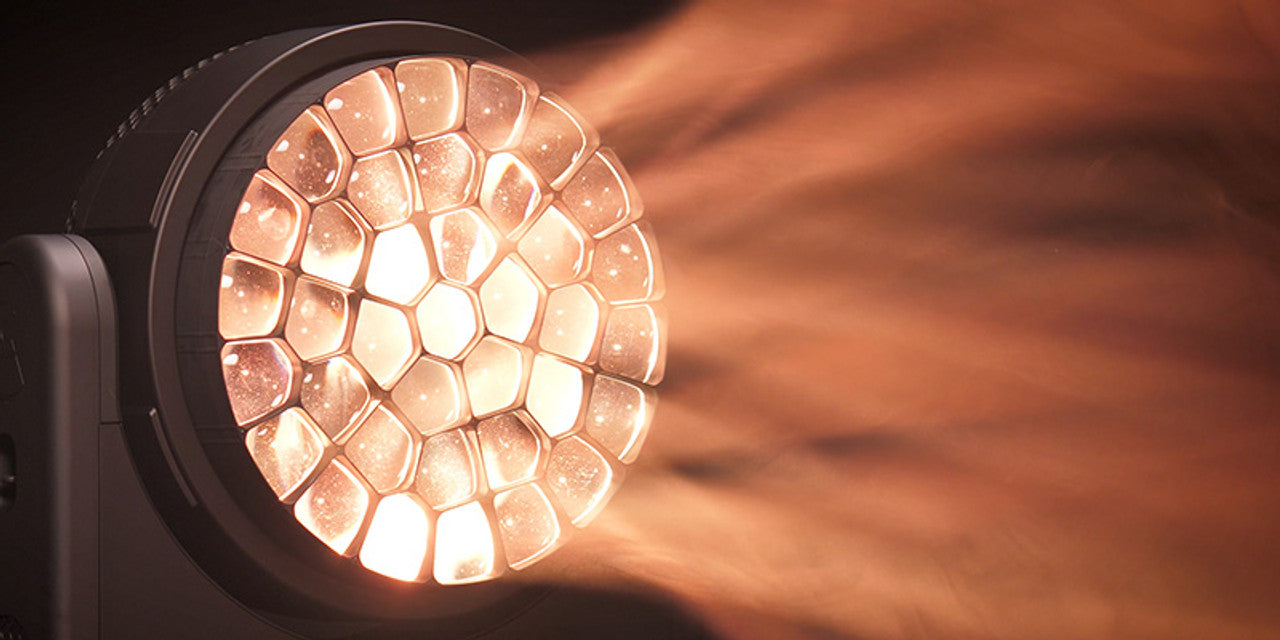

Claypaky CL3015 Hy B-Eye K25 Teatro LED Wash Light
Overview
The HY B-EYE K25 TEATRO is a special version of the HY B-EYE K25, that is designed for venues that need silent operation without sacrificing bright colours.
Features
Light Source
37 x RGBW LED Osram OSTAR - Stage II LE RTDUW S2WN (6000 K)
Zoom range
4°-60°
Effects
Three operating modes: wash, beam, FX (Kaleido effects); Bi-directional Rotating Front Lens; Digital Wash-Beam Framing effect; Beam edge softening control (in Wash mode); Pixel Patterning Macros with enhanced control; 0-100% linear electronic dimmer; Adjustable speed stop/strobe effect, with instantaneous blackout; Dedicated channel for color temperature setting; White CT Emulation 2500-8000K; RGBW auto-tuning to lamp CT Emulation; Tungsten Lamp Emulation; Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
Specifications
Light Source Type
37 RGBW LEDs driven at 40 Watt
Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
Color Temperature: 6000 K
Life: 50000 hrs
*It may vary depending on various factors, as type of use and environment
Optics
Zoom range: 4°-60° Electronic Zoom Range

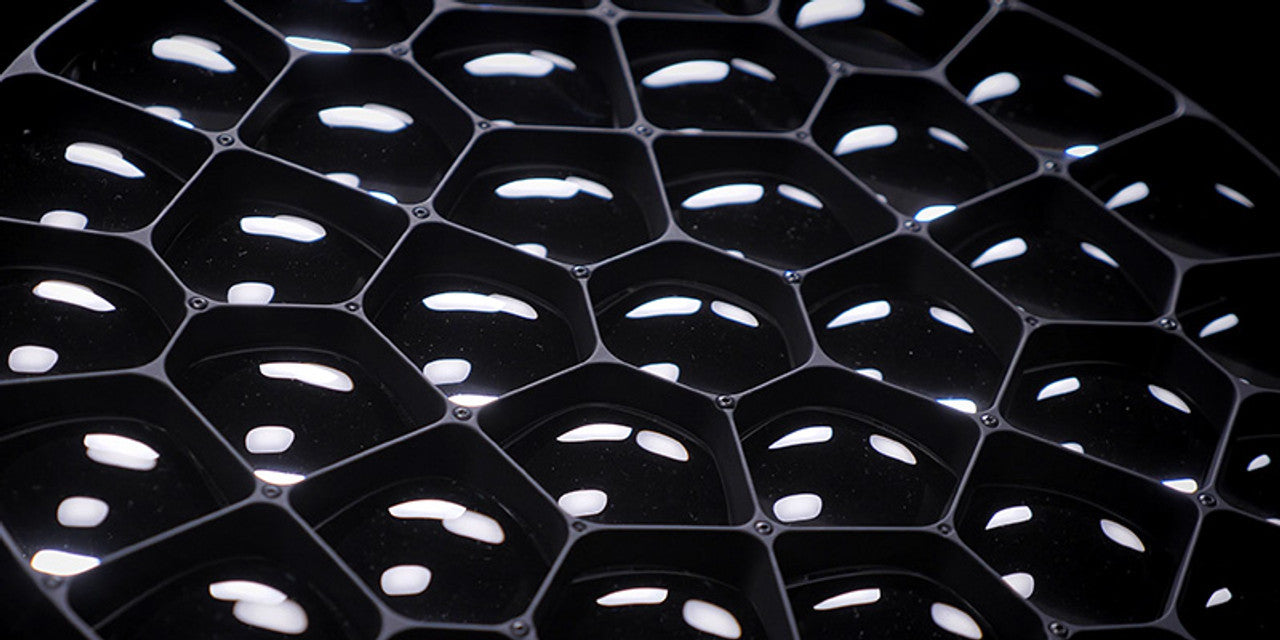

High efficiency optical system
Input Power
1250 VA @230Vac - 50Hz
Control and Connections
22/36/111/148 DMX channels.
Basic Engine (Standard and Shape Mode).
Pixel Engine (RGB and RGBW Mode).
DMX protocol signal: USITT DMX 512.
Art-Net / RDM / sACN.
Arkaos Kling-Net protocol already included in the firmware.
Display: Graphic LCD backlit b/w Display.
Pan/Tilt Resolution: 16 bit.
Dimmer Resolution: 16 bit.
Movement control: vectorial.
DMX signal connection: 3 and 5 pole XLR input and output.
Software upload through DMX input
Effects Section
Three operating modes: wash, beam, FX (Kaleido effects).
Bi-directional Rotating Front Lens.
Digital Wash-Beam Framing effect.
Beam edge softening control (in Wash mode).
Pixel Patterning Macros with enhanced control.
0-100% linear electronic dimmer.
Adjustable speed stop/strobe effect, with instantaneous blackout.
Dedicated channel for color temperature setting.
White CT Emulation 2500-8000K.
RGBW auto-tuning to lamp CT Emulation.
Tungsten Lamp Emulation.
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
Movement:
- PAN = 540°- TILT = 210°
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum structure with die-cast plastic cover.
Two side handles for transportation.
PAN and TILT lock for transport and maintenance.
Working Position
Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
Optional safety chain.
Electrical
Power Supply:100-240V 50/60Hz
1250 VA @230Vac - 50Hz
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
Safety Specs
Automatic power safety derating in case of overheat of the LED board.
Forced ventilation
Compliance
CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)
Weight - Size
27,5 Kg (60.6 lbs).
Accessories
Omega clamps (included)
Power cord (included)
Carton box + Polystyrene.
Carton box + Foam shell. F21313/001
Flight case + Foam shell CF1001 (2 position)
