Description
HY B-Eye K15 (Foam Shell):
19x 40w RGBW LED
100-240V 50/60 Hz ETL IP20
Claypaky C61480 HY B-EYE K15 Wash Light
Overview

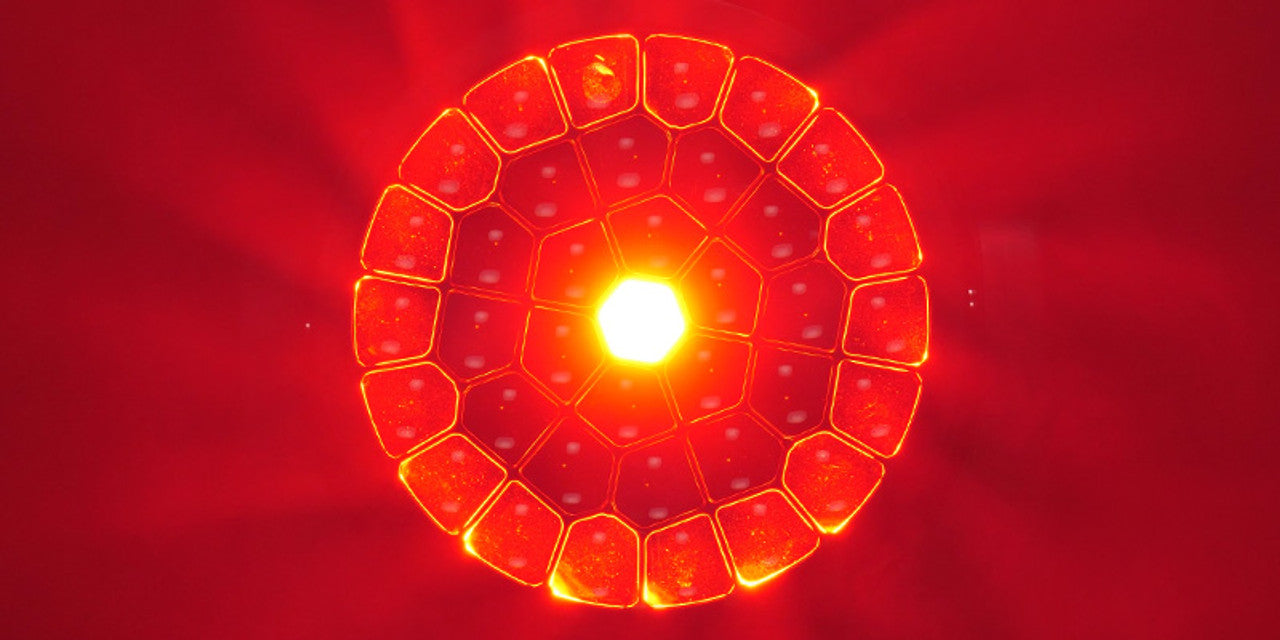

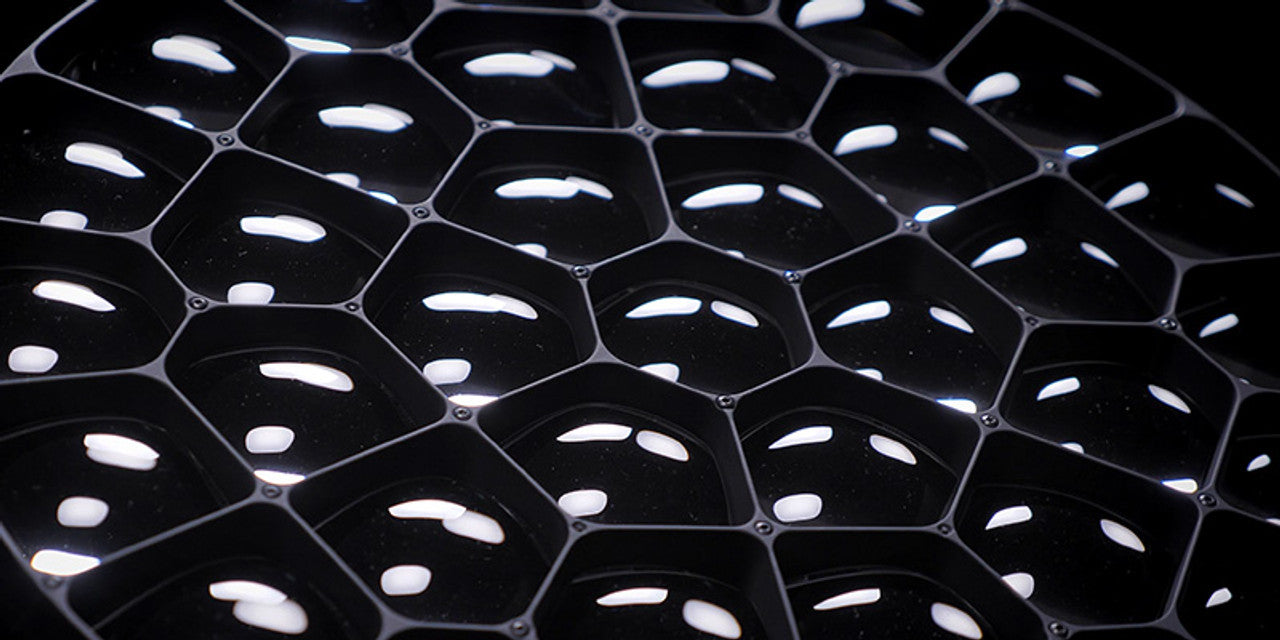

The B-EYE has revolutionized the way we think of LED show lighting. Its innovative optical unit enhances the uniformity and efficiency of the light output. The rotating front lens and the possibility to control each single LED individually have made spectacular kaleidoscopic projections and charming eye candy effectspossible. A sophisticated effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the B-EYE a versatile product: it is a high-performance LED wash light, a perfect beam light, and a spectacular visual effect projector all in one. It has won several awards and been copied by countless manufacturers over the years.
Today Claypaky offers HY B-EYE, that is TWICE MORE POWERFUL and bright than B-EYE. It even offers more VERSATILITY and more INTERACTIVITY with the media servers (Kling-Net protocol included), it is very SILENT while featuring the same size and same control mode as the B-EYE.
Features
Light Source
19 x RGBW LED Osram OSTAR - Stage II LE RTDUW S2WN (6000 K)
Zoom range
4°-60°
Effects
Three operating modes: wash, beam, FX (Kaleido effects); Bi-directional Rotating Front Lens; Digital Wash-Beam Framing effect; Beam edge softening control (in Wash mode); Pixel Patterning Macros with enhanced control; 0-100% linear electronic dimmer; Adjustable speed stop/strobe effect, with instantaneous blackout; Dedicated channel for color temperature setting; White CT Emulation 2500-8000K; RGBW auto-tuning to lamp CT Emulation; Tungsten Lamp Emulation; Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
Specifications
Light Source Type
19 RGBW LEDs driven at 40 Watt.
Type: OSRAM OSTAR - Stage II LE RTDUW S2WN.
Color Temperature: 6000 K.
Life: 50000 hrs.
*It may vary depending on various factors, as type of use and environment
Optics
4°-60° Electronic Zoom Range
High efficiency optical system
Input Power
700 VA @230Vac - 50Hz.
Control and Connections
22/36/57/76 DMX channels.
Basic Engine (Standard and Shape Mode).
Pixel Engine (RGB and RGBW Mode).
DMX protocol signal: USITT DMX 512.
Art-Net / RDM / sACN.
Arkaos Kling-Net protocol already included in the firmware.
Display: Graphic LCD backlit b/w Display.
Pan/Tilt Resolution: 16 bit.
Dimmer Resolution: 16 bit.
Movement control: vectorial.
DMX signal connection: 3 and 5 pole XLR input and output.
Software upload through DMX input
Effects Section
Three operating modes: wash, beam, FX (Kaleido effects).
Bi-directional Rotating Front Lens.
Digital Wash-Beam Framing effect.
Beam edge softening control (in Wash mode).
Pixel Patterning Macros with enhanced control.
0-100% linear electronic dimmer.
Adjustable speed stop/strobe effect, with instantaneous blackout.
Dedicated channel for color temperature setting.
White CT Emulation 2500-8000K.
RGBW auto-tuning to lamp CT Emulation.
Tungsten Lamp Emulation.
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec.
Movement:
- PAN = 540°- TILT = 200°
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum structure with die-cast plastic cover.
Two side handles for transportation.
PAN and TILT lock for transport and maintenance.
Working Position
Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
Optional safety chain.
Electrical
Power Supply:100-240V 50/60Hz
700 VA @230Vac - 50Hz
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
Safety Specs
Automatic power safety derating in case of overheat of the LED board.
Forced ventilation
Compliance
CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)
Weight - Size
20.7 Kg (45.6 lbs)
Accessories
Omega clamps (included)
Power cord (included)
Carton box + Polystyrene.
Carton box + Foam shell. F21314/001
Flight case + Foam shell CF1002 (2 position)
