Description
Arolla Profile MP:
470w 6000k White LED
100-240V 50/60 Hz ETL IP20

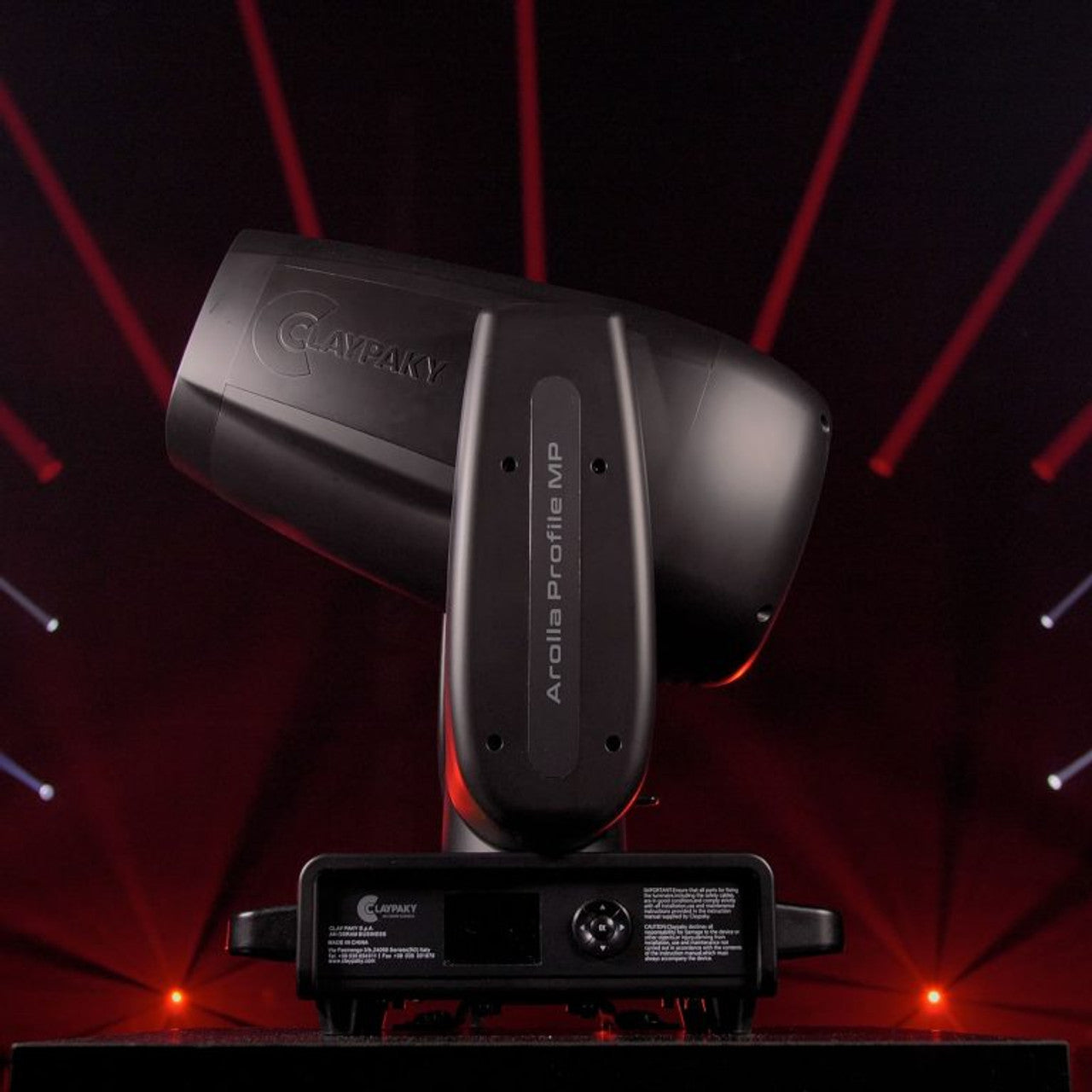

Claypaky CL3013 Arolla Profile MP Moving Head LED Fixture
Overview
The Arolla Profile MP is the smallest and lightest moving head fixture available in its class. While small in stature, it delivers powerful light output with its 470-Watt white LED engine (at over 22,000 lumens output) and is full of the features you would expect in a much larger, more expensive luminaire. The eSWAP is a unique feature of this series, that is the interchangeability of the framing assembly of the profile version with the gobo module from the spot model. These modules can be moved from their fixture to the other version and the fixture’s electronics immediately recognizes and configures the fixture to operate with the module, so users do not have to make any changes themselves to the menu system.
Claypaky known for our industry-leading precision optics and colour reproduction has given the Arolla Profile MP fixture an optical system with a 6 to 50 degree zoom range, a CMY colour mixing system that produces deep, rich colours (including an unmatched deep red), a seven-colour colour wheel that includes an 88+ CRI enhancement filter, and linear CTO to hit the colour temperatures you need. The unit’s source is a native 6000K that does not produce the metallic white that often limits the fixture’s application and colour temperature range. For eye-catching aesthetics, the Arolla Profile MP is fitted with a 120-millimeter diameter front lens giving the unit a unique look when viewed from the front.

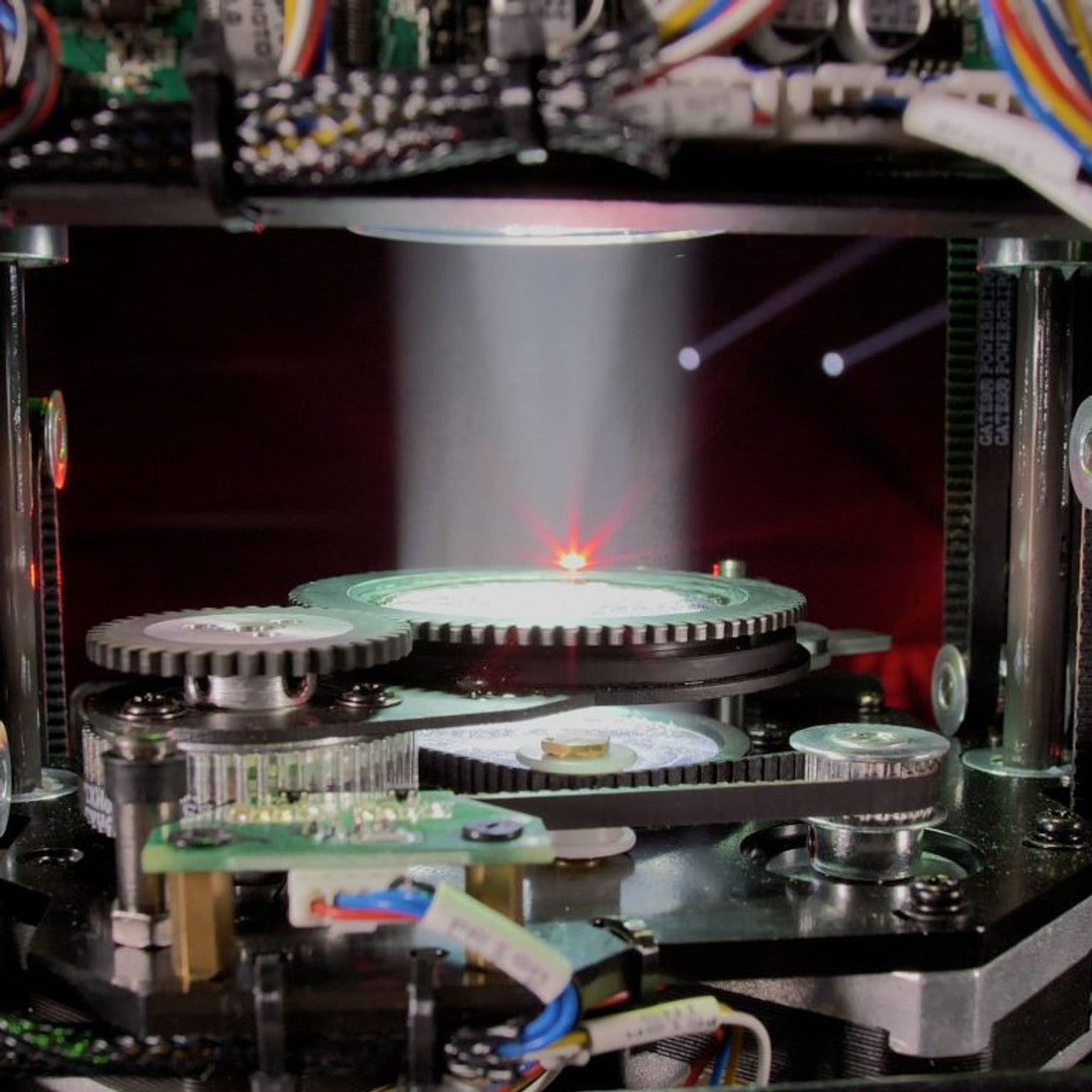

For effects, the Arolla Profile MP comes with one rotating gobo wheel that has seven rotating high-definition gobos. Thanks to our exclusive “Go-Bright” technology, there is no light loss or color shift when gobos are inserted into the beam. The unit also includes a four focal plane framing system, a rotating animation wheel and a four-facet rotating prism. For beam control a mechanical iris, a variable frost filter, a 24-bit digital dimmer with four user-selectable dimming curves that maintains color balance throughout the dimming range, and a fast-digital stop-strobe. Being universal voltage, the Arolla Profile MP fixture operates on 100 to 240 volts AC and include five user-selectable fans speed modes: Auto – Sln – Theatre – RnR – Standard.
Since the Arolla Profile MP weighs around 25 kilograms, or 55 pounds, making it one of the lightest moving head profile fixtures available, without giving up the output and features often found in a much larger and heavier fixtures.
The Arolla Profile MP fixtures’ versatility allows it to fit comfortably and perform in tours, theatres, or fixed installations.
Features
Light Source
470W white LED engine (6000 K)
Light Output
22,000 lm (in integrating sphere)
Zoom range
6.2°- 48.8°
Effects
CMY color mixing; Linear CTO; 7-color wheel; 4 blades framing system; 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos; Linear heavy frost 5° for wash effect; Animation wheel; 4 Facets prism; Motorized Iris; Motorized Zoom and Focus; High resolution electronic Dimmer - 24 bit; High speed electronic Shutter and Strobe
Specifications
Light Source Type
500W White LED Engine
CRI: 70+ with selectable filter for typical CRI value up to 90
Colour Temperature: 6000K
LED life expectancy: 40000Hrs L70*
*It may vary depending on various factors, as type of use and environment
Photometric Data
Zoom range: 6.2°- 48.8°
22054 Lumen Output (Integrating Sphere)
Front lens diameter: 120 mm
High efficiency optical system
Noise Level
Theatre fan mode: 40.6 dBA
SLN fan mode: 40.6 dBA
Standard fan mode: 46.8 dBA
Auto fan mode: 48.4 dBA
RNR fan mode: 48.7 dBA
Control and Connections
Personalities: Single mode with 37 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True 1
Built In Web Server
Dynamic Effects
Colours:
Linear CMY colour mixing
Linear CTO
Fixed color wheel with 7 dichroic colors including High CRI filter
Gobos:
1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
Ext diam.22.9mm
Image diam. 17mm
Thickness 1.1mm
Framing system:
4 blades with +/- 60° rotation of the full system
“Total Curtain" effect allowing the full blackout with each single blade
Built In macros
The framing module is interchangeable with the optional Spot version without any setting.
Frost:
Linear heavy frost 5° for wash effect
Rotating Effects
Aluminum animation wheel with continuous rotation in both direction at variable speed
4 Facets prism with rotation in both direction at variable speed
Iris:
Motorized with variable pulse and random effects
Movement:
Tilt: 270° - 16bit
Pan: 540° - 16bit
Accuracy: Resolution ± 0.17° (Range 0.54°)
Automatic repositioning
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance
Beam:
Motorized Zoom and Focus
Dimmer/Shutter:
- High resolution electronic Dimmer - 24 bit
- High speed electronic Shutter and Strobe
Hardware and Software
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
Max Power consumption: 740VA
Thermal Specification
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2527 BTU/hr ±10% / 2664 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 2.5 meters (8’ 2”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T10A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
Compliance
In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (4 positions)
Weight - Size
25 Kg (55.1 lbs)
250x360mm (base dimension) – 593mm with vertical head (h)
Distance between two fixtures 480mm
Accessories
Omega clamps: 2 x 183102/805 (included)
Power cord: CAB02B/802 (included)
Foam shell: F21324/001 (optional)
Flight case 4 positions: CF1008 (optional)
Safety Chain: 105041/003 (optional)
Arolla Spot MP gobo module conversion kit: CA3007C00100 (optional)
