Description

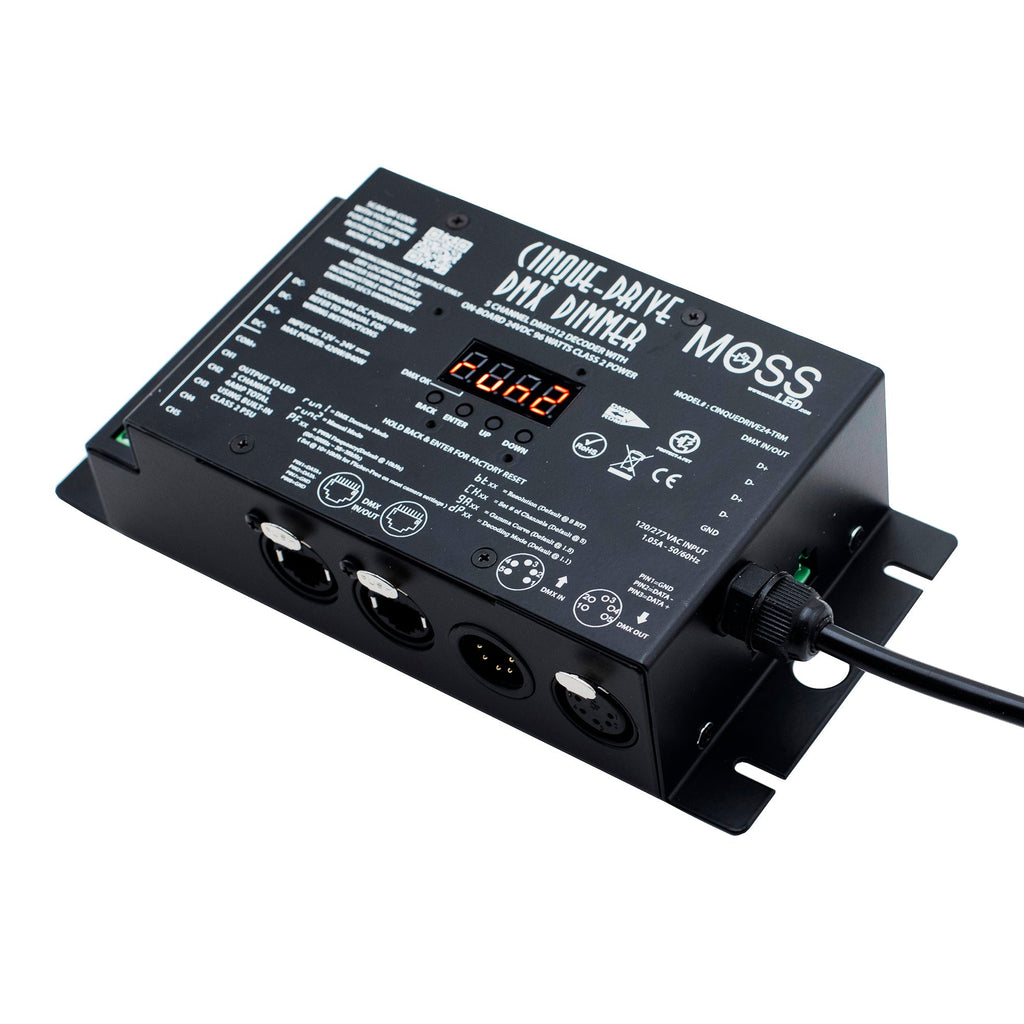

CinqueDrive-LED DMX Dimmer is a versatile, high-precision LED controller featuring a built-in 96W, 24VDC Class 2 Power Supply, designed for film, television, theatrical, and architectural lighting applications. Combining rugged durability, seamless DMX integration, and expandable power capabilities, it offers smooth dimming, flexible installation, and unmatched reliability.
Key Features:
Integrated 96W Power Supply – Provides direct power to 24VDC LED products without an external PSU.
5-Channel DMX Dimming – Converts DMX-512/1990 signals into precise, multi-channel LED control.
Multiple Output Options – Available with 6-pin XLR for plug-and-play setups or terminal block for custom wiring.
Expandable Power Capabilities – Supports external power supplies for higher output demands.
High Current Capacity – Handles up to 35A when used with an external PSU.
Adjustable PWM Frequency – 500Hz to 35kHz for flicker-free performance at all camera settings.
8-bit & 16-bit Resolution Modes – Enables ultra-smooth dimming and fine colour control.
Customizable Gamma Curve – Allows for precise dimming response adjustments to suit any application.
Industry-Standard DMX Connectivity – Features 5-pin XLR and RJ45 Ethernet in/out for seamless control integration.
Manual & RDM Control – Onboard LED interface enables DMX addressing, manual mode, and test functions.
Durable Metal Housing – Built for long-term reliability in professional environments.
Compatible with FlexLED – Works with RGB+W+W, RGBA, RGBW, RGB, Bi-Colour, and White LED strips.
Available in 120 & 277 VAC input OR 220 ~ 240 VAC input power
Available with terminal block output, or locking 6-pin XLR output for plug n’ play connectivity.
With robust power handling, smooth dimming control, and flexible installation options, the CinqueDrive-LED DMX Dimmer is the ultimate LED controller for demanding professional applications.
UNITS CINQUEDRIVE24-XLR-U CINQUEDRIVE24-TRM-U
INPUT SPECIFICATION (@25°C ambient temperature)
Input Current - MAX A 1.05
Input Current - Standby A 0.02583
Input Power - MAX W 96
Input Power Standby W 3.1
Max Units on a 16 A Circuit Breaker : 16 @ 120VAC / 38 @ 277VAC
Power Factor PF > 0.9
Inrush Current A Meets NEMA-410 requirements
Leakage Current μA 400 μA @ 120VAC / 920 μA @ 277 VAC
Supply Voltage VAC 105 ~120 or 249 ~ 277
Input Frequency Range Hz 47 ~ 63
Input Harmonics : Complies with IEC61000-3-2 for Class C equipment
Total Harmonics Distortion THD Maximum @ 20% At nominal input voltage from 100% to 60% rated power. Complies with DLC (Design Light Consortium) technical requirements
Efficiency % Up to 92% Measured with nominal input voltage
Isolation : The AC input to the main DC output is isolated
MAIN OUTPUT SPECIFICATION (@25°C ambient temperature)
Output Current (Iout) A 4 (total for all 5 channels) 4 (with built-in power supply) or 35 (7A x 5ch with external power supply) - please check manual for full wiring instructions)
Output Power W 96 96 with built-in PSU) or 840 (168W x 5ch with external power supply) - please check manual for full wiring instructions)
Output Voltage (Vout) VDC 24
Ripple Voltage : ≤ 5% of rated output voltage
Start-up Time ms 500 Complies with ENERGY STAR® luminaire specification.
Output PWM Frequency Hz 500 - 35,000 (user selectable)
Flicker Free : Yes
Bit Rate : 8 bit or 16 bit (user selectable)
DMX : Yes
RDM : Yes
Manual Mode : Yes
Gamma Curve Adjustable : Yes
Short-Circuit Protection : Yes - Protect-A-Fet Technology Yes - Protect-A-Fet Technology

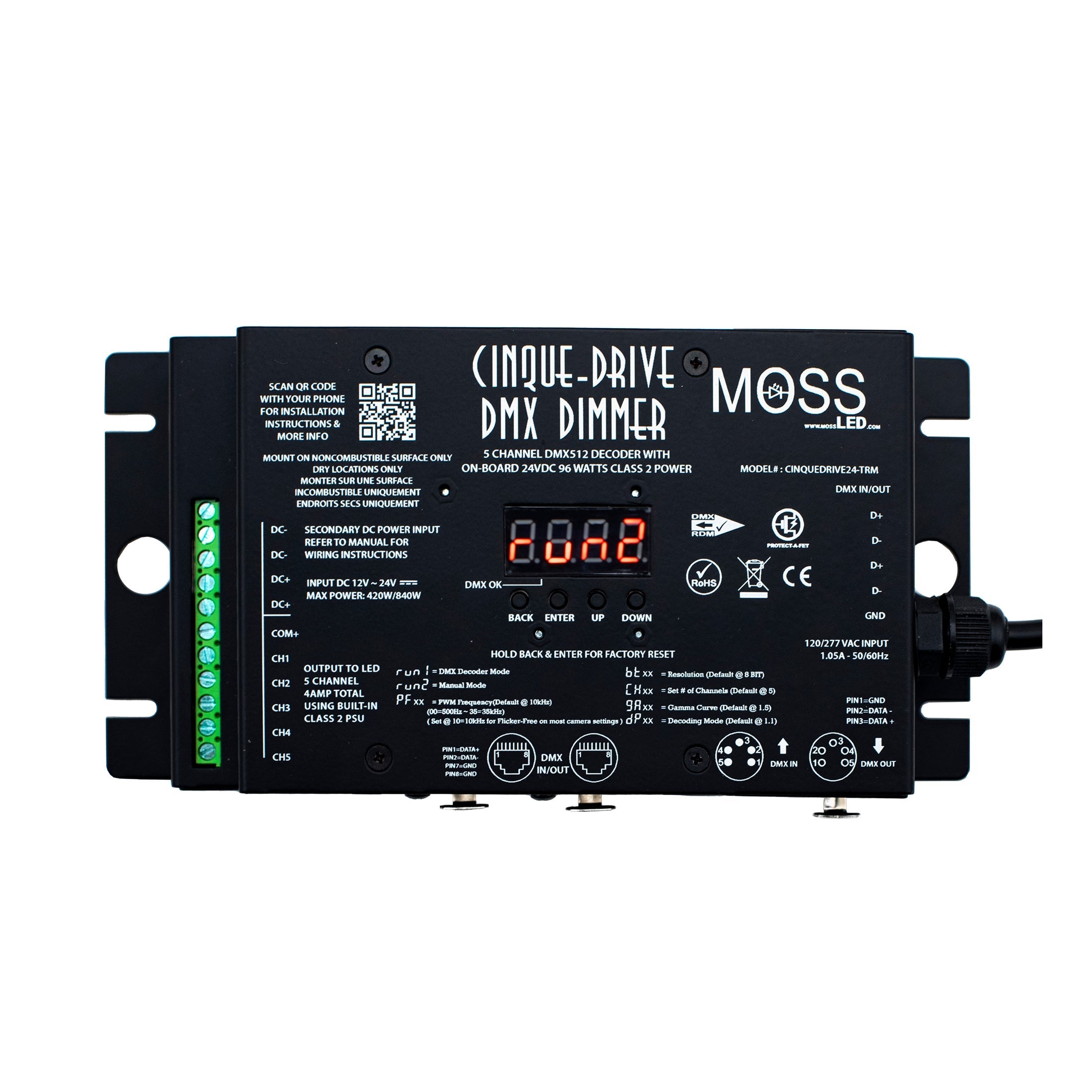

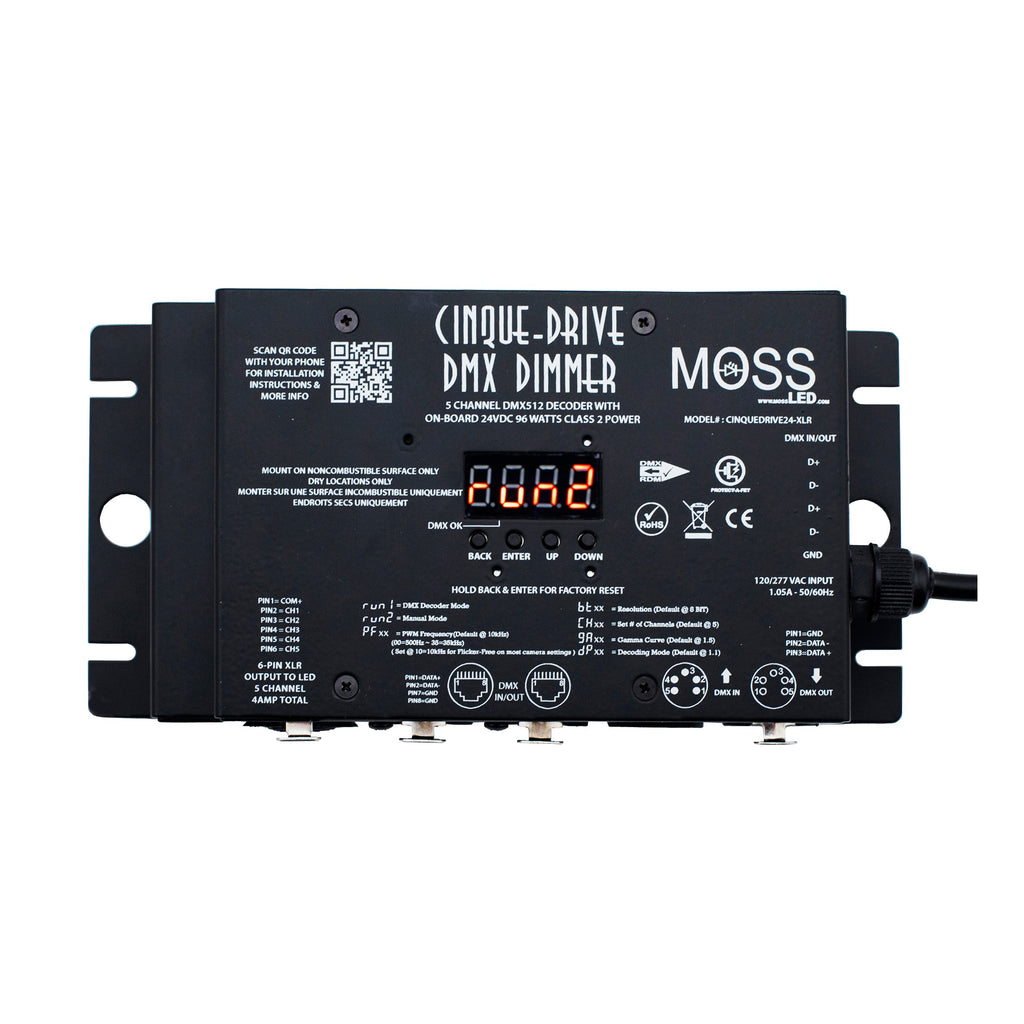

Output Connector : 6-PIN Female Neutrik XLR 11 position Fixed Terminal Block

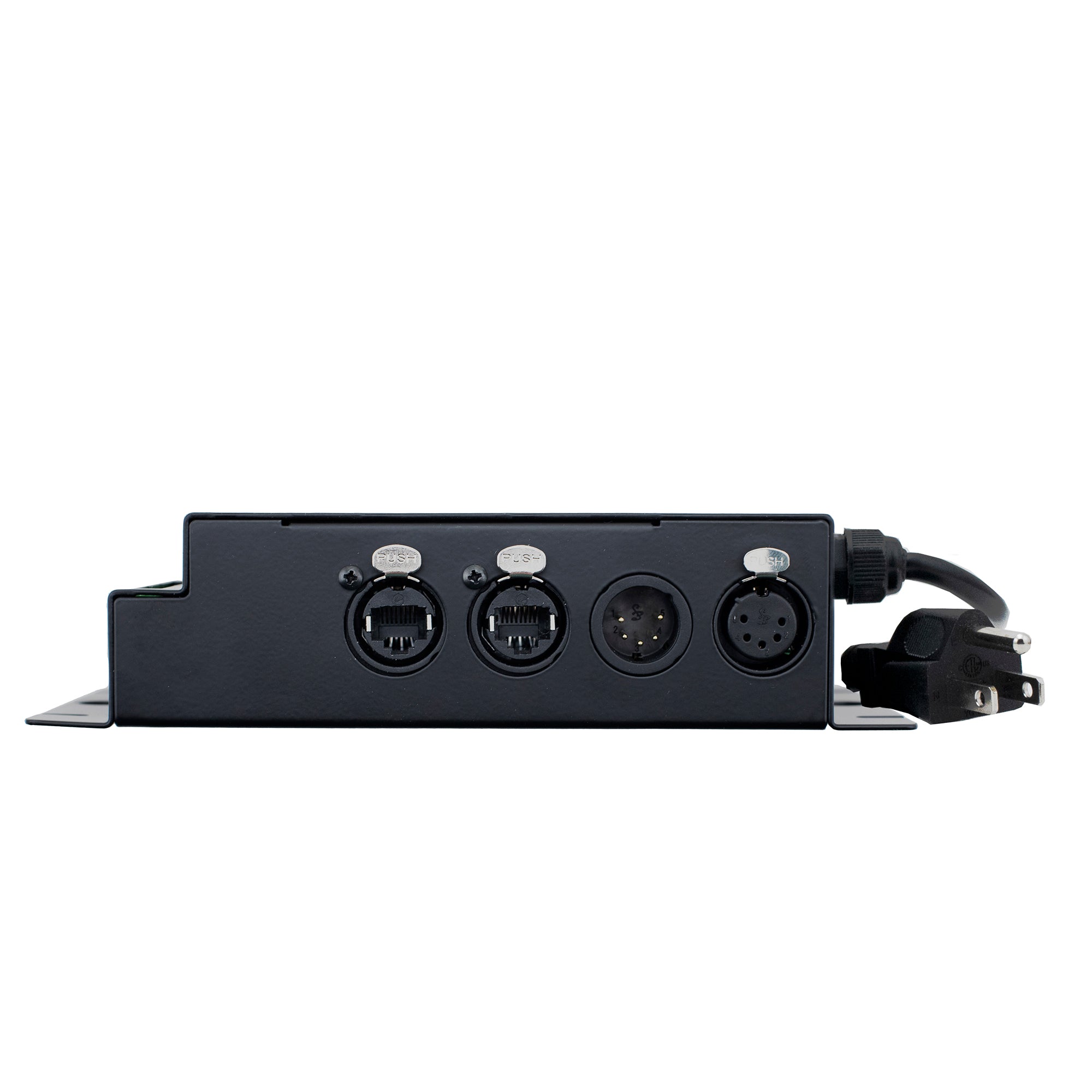

PHYSICAL DMX CONNECTIONS
PRIMARY : 5-PIN XLR IN/OUT
PRIMARY : RJ45 Ethernet via locking Ethercon connector (standard RJ45 cables can be used) IN/OUT
SECONDARY : Pluggable 5.08MM 5-Position Terminal Block
ENVIRONMENTAL CONDITIONS
Humidity % 5 ~ 95
Working Temperature °C -20 ~ 50
Maximum Case Temperature °C 90
Cooling : Convection Cooled
PHYSICAL:
Weight g 540g / 1.2Lb 540g / 1.2Lb
IP Rating : Indoor Use Only
Size mm 195L X 95W X 46H
MOUNTING OPTION A : 1/2" Holes for Mounting via Industry-Standard Clamps
MOUNTING OPTION B : Four corner mounting slots via mechanical fastener
