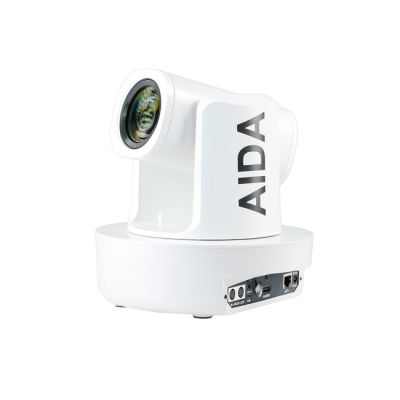

Add the white 4K NDI|HX IP/HDMI Conference PTZ Camera with 12x Optical Zoom from AIDA to your NDI network, which offers simultaneous video outputs as well as NDI|HX workflows over IP. You can output/stream up to UHD 4K60 via HDMI and IP/NDI|HX, and simultaneously output up to UHD 4K60 via HDMI and USB-C 3.0. The camera features a 12x optical zoom, and pan, tilt, and zoom functions can be controlled via IP, NDI, serial control, or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur. The camera is powered via the included power adapter or by PoE+ on a supported network.
Key Features
Simultaneous HDMI, USB-C 3.0, and NDI|HX output
Up to UHD 4K60 resolution video output
Built-in AI algorithm for motion autotracking feature
12x optical zoom
NDI|HX, RTSP, RTMP, SRT streaming
RS-232C input/output
VISCA-over-IP control protocol
10 presets via included IR remote controller, 128 presets over IP/serial control
Motion-compensated temporal noise reduction filter allows for noise reduction without blur
3.5mm input for analog audio embedding
Built-in OSD controls
4:2:2 (YCbCr) 10-bit color space
Power with power adapter or PoE+
mage Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel (3840 x 2160)
Shutter Type
Mechanical Focal Plane Shutter
Optical Zoom Ratio
12x
External Recording Modes
4:2:2 10-Bit via HDMI / RJ45 / USB
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Show More
Broadcast Output
NTSC/PAL
IP Streaming
NDI|HX, RTMP, RTSP, SRT
1280 x 720 to 3840 x 2160 at 60p
Supported Control Protocols
IR
NDI
RS-232
VISCA
Show More
PoE Support
PoE+ 802.3at
Imaging
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel (3840 x 2160)
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter
Minimum Illumination
0.1 Lux
Lens
Focal Length
3.4 to 40.3mm
Optical Zoom Ratio
12x
Field of View
Horizontal: 80.5 to 7.6°
Video Capture
External Recording Modes
4:2:2 10-Bit via HDMI / RJ45 / USB
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Embedded Audio
HDMI/LAN (RJ45)/NDI/USB
Audio Recording
Yes
Broadcast Output
NTSC/PAL
IP Streaming
NDI|HX, RTMP, RTSP, SRT
1280 x 720 to 3840 x 2160 at 60p
Control
Presets
10 via IR
128 via RS-232, VISCA
Move Speed
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec
Movement Range
Pan: 340°
Tilt: 120° (-30 to 90°)
Supported Control Protocols
IR
NDI
RS-232
VISCA

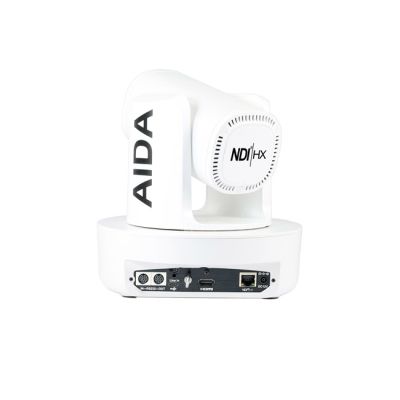

Interface
Video I/O
1x HDMI (Unspecified Signal) Output
1x RJ45 (Unspecified Signal) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body
Other I/O
1x D-Sub 8-Pin (RS-232) Input
1x D-Sub 8-Pin (RS-232) Output
Power
PoE Support
PoE+ 802.3at
Power I/O
1x DC (12VDC) Input
Power Consumption
Device: 12 to 15 VDC
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
General
Mobile App Compatible
No
Dimensions (W x H x D)
7.8 x 7.8 x 7.3" / 197 x 197 x 186 mm
Weight
4.6 lb / 2.1 kg (Body Only)
Packaging Info
Package Weight
8.905 lb
Box Dimensions (LxWxH)
12.4 x 11.5 x 10.7"
