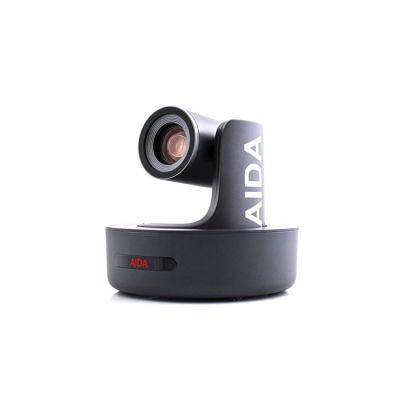

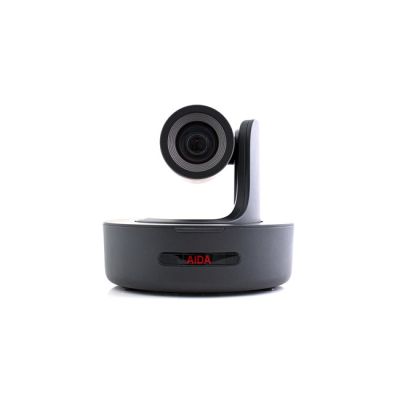

AIDA's 20x Full HD IP Broadcast PTZ Camera offers four simultaneous video outputs, all supporting up to 1080p60 resolution. While the SDI, HDMI, and USB outputs must be set at the same resolution, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps.
The camera features RS-232 input/output for serial control. It uses the VISCA control protocol and TCP/IP and RTSP/RTMP IP protocol. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
Key Features
Simultaneous SDI, HDMI, USB, and IP outputs
Up to 1080p60 resolution video output
H.264 / H.265 streaming
RS-232 input/output
VISCA control protocol
TCP/IP, RTSP/RTMP IP protocol
10 presets via included IR remote controller, 128 presets over serial control
Motion-compensated temporal noise reduction filter allows for noise reduction without blur
SMPTE 424M/292M standard
Built-in OSD controls
4:2:2 (YCbCr) 10-bit color space
White Balance: auto, manual, auto tracking, one push, indoor, outdoor
Auto shutter speed
Image Sensor
1/2.8"-Type CMOS
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
Optical Zoom Ratio
20x
External Recording Modes
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
RJ45
1920 x 1080
1280 x 720
1024 x 576
620 x 360
Show More
Broadcast Output
NTSC
IP Streaming
H.264, H.265, NDI, ONVIF, RTMP, RTSP, SRT
1920 x 1080 at 60p
1280 x 720 at 60p
1024 x 576 at 60p
620 x 360 at 60p
Show More
Supported Control Protocols
IR
RS-232
VISCA
PoE Support
PoE+ 802.3at
Imaging
Image Sensor
1/2.8"-Type CMOS
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
Minimum Illumination
0.1 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
5.2 to 98mm
Optical Zoom Ratio
20x
Field of View
57 to 3.3°
Maximum Aperture
f/1.5 to 3
Video Capture
External Recording Modes
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
RJ45
1920 x 1080
1280 x 720
1024 x 576
620 x 360
Broadcast Output
NTSC
IP Streaming
H.264, H.265, NDI, ONVIF, RTMP, RTSP, SRT
1920 x 1080 at 60p
1280 x 720 at 60p
1024 x 576 at 60p
620 x 360 at 60p
Control
Presets
10 via IR
128 via RS-232, VISCA
Move Speed
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec
Movement Range
Pan: 340°
Tilt: 120° (-30 to 90°)
Supported Control Protocols
IR
RS-232
VISCA

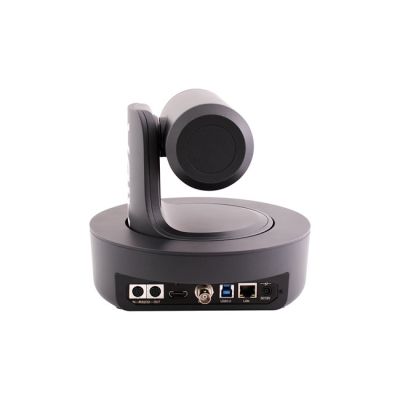

Interface
Video I/O
1x BNC (3G-SDI) Output
1x HDMI Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 Output
Other I/O
1x Mini-DIN 8-Pin (RS-232, VISCA) Input
1x Mini-DIN 8-Pin (RS-232, VISCA) Output
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (9 to 15VDC) Input
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
General
Dimensions (W x H x D)
8.7 x 6.8 x 7.5" / 220 x 173 x 190 mm
Weight
2.97 lb / 1.35 kg
Packaging Info
Package Weight
7.545 lb
Box Dimensions (LxWxH)
11.8 x 10.9 x 10.5"
