For illuminating at heights
BRACE makes it possible to mount SCOPE fixtures at height on a wall or fence. This is particularly ideal in conjunction with the RISER 1 accessory to mount the light source further from a wall or fence. By also combining the BRACE BAND this unit can also be mounted on a tree trunk, branch or pole without damaging it.
Notice! SCOPE spotlights available separately.
Not suitable in combination with SCOPE CEILING 12V.
Mounting of several BRACE on one BRACE BAND is possible.
Notice! SCOPE spotlights available separately.
Not suitable in combination with SCOPE CEILING 12V.
Mounting of several BRACE on one BRACE BAND is possible.
- For installing a SCOPE spotlight on a wall or fence
- Comes with a clasp for installing the BRACE BAND
- Can be easily combined with the RISER 1 accessory
Product Details
BRACE makes it possible to mount SCOPE fixtures at height on a wall or fence. This is particularly ideal in conjunction with the RISER 1 accessory to mount the light source further from a wall or fence. By also combining the BRACE BAND this unit can also be mounted on a tree trunk, branch or pole without damaging it.
Notice! SCOPE spotlights available separately.
Not suitable in combination with SCOPE CEILING 12V.
Mounting of several BRACE on one BRACE BAND is possible.
Notice! SCOPE spotlights available separately.
Not suitable in combination with SCOPE CEILING 12V.
Mounting of several BRACE on one BRACE BAND is possible.
Specs
Art. nr.
10704230
Application
FenceWall, Tree
EAN code
8717051005244
Height (inch)
1.2992
Height (mm)
33
Length (inch)
4.7244
Length (mm)
120
Order unit
6
Processing
Wood
Article group
Related products
Width (inch)
2.5591
Width (mm)
65
Installation instructions
Installation advice

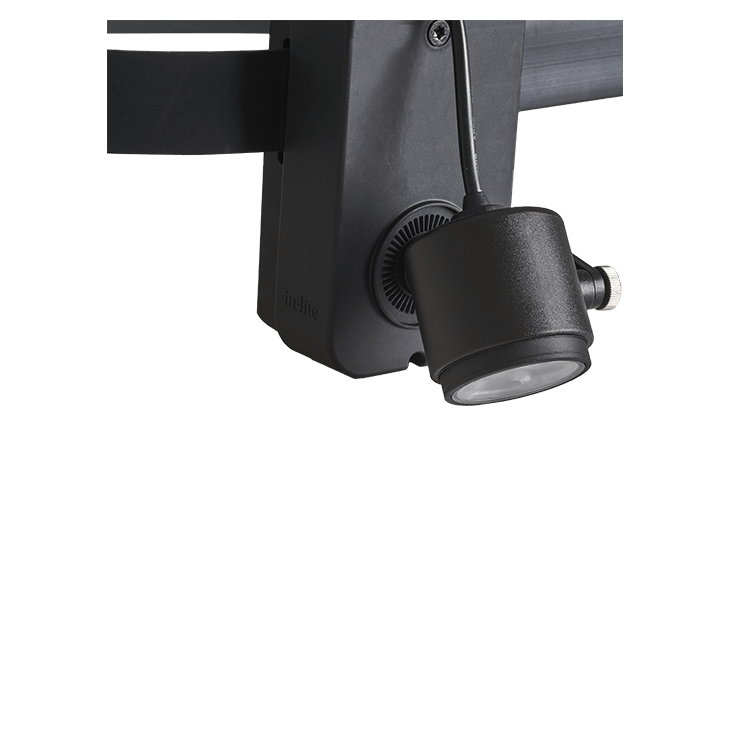

Install the BRACE on the wall or fence using the mounting hardware provided. Install the SCOPE of choice on a BRACE by installing the mounting bracket on the BRACE using the rotatable clamp provided. The connector cable on the fixture can be clamped and concealed by means of the grooves in the casing. The SCOPE 360˚ can be rotated after installation. The angle of this fixture can be adjusted. This makes it possible to direct the light upwards or downwards. The BRACE can be easily combined with the BRACE BAND and RISER 1 accessories in order to install a SCOPE spotlight at a distance on a wall or fence.
NOTE: SCOPE spotlights available separately.
Not suitable in combination with the SCOPE CEILING.

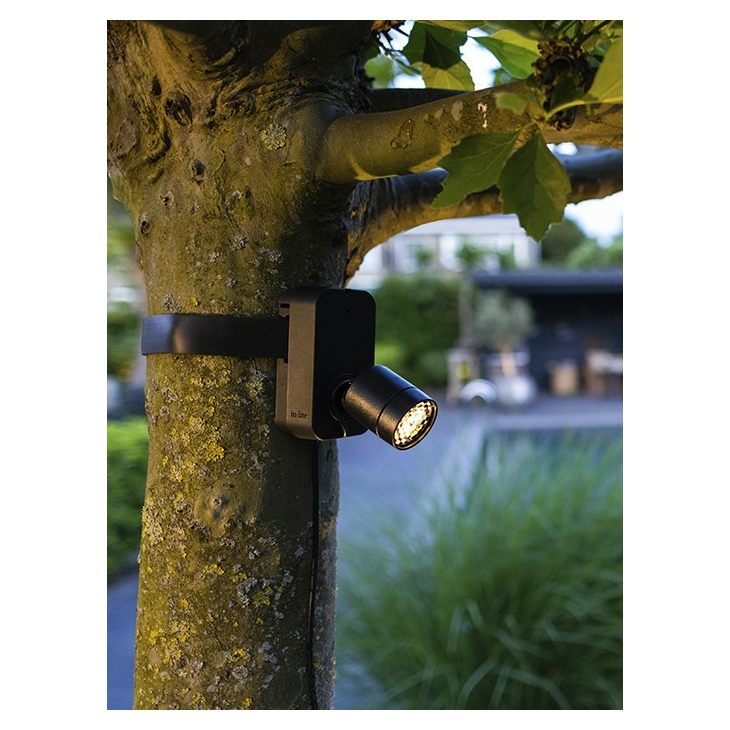

A special tree band is available for the BRACE called the BRACE BAND. The BRACE has a clasp for installing the BRACE using the BRACE BAND on a tree trunk or post. The BRACE BAND is made of elastic EPDM and can easily be cut to size.
NOTE: The BRACE BAND comes on a roll of 10 meters.
NOTE: SCOPE spotlights available separately.
Not suitable in combination with the SCOPE CEILING.
A special tree band is available for the BRACE called the BRACE BAND. The BRACE has a clasp for installing the BRACE using the BRACE BAND on a tree trunk or post. The BRACE BAND is made of elastic EPDM and can easily be cut to size.
NOTE: The BRACE BAND comes on a roll of 10 meters.
