Description
Key Features
1920 x 1080 5" Touchscreen LCD
HDMI & 3G-SDI Video Inputs
Records up to 1080p60 Video
USB Type-C Webcam Video Output
Stores to 1 x SDXC/SDHC Memory Card
Loop-Through Video Outputs
Waveform, Vectorscope & Histogram
Focus Peaking, False Color & Zebra
11 x Display Language Options
Dual Sony L-Series Type Battery Slots
Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 5" Recording Monitor from Blackmagic Design. It features a bright 5" 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.
The Video Assist 3G 5" records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.
Up to 1080p60 Video
Supports video formats up to 1080p60
Upgrades Older Camera Viewing/Recording
Can be used to upgrade viewing and recording options with older cameras

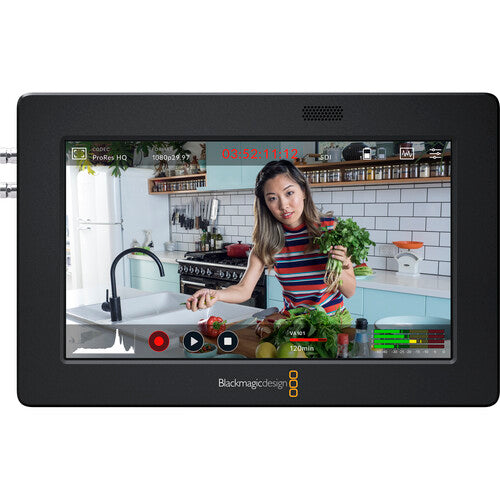

5" Touchscreen Display
This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools

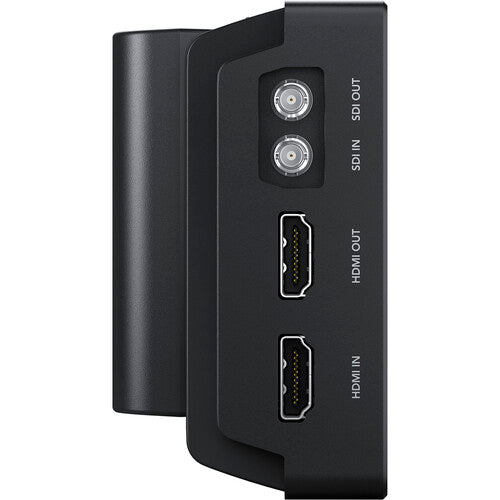

3G-SDI and HDMI Input/Loop-Out
3G-SDI and HDMI input ports with loop-through outputs provide compatibility with a variety of cameras and wireless video receivers
3D LUT Support
3D LUT support for customized viewing
1080p USB Webcam Output
Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam
Tally Light
A tally light on top of the monitor indicates it is operating and recording
Metadata Entry
Direct metadata entry

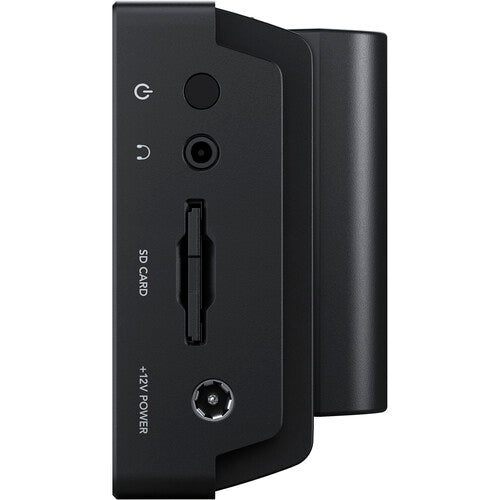

SD Card Slot
Single SD card slot for ProRes recording
Selectable Audio Monitoring
Ability to select which audio channels you are monitoring

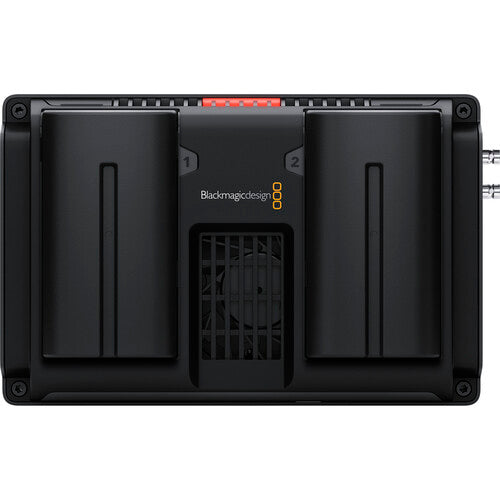

Power Options
Power the monitor using the included 12V power adapter or the separately available Sony L-Series type batteries on the dual battery slots
Multiple Language Displays
Choose from 11 languages for easier use of on-screen text displays and menu options:
English
Chinese
French
German
Italian
Japanese
Korean
Portuguese
Russian
Spanish
Turkish
Minimum macOS System Requirements
macOS 10.15 Catalina
macOS 10.14 Mojave
USB 2.0 port for updates
Minimum Windows System Requirements
Microsoft Windows 10 64-bit
USB 2.0 port
