Description
Key Features
For HD Lenses with B4 Mount
Integrated Optical Elements
Spherical-Aberration Correction
Includes Shim Set

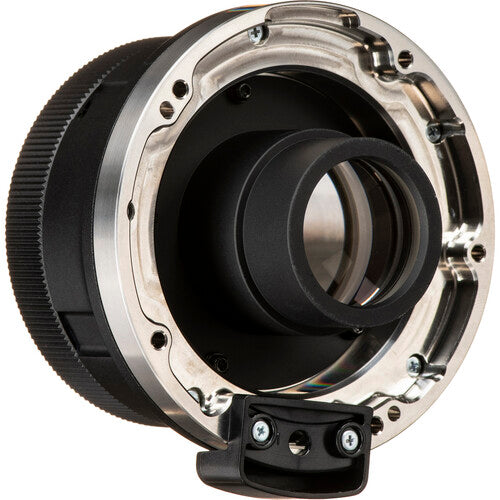

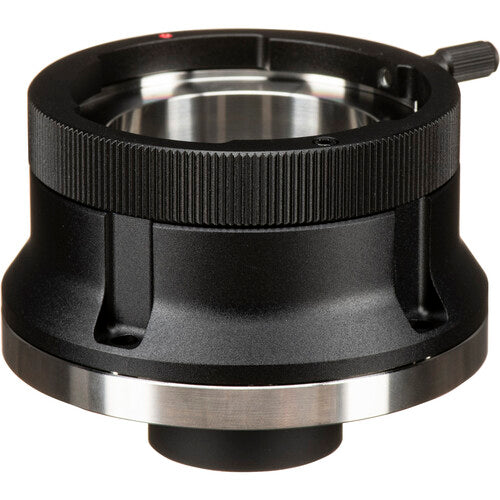

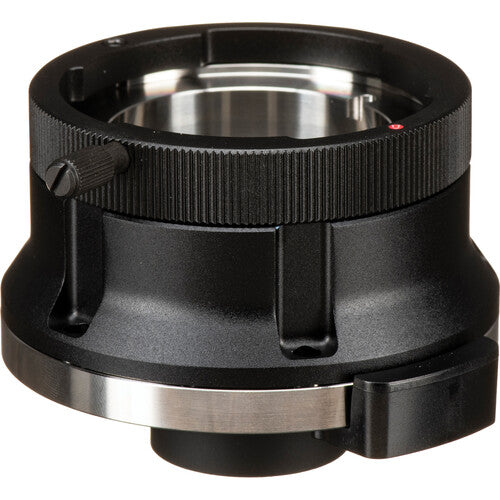

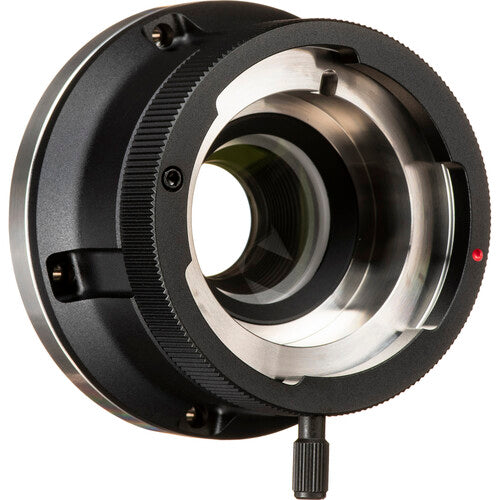

The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mount HD lens on your URSA Mini Pro. The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation.
The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.
Note:
This adapter does not support resolutions above 1920 x 1080.
The integrated optics support HD resolution and are designed with spherical-aberration correction that compensates for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera.
In the Box
Blackmagic Design URSA Mini Pro B4 Mount
Turret Dust Cap
Lens Rear Protective Cover
Molded Mount Case
Set Spare Mounting Screws
Blackmagic Design URSA Mini Pro Shim Kit
Limited 1-Year Manufacturer Warranty
