Description

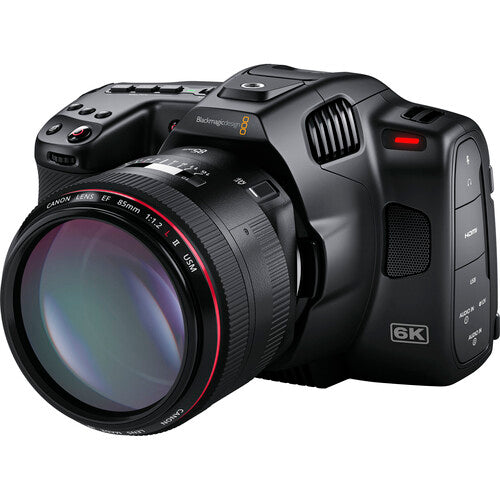

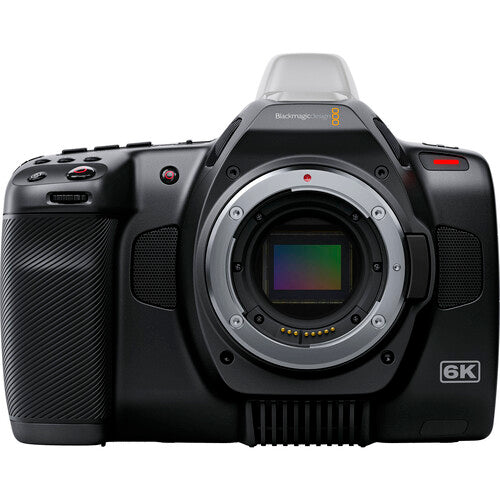

Blackmagic Design Pocket Cinema Camera 6K G2
The Blackmagic Pocket Cinema Camera 6K G2 is an advanced technology, handheld 6K digital film camera with 6144 x 3456 Super 35 high resolution HDR sensor, dual native ISO, EF lens mount and direct recording to USB-C disks! This powerful model adds an adjustable touchscreen, and a larger battery for longer run time. You can even add an optional OLED viewfinder!
Lightweight Carbon Fiber Polycarbonate Composite
The elegant design of the Blackmagic Pocket Cinema Camera packs an incredible number of high end digital film features into a miniaturized, handheld design. Made from lightweight carbon fiber polycarbonate composite, the camera features a multifunction handgrip with all controls for recording, ISO, WB and shutter angle right at your fingertips. Because it's an advanced digital film camera, the sensor is designed to reduce thermal noise allowing cleaner shadows and higher ISO. Plus the large 5 inch LCD makes it possible to get perfect focus at 4K and 6K resolutions. You also get a removable battery door, 4 shock proof microphones, heavy duty lens mount and built in speaker.
Multifunction Grip with Fingertip Controls
The multifunction handgrip features an ergonomic design that puts important functions such as ISO, WB and shutter buttons at your fingertips. There’s even a scroll wheel under your index finger for making quick iris adjustments! Additional controls go beyond those found on a DSLR, which means you don’t have to go hunting through menus on a tiny screen to find a command! The Blackmagic Pocket Cinema Camera features easy to reach recording and still buttons that are placed exactly where you expect, including user assignable function keys allowing buttons for high frame rate, focus zoom, false color and more. The Blackmagic Pocket Cinema Camera 6K Pro also adds extra ND filter controls.
High Resolution Cinematic Digital Film Sensor
The 6K models have a native resolution of 6144 x 3456. Whether you’re shooting in bright sunlight or in almost no light at all, the 13 stops of dynamic range with dual native ISO up to 25,600 provide stunning low noise images in all lighting conditions. Plus the 6K models feature a larger Super 35 sensor that allows shooting with a shallow depth of field and anamorphic lenses. All models let you shoot up to 60 fps in full resolution or 120 fps windowed. An amazing sensor combined with Blackmagic color science means you get the same imaging technology as the most expensive digital film cameras.

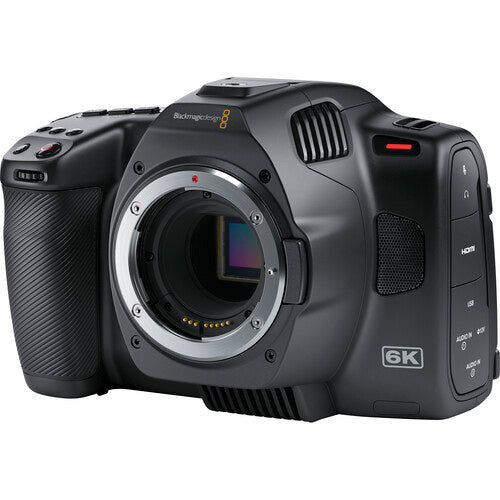

Compatible with Cinema and Photographic Lenses!
The Blackmagic Pocket Cinema Camera 4K features a native sensor resolution of 4096 x 2160, while the 6K models have a native resolution of 6144 x 3456. Whether you’re shooting in bright sunlight or in almost no light at all, the 13 stops of dynamic range with dual native ISO up to 25,600 provide stunning low noise images in all lighting conditions. Plus the 6K models feature a larger Super 35 sensor that allows shooting with a shallow depth of field and anamorphic lenses. All models let you shoot up to 60 fps in full resolution or 120 fps windowed. An amazing sensor combined with Blackmagic color science means you get the same imaging technology as the most expensive digital film cameras.
Shoot Incredible High Dynamic Range (HDR) Images
The distance between the lightest and the darkest parts of an image is called dynamic range and is measured in stops. Pocket Cinema Cameras have an incredible 13 stops of dynamic range which means they preserve more detail in the lightest and darkest areas of an image than simple video cameras can. This allows you to set exposure for an indoor scene such as a cafe and still retain the details of bright outdoor light coming through a window. You also get more colors than the standard DCI-P3 colorspace used for feature films. Plus DaVinci Resolve Studio is included with the camera, so you get total creative freedom with full exposure adjustment and recovery controls when color grading!
Dual Gain ISO for Exceptional Low Light Performance
In digital film ISO is a measurement of the image sensor’s sensitivity to light. This means the higher the ISO number the more sensitivity to light so it’s possible to shoot using natural light even at night! The Pocket Cinema Cameras feature dual gain ISO up to 25,600, which means they're optimized to minimize grain or noise in images, while maintaining the full dynamic range of the sensor. The native ISO of 400 is ideal for scenes with on-set lighting. The secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain is set automatically as you adjust the ISO setting, so it's easy to capture great images when you don’t have time to set up lights.
Post Production Friendly File Formats
Blackmagic Pocket Cinema Camera records using standard open file formats so you don’t have to waste time transcoding media. Files are compatible with all post production software so you can work with the software of your choice, or use the included DaVinci Resolve Studio. Recording works in industry standard 10-bit Apple ProRes files in all formats up to 4K or 12-bit Blackmagic RAW in all formats up to 6K. Blackmagic RAW is the fastest growing RAW format. Developers can download and use the free Blackmagic RAW SDK to add support into their applications. Best of all media files work on all operating systems plus you can format media cards and disks in HFS+ for Mac and ExFAT for Windows.
Multiple Resolutions and Frame Rates
Depending on the model, the Blackmagic Pocket Cinema Camera can shoot in all standard resolutions and frame rates from HD up to DCI 4K and even 6K. You can shoot stills at 21.2 megapixels on the 6K models and 8.8 megapixels on the 4K model. The 6K models will shoot up to 50 fps at 6144 x 3456 16:9 or 60 fps at 6144 x 2560 2.4:1 and 60 fps at 5744 x 3024 17:9. For higher frame rates you can window the sensor and shoot up to 120 fps at 2.8K 2868 x 1512 17:9. You can even work in true anamorphic 6:5 using anamorphic lenses in 3.7K 60 fps at 3728 x 3104. On the 4K model you can shoot up to 60 fps 4K DCI at 4096 x 2160 and 60 fps in Ultra HD at 3840 x 2160. You can even shoot 120 fps in 1080HD!
Use Standard SD Cards, UHS‑II or CFast 2.0 Media
The Blackmagic Pocket Cinema Camera features built in CFast and SD UHS-II card recorders, and a USB-C expansion port for recording direct to an external media disk. You can use regular SD cards for HD or higher performance UHS-II and CFast cards for native 4K or 6K when using Blackmagic RAW. Imagine capturing over an hour of full resolution 6K images on a single 256GB SD UHS-II card! The ProRes and Blackmagic RAW files work with all video software. You can even mount the media cards on your computer and start editing directly from them using the included DaVinci Resolve Studio software!
Blackmagic Raw
Blackmagic RAW is a revolutionary new format designed to capture and preserve the quality of the sensor data from your camera. Video formats such as H.264 are highly compressed, plus add noise and weird artifacts, causing original sensor detail to be lost forever. Blackmagic RAW eliminates this problem and gives you stunning images with incredible detail and color throughout the production pipeline from camera to edit, color and mastering. It also saves camera settings as metadata so you can set ISO, white balance and exposure in camera or override them later while editing, all without any loss of quality! Blackmagic RAW files are also small and fast to use making them easy to work with. Only Blackmagic RAW gives you the highest quality, smallest files and fastest performance!

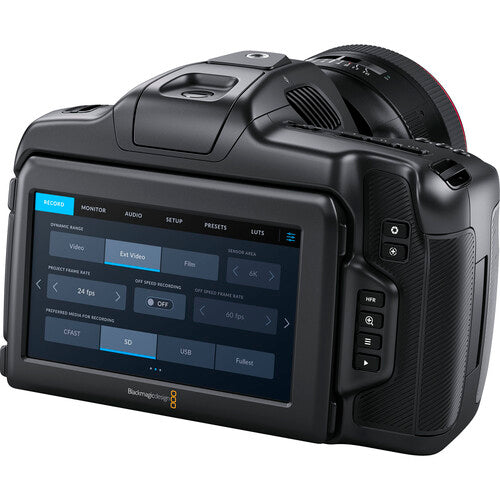

Touchscreen for Fast Setup
The large LCD touchscreen displays critical information on the heads up display, or HUD, as well as access to camera setup menus. The HUD lets you see and adjust settings such as the frame rate, iris, timecode, shutter angle, white balance, ISO, audio levels and more with a single tap. You can show or hide the HUD by simply swiping up or down. Adjust settings such as white balance simply by touching the WB indicator, or change the audio levels by touching the audio meters. Everything is interactive, so you can tap any item and instantly change settings without searching through confusing menus! You can also access settings such as the digital slate, to quickly add metadata to any shot.

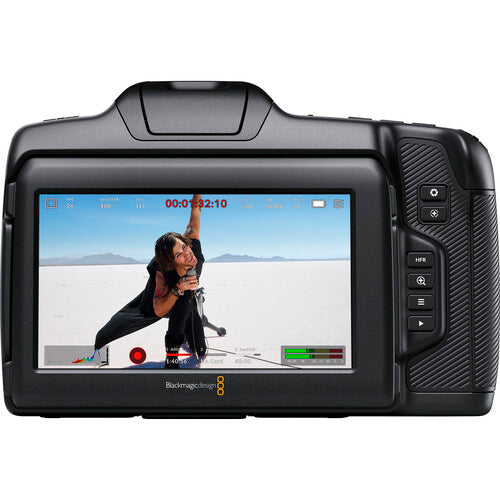

Large 5" LCD Monitor
Blackmagic Pocket Cinema Camera features a large, bright 5 inch touchscreen that makes it easy for you to frame shots and accurately focus. That means you don’t have to carry around an external monitor! On screen overlays show status and record parameters, histogram, focus peaking indicators, levels, frame guides and more. You can quickly apply 3D LUTs for monitoring shots with the desired color and look. The LCD monitor on the Pocket Cinema Camera 6K G2 and Pro models is a more advanced HDR display that can be tilted up and down so it's easy to monitor your shot from any position. Plus the 6K Pro model’s HDR display features 1500 nits of brightness, ideal for use in bright sunlight!
Advanced OS withFeatures from URSA Mini Pro
With the advanced Blackmagic OS, you get an intuitive and user friendly camera operating system based on the latest technology. Blackmagic OS is a true modern operating system where all camera features run independently for smoother control, plus the camera powers on virtually instantly. It features the same controls and menus as other Blackmagic Design cameras so you can move between cameras on set easily. The interface uses simple tap and swipe gestures to adjust settings, add metadata and view recording status. You also get full control over advanced camera features such as on screen focus and exposure tools, 3D LUTs, HDR, metadata entry, timecode, Blackmagic RAW settings and more!
Latest Generation 5 Color Science
Stunning Skin Tones and Faithful Color Reproduction
Featuring the same generation 5 color science as the high end URSA Mini Pro 12K, the new Pocket Cinema Camera 6K Pro delivers an even greater advancement in image quality with stunning, accurate skin tones and faithful color in every shot. You get a new dynamic 12-bit gamma curve designed to capture more color data in the highlights and shadows, for better looking images. The color science also handles some of the complex Blackmagic RAW image processing, so color and dynamic range data from the sensor is preserved via metadata which you can use in post production. That means you get images that have a natural, film like response to color adjustments in post with DaVinci Resolve Studio.

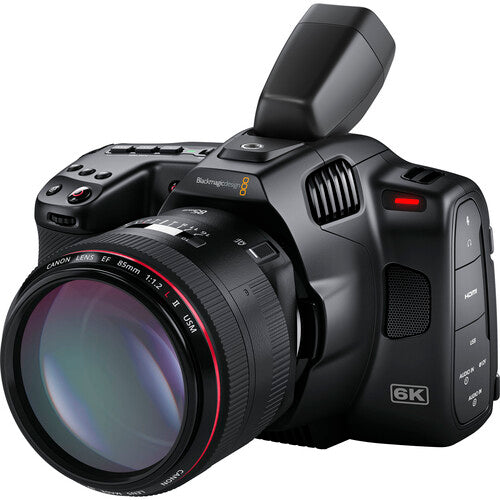

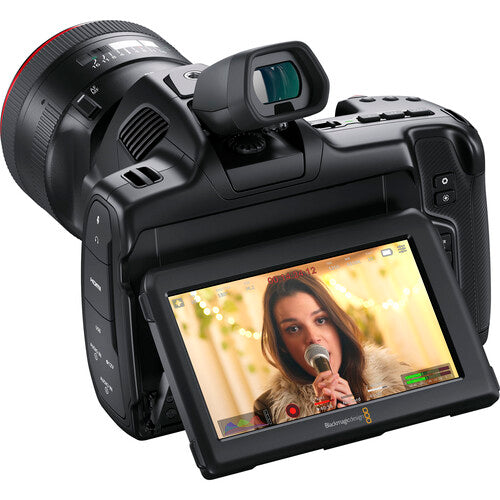

Optional Viewfinder for Professional Shooting
The Pocket Cinema Camera 6K G2 and 6K Pro supports an optional viewfinder to make outdoors and handheld shooting accurate and easy! You get an integrated high quality 1280 x 960 color OLED display with built in proximity sensor, 4 element glass diopter for incredible accuracy with a wide -4 to +4 focus adjustment. A built in digital focus chart ensures you get perfect viewfinder focus setup. You can also view critical status information such as frame guides. The Pocket Cinema Camera Pro EVF connects quickly to the Blackmagic Pocket Cinema Camera 6K G2 and 6K Pro via a single connector. The viewfinder has a 70 degree swivel range and comes with 4 different types of eyecups for both left and right eyes.

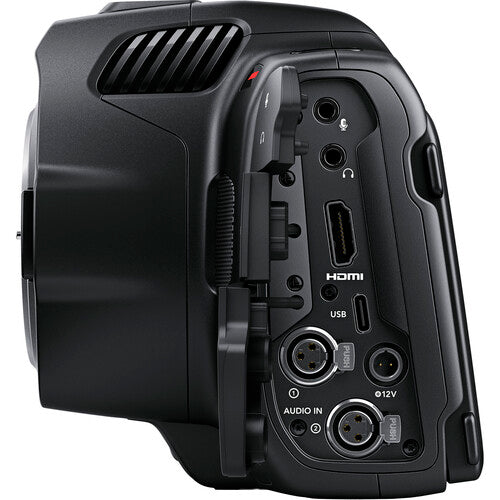

Professional Connections for Custom Rigs
Though small and portable, the Blackmagic Pocket Cinema Camera features a wide range of connections for audio, monitoring, power and more. The camera includes a full size HDMI connector for monitoring with support for HDR and clean 10-bit output. That means you can connect an HDMI display for on set monitoring of images, with or without overlays that show critical information and camera status. There’s also a mini XLR connection with 48 volt phantom power for attaching professional microphones, a 3.5 mm video camera style microphone input, headphone connection and a professional locking DC power connector! The USB-C connection lets you connect and record direct to your media disk!
4 Built-in Microphones and Professional Audio Inputs
With professional, high fidelity audio recording built in you'll never have to carry around a separate sound recorder again! Blackmagic Pocket Cinema Cameras feature a mini XLR input with 48 volts of phantom power for connecting professional microphones such as lapel mics and booms. The 6K Pro model features 2 mini XLR connections, allowing you to record 2 separate audio tracks using 2 mics, without an external mixer. The four built in mics have an extremely low noise floor and are shock and wind resistant, capturing great sound in any location. There’s also a 3.5mm audio input for connecting video camera microphones, along with a built in speaker for playback and a 3.5mm headphone jack.
USB-C for Recording Direct to External Media Disks
The Blackmagic Pocket Cinema Camera features an innovative and high speed USB-C Expansion Port that operates at up to 5 Gb/s. USB-C is available on most new computers and even provides power. That means you can connect external accessories such as flash drives and SSDs for significantly longer recording times. A high speed external disk allows shooting 6K in the highest constant quality 12-bit Blackmagic RAW in the Q0 setting or at high frame rates. Best of all, when shooting is complete you can simply move the external disk to your computer and start editing and color correction from the same disk, eliminating file copying.
Built In Timecode Generator
Get Fast Multi Camera Shoots in Perfect Sync!
Professional cameras include professional features and you also get a built in timecode generator, allowing shooting with more than one camera while keeping perfect sync! Simply plug in an external timecode generator such as Tentacle Sync into the 3.5 mm audio jack and the camera will automatically detect timecode and lock the internal generator. Now each camera can start and stop recording and all the shots from all cameras will have the same matched timecode. Imagine shooting a music festival with multiple roving cameras! Best of all, DaVinci Resolve will automatically find and sync the shots from all cameras so you don't need to waste time sorting through thousands of shots!
Shoots Still Frames up to 21.2 Megapixels!
In addition to shooting video, the Blackmagic Pocket Cinema Camera can also capture high resolution stills. Simply press the dedicated stills button to record 21.2 megapixel images on the 6K models or 8 megapixel images on the 4K model. Still images are saved as fully uncompressed DNG frames, so you get the maximum image quality, which is perfect for making professional prints. Capturing still images is great for keeping track of continuity between shots or for sharing images to get approval from clients that are not on set.
Wireless Bluetooth Camera Remote Control
If you're positioning the camera on the end of a boom, or in another hard to reach location, you can get full control via Bluetooth from up to 30 feet away. You can download the Blackmagic Camera Control app for your iPad or use third party apps such as Bluetooth+ or tRigger on your iOS and Android devices. There’s even a free developer SDK with sample code available from the Blackmagic Design developer website, so you can create your own remote camera control and digital slate solutions! Imagine building an app that can jam sync timecode and trigger all cameras to record at the same time. The possibilities are endless!
Power from Batteries,12V DC and Recharge via USB‑C
The 6K G2 and 6K Pro models use larger NP-F570 batteries. A locking DC power connector is used so you won't have to worry about losing power during a shoot. Plus the included AC plug pack can power the camera and charge the battery simultaneously. You also get a set of international socket adapters for worldwide use. Even the USB-C expansion port can trickle charge the battery, so you can use portable battery packs, mobile phone chargers or laptops. The optional battery grip lets you add extra batteries to dramatically extend the power of the camera so you can keep shooting all day!
Use Pocket Cinema Camera as a Live Studio Camera
Blackmagic Pocket Cinema Camera now works as a studio camera for live production when used with ATEM Mini! Video and control is via the HDMI connection, which is available as soon as you plug the cameras in. The record light becomes a tally light so you can see which camera is on air! The ATEM Software Control camera page has a camera control unit (CCU) style interface for adjusting and matching your cameras. Move the CCU control vertically for iris and left to right to adjust black level. It's the same as a broadcast CCU! There are also controls for color tint to balance cameras as well as focus, gain and shutter speed. You can even ISO record Blackmagic RAW in the camera for editing later!
Includes DaVinci Resolve Studio
Get Professional Editing, Color Correction, Audio Post and VFX!
All Pocket Cinema Camera models include a full version of DaVinci Resolve Studio, which is the same software used in Hollywood for creating high end feature films, episodic television shows, commercials and more. DaVinci Resolve features the new cut page with intelligent editing tools and innovative new features designed to help you quickly find the footage you want, edit it together and output it fast. In addition to the new cut page, you also get DaVinci’s legendary professional editing, advanced color correction, audio post and visual effects tools, all in a single software application! Now you can use the the same high end software that professional editors and colorists use!
Camera Features
Effective Sensor Size
23.10mm x 12.99mm (Super 35)
Lens Mount
Active EF mount.
Lens Control
Iris, focus and zoom on supported lenses.
Dynamic Range
13 Stops.
Dual Native ISO
400 and 3200
Shooting Resolutions
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps
Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.
Built in ND Filters
None
Focus
Auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen Dimensions
5” 1920 x 1080.
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Inputs
None
Total Video Outputs
1 x HDMI up to 1080p60
Analog Audio Inputs
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input.
All audio inputs can also be used for Timecode input.
Analog Audio Outputs
1 x 3.5mm headphone jack.
Computer Interface
USB Type-C for external drive recording, PTP camera control and software updates.
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker.
Standards
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Media
1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
ProRes 422 HQ QuickTime,
ProRes 422 QuickTime,
ProRes 422 LT QuickTime,
ProRes 422 Proxy QuickTime.
Control
External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
Color Corrector
DaVinci YRGB.
Storage Features
Storage Type
1 x CFast 2.0.
1 x SD UHS-II card.
1 x high speed USB-C expansion port for external media.
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2868 x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT.
Storage Rates
Storage rates based on 30 frames per second.
6144 x 3456 (6K)
Blackmagic RAW 3:1 - 323 MB/s
Blackmagic RAW 5:1 - 194 MB/s
Blackmagic RAW 8:1 - 121 MB/s
Blackmagic RAW 12:1 - 81 MB/s
Blackmagic RAW Q0 - 242 to 483 MB/s
Blackmagic RAW Q1 - 162 to 387 MB/s
Blackmagic RAW Q3 - 108 to 277 MB/s
Blackmagic RAW Q5 - 65 to 162 MB/s
6144 x 2560 (6K 2.4:1)
Blackmagic RAW 3:1 - 240 MB/s
Blackmagic RAW 5:1 - 144 MB/s
Blackmagic RAW 8:1 - 90 MB/s
Blackmagic RAW 12:1 - 60 MB/s
Blackmagic RAW Q0 - 180 to 359 MB/s
Blackmagic RAW Q1 - 120 to 287 MB/s
Blackmagic RAW Q3 - 80 to 205 MB/s
Blackmagic RAW Q5 - 49 to 120 MB/s
5744 x 3024 (5.7K 17:9)
Blackmagic RAW 3:1 - 264 MB/s
Blackmagic RAW 5:1 - 159 MB/s
Blackmagic RAW 8:1 - 100 MB/s
Blackmagic RAW 12:1 - 67 MB/s
Blackmagic RAW Q0 - 198 to 396 MB/s
Blackmagic RAW Q1 - 133 to 317 MB/s
Blackmagic RAW Q3 - 89 to 227 MB/s
Blackmagic RAW Q5 - 54 to 133 MB/s
4096 x 2160 (4K DCI)
Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 51 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 to 203 MB/s
Blackmagic RAW Q1 - 68 to 163 MB/s
Blackmagic RAW Q3 - 46 to 116 MB/s
Blackmagic RAW Q5 - 28 to 68 MB/s
Apple ProRes 422 HQ - 117.88 MB/s
Apple ProRes 422 - 78.63 MB/s
Apple ProRes 422 LT - 54.63 MB/s
Apple ProRes Proxy - 24.25 MB/s
3840 x 2160 (Ultra HD)
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
3728 x 3104 (3.7K 6:5 anamorphic)
Blackmagic RAW 3:1 - 177 MB/s
Blackmagic RAW 5:1 - 106 MB/s
Blackmagic RAW 8:1 - 67 MB/s
Blackmagic RAW 12:1 - 45 MB/s
Blackmagic RAW Q0 - 133 to 265 MB/s
Blackmagic RAW Q1 - 89 to 212 MB/s
Blackmagic RAW Q3 - 60 to 152 MB/s
Blackmagic RAW Q5 - 36 to 89 MB/s
2868 x 1512 (2.8K 17:9)
Blackmagic RAW 3:1 - 67 MB/s
Blackmagic RAW 5:1 - 41 MB/s
Blackmagic RAW 8:1 - 26 MB/s
Blackmagic RAW 12:1 - 17 MB/s
Blackmagic RAW Q0 - 51 to 101 MB/s
Blackmagic RAW Q1 - 34 to 81 MB/s
Blackmagic RAW Q3 - 23 to 58 MB/s
Blackmagic RAW Q5 - 14 to 34 MB/s
1920 x 1080
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Constant Quality storage rates quoted are indicative only.
Actual storage rates are entirely dependent on image subject matter.
Software
Software Included
Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed Test
Operating Systems
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.
Power Requirements
Power Supply
1 x External 12V power supply.
External Power Input
1 x 2‑pin locking connector.
Battery Type
NP-F570
Battery Life
Approximately 60 minutes
(recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)
Power
12V-20V.
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
Warranty
Product Warranty
12 Month Limited Manufacturer's Warranty.
