Spotlight - Light range 6m/20ft
BIG SCOPE is used for lighting trees up to about 6 meters high with a wide crown. BIG SCOPE is distinguished by a wide beam.
Use accessory RISER or BRACE to raise the light source above the planting. Use accessory KILLFLASH or SHIELD to prevent viewing of the light source.
The EASY-LOCK comes standard with this fixture. The cable length on this fixture is 60cm.
Use accessory RISER or BRACE to raise the light source above the planting. Use accessory KILLFLASH or SHIELD to prevent viewing of the light source.
The EASY-LOCK comes standard with this fixture. The cable length on this fixture is 60cm.

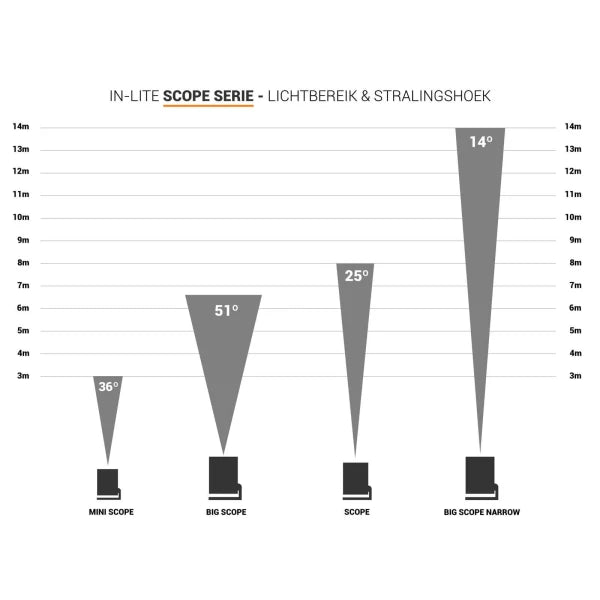

- Provides a wide beam of light
- Designed for illuminating trees up to 6 meters
- Height adjustable with accessories
Installation advice:
2 BIG SCOPE several meters away from the trunk, aimed at the top

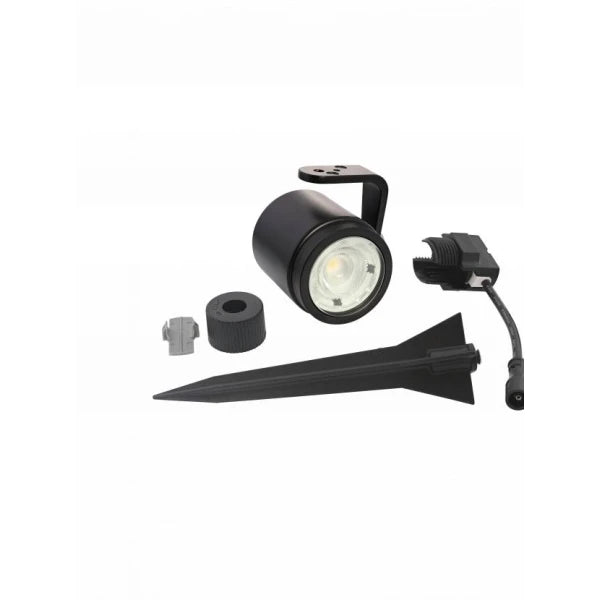

IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- Ground pin
- 1x Nylon plug
- 1x Screw
- 1x Torx wrench
- 1x Cable plug
Product Details
BIG SCOPE is used to illuminate trees up to about 6 meters high with a wide crown. BIG SCOPE is distinguished by a wide beam. Do you have plants under the tree? Then use accessory RISER or BRACE to raise the light source above the plants.
Specs
Art. nr.
10401002
Application
Facade, Hedge, House, Tree
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
91
Diameter (inch)
2.5984
Diameter (mm)
66
EAN code
8717051004520
Energy label
F
Height (inch)
2.9921
Height (mm)
76
IP class
67
Light direction
Adjustable
Light type
Accent
Efficiency (Lumen/Watt)
84
Net luminous flux (Lumen)
422
Order unit
6
Power [W]
5
Processing
Grass, Gravel, Soil, Wood
Article group
Spot
Voltage
12V
VA value
8
Color temperature
3100
Luminous intensity [Cd]
490
Power factor
.63
Installation instructions
Installation advice
Place BIG SCOPE in soft ground with the included ground stake. Still want a hard surface? You can! Attach the fixture with the bracket.
