Recessed light - Ø 142mm / 5.59"
BIG NERO NARROW ground spot is perfect for illuminating tall, narrow trees from gravel and grass. Thanks to its flat-ring design, this fixture now also works well in stone and wood.
The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.
Tip: Think of an extension cable
The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.
Tip: Think of an extension cable
- Produces a strong and narrow, focused light
- Designed for illuminating tall elements up to 14 meters
- Fitted with in-lite motion
Installation advice:
2 BIG NERO NARROW several meters away from the trunk, aimed at the top

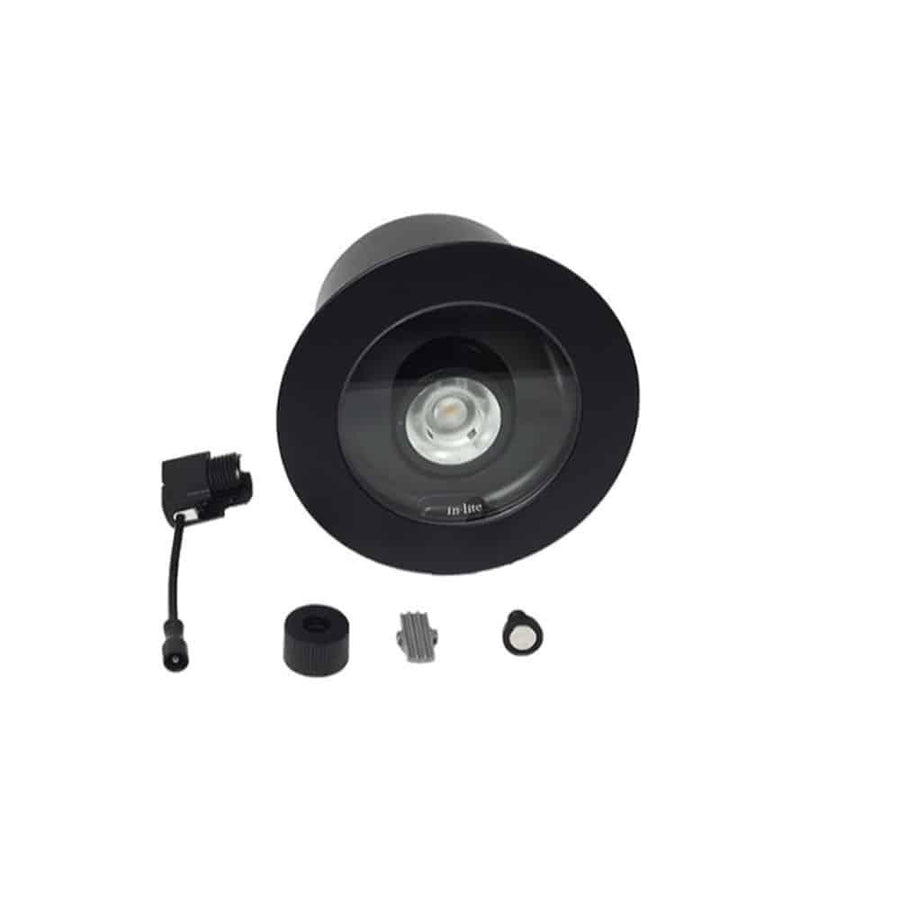

IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- in-lite Motion
Product Details
With its single chip LED and World Leading LEDiL® lens, BIG NERO NARROW produces a light range of at least 14 meters with a light angle of 18 degrees. BIG NERO NARROW is equipped with in-lite Motion technology. Through this technology you can easily adjust the light source without opening the fixture. Simply hold the included magnet on the in-lite logo and the light source will automatically tilt.
Specs
Art. nr.
10103460
Application
Facade, Hedge, House, Tree
Mounting depth (inch)
5.1181
Recessed depth (mm)
130
CRI
91
Diameter (inch)
6.6929
Diameter (mm)
170
EAN code
8717051004582
Energy label
G
Height (inch)
4.8425
Height (mm)
123
IP class
67
Light direction
Up
Light type
Accent
Efficiency (Lumen/Watt)
63
Net luminous flux (Lumen)
476
Order unit
6
Power [W]
7.5
Processing
Concrete, Grass, Gravel, NaturalStone, Soil, Wood
Article group
Integrated
Voltage
12V
VA value
11.9
Color temperature
3100
Luminous intensity [Cd]
3036.7
Power factor
0.63
Installation instructions
Installation advice
The BIG NERO NARROW can be buried or integrated into various types of concrete products, natural stone and wood. This requires drilling a 142 mm hole. For anyone who will incorporate the new BIG NERO (NARROW) in a lighting plan, the following applies: always use the 10/2 cable, use the maximum cable length of 40 meters and do not exceed the maximum number of luminaires. (HUB-50 up to four BIG NERO (NARROW) fixtures and HUB-100 up to seven and SMART HUB-150 up to eleven, up to seven in a line.) If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100).
