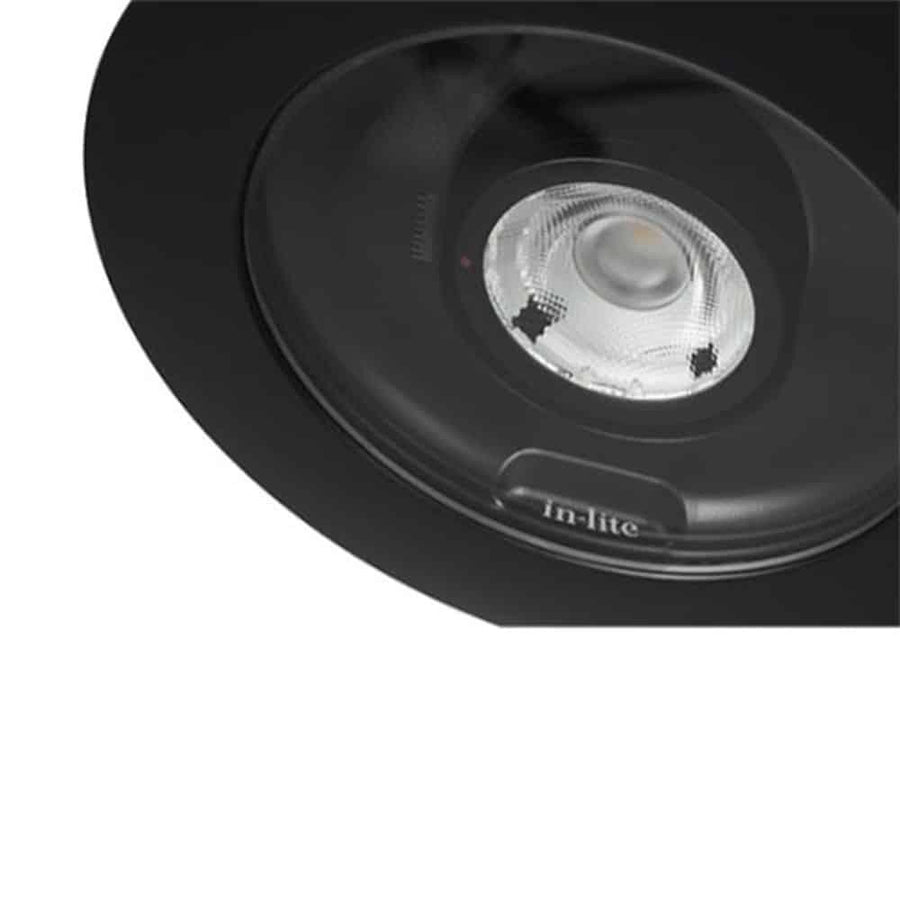

BIG NERO ground light is the perfect fixture for illuminating tall trees or walls from gravel, grass, pavement or wood. With its single chip LED and World Leading LEDiL® lens, BIG NERO produces a light range of at least 6.5 meters with a light angle of 49 degrees. BIG NERO is equipped with in-lite Motion technology. Through this technology you can easily adjust the light source without opening the fixture. Simply hold the included magnet on the in-lite logo and the light source will automatically tilt.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
Tip: Think of an extension cable
Produces a strong and very wide, focused light
Designed for illuminating tall elements up to 6½ meters
Fitted with in-lite motion
Installation advice:

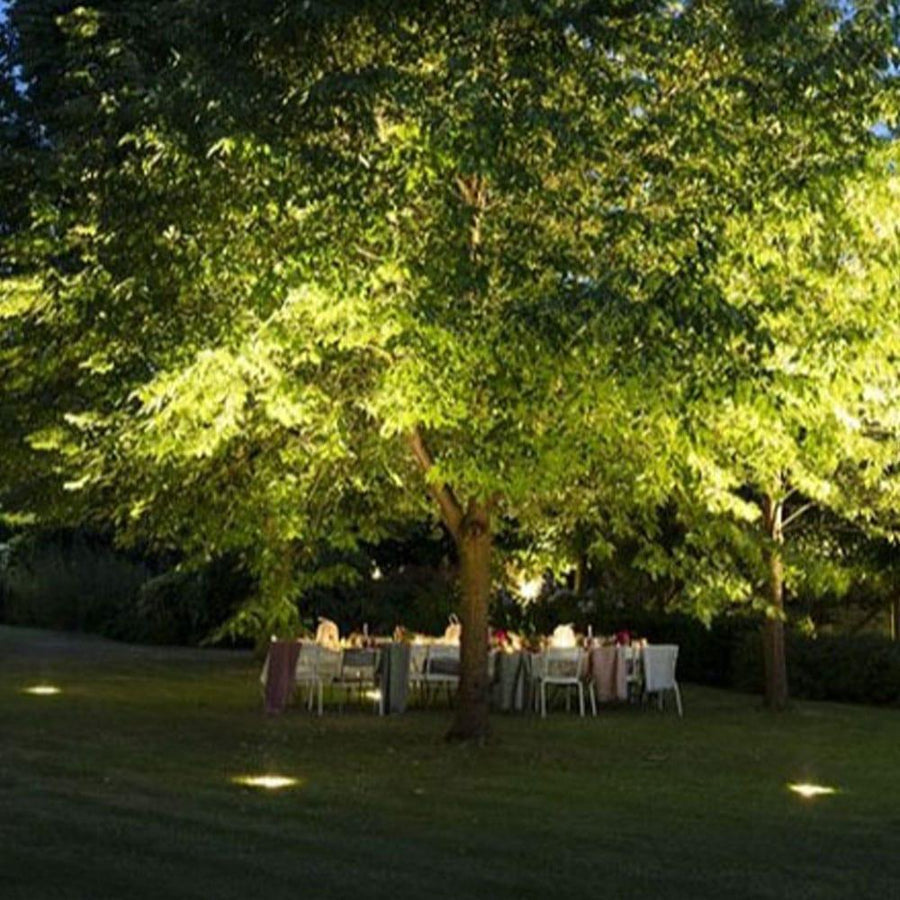

3 BIG NERO on the edge of the trunk, aimed at the top
The BIG NERO can be buried or integrated into various types of concrete products, natural stone and wood. This requires drilling a 142 mm hole. If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100. The SMART HUB-150 for up to max. 11, max. 7 at one line).

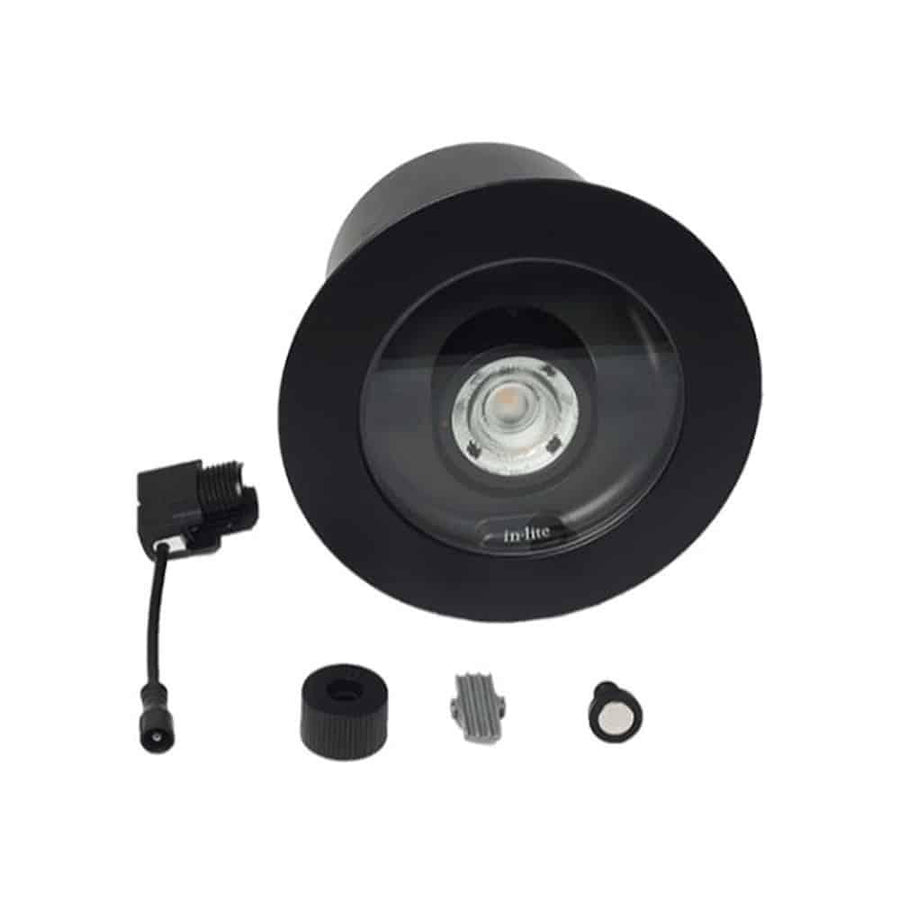

INCLUDED IN PACKAGE:
1x EASY LOCK
60 cm Fixture cable
in-lite Motion
SPECS:
Art. nr.: 10103451
Application: Facade, Hedge, House, Tree
Mounting depth (inch): 5.1181
Recessed depth (mm): 130
CRI: 92
Diameter (inch): 6.6929
Diameter (mm): 170
EAN code: 8717051004490
Energy label: G
Height (inch): 4.8425
Height (mm): 123
IP class: 67
Light type: Accent
Efficiency (Lumen/Watt): 65
Net luminous flux (Lumen): 488
Order unit: 6
Power [W]: 7.5
Processing: Concrete, Grass, Gravel, NaturalStone, Soil, Wood
Article group: Integrated
Voltage: 12V
VA value: 11.9
Color temperature: 3100
Luminous intensity [Cd]: 627.4
Power factor: 0.63
