Description
in-lite BIG FLUX Stainless Steel 60mm - 12V/21V - 4.2 VA - Ring 68 SS - 99030020 from in-lite built for clean, modern outdoor lighting systems.
This ground spotlight is available in three different colors: Black, Pearl Grey and Stainless Steel. The rings are made of high quality anodized aluminum
The BIG FLUX is perfect to combine with accessory SPIKE. With this ground stake, you easily place the BIG FLUX in a loose surface such as earth, gravel or grass. BIG FLUX is also suitable for processing in accessory BOX-1.
- Produces a strong and focused light
- Cup for tension-free installation in wood and stone
- Drive-over
A BIG FLUX every 2 to 2½ meters

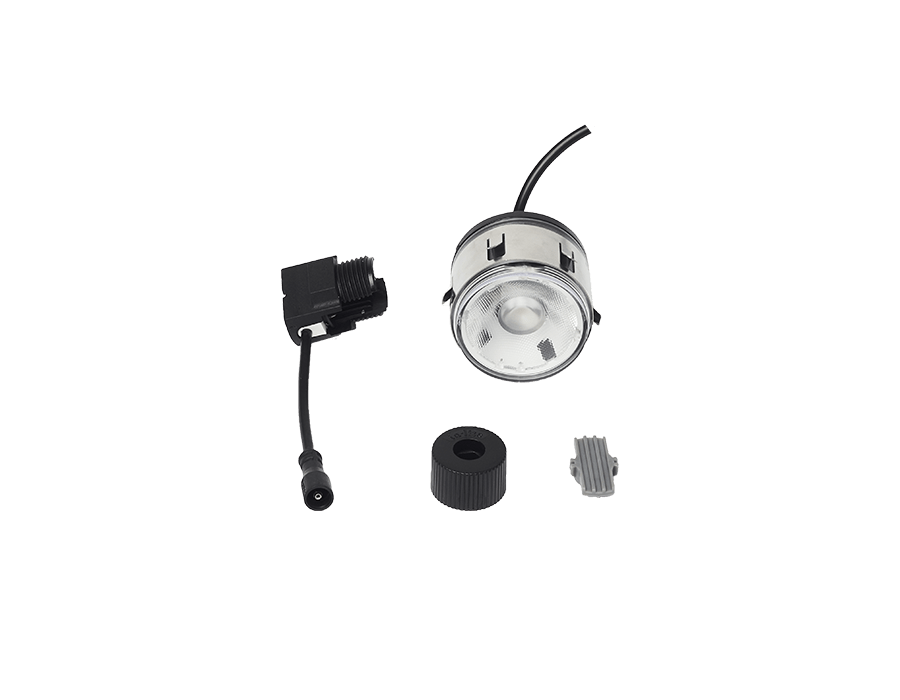

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- Ring 68 StainlessSteel
Also available:
- FLUX; light 5m high, 2m wide
- BIG FLUX NARROW; light 11m high, 3m wide
- BIG FLUX ASYMMETRIC; light 6m high, 2.5m wide
- SMART FLUX TONE; light 5m high, 3m wide, dimmable, color lighting
Specs
Installation instructions

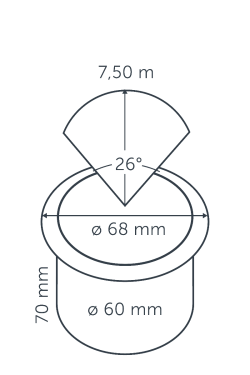

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or landscaper can take care of this. Please note, only install the fixture in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight.
BIG FLUX features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, a hammer is not needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX and is not available separately.
If you want to incorporate BIG FLUX into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX in SPIKE and prick the whole thing into the ground.
Download the BIG FLUX manual here.
Need help choosing compatible parts? Contact The LA Firm for project support.
