Description
in-lite BIG FLUX NARROW Black 60mm - 12V/21V - 4.2 VA - Ring 68 BL - 99040000 from in-lite built for clean, modern outdoor lighting systems.

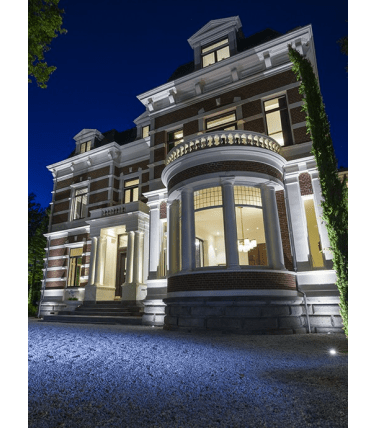

With its light angle of 13 degrees and a light range of 11 meters, BIG FLUX NARROW is ideally suited for illuminating narrow tall elements. Think of narrow trees or to highlight a facade.
This ground spot is available in three different colors: Black, Pearl Grey and Stainless Steel. The rings are made of high-quality anodized aluminum.
BIG FLUX NARROW is perfect to combine with accessory SPIKE 60. With this ground stake, you easily place the BIG FLUX NARROW in a loose surface such as soil, gravel or grass. BIG FLUX NARROW is also suitable for incorporation into accessory BOX-1.
This ground spot is available in three different colors: Black, Pearl Grey and Stainless Steel. The rings are made of high-quality anodized aluminum.
BIG FLUX NARROW is perfect to combine with accessory SPIKE 60. With this ground stake, you easily place the BIG FLUX NARROW in a loose surface such as soil, gravel or grass. BIG FLUX NARROW is also suitable for incorporation into accessory BOX-1.
- Provides a powerful and narrow focused light
- Suitable for illuminating tall elements up to 11 meters
- Surmountable
Installation advice:
Consider an extension cable to neatly conceal the EASY-LOCK

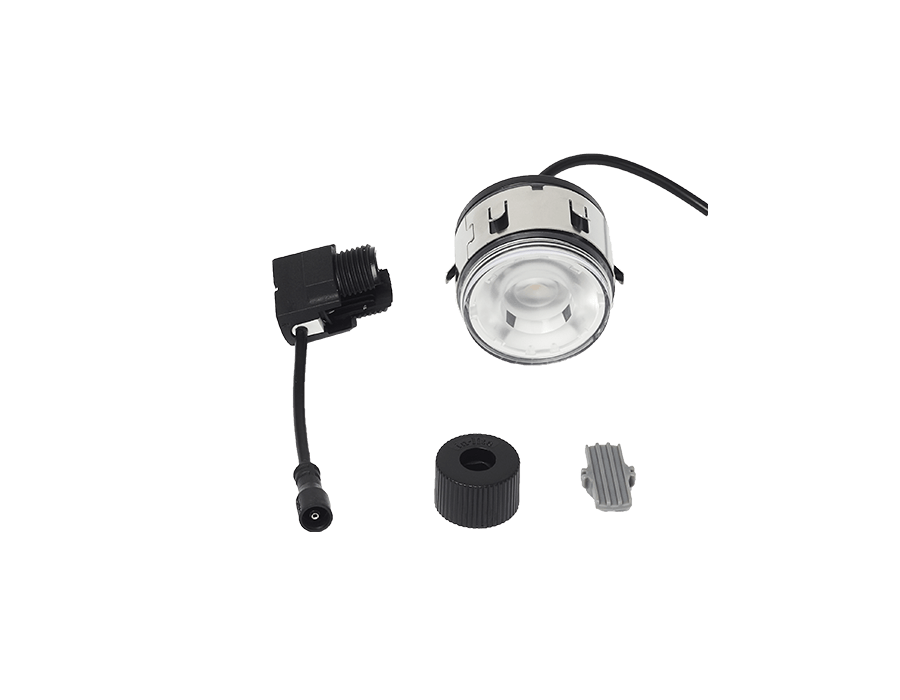

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- Ring 68 Black
Product Details
BIG FLUX NARROW, with its 13-degree angle of illumination and a light range of 11 meters, is ideally suited for illuminating narrow tall elements.
BIG FLUX NARROW can be perfectly combined with the SPIKE 60 accessory. With this ground stake you easily place the ground spotlight in a loose surface such as earth, gravel or grass.
This fixture consists of BIG FLUX NARROW and RING 68. The ring is made of high-quality anodized aluminum ans is available in three different colors: Black, Stainless Steel and Pearl Grey. BIG FLUX NARROW is also suitable for incorporation into accessory BOX-1.
Also available:
- FLUX; 5m high, 2m wide
- BIG FLUX; 7.5m high, 3.5m wide
- BIG FLUX ASYMMETRIC; 6m high, 2,5m wide
- SMART FLUX TONE; 5m high, 3m wide, dimmable, color lighting
BIG FLUX NARROW can be perfectly combined with the SPIKE 60 accessory. With this ground stake you easily place the ground spotlight in a loose surface such as earth, gravel or grass.
This fixture consists of BIG FLUX NARROW and RING 68. The ring is made of high-quality anodized aluminum ans is available in three different colors: Black, Stainless Steel and Pearl Grey. BIG FLUX NARROW is also suitable for incorporation into accessory BOX-1.
Also available:
- FLUX; 5m high, 2m wide
- BIG FLUX; 7.5m high, 3.5m wide
- BIG FLUX ASYMMETRIC; 6m high, 2,5m wide
- SMART FLUX TONE; 5m high, 3m wide, dimmable, color lighting
Specs
Art. nr.
99040000

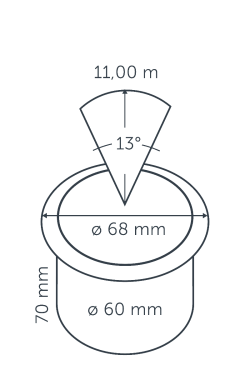

Mounting depth (inch)
2.8
Recessed depth (mm)
70
Diameter (inch)
2.7
Diameter (mm)
68
Color
Black
Energy label
F
Height (inch)
2.5
Height (mm)
64
Efficiency (Lumen/Watt)
89
Net luminous flux (Lumen)
266
Power [W]
3
Article group
Recessed lights
Voltage
12 volt, 21V
VA value
4.2
Color temperature
3100
Material finishing/coating
Anodized
Kilowatt hour
3
Luminous intensity [Cd]
1848.6
Power factor
0.71
Installation instructions
You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or landscaper can take care of this. Please note, install the fixture only in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight. The BIG FLUX NARROW features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, no hammer is needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX NARROW and is not available separately. If you want to work the BIG FLUX NARROW into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX NARROW in SPIKE and prick the whole thing into the ground.
