BIG FLUX Black 60mm - 12V/21V - 4.2 VA - Ring 68 BL from www.thelafirm.com
Roll over image to zoom in Click on image to zoom
BIG FLUX Black 60mm - 12V/21V - 4.2 VA - Ring 68 BL from www.thelafirm.com

in-lite BIG FLUX Black 60mm - 12V/21V - 4.2 VA - Ring 68 BL - 99030000

Save $35.09
in-liteSKU: 99030000
Price:
$176.91 $212.00

Description

in-lite BIG FLUX Black 60mm - 12V/21V - 4.2 VA - Ring 68 BL - 99030000 from in-lite built for clean, modern outdoor lighting systems.

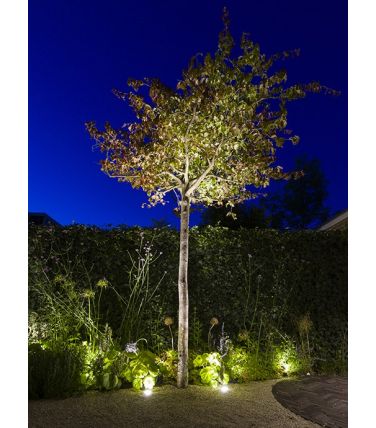

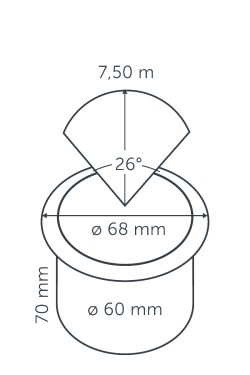

BIG FLUX produces a lighting angle of 26 degrees and a lighting range of 7.5 meters high. This makes the BIG FLUX the best choice for lighting tall multi-stemmed trees incorporated into decking, for example, or for lighting wide facades from the pavement.

This ground spotlight is available in three different colors: Black, Pearl Grey and Stainless Steel. The rings are made of high quality anodized aluminum

The BIG FLUX is perfect to combine with accessory SPIKE. With this ground stake, you easily place the BIG FLUX in a loose surface such as earth, gravel or grass. BIG FLUX is also suitable for processing in accessory BOX-1.
  • Produces a strong and focused light
  • Cup for tension-free installation in wood and stone
  • Drive-over
Installation advice:

A BIG FLUX every 2 to 2½ meters

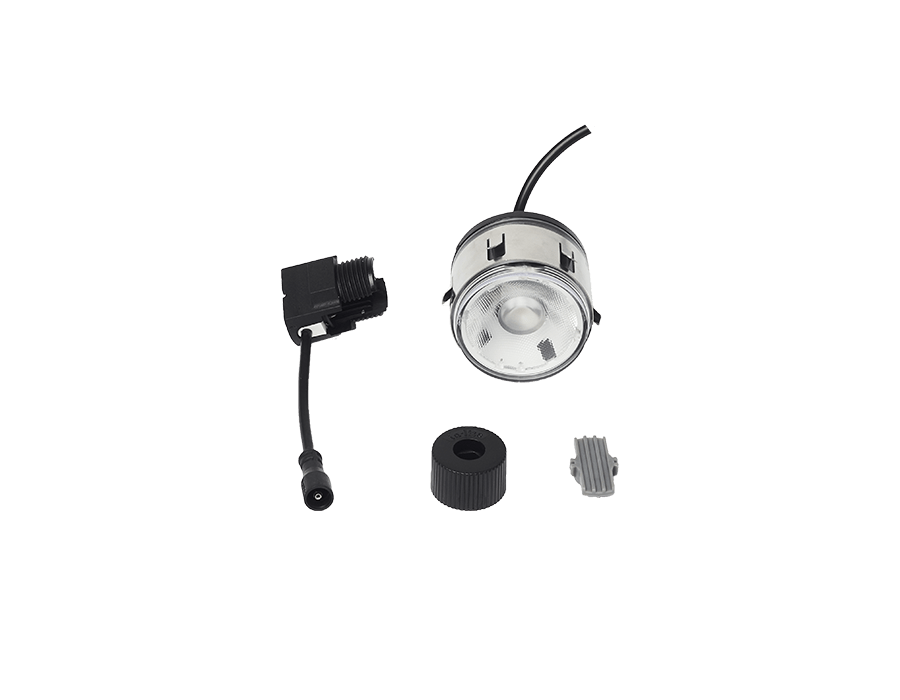

IN THE PACKAGE: INCLUDED IN PACKAGE

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Ring 68 Black
BIG FLUX is the best choice for lighting tall multi-trunked trees incorporated into decking, for example, or for lighting wide facades from the pavement. This is due to its beam of 7.5 meters high and 3.5 meters wide. Available with three different ring colors: Black, Pearl Grey and Stainless Steel.

Also available:
- FLUX; light 5m high, 2m wide
- BIG FLUX NARROW; light 11m high, 3m wide
- BIG FLUX ASYMMETRIC; light 6m high, 2.5m wide
- SMART FLUX TONE; light 5m high, 3m wide, dimmable, color lighting
Art. nr.
99030000
Mounting depth (inch)
2.8
Recessed depth (mm)
70
Diameter (inch)
2.7
Diameter (mm)
68
Color
Black
Energy label
F
Height (inch)
2.5
Height (mm)
64
Efficiency (Lumen/Watt)
91
Net luminous flux (Lumen)
272
Power [W]
3
Article group
Recessed lights
Voltage
12 volt, 21V
VA value
4.2
Color temperature
3100
Material finishing/coating
Anodized
Kilowatt hour
3
Luminous intensity [Cd]
852
Power factor
0.71

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or landscaper can take care of this. Please note, only install the fixture in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight.

BIG FLUX features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, a hammer is not needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX and is not available separately.

If you want to incorporate BIG FLUX into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX in SPIKE and prick the whole thing into the ground.

Download the BIG FLUX manual here.



Need help choosing compatible parts? Contact The LA Firm for project support.
