Description
in-lite BIG FLUX ASYMMETRIC Stainless Steel 60mm - 12V/21V - 4.2 VA - Ring 68 SS - 99020020 from in-lite built for clean, modern outdoor lighting systems.

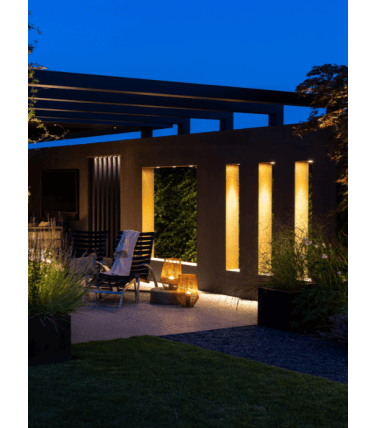

BIG FLUX ASYMMETRIC produces two different light images with its asymmetrical lens. In one direction, the light image is a wide fan with a light angle of 65 degrees and a light range of 6 meters. Turning the fixture 90 degrees creates a narrow stripe with and angle of light of 18 degrees and a light range of 6 meters high. This allows this fixture to uniquely illuminate the beams of a pergola, wide alcoves or passageways.
This ground spotlight is available in three different colors: Black, Pearl Grey and Stainless Steel. The rings are made of high-quality anodized aluminum.
BIG FLUX can be perfectly combined with accessory SPIKE. With this ground stake, you easily place the BIG FLUX in a loose surface such as earth, gravel or grass. BIG FLUX is also suitable for incorporation into accessory BOX-1.
This ground spotlight is available in three different colors: Black, Pearl Grey and Stainless Steel. The rings are made of high-quality anodized aluminum.
BIG FLUX can be perfectly combined with accessory SPIKE. With this ground stake, you easily place the BIG FLUX in a loose surface such as earth, gravel or grass. BIG FLUX is also suitable for incorporation into accessory BOX-1.
- Gives a powerful and wide light image
- Suitable for lighting walls and pergolas
- Crossable

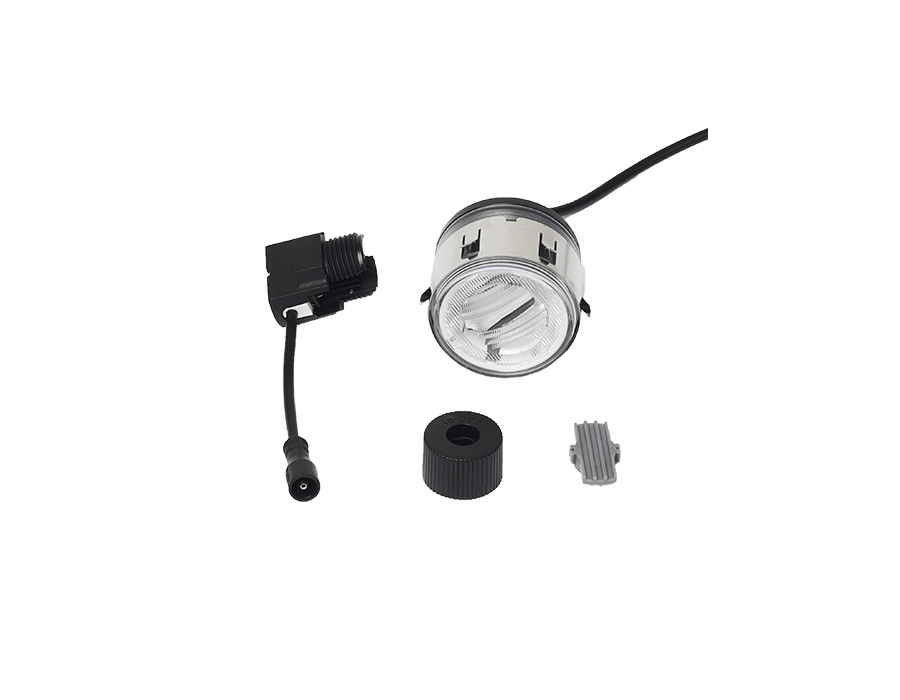

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- Ring 68 Black
Product Details
BIG FLUX ASYMMETRIC produces two different light images with its asymmetrical lens. In one direction, the light image is a wide fan with a light angle of 65 degrees and a light range of 6 meters. Turning the fixture 90 degrees creates a narrow stripe with and angle of light of 18 degrees and a light range of 6 meters high. Thus, this fixture uniquely illuminates the beams of a pergola, wide alcoves or passageways.
BIG FLUX ASYMMETRIC can be perfectly combined with accessory SPIKE. With this ground stake you easily place the ground spotlight in a loose surface such as earth, gravel or grass.
This fixture consists of BIG FLUX ASYMMETRIC and RING 68. The ring is made of high-quality anodized aluminum and is available in three different colors: Black, Stainless Steel and Pearl Grey. BIG FLUX ASYMMETRIC is also suitable for incorporation into accessory BOX-1.
Also available:
- FLUX; light 5m high, 2m wide
- BIG FLUX; 7.5m high, 3.5m wide
- BIG FLUX NARROW; light 11m high, 3m wide
BIG FLUX ASYMMETRIC can be perfectly combined with accessory SPIKE. With this ground stake you easily place the ground spotlight in a loose surface such as earth, gravel or grass.
This fixture consists of BIG FLUX ASYMMETRIC and RING 68. The ring is made of high-quality anodized aluminum and is available in three different colors: Black, Stainless Steel and Pearl Grey. BIG FLUX ASYMMETRIC is also suitable for incorporation into accessory BOX-1.
Also available:
- FLUX; light 5m high, 2m wide
- BIG FLUX; 7.5m high, 3.5m wide
- BIG FLUX NARROW; light 11m high, 3m wide
- SMART FLUX TONE; light 5m high, 3m wide, dimmable, color lighting
Specs
Art. nr.
99020020
Mounting depth (inch)
2.8
Recessed depth (mm)
70
Diameter (inch)
2.7
Diameter (mm)
68
Color
Stainless Steel
Energy label
F
Height (inch)
2.5
Height (mm)
64
Efficiency (Lumen/Watt)
86
Net luminous flux (Lumen)
258
Power [W]
3
Article group
Recessed lights
Voltage
12 volt, 21V
VA value
4.2
Color temperature
3100
Material finishing/coating
Anodized
Kilowatt hour
3
Luminous intensity [Cd]
533.8
Power factor
0.71
Installation instructions
You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or landscaper can take care of this. Please note, install the fixture only in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight. The BIG FLUX ASYMMETRIC features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, no hammer is needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX ASYMMETRIC and is not available separately. If you want to incorporate BIG FLUX ASYMMETRIC into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX ASYMMETRIC in SPIKE and prick the whole thing into the ground.
Need help choosing compatible parts? Contact The LA Firm for project support.
