Description

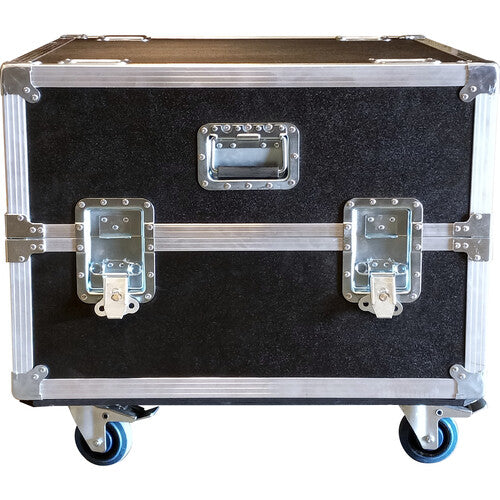

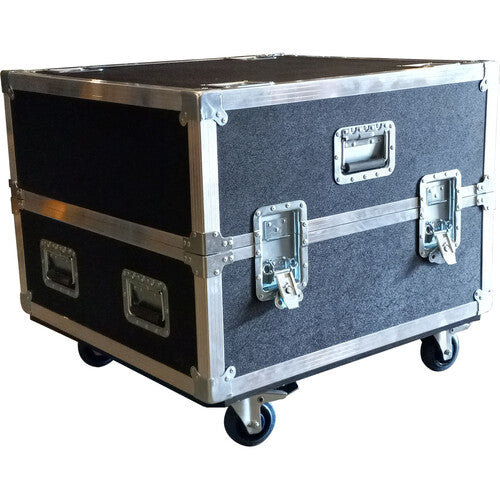

Qty 8 AX9 units, One 8 Unit charging plate, 9 True1 power cord for the Charging plate, and one road case for 8 units.
*Kit* (Packaged and shipped separately, Not assembled)

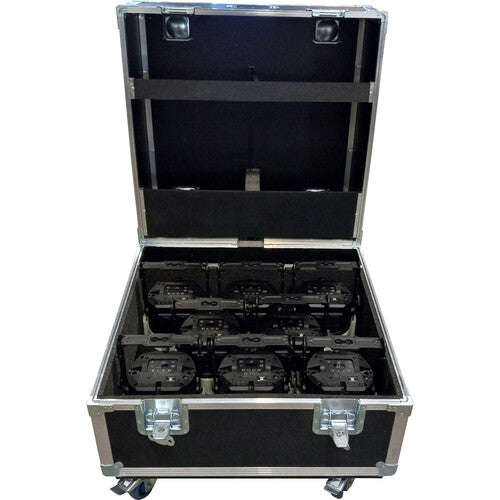

This AX9 Octo Set from Astera outfits you with eight AX9 PowerPAR lights, a charging plate, and a road case to take it all on the go. Create the ultimate set lighting configuration thanks to the powerful Titan LED engine lights. The charging plate simultaneously charges all eight lights when depleted and fits inside the included case. A single powerCON TRUE1 cable runs power to the plate.
Astera AX9 PowerPAR
The AX9 PowerPAR from Astera is a powerful 3-in-1 light that can be used as a wireless light, an uplight, or a wired PAR light, depending on your needs. Its Titan LED engine is powered by rechargeable batteries and has a 13° beam angle. A CRI rating of 96 ensures accurate color reproduction. Controlling the brightness and color of the light can be achieved in multiple ways, one of which is the onboard OLED display and buttons.
Both wired and wireless DMX connections allow for integration into preexisting communication networks. Bluetooth connectivity makes the light compatible with the AsteraApp for additional features and controls. The included bracket is removable and features a 3/8"-16 thread and 1/2" hole for mounting. Four M6 threads provide additional mounting options when the bracket is detached. Included with the AX9 are two filters for increased control over the light's intensity.
Features at a Glance
Detect all available lights, set them up, check their status, and configure DMX addresses and profiles with Talkback+
Set the length of your production and ensure the lights won't right out while getting maximum brightness
Individually calibrated lights for consistency and exact reproduction
Build programs out of colors and effects, trigger them, or set them to a beat
Scrambled PWM technology to avoid flickering when filming
Adjust green/magenta during content creation to reduce postproduction work
Switch lights into power-saving standby and schedule them to wake up when production starts
PowerBoost feature displays maximum brightness and intensifies colors
Switches to white light when AC power is cut for emergency lighting
Lights give a visual and audible alarm when moved during an event as well as notify AsteraApp
DJ feature with auto BPM analyzes song beat and matches programs to it
AsteraApp had additional items and features frequently added via software updates
Astera 8-Bay Charging Plate for AX9 PowerPAR
This 8-Bay Charging Plate from Astera lets you simultaneously charge eight AX9 PowerPAR 3-in-1 LED lights. Designed for in-case charging and flight cases, this plate features contactless charging operation.
Colors
RGB, Mint, Amber
LED Power
105 W
Power Draw
70 W
Lumens
2497 Lumens at 2700K
3008 Lumens at 3200K
2891 Lumens at 5500K
CRI
≥96
Beam Angle
13°
Strobe
0 to 25 Hz
Battery Lifetime
70% After 300 Cycles
Battery Life
20 Hours
Charging Time
5 Hours
AC Input
100-240 VAC, 50/60 Hz
Inputs/Outputs
1 x PowerCON True1 Input
1 x PowerCON True1 Output
1 x 5-Pin XLR DMX Input
1 x 5-Pin XLR DMX Output
Mounting
4 x M6 Thread
Wireless Frequency
CRMX 2.4 GHz, UHF
Bluetooth 3/3.3
Bluetooth Range
984.3' / 300 m
Housing Material
Aluminum
IP Rating
IP65
Ambient Temperature
32 to 104°F / 0 to 40°C
Weight
12.5 lb / 5.66 kg
Dimensions
6.9 x 8.7 x 10.1" / 175 x 222 x 256 mm
Astera 8-Bay Charging Plate For AX9 PowerPAR Specs
Electrical
Input Power
115 to 230 VAC, 50 / 60 Hz at 5.8 to 11.6 A
Number of Battery Bays
8
Output Voltage
25.5 VDC
General
Dimensions
28.1 x 22 x 6.2" / 715 x 558 x 157 mm
Weight
25.02 lb / 11.35 kg
