Blackmagic Design ATEM Television Studio HD8 ISO
The more advanced ISO model includes all the features of ATEM Television Studio HD8 plus adds adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!
The new ATEM Television Studio HD is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, 2 aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview and optional internal cloud storage. There's even an ISO model that records all 8 inputs for editing!
You get an incredibly powerful 8 input switcher with both program and two aux outputs so you have everything you need for mobile production. That means you can connect up to 8 cameras! Plus you get professional camera control, talkback and audio mixing all designed into a familiar broadcast panel.
The ISO model records all inputs into separate files so you can edit using any NLE that supports multi-cam! That's possible because all files have perfect timecode sync! Plus with built in network storage, you can edit while recording! Multiple users can even share media and collaborate!
With a built in hardware streaming engine, you can live stream your event to a global audience! Recording to H.264 files with AAC audio means you get the correct format to upload to YouTube. Plus you share live broadcasts with your audience by using the aux outputs and large screens and projectors!
While ATEM Television Studio HD is a compact design, it still includes very powerful broadcast features! If you're interested in a career in the television industry, then it's perfect for training as it has the same features as switchers in high end broadcast studios. You get an advanced broadcast grade switcher, with built in ATEM Advanced Chroma Keyers, Fairlight audio mixer, DVE, still store for graphics and much more! Most of the features can be operated from the front panel, or you can use the free ATEM Software Control on Mac or Windows to access even more features! With a little fun experimentation it’s possible for anyone to create high end broadcast quality live television!
There's never been a switcher that’s easier to use, as you simply press any of the program row buttons on the front panel to cut between video sources. Or you can pre select a source on the preview row and then choose between cut or effect transitions by selecting the cut or auto buttons. You can select from exciting transitions such as dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. You can even add a DVE for picture in picture effects with customized graphics. There are also media players which let you store graphics with alpha channels for titles and graphics that you can load as live video inputs. Then you can live stream the results!
With the all in one design, you can build a new generation of ultra compact broadcast vans! You don't need racks of equipment, so you can eliminate clutter for a much nicer work environment. For stability, you can even mount the switcher inset into the desk!
Some of the most exciting venues, such as downstairs music venues or comedy clubs, are too small for racks of video equipment. However ATEM Television Studio can be carried into any venue! It’s also easy to pack up, even if the venue is still crowded.
ATEM Television Studio is perfect for creating education content! As the ISO model records the video inputs, you can finesse edits, replace shots and even add color correction! Plus you can even connect to Zoom to incorporate live chat with students!
ATEM Television Studio is perfect for live sports because it has a simple design that's easy for community volunteers to use. It can be installed into sports clubs or taken on the road with the team! With up to 8 cameras, you'll catch all the exciting angles!

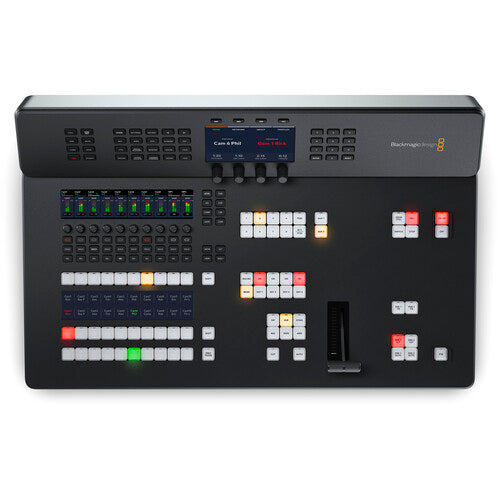

The ATEM Television Studio HD combines a switcher and control panel into the same unit, so it’s extremely portable. You get everything you need! The front panel includes buttons for selecting sources, triggering transitions and setting up video effects. Plus the buttons are the same high-end type used on expensive broadcast switchers! You also get a built in t-bar for manual transition control! The front panel even has an innovative audio mixer control area with live metering on a dedicated LCD. There are also buttons for recording and streaming control, plus live aux switching that lets you change aux outputs between all 8 cameras, program, preview or the multiview.

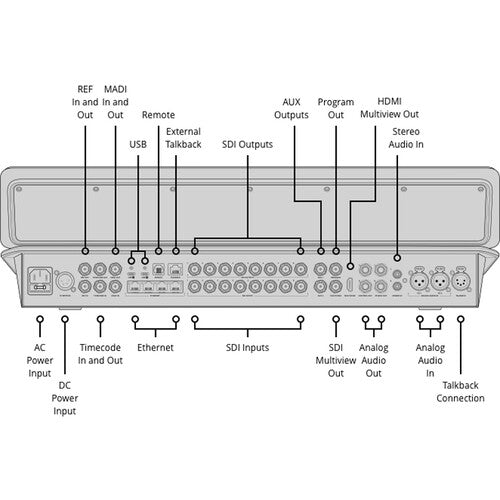

With 8 3G-SDI video inputs, ATEM Television Studio HD lets you connect multiple cameras for different views of the performance. Video cameras with SDI outputs, such as Blackmagic Studio Camera or Blackmagic URSA Broadcast G2, are much better quality as they have better low light performance and use professional lenses. All video sources will re-sync to the switcher, even if they operate at different video standards. Everything just works so setup on location is easy and you don't have to worry about technical problems. Imagine taking advantage of the creative freedom of multi camera live production for interviews, advertorials, theater productions, music performances, sports and more!
One of the benefits of ATEM Television Studio is the range of professional built in video effects! The cut button ensures an instant cut when switching between sources. The t-bar fader can be used to transition video effects, or you can do the transition automatically by pressing the auto button. Auto uses the transition duration set in the system control. You can also select the type of effect you want including mix, which does a smooth transition between sources, or dip which transitions via a third video source, such as a color generator. There is a wide range of SMPTE wipes included, plus fun DVE effects that slide or squeeze the image off screen when transitioning between video sources!
ATEM Television Studio includes the same kind of transitions found on expensive broadcast switchers. This means the effects and transitions can be customized in many different ways, so they are surprisingly powerful. You'll never stop finding new ways of using them! That’s because all transitions can be customized by adjusting parameters such as duration, border color, border width, position and direction. You can even use the DVE with a wipe transition, where the DVE moves a graphic over the wipe edge. That's called a graphic wipe and it’s often used in sports broadcasting. The preview transition button can be used to set up effects offline, which is great for eliminating mistakes.
ATEM Television Studio HD features an independent DVE that lets you reposition graphics and create picture in picture compositions. You get amazing quality and the DVE supports position, resize and scale, all in real time. The DVE lets you create professional picture in picture effects with customizable 3D borders, shadows and lighting. DVEs can also be used to create amazing DVE transitions with squeeze, swoosh and push effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions! Pus there is also a SuperSource multi layer processing engine with 4 extra DVEs!
The built in media pool stores broadcast quality graphics and animations that can be played back using the built in media players. Media players appear as independent sources so you don't need to waste any of the SDI inputs for graphics. For highest quality, all media supports RGB colorspace with alpha channel, allowing transparency and layering. The media pool can hold 20 HD resolution stills. Motion graphics clips for animations and stingers can be up to 400 frames in 720HD and 200 frames in 1080HD. The ATEM Software Control allows you to upload and manage media. You can even prepare graphics in Adobe Photoshop and then download to the media pool using the free ATEM Photoshop plug-in!
ATEM Television Studio is perfect for news and on-set presentation work because it features 4 ATEM Advanced Chroma Keyers for green screen keying effects. The chroma keyers are incredibly powerful and include features such as a color picker to sample background colors for automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground color corrector so you can match the foreground and background layers for seamless compositions. You can even use it for title overlays by creating graphics with a green or blue background. With 4 ATEM Advanced Chroma Keyers, ATEM Television Studio is perfect for creating fixed camera virtual sets!
