Description
Key Features

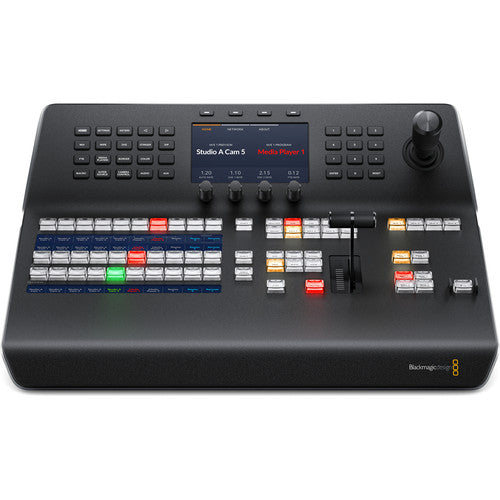

Control Panel for ATEM Switchers
Large Info LCD with Rotary Encoders
Soft-Touch Menu Buttons
Programmable Color-Backlit Buttons
LCD Scribble Strips for Buttons

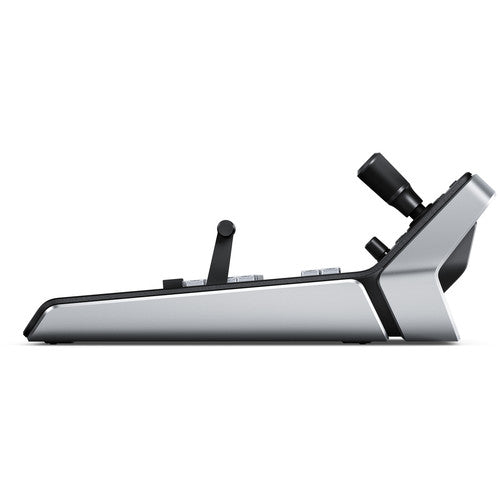

Weighted T-Bar
Joystick for DVE and Camera Adjustment
Control up to 20 Inputs

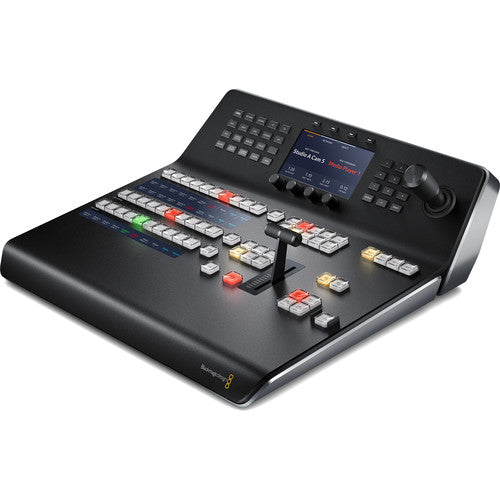

The Blackmagic Design ATEM 1 M/E Advanced Panel is a full-featured hardware control panel for BMD ATEM switchers. It connects via Ethernet and provides hands-on tactile control, essential for broadcast studios. An LCD information display surrounded by soft-touch menu buttons and rotary encoders allows for intuitive programming of control functions. Aside from the main display, each programmable button has an LCD scribble strip to illustrate its function. Since buttons can perform different functions, up to 20 inputs can be accessed by shifting the 10 input buttons. The buttons themselves have curved indentations to help avoid incorrect keystrokes. Real-time dynamic controls are available in the form of a single 3-axis joystick and a large weighted T-bar fader. Use the joystick to remotely control PTZ cameras or effects, and the T-bar to adjust transitions, wipes, fades, and more.

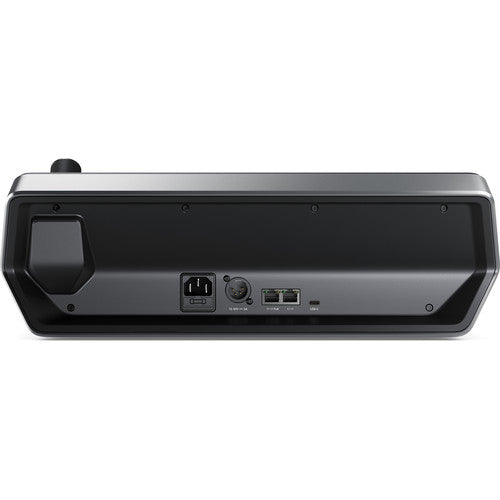

At the rear of the unit are dual Ethernet connections, a USB port for firmware updates, and power inputs. Use the IEC input for connecting to mains power or the 4-pin XLR 12V input for DC power supplies. The panel's chassis is sized small enough to fit in a standard equipment rack, allowing it to be implemented in broadcast trucks and fly-away kits.
Switching Features
10 direct crosspoints
20 shifted crosspoints
Tri-color LED crosspoint buttons with 3-row, 24-character LCD scribble strips
Four on-air indicators
Auto, cut, tie/preview DSK transition selectors
Three LCD menu displays
20-button menu control
One destination bus
One source select bus
Weighted T-bar fader
3-axis joystick
Numeric keypad
