AREA 48 Soft (black), Curved yoke, Detachable barndoors from www.thelafirm.com
AREA 48 Soft (black), Curved yoke, Detachable barndoors from www.thelafirm.com
AREA 48 Soft (black), Curved yoke, Detachable barndoors from www.thelafirm.com

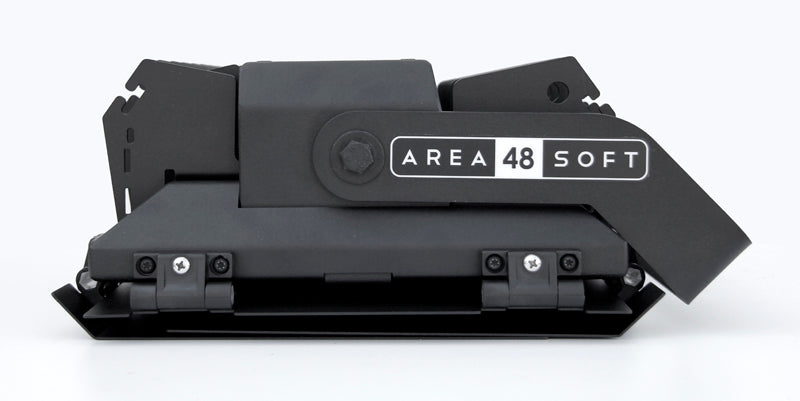

AREA 48 Soft (black), Curved yoke, Detachable barndoors

BBS-2044
Regular price
$2,587.00
Sale price
$2,328.30

The Perfect LED Soft Light
The Area 48 Soft Remote Phosphor LED fixture provides HD-friendly 98 TLCI soft
light output, comparable to a 1200 Watt traditional soft light, while drawing only
122 Watts. BB&S’ integrated Remote Phospor technology moves the color providing
phosphor panel away from the LEDs, greatly improving color rendering, consistency
POWER
• AC: 100 - 240V 50/60 Hz
• Battery: 14.4 VDC 10 amp 120 watt
draw minimum
• 8/16 Bit Dimming 100% -0
LED
• Premium LED Array - 50,000 hour life
CONTROL
• Dims 100% to zero
• Manual dimming or DMX 512
• DMX in/out for daisy-chaining
• 8/16 bit dimming 100%-0
• Up to 4 control channels,
selectable via digital display
DIMENSIONS
W: 36cm / 14"
H: 28cm / 11"
D: 13cm / 5"
Weight: 3.6kg / 7.94 lbs
THERMAL
Ambient Operating Temperature:
0-40°C / 0-104°F
Area 48 Soft light Options
• Chroma Green 525n, 98 TLCI 2700ºK , 98 TLCI 3200ºK, 98 TLCI 4300ºK,
98 TLCI 5600ºK, 98 TLCI 6500ºK, Chroma Blue and 10,000ºK Phosphor Panels
• Phosphor panel carrying case
• V-Mount or Gold Mount (AB) battery plates
• DoPchoice Snapgrid® and Snapbox® softboxes and grids
• 1 light and 2 light canvas cases
• Area 48 Remote Dimmer: fits in the palm of your hand, allows single or multi-fixture 16-bit
dimming of Area 48 fixtures smoothly from 100% to blackout, as well as ON/OFF.
Product Benefits
• Wide spectrum quality soft light with visually accurate color temperature
• Smooth dimming from 100% to 0 with no color shift
• Flicker-free performance at any frame rate
or shutter angle
• Microprocessor controlled current
management for long LED life
• Efficient power management for low power
consumption and high reliability
• Optomized for outstanding skintones
• Simple up/down menu operation button
• Superior quality daylight color
• Extremely lightweight (w/PSU)
3.9-kg/8.6-lbs
and light output. Power versatile, they may be run via the Gold Mount battery plate
or V-Lock plate or standard AC 100-240V mains. Interchangeable phosphor panels
(Chroma Green, 2700ºK, 3200ºK, 4300ºK, 5600ºK, 6500ºK, Chroma Blue and 10,000ºK)
are simple to quickly slip into the front of the fixture.
AREA 48 Soft Features
• Chroma Green 525n, 98 TLCI 2700ºK,
98 TLCI 3200ºK, 98 TLCI 4300ºK, 98 TLCI 5600ºK,
98 TLCI 6500ºK, Chroma Blue and 10,000ºK
Phosphor Panels
• Extremely high light output
• V-Mount or Gold Mount (AB) battery options
• Wide 160º light dispersion (95º w/optional softbox)
• Flicker-free dimming from 100%-0
• Silent operation (no fan)
• Internal DMX 512 for remote control
• Special effects strobing mode
• Compact and versatile fixture
AREA 48 Soft Ships complete with:
• Easily detachable barndoors
• Angled yoke with 3 1/2” female baby pin TVMP
• Removable power supply and locking AC power cord
