Description
Aputure Storm CS32 Full Spec Sheet Download & View Here

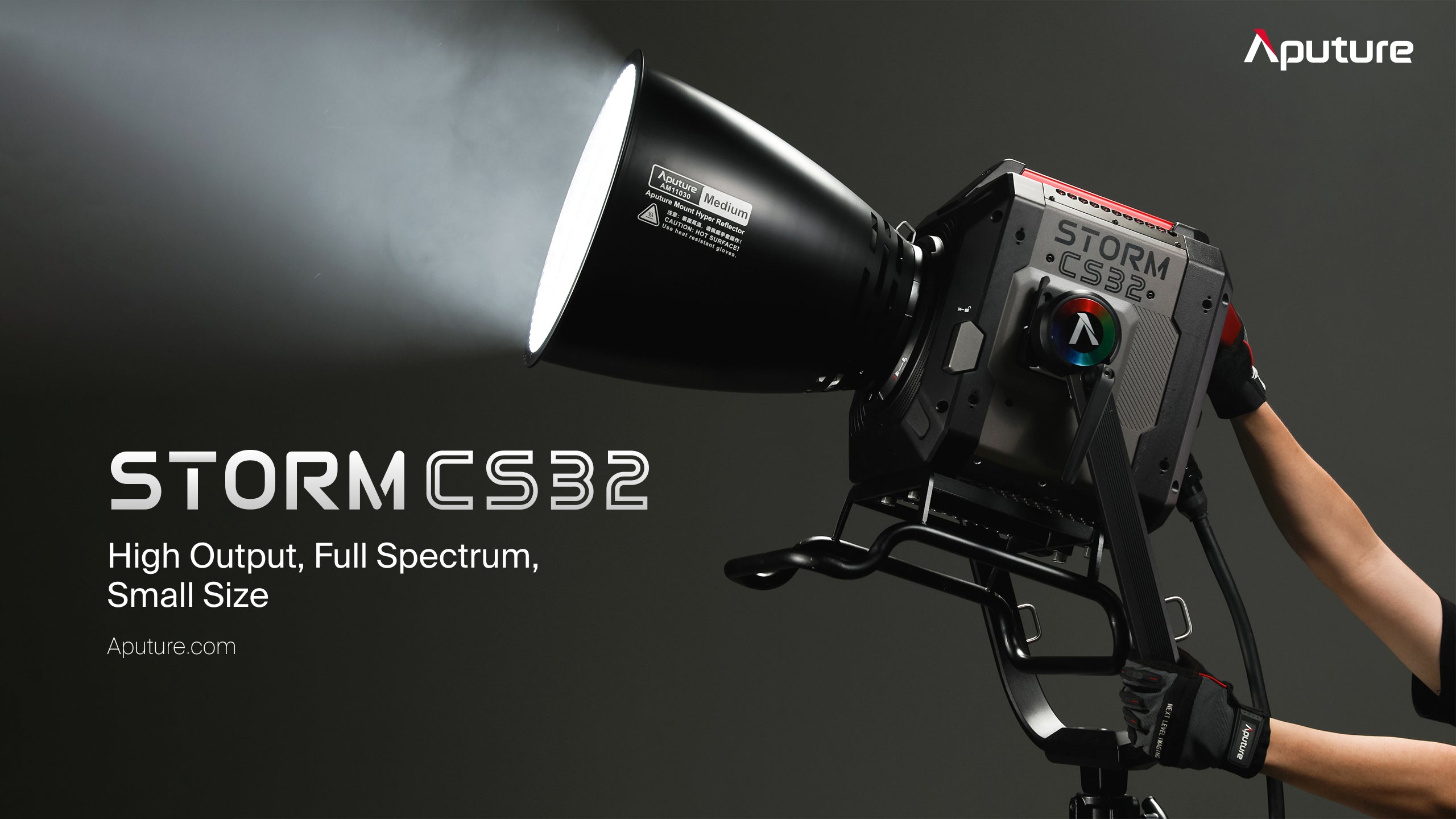

The Aputure STORM CS32 is a high-output tunable color point source fixture
engineered to deliver the brightness of a 4K HMI or 10K tungsten fresnel in a
significantly smaller, lighter, and more flexible form factor. Built around Aputure’s
enhanced BLAIR-CG with Extended Red light engine, the STORM CS32 combines
exceptional output, high-fidelity white light, and an expansive color range in a
professional fixture designed for demanding film, television, photography, and
broadcast applications.
At its core, the STORM CS32 features a full white CCT range from 1,800K to
20,000K with full 100% ASC MITC +/- Green adjustment, Indigo for activating
natural fluorescence, and Extended Red for improved skin tone reproduction. With
high SSI performance across both tungsten and daylight standards, the CS32
delivers white light that cameras can reproduce with confidence, while its color
engine covers more than 91% of the Rec.2020 color space for richly saturated
colors and precise color matching using x,y and HSIC+ control modes.
Designed to meet the needs of modern productions, the STORM CS32 offers
flicker-free performance at 5% brightness and above at any recording frame rate,
making it ideal for high-speed cinematography ranging from large-scale action
work to tabletop product photography. Its compact square lamp head, removable
yoke, and lightweight construction also make it uniquely suited for building
powerful arrays in limited spaces, while the fixture’s 7.5m head cable can be daisychained
up to 45m to support rigging in cranes, lifts, and other elevated positions
with the control box remaining on the ground or at accessible heights.
The STORM CS32 also expands on-set efficiency with Sidus NFC for instant fixture
pairing and rapid fleet configuration, even while unplugged, as well as compatibility
with the XT52 ecosystem of optical modifiers, including the Parallel Beam 70, CF16
Fresnel, Aputure Mount softboxes, and the STORM XT52 Reflector Kit. With
serviceable sub-assembly designs for both the lamp head and control box, the
STORM CS32 is built to provide long-lasting performance, reduced downtime, and
versatile creative control for productions that demand power, color precision, and
adaptability in one compact system.
The STORM CS32 is designed for cinematographers, gaffers, and lighting
technicians who need a compact, high-performance point source fixture capable
of delivering professional-grade results in any environment. Ideal for film, television,
commercial, photography, and broadcast productions, it provides the perfect
balance of portability, precision, and power. It delivers high-output white and color
performance in a smaller, lighter, and more portable form factor. Its compact cubic
design, lightweight construction, and extended head cable options make it well
suited for array builds, studio set ups, truss rigging, and demanding location work.
Its integration with Sidus Link®, Sidus NFC, DMX, CRMX, and Art-Net/sACN
ensures seamless control. Whether used as a key, bounce, diffusion source, or
color effects source, the STORM CS32 empowers lighting professionals to achieve
consistent, creative results with confidence and efficiency.
Main Features
• 3200W Aputure Mount tunable color point source LED light fixture
• 4K HMI / 10K tungsten fresnel white light output in a compact form factor
• BLAIR-CG with Extended Red chipset provides excellent white light and color
rendition
• Advanced white point control with green/magenta color correction (±G 100%
Full ASC MITC Range)
• CCT range of 1,800K-20,000K
• Bare bulb output: 14,800 lux @3m 3200K, 15,000 lux @3m 5600K
• Ultra-high color accuracy: CRI≥97, TLCI≥98, SSI [P3200]: 93, SSI [CIE D5600]:
91, TM-30 Rf (avg) 96, TM-30 Rg (avg) 100
• x,y and HSIC+ color control for precise color matching
• Selectable NA household power operation at 1700W (15A) or 2200W (20A)
• Head cable can be daisy-chained up to 45m for rigging lamp head in cranes,
lifts, and overhead positions with control box at accessible heights
• Sidus NFC enables rapid patching and remote configuration while fixture is
unplugged
• Flicker-free output down to 5% output at any recording frame rate
• Compatible with Parallel Beam 70, CF16 Fresnel, STORM XT52 Reflector Kit,
and Aputure Mount softboxes

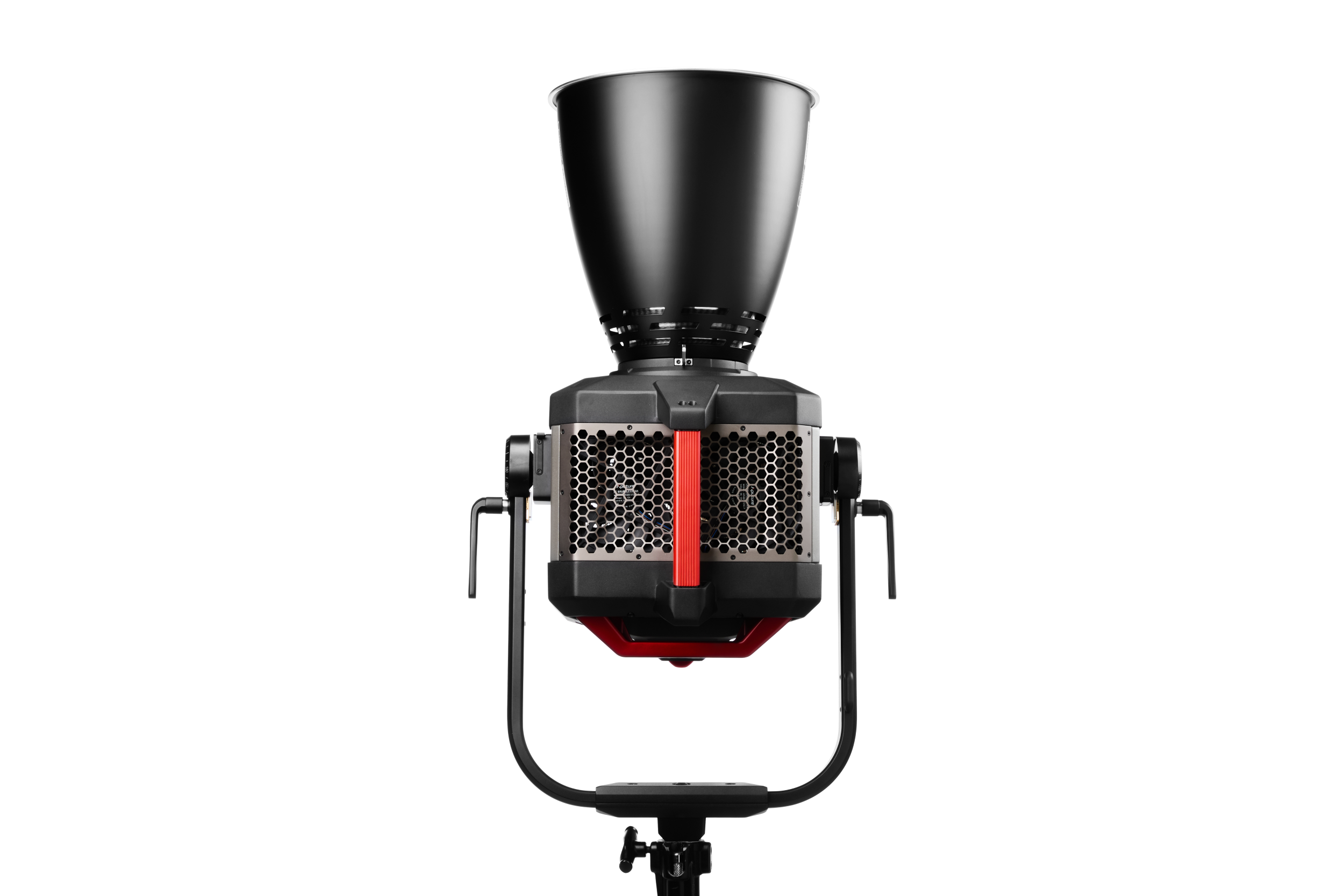

• Compact cubic chassis design with removable yoke for rigging flexibility
• High output to weight ratio: lamp head weight with yoke: 19.80 kg / 43.65 lbs
• IP65 weather resistance
• Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN

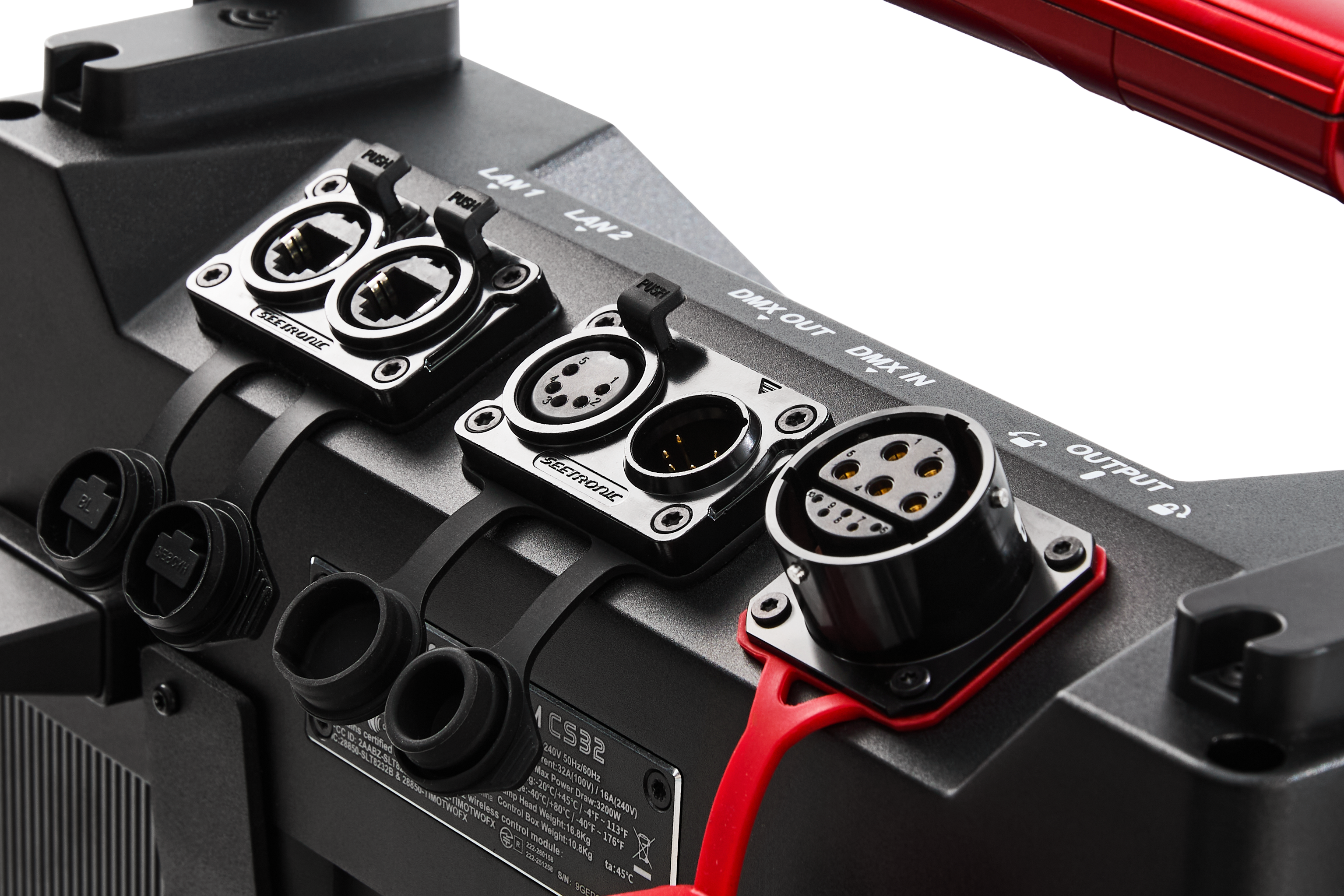

• 16-bit 5-Pin DMX512 in & out ports and 2x locking Ethernet ports
• Serviceable sub-assembly design for both lamp head and control box
• Smooth 0.1-100% stepless dimming with 4 dimming curves: Linear,
Exponential, Logarithmic, S-shaped
• 7 fan modes: Smart, Max, High, Medium, Low, Delayed, Silent
• 15 built-in light effects
• Supports firmware updates via USB-A drive

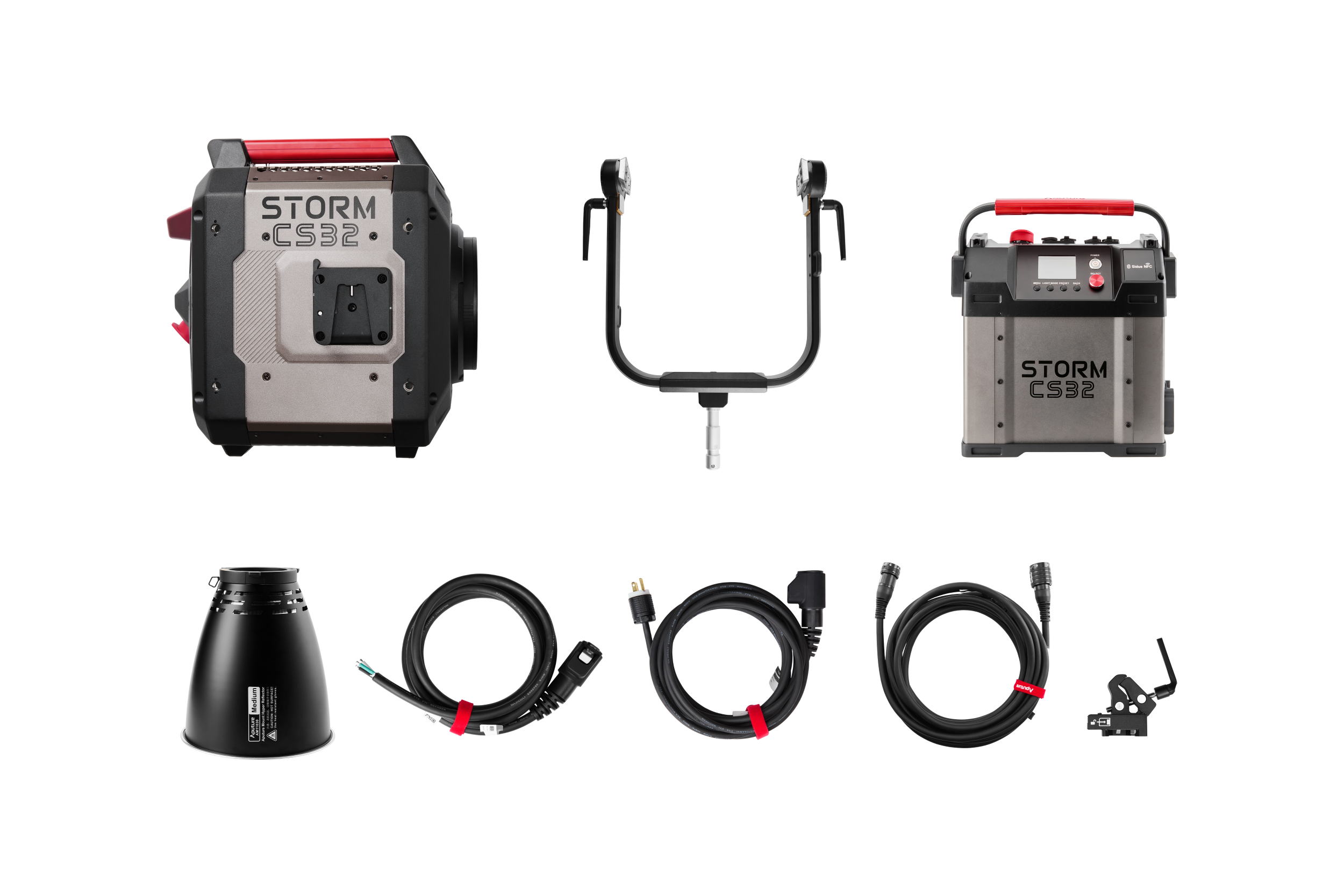

What's in the box

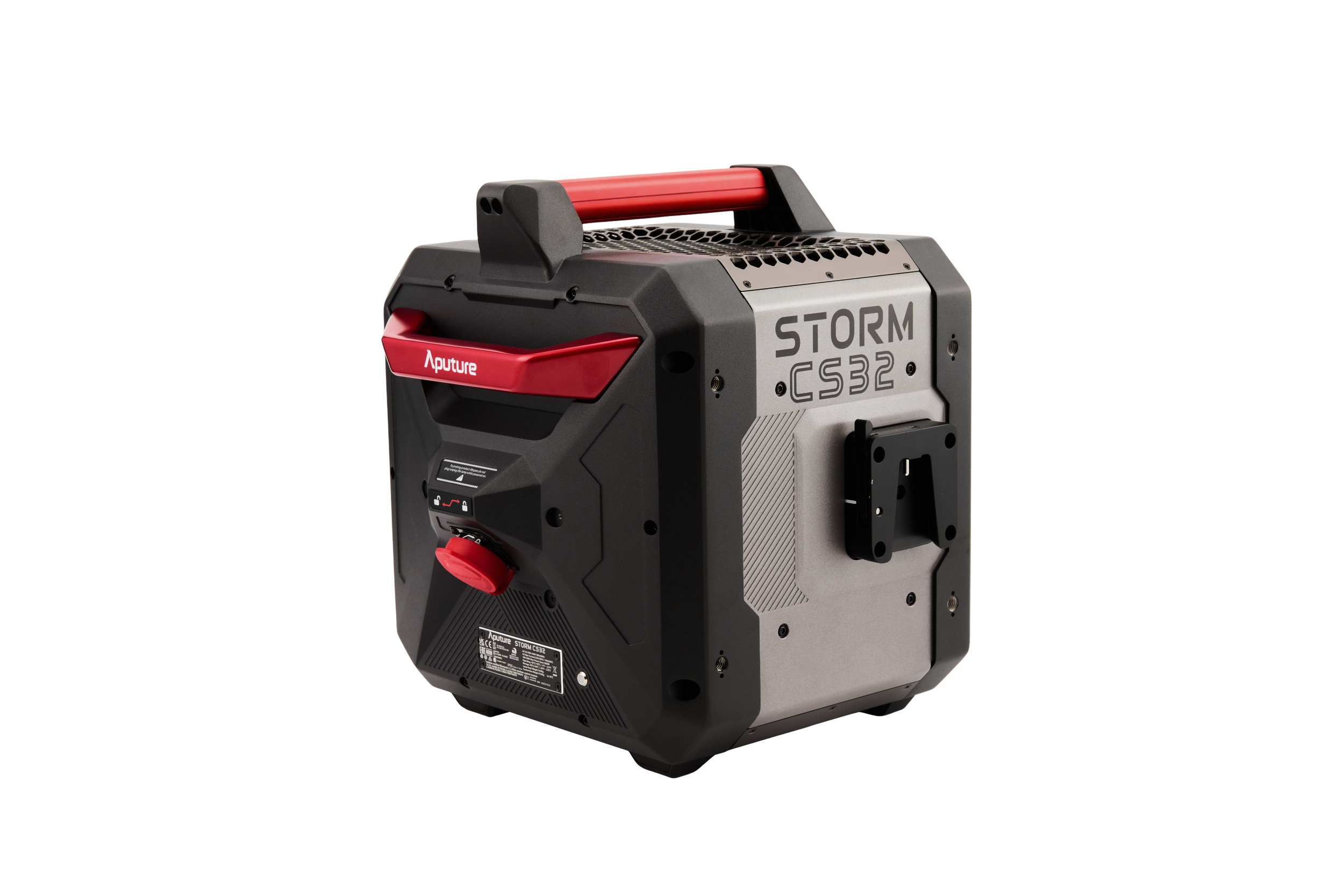

1 x STORM CS32 Lamp Head

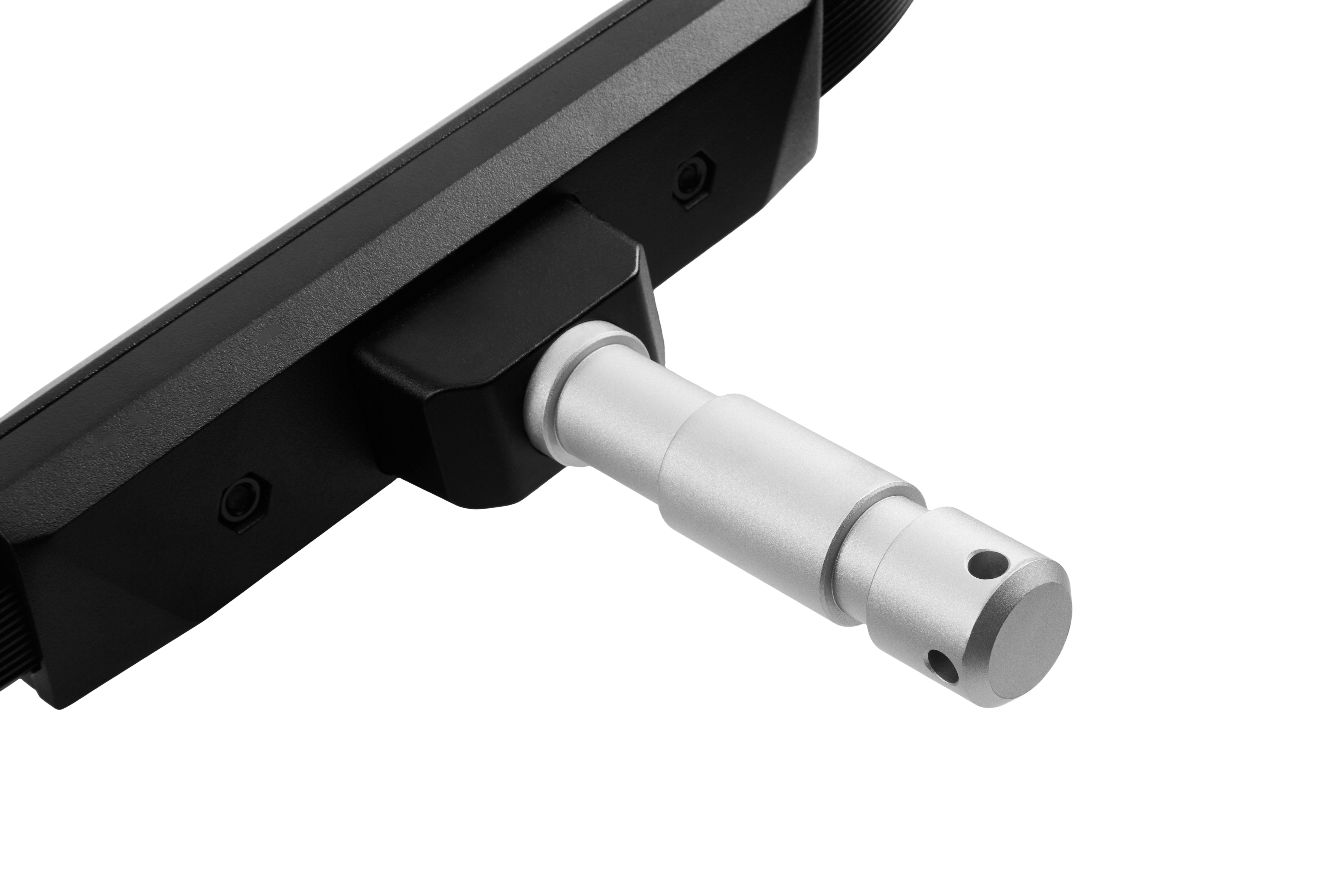

1 x STORM CS32 Removable Yoke
1 x STORM Series Aputure Mount Protection Cover

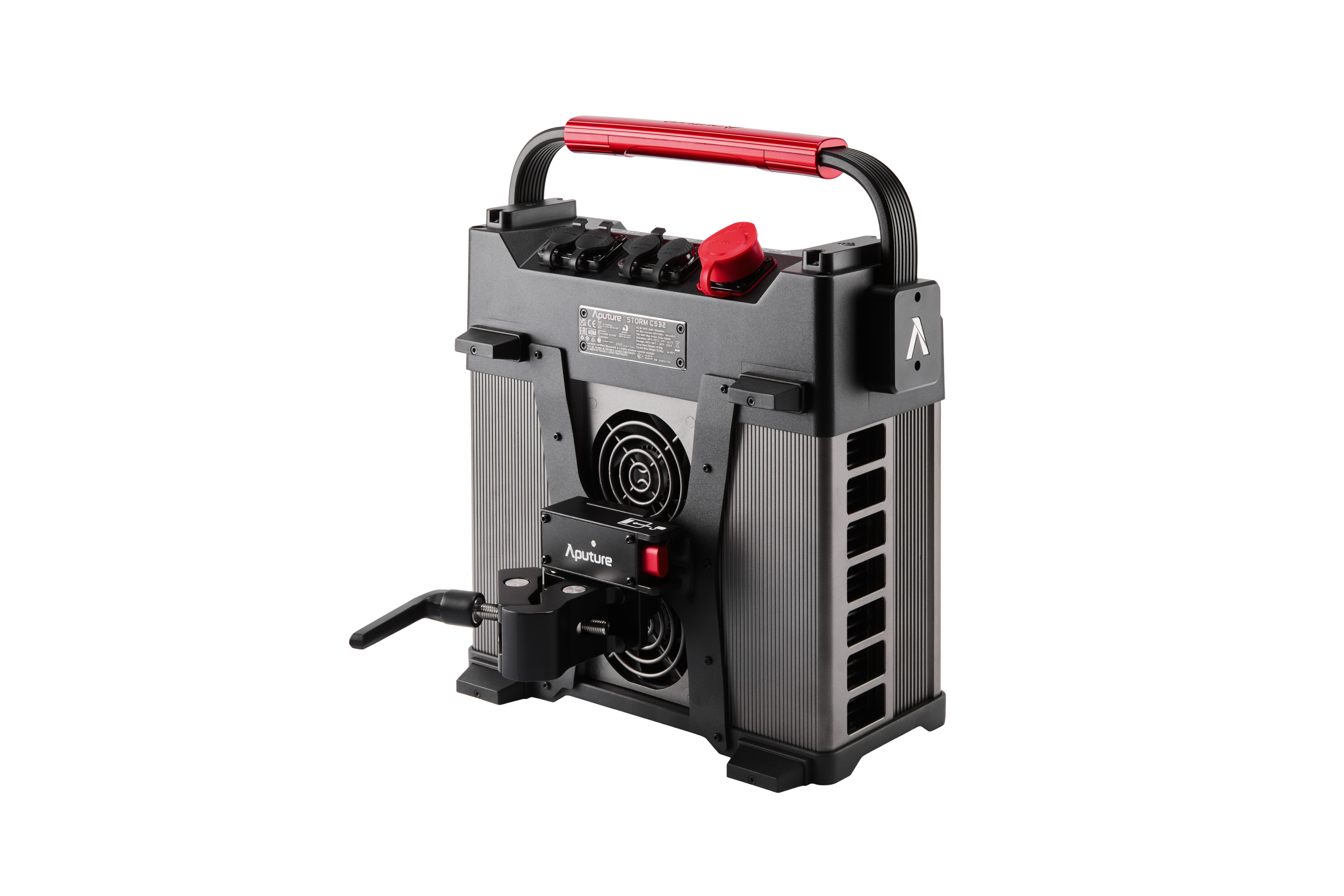

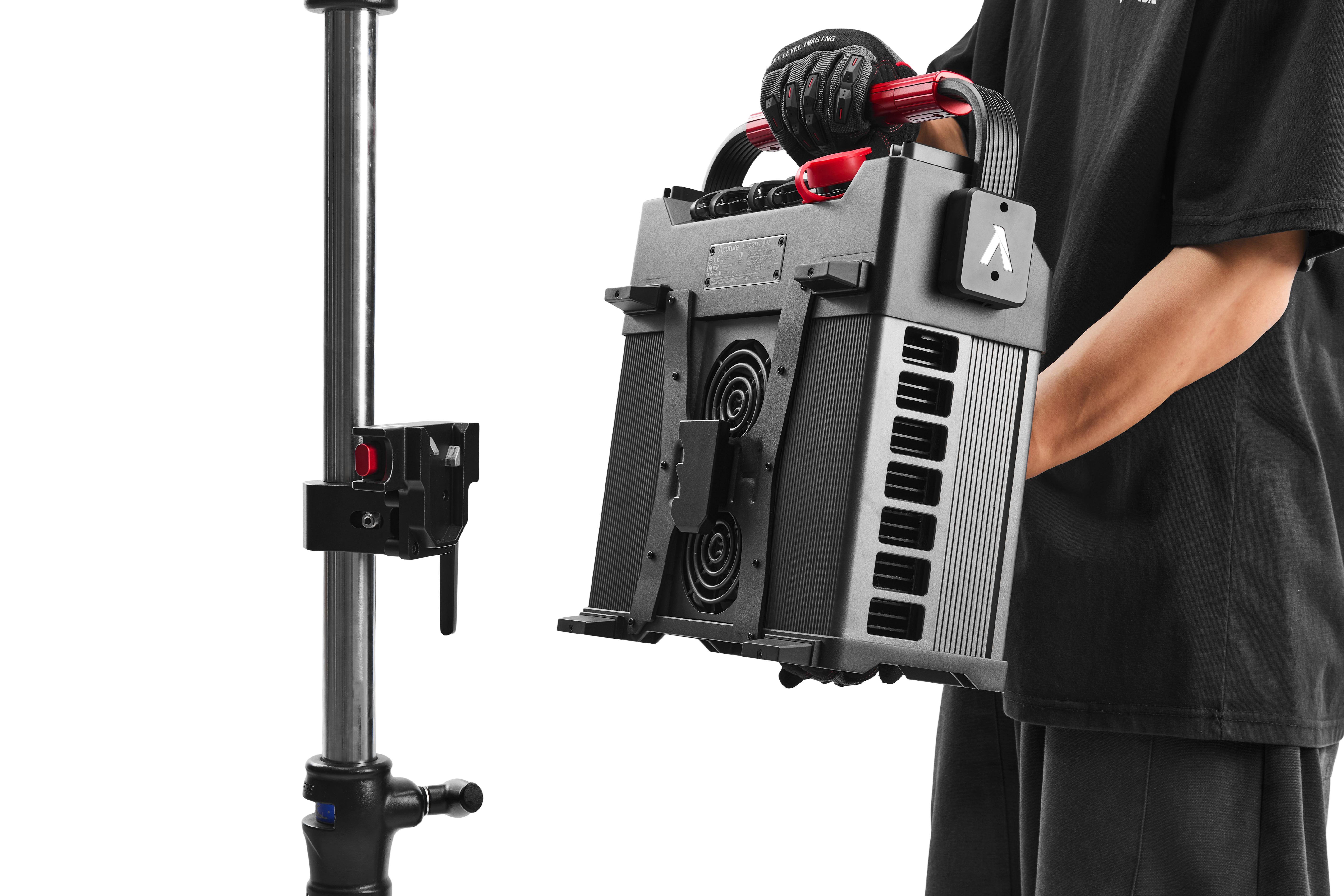

1 x STORM CS32 Control Box

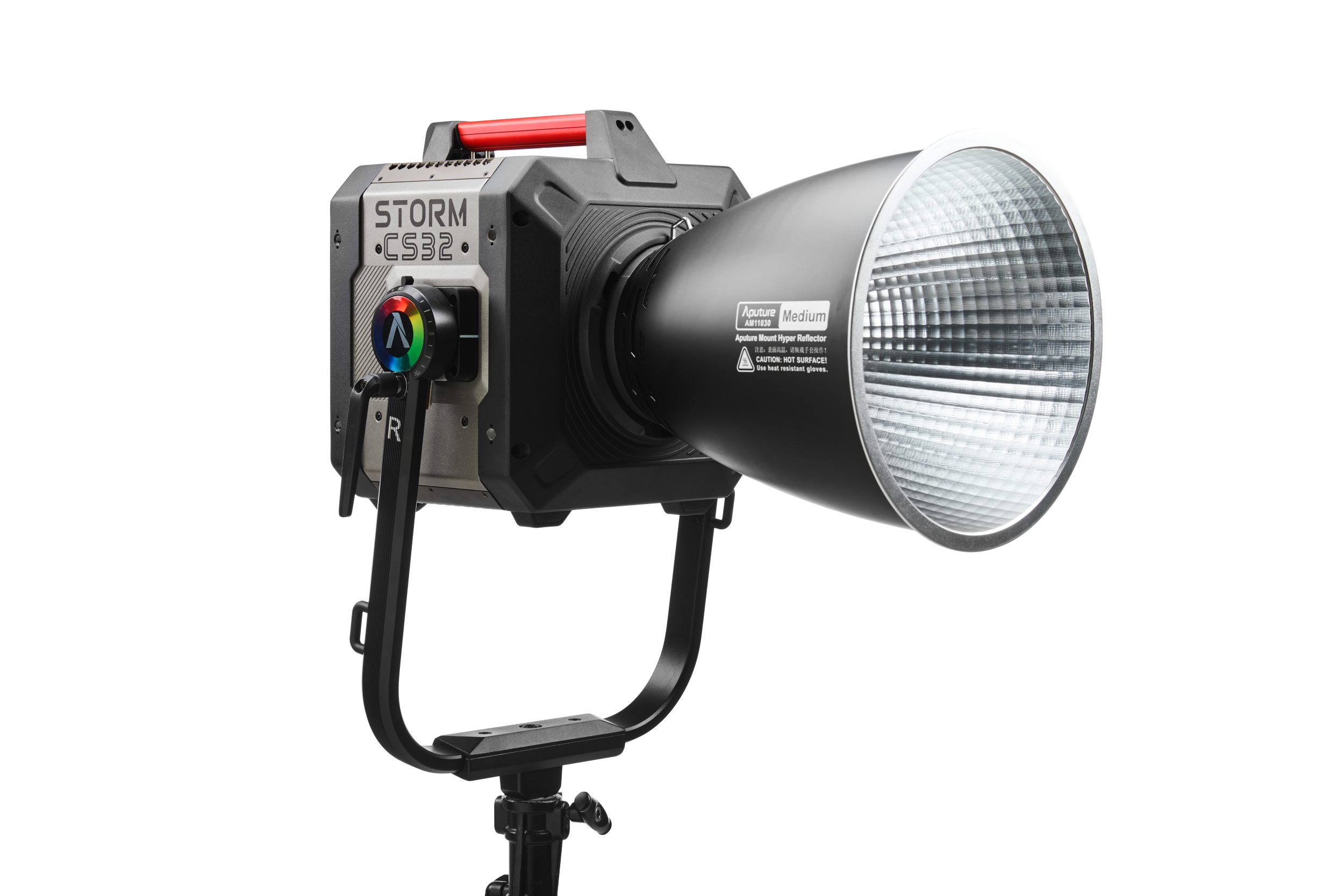

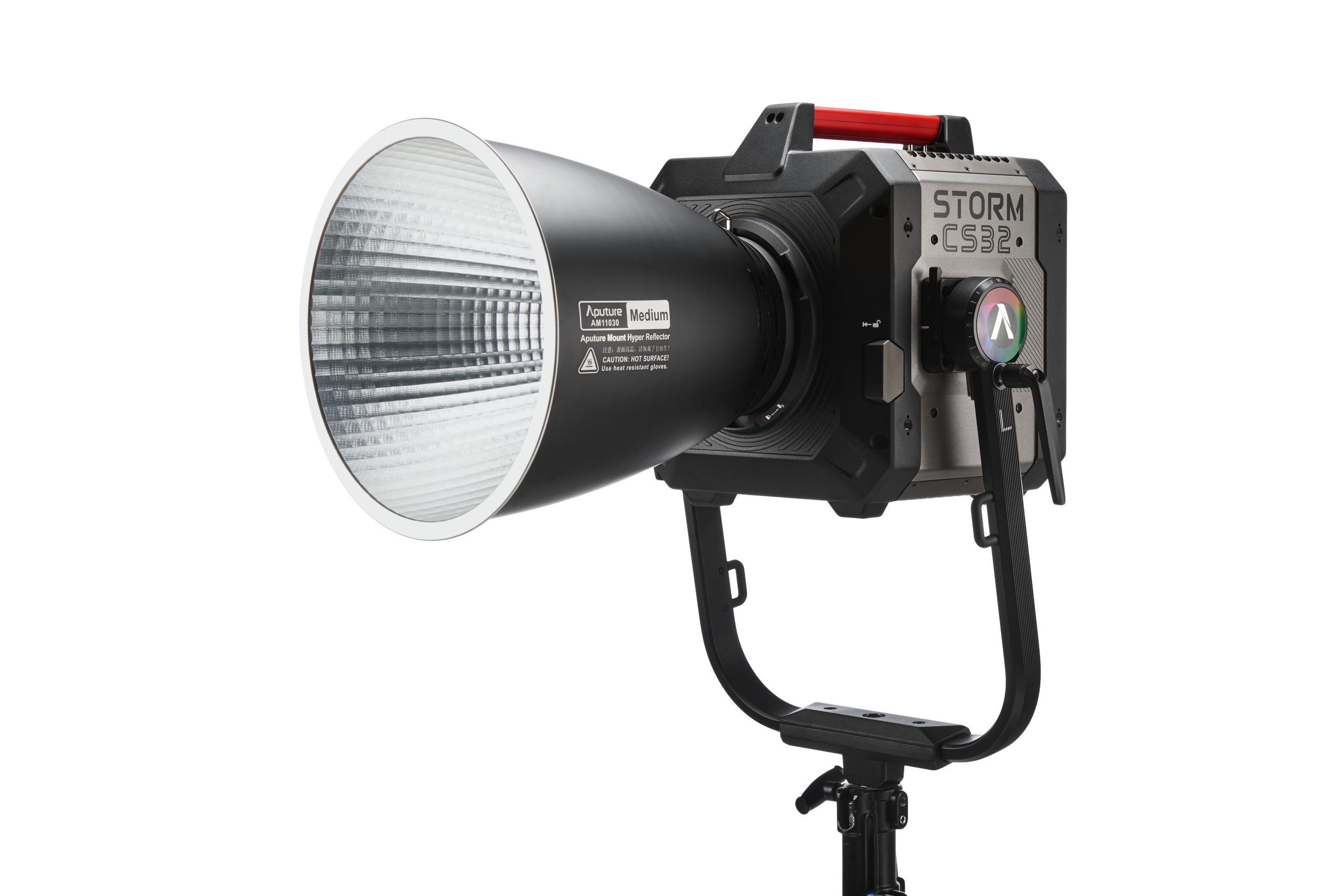

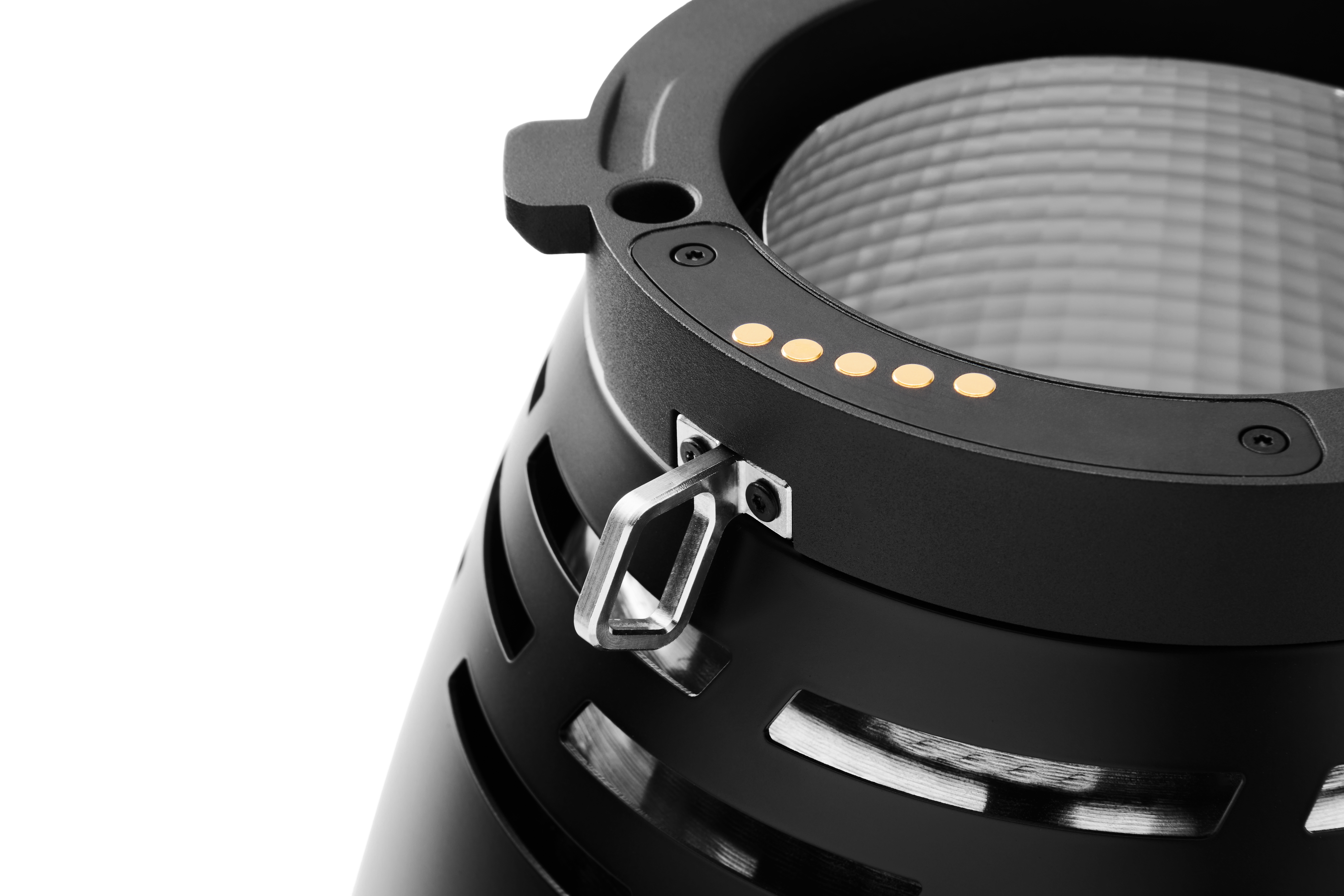

1 x AM11030 Medium Reflector

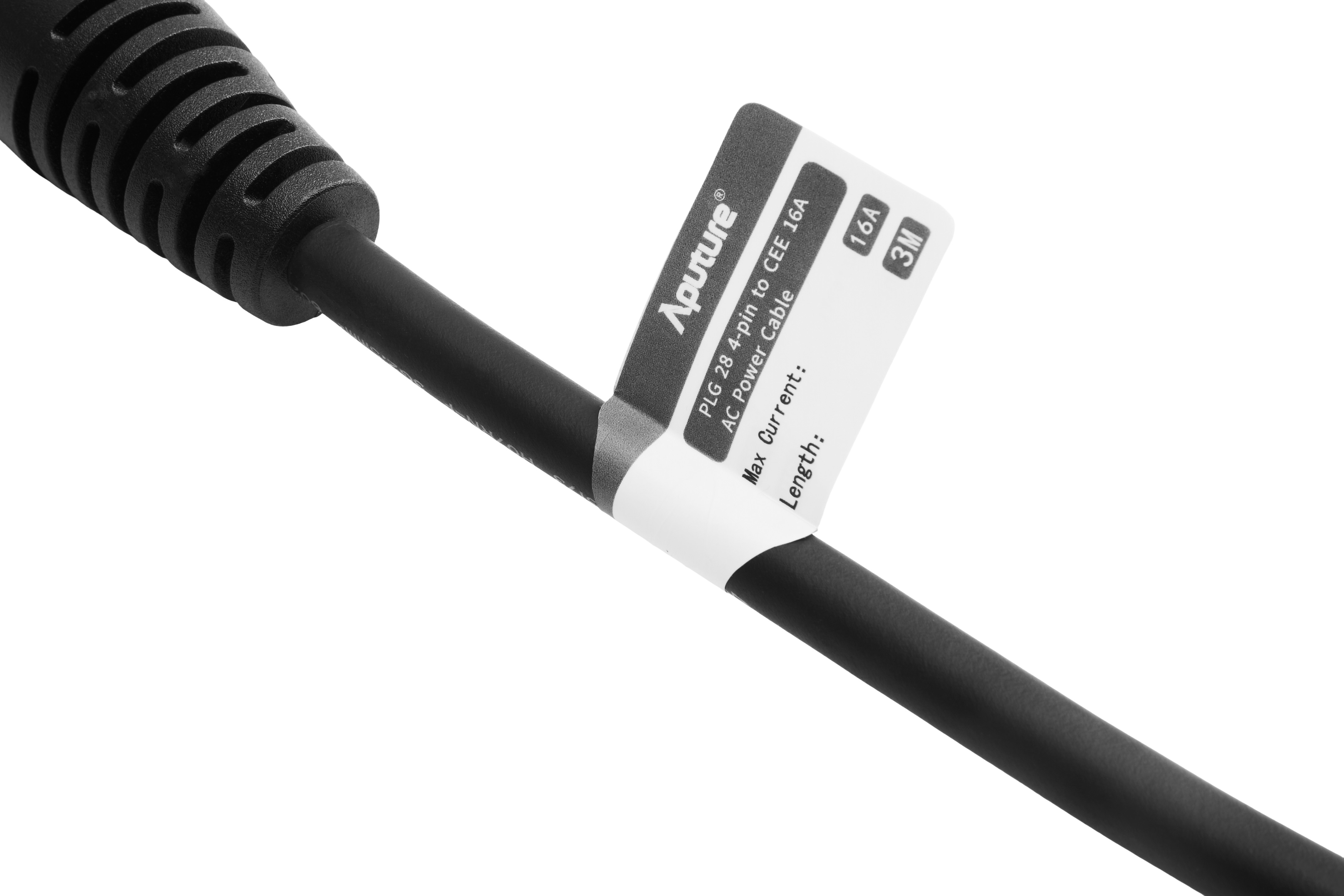

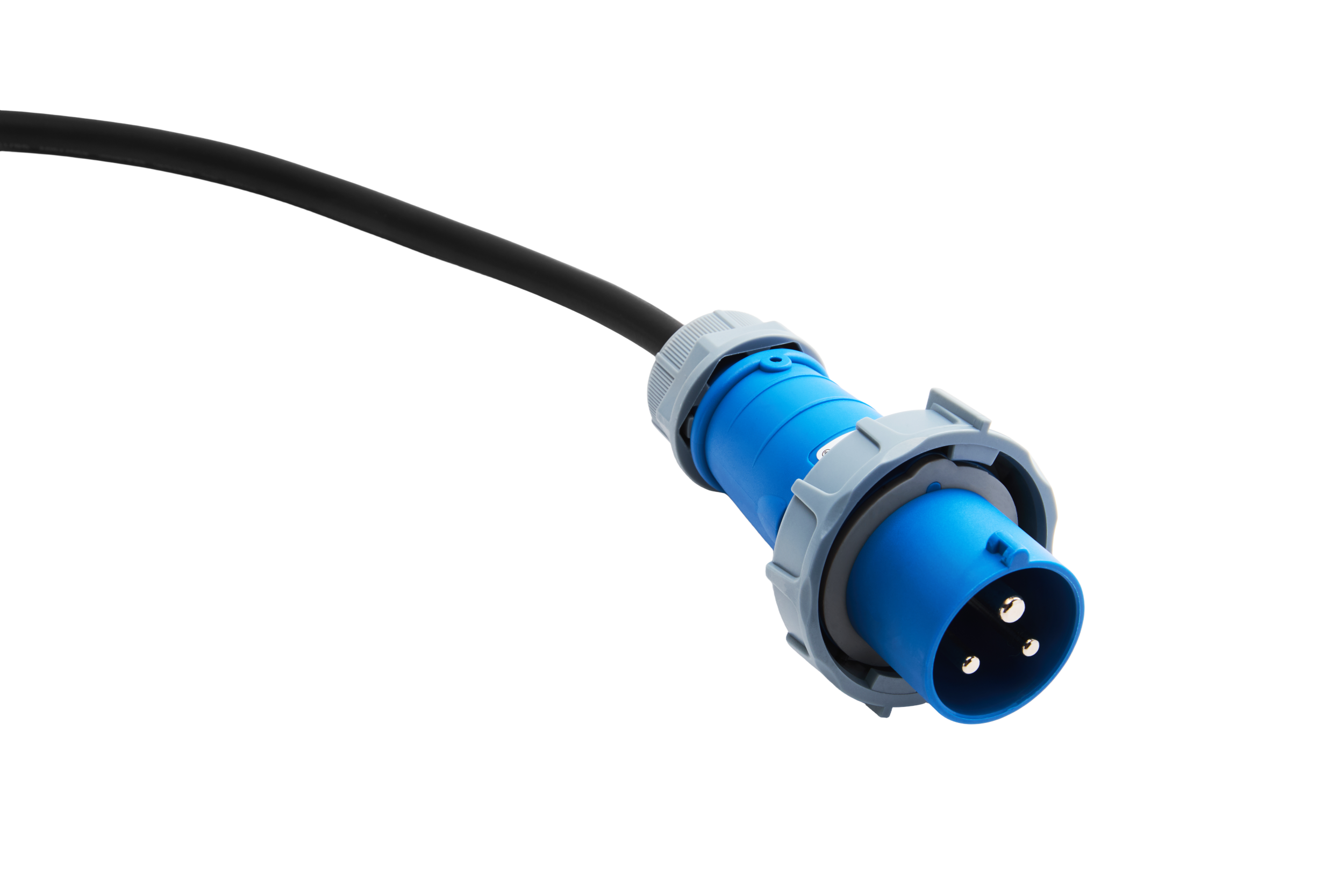

1 x PLG28 4-Pin to CEE 16A AC Power Cable (3m) CN/EU Regions Only
1 x PLG28 4-Pin to Bare Leads AC Power Cable (3m) All regions except CN/EU
1 x PLG28 4-Pin to NEMA 5-20P AC Power Cable All regions except CN/EU

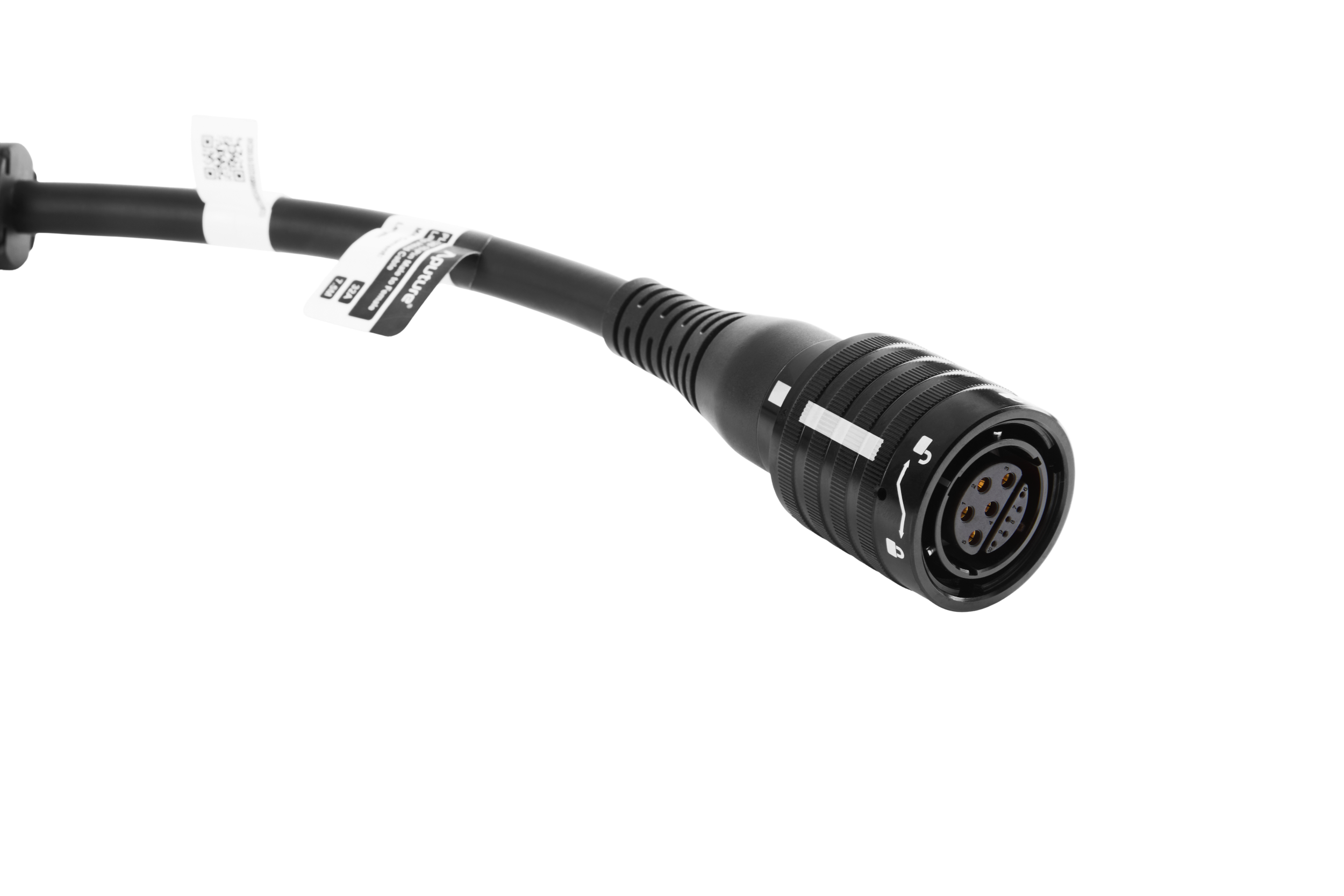

1 x PLK28 10-Pin Male to Female Lamp Head Cable (7.5m) (6m) (US) (20A Max)

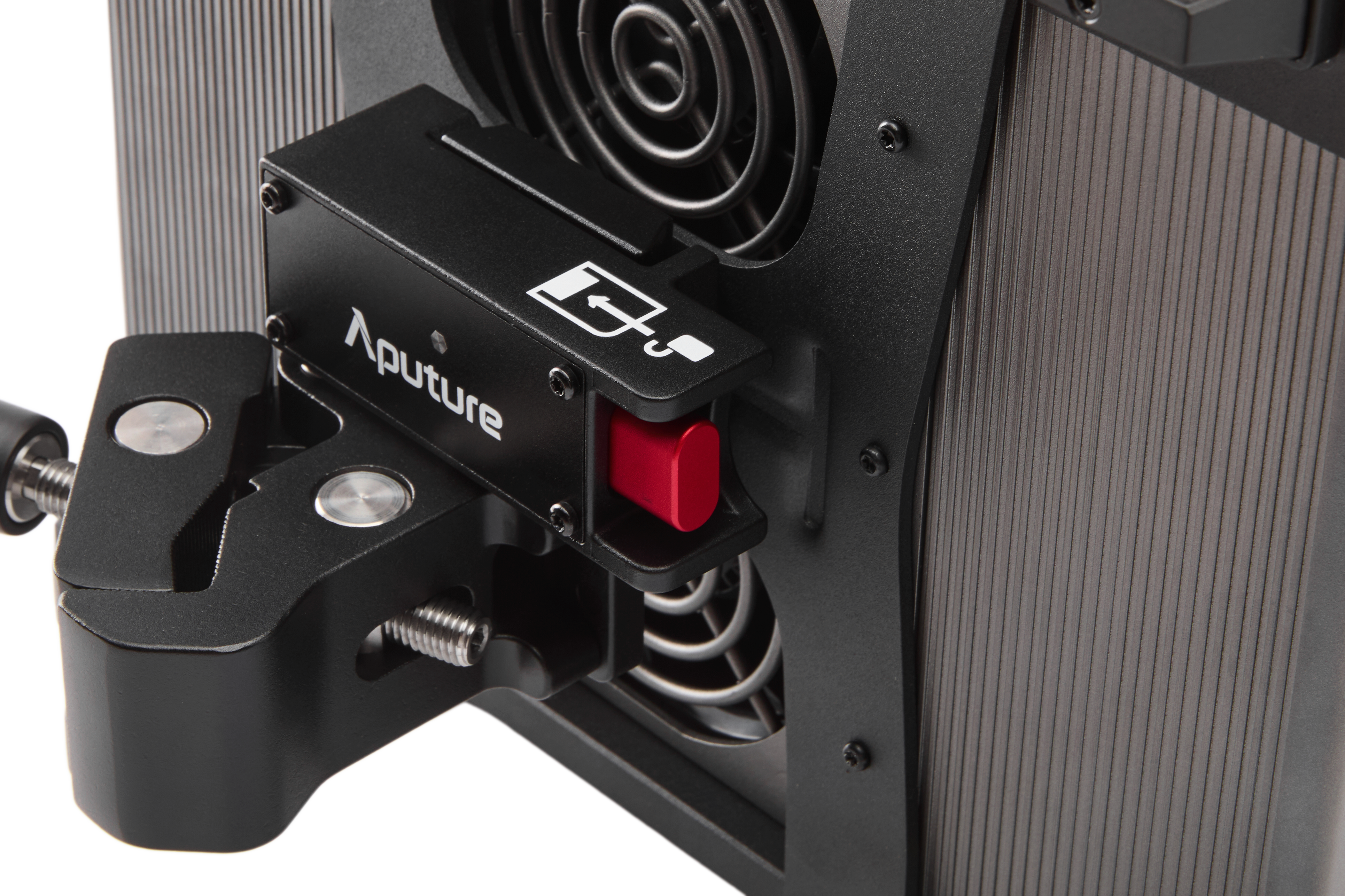

1 x Aputure Ultra Clamp
1 x STORM CS32 Flight Case (Optional)
