Description
STORM 700x Data Sheet - Download Here

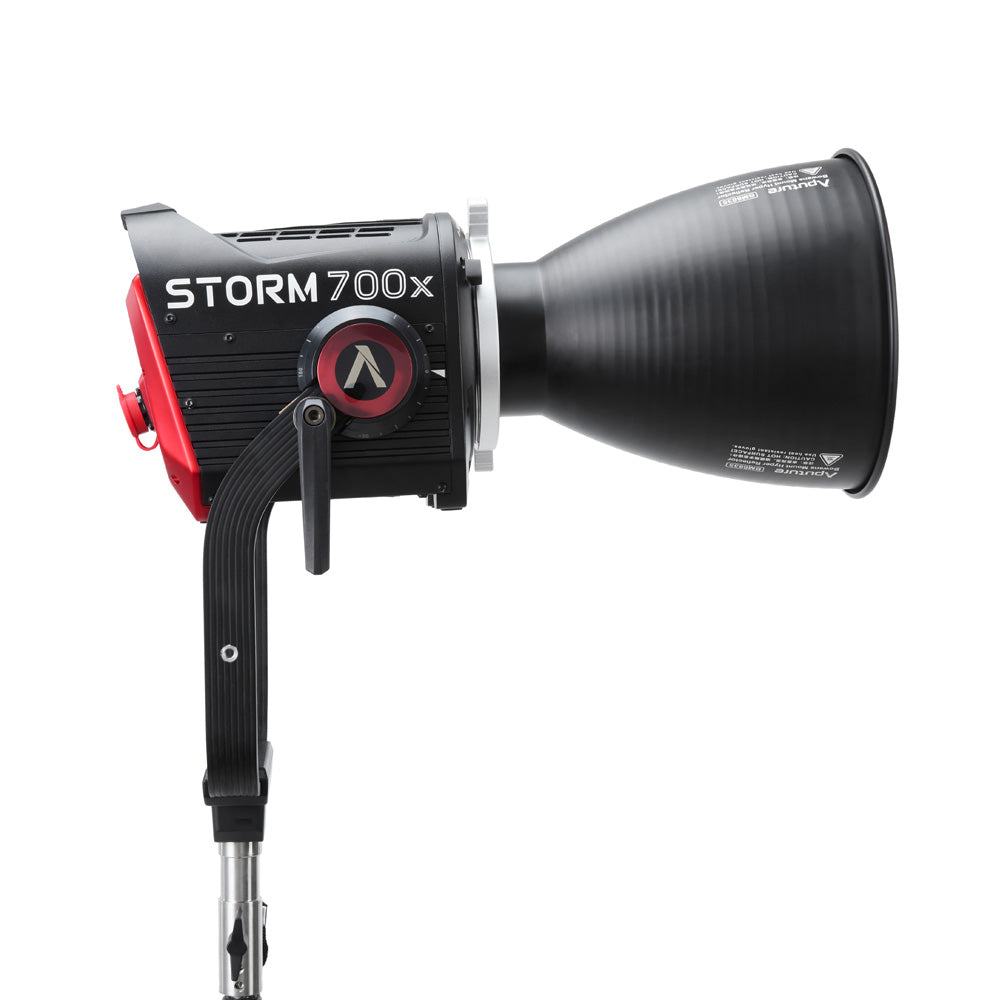

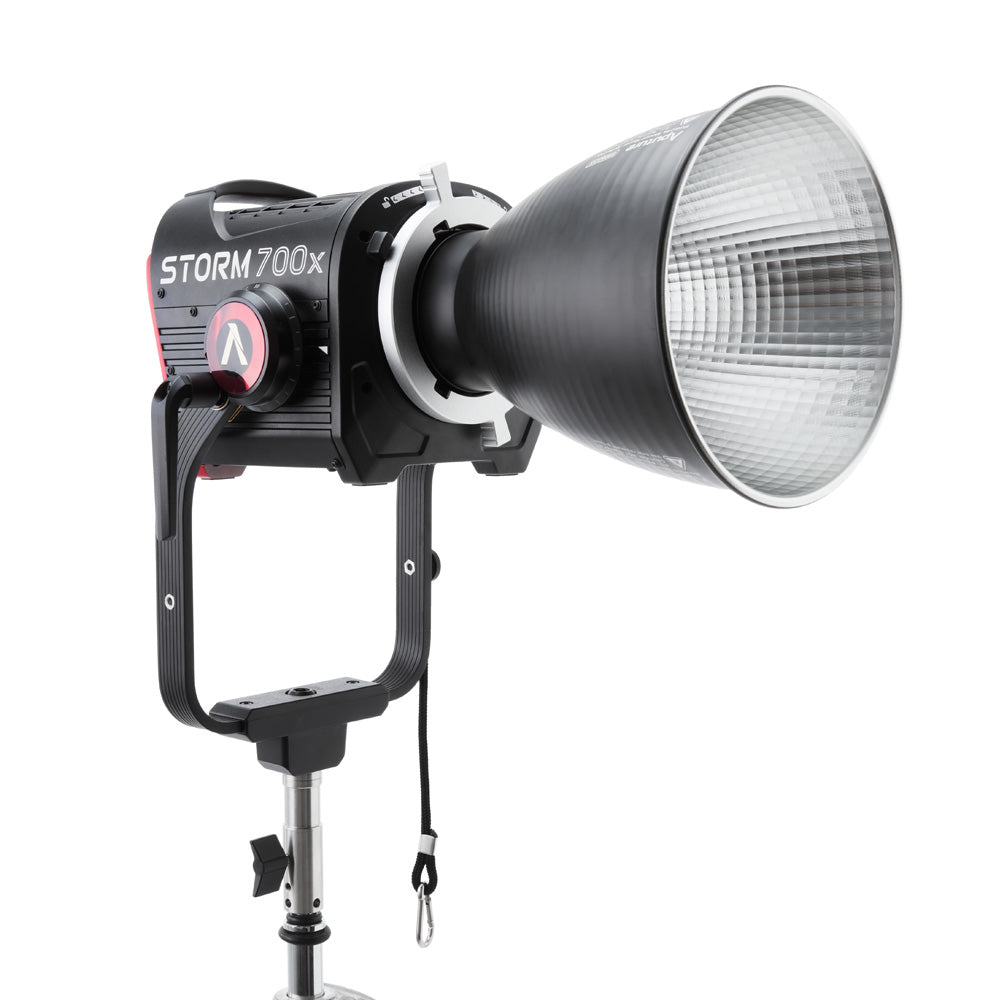

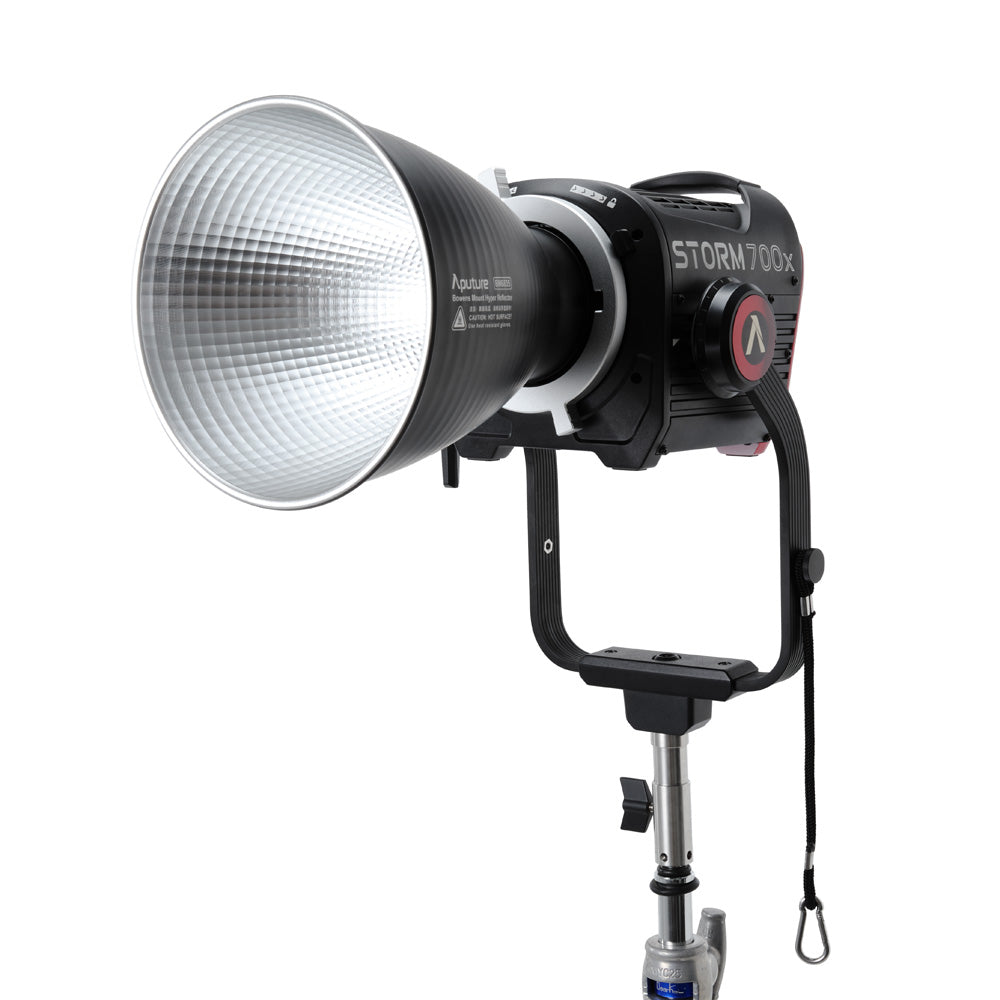

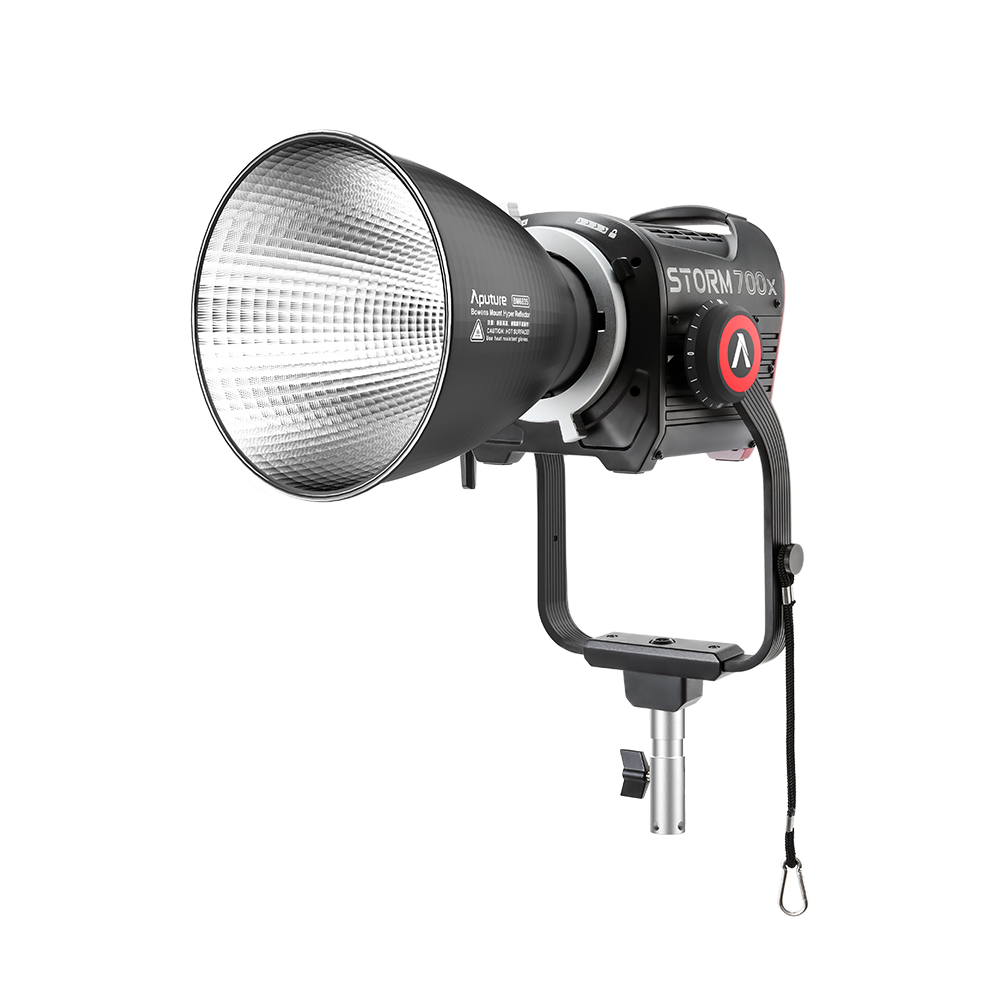

Introducing the Aputure STORM 700x, a high-output point-source LED lighting fixture
that redefines what a compact, tunable-white engine can deliver on set. Building upon
the same innovative foundation as the STORM 1200x, STORM XT52, and STORM
400x, the STORM 700x harnesses Aputure’s proprietary BLAIR LED chipset: an
advanced five-diode architecture featuring Blue, Lime, Amber, Indigo, and Red
emitters. This groundbreaking chipset enables exceptional spectral quality, unlocking
more efficient utilization of each diode’s output and unparalleled accuracy in white
light reproduction.
With a powerful 700W COB in a compact form factor, the STORM 700x is the perfect
tool for professionals demanding both high output intensity and precision. Offering a
wide CCT range of 2,500K to 10,000K and full ±G ASC MITC green-magenta
correction, the STORM 700x empowers users to fine-tune their white point with
unmatched flexibility
Leveraging its advanced optical system, the STORM 700x produces an impressive
16,730 lux at 3 meters (5600K) when paired with its included 35º reflector. Its
performance is matched by industry-leading color fidelity: SSI [P3200] 87 and SSI
[D5600] 87. With over 70% coverage of the Rec. 2020 color gamut and smooth
stepless dimming from 0.1–100%, the STORM 700x provides the precision and
reliability required for color-critical productions.
Engineered for the rigors of professional workflows, the STORM 700x features an IP65
weather-resistant construction and Aputure’s robust ProLock Bowens Mount for
enhanced modifier security and optical alignment, even with heavier and optical

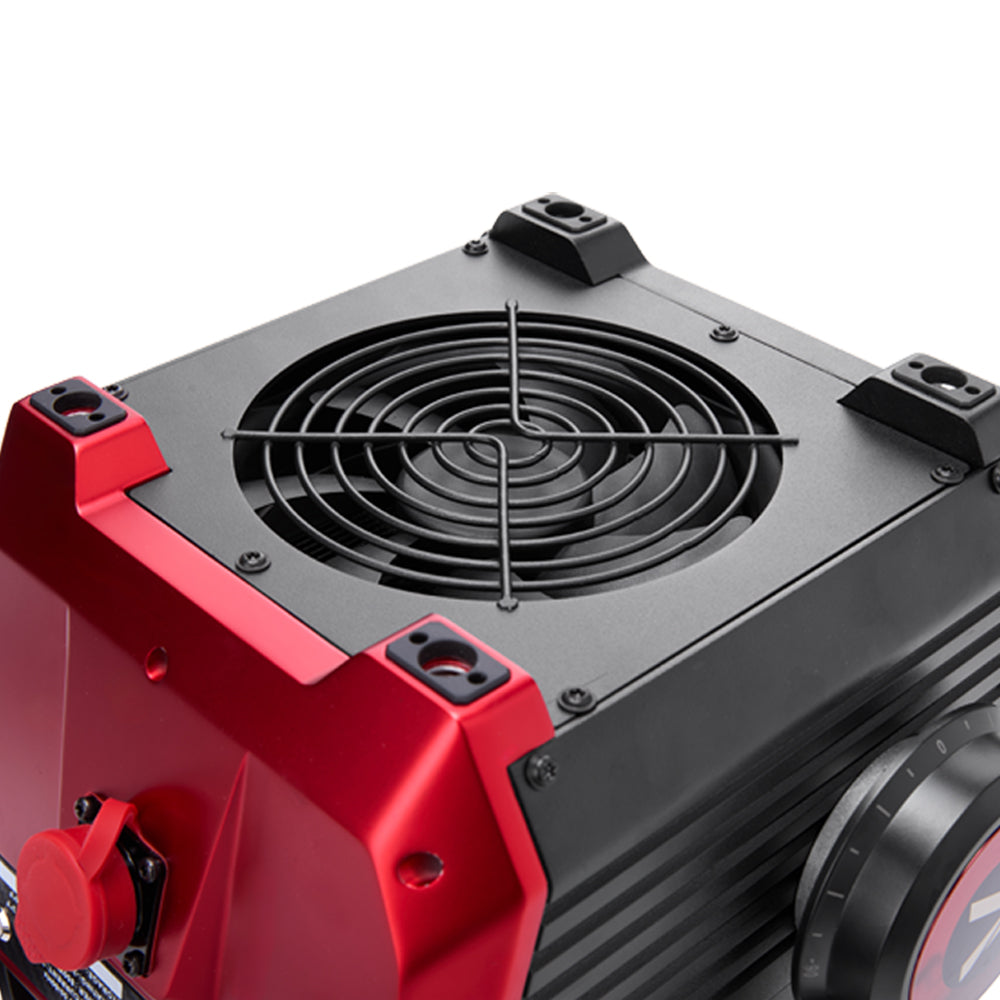

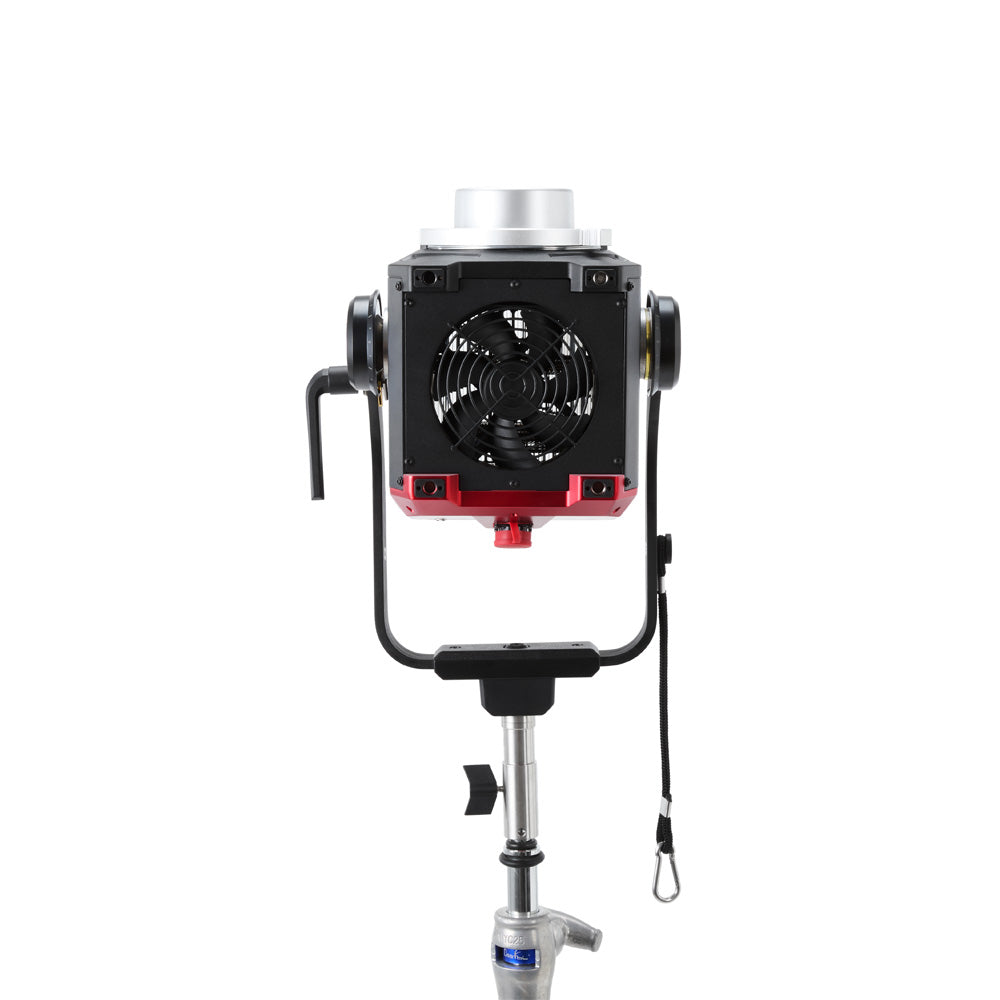

accessories. Its intelligent cooling system offers four fan modes: Smart, High, Medium,
and Silent.
Equipped with comprehensive control options, including Sidus Link® and Sidus Link
Pro® app integration, LumenRadio CRMX, 16-bit 5-Pin DMX512 in/out, and support for
batch firmware updates, the STORM 700x integrates seamlessly into modern lighting
networks and workflows. Additional modes, including Max Output, Constant Output,
High-Speed, Lead-Follow, and Studio Modes, expand its versatility for a wide range of
production needs.
Designed for filmmakers, cinematographers, and lighting professionals who demand
uncompromising output and color performance in a weather-resistant, and networkready
body, the STORM 700x sets a new standard for high-output, precision white
light in a compact point-source fixture.
• 700W tunable-white compact point source fixture
• Advanced white point control with green/magenta color correction (±G
100% full ASC MITC range)
• CCT range of 2,500K-10,000K
• Groundbreaking proprietary LED chipset: Blue, Lime, Amber, Indigo, Red
(BLAIR)
• Advanced diode color mixing allows fixture to more effectively utilize each
diode’s light output
• 16,730 lux @3m (5600K) when using included 35º reflector
• Ultra-high color accuracy: CRI≥95, TLCI≥95,, SSI [P3200]: 87, SSI [CIE
D5600]: 87, TM-30 Rf (average) 95, TM-30 Rg (average) 100
• 70%+ coverage of Rec. 2020 color gamut

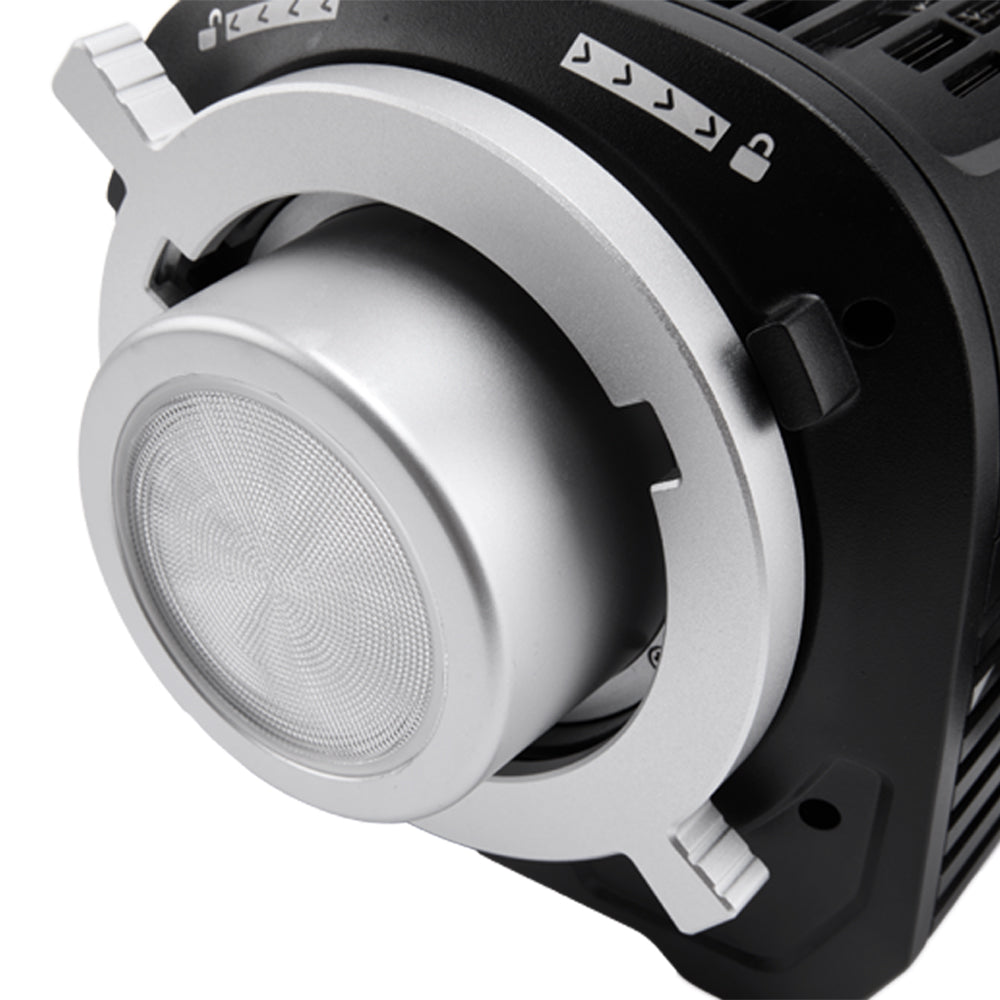

• Robust ProLock Locking Bowens Mount design allows for more secure and
optically aligned modifier accessory connection
• IP65 weather resistance
• Smooth 0.1-100% stepless dimming
• Multiple control methods: Sidus Link and Sidus Link Pro App, LumenRadio
CRMX, 16-bit 5-Pin DMX512 in & out
• Supports firmware batch-updates via Sidus Link, Sidus Link Pro, and USB-A
• Dual output modes: Max and Constant
• High-Speed Photography, Lead-Follow, and Studio Modes
• 4 fan modes: Smart, High, Medium, Silent
• 12 DMX control profiles with multiple DMX dimming modes and
customizable DMX signal loss behaviors
• 4 dimming curves: Linear, Exponential, Logarithmic, S-Shaped
• 9 light effects: Paparazzi, Fireworks, Flickering Bulb, Cannon, Lightning, TV,
Pulse, Flash, Explosion, Flame
• 10 savable presets
LED Chipset BLAIR
CCT 2,500K – 10,000K
Green-Magenta Adjustment Range ±G 100% (Full ASC MITC Range)
CRI ≥95
TLCI ≥95
SSI (Tungsten) 87
SSI (D56) 87
TM-30 RF (Average) 95
TM-30 RG (Average) 100
Max Power Consumption 850W
Max Power Output 700W

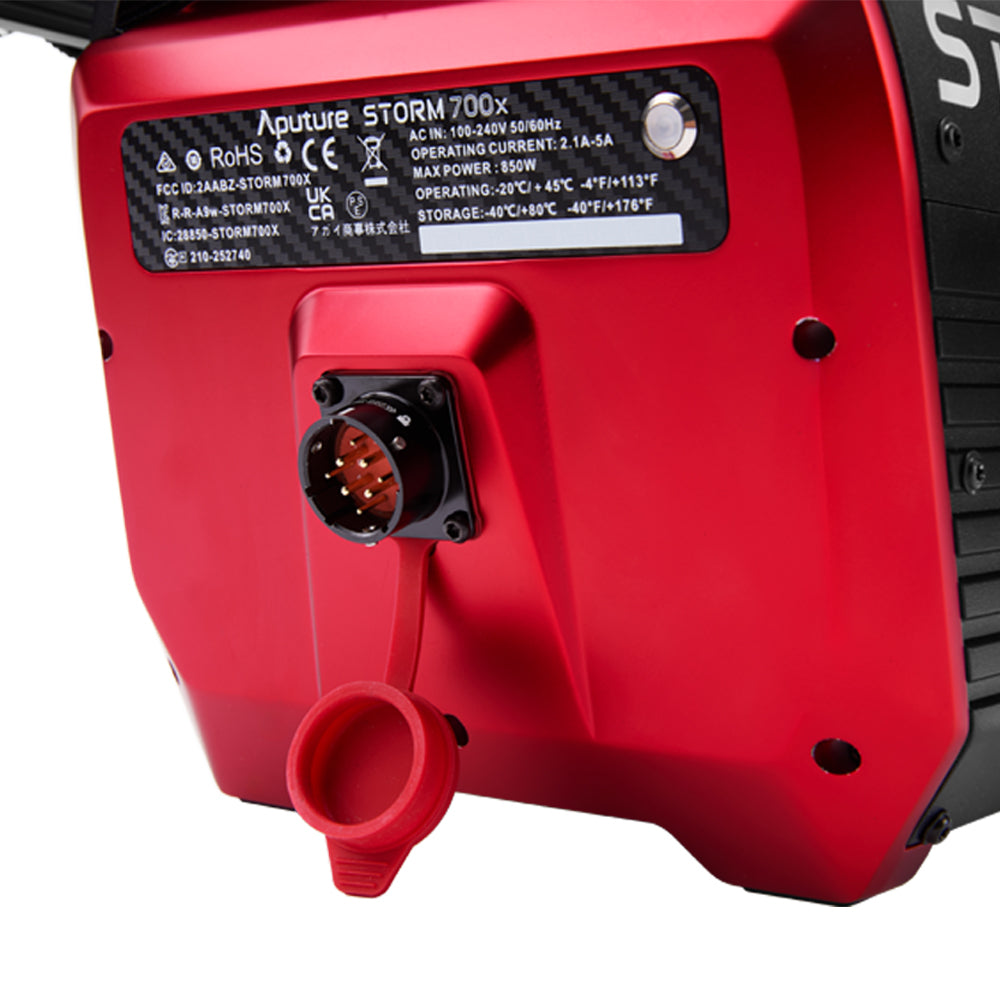

Operating Voltage 100V ~ 240V / 50-60 Hz
USB-A Power Port Specifications Out 5V/0.5A
Weather Resistance Rating IP65
Native COB Beam Angle 58º

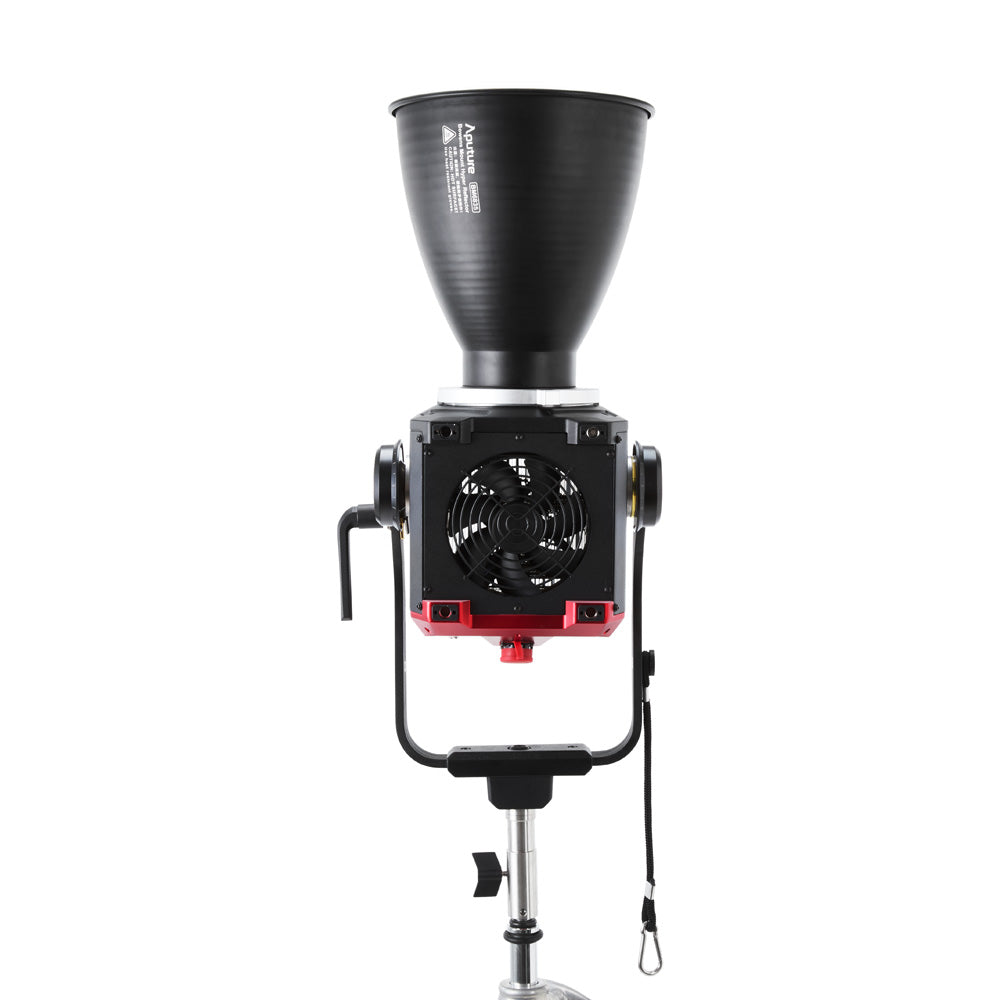

Included Reflector Beam Angle 35º
Data Ports 1x 5-Pin DMX In, 1x 5-Pin DMX Out
CRMX Chip Built-in TimoTwo module
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature -40°C ~ 80°C / -40°F ~ 176°F
Control Methods On-board, Sidus Link App, Sidus Link Pro
App, DMX, RDM, CRMX
Firmware Upgradeable Sidus Link, Sidus Link Pro, USB-A Drive
Cooling Method Active air cooling
Wireless Range
Sidus Bluetooth ≤100m / ≤262.5ft
CRMX (TimoTwo) ≤100m / ≤262.5ft
Lamp Head Fan
Noise Levels (at 1m)
Smart Mode 32 dBA
High Mode 36.9 dBA
Medium Mode 31.8 dBA
Silent Mode 0 dBA
Dimensions
Lamp Head (With Yoke)
27.4 x 27.2 x 50.3 cm
10.8 x 10.7 x 19.8 inch
Control Box
12.3 x 15.4 x 31.4 cm
4.8 x 6.1 x 12.4 in
Weight
Lamp Head with Yoke 5.15 kg / 11.35 lbs
Control Box 4.10 kg / 9.04 lbs
AC Power Cable 0.60 kg / 1.32 lbs
Head Cable 1.06 kg / 2.34 lbs
BM6835 35º Reflector 0.35 kg / 0.77 lbs

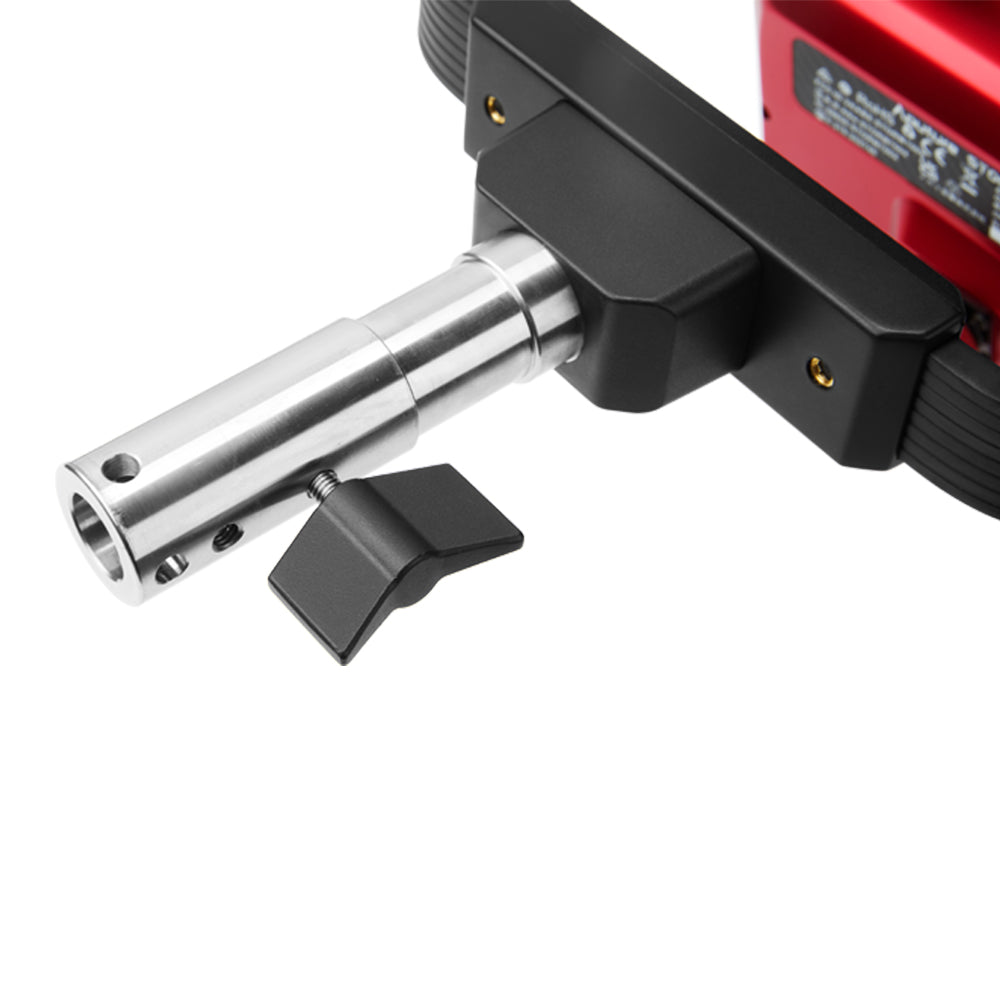

Lightning Clamp 0.65 kg / 1.32 lbs

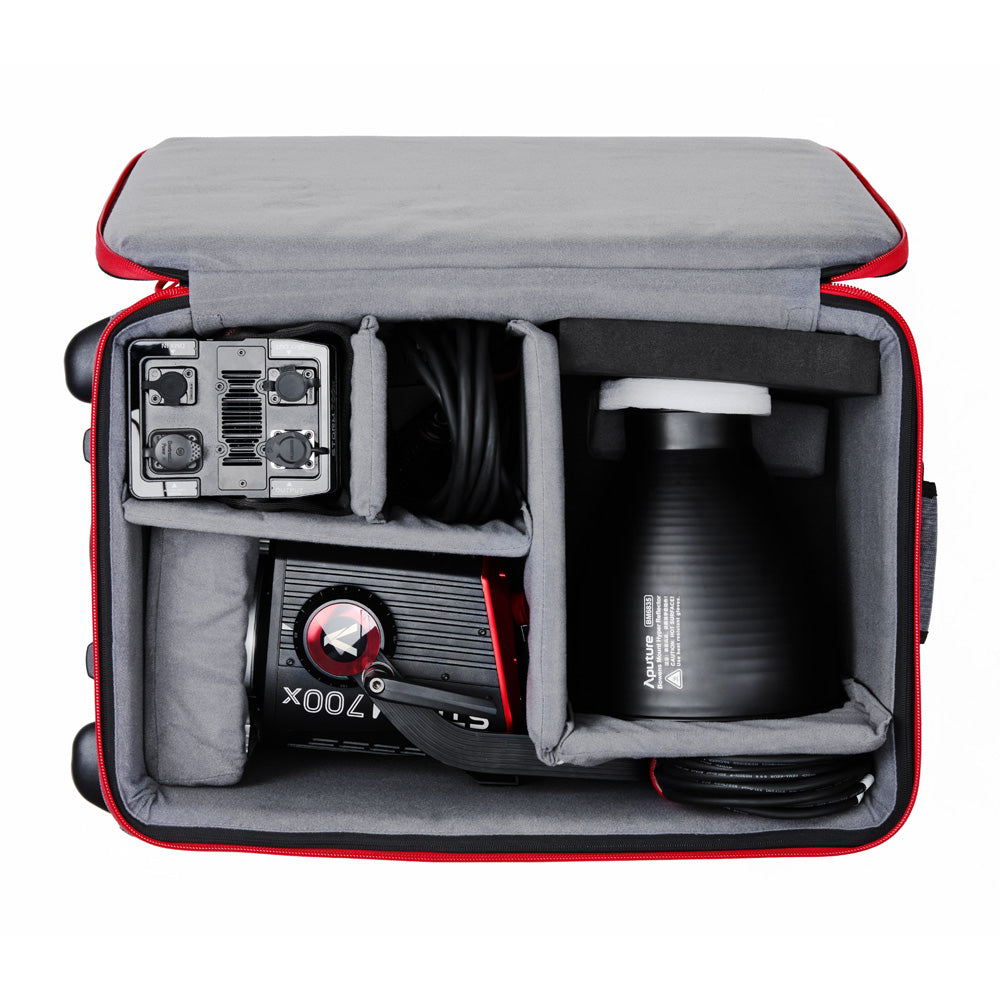

What's in the Box:

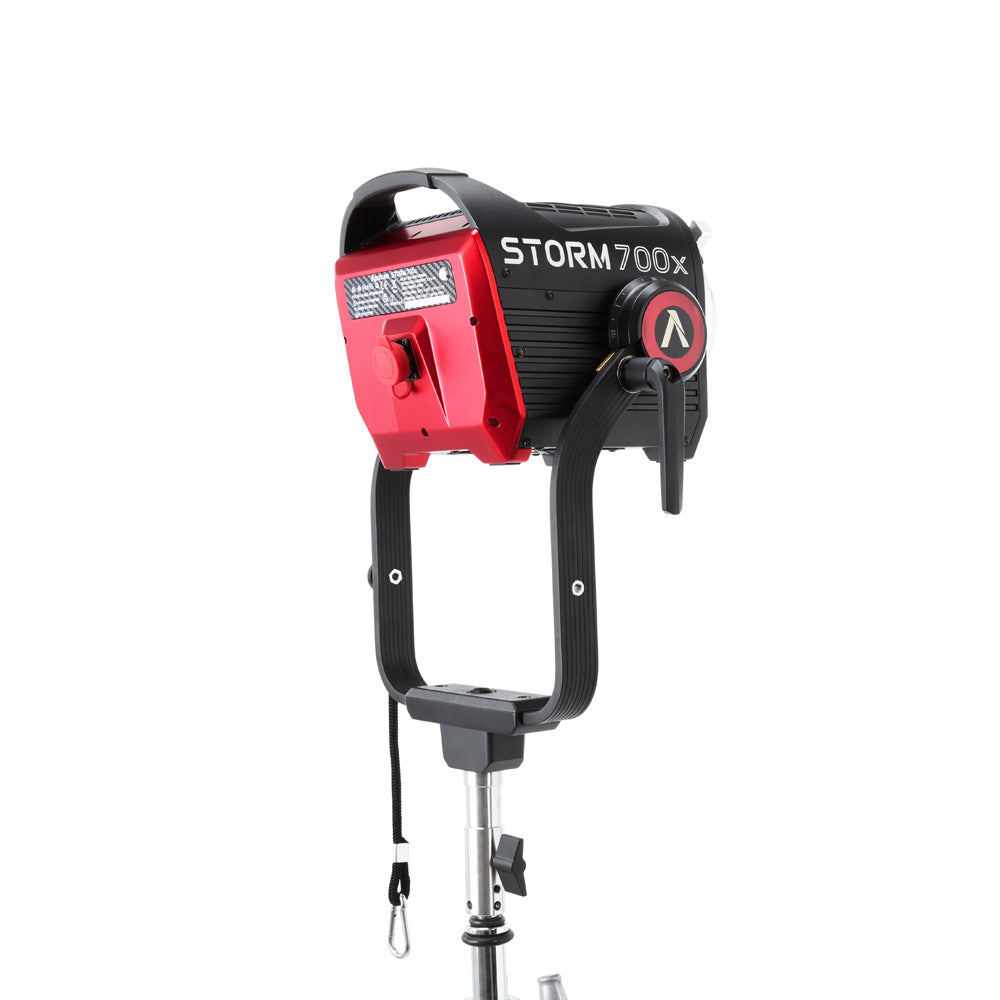

STORM 700x Lamp Head 1
STORM 700x Control Box 1

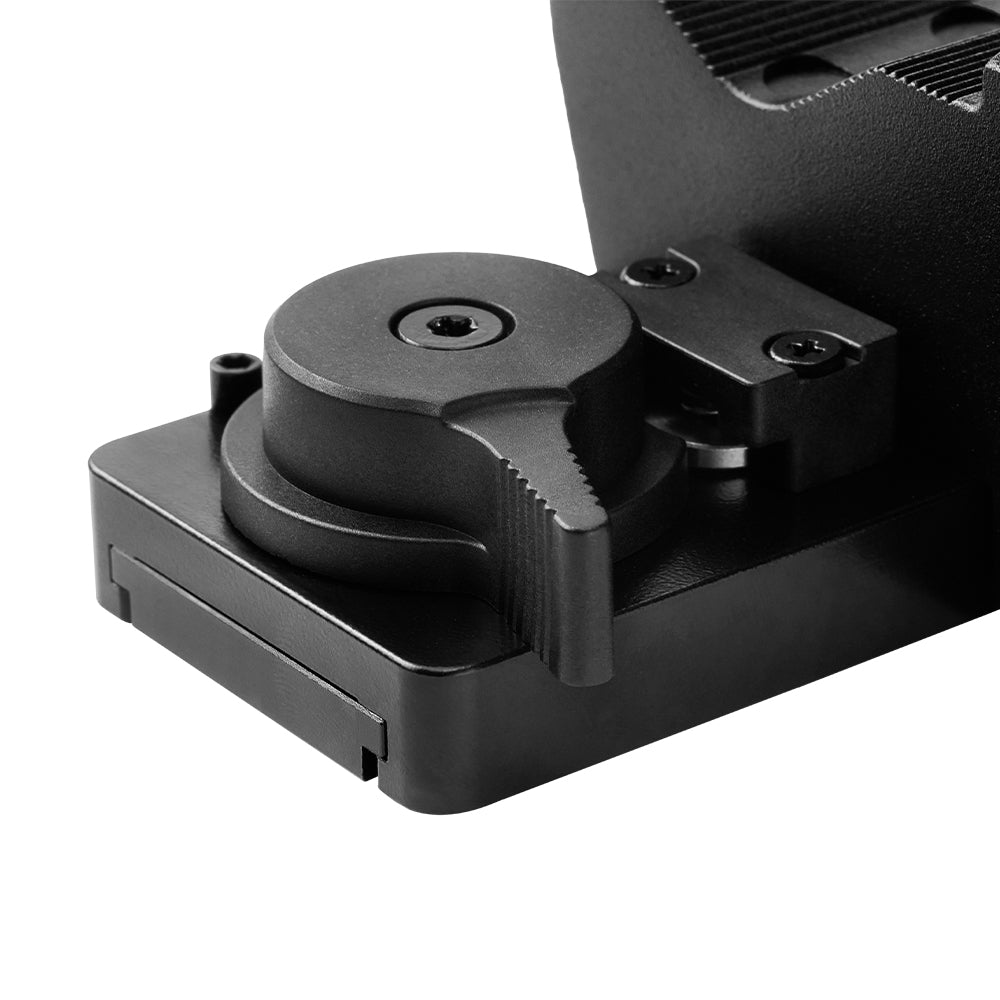

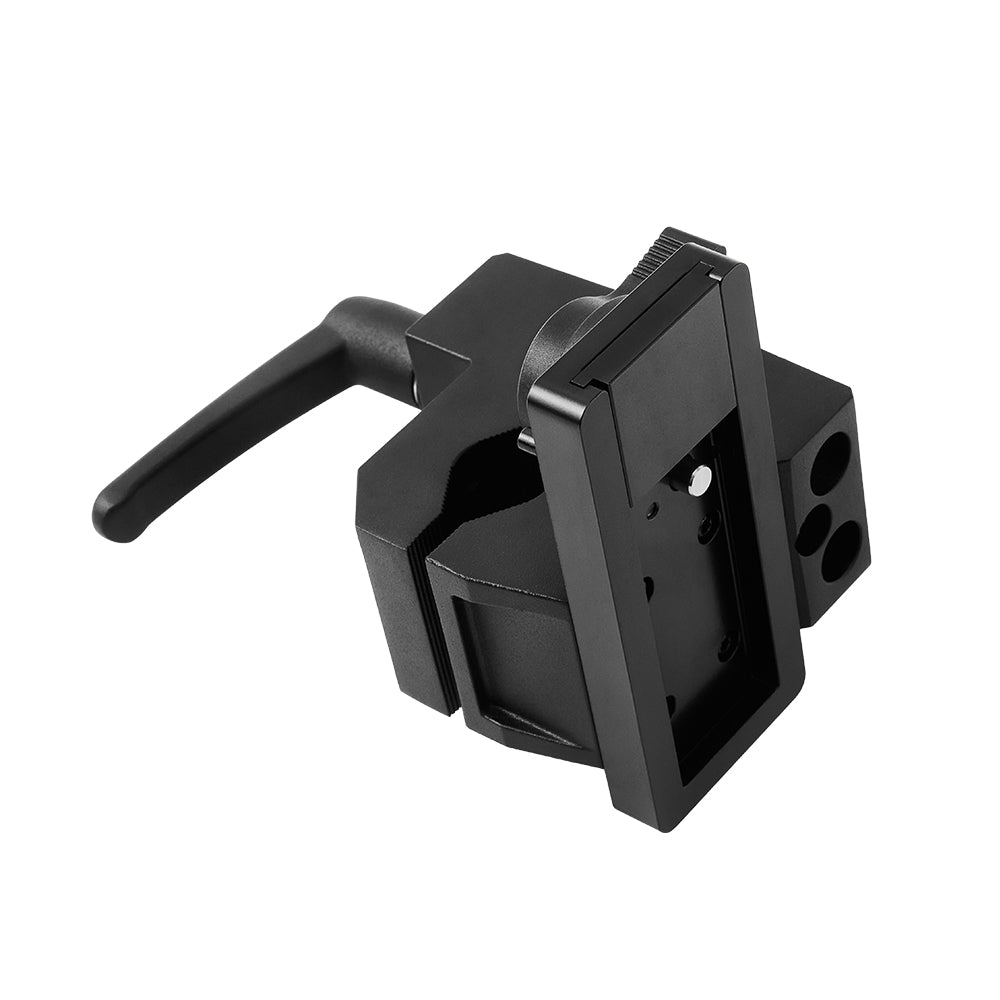

Lightning Clamp 1

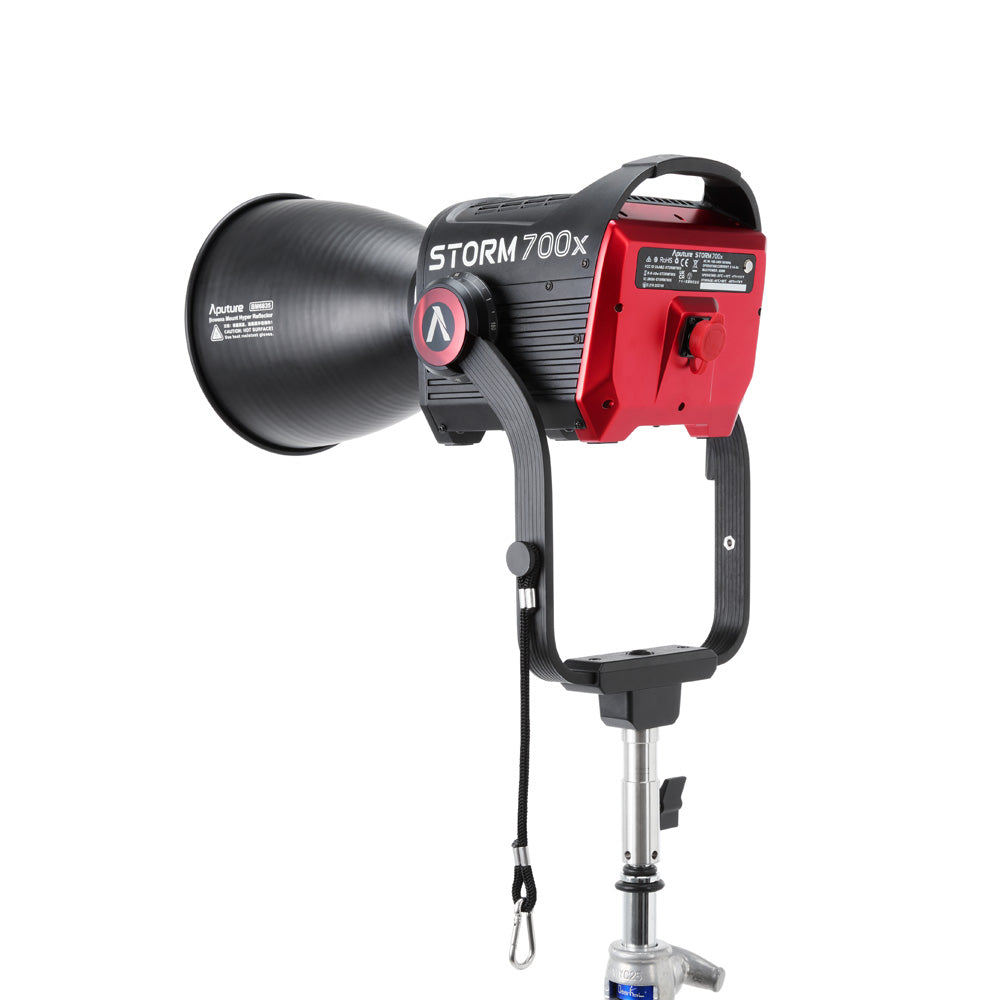

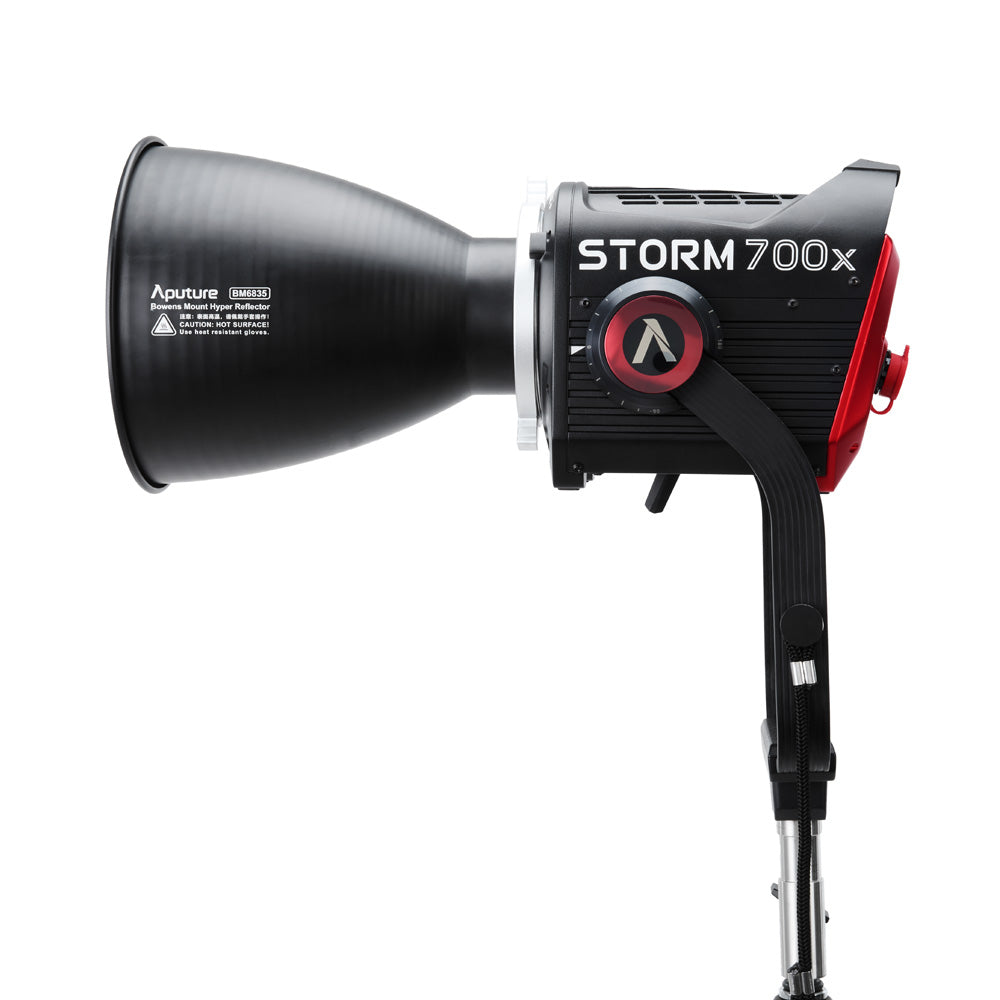

BM6835 35º Angle Hyper Reflector 1

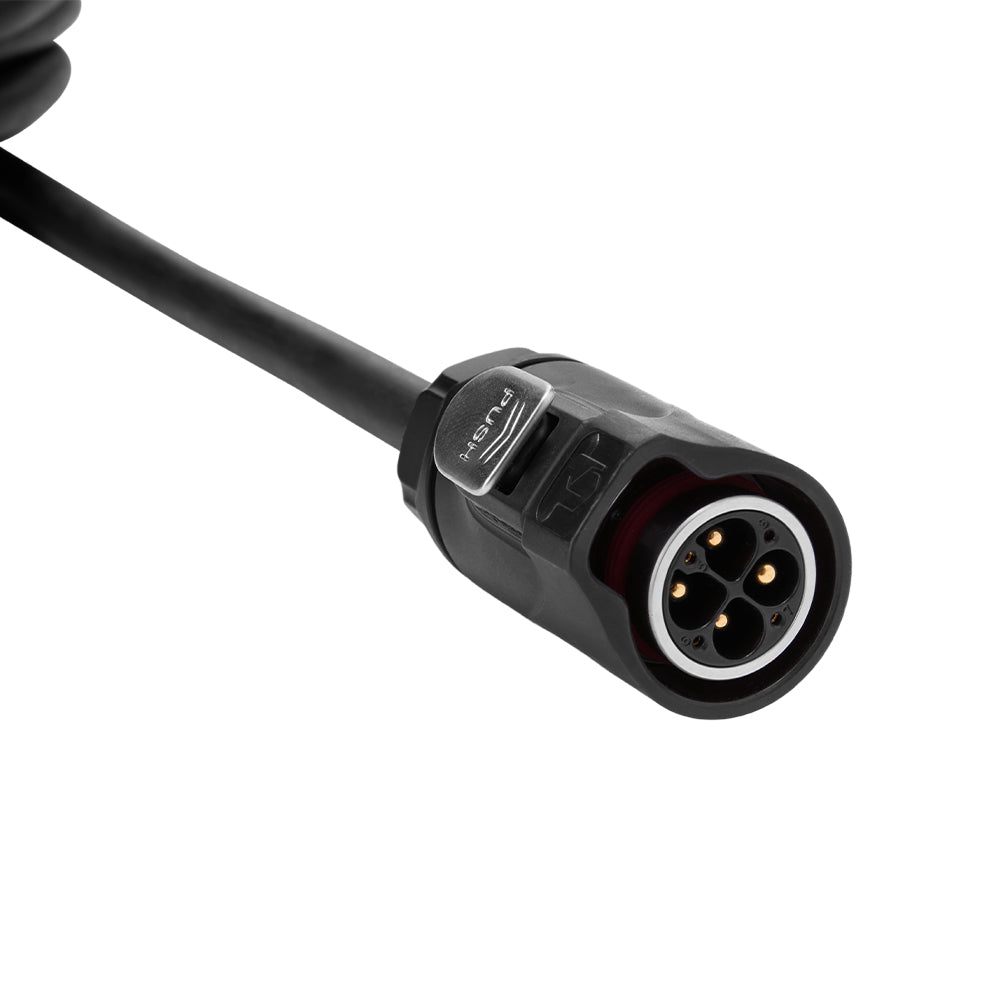

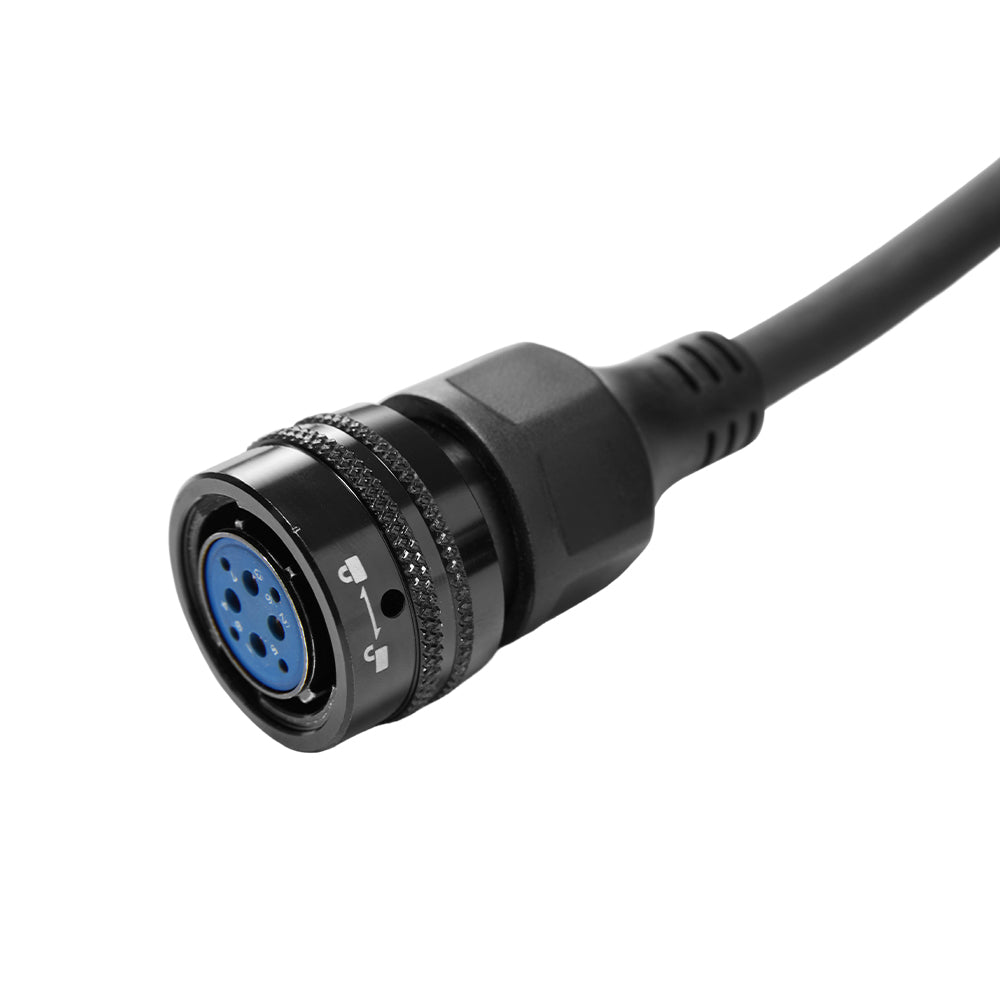

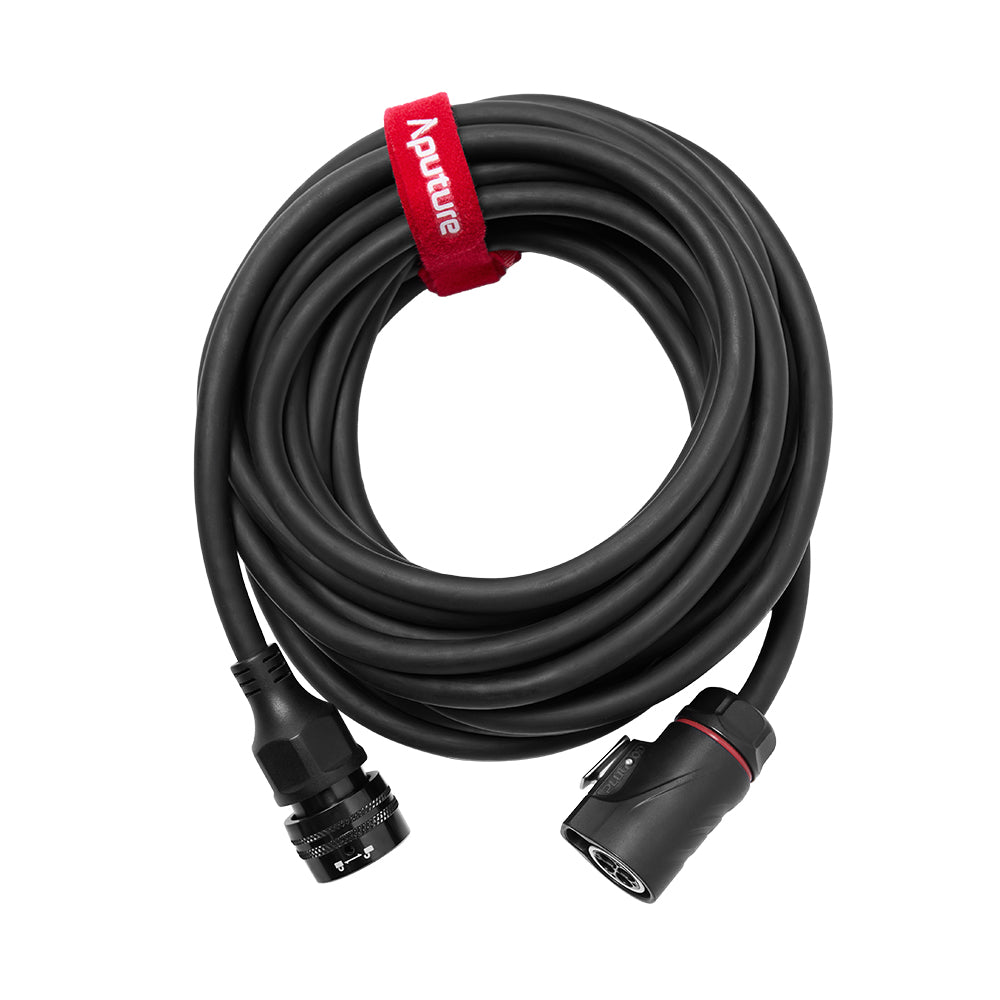

STORM 700x Head Cable (3m) 1
AC Power Cable (6m) 1
Bowens Mount Protection Cover 1

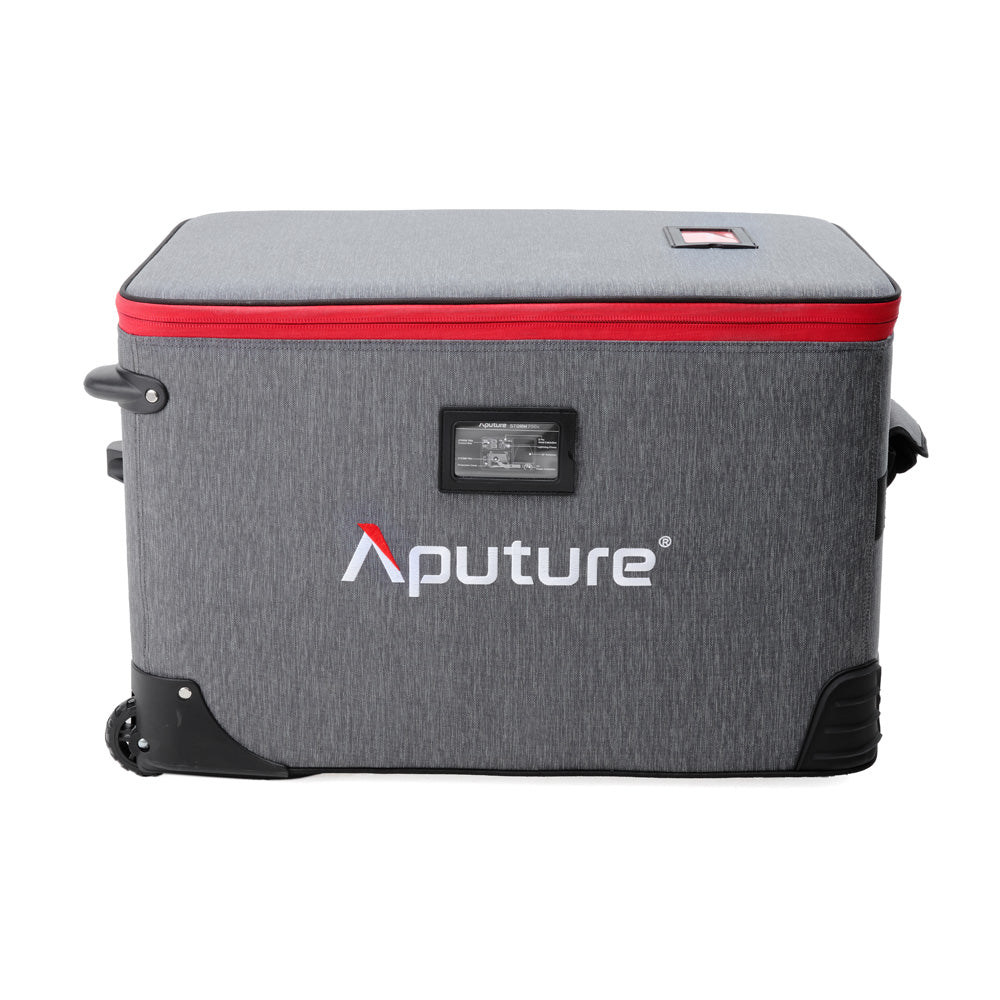

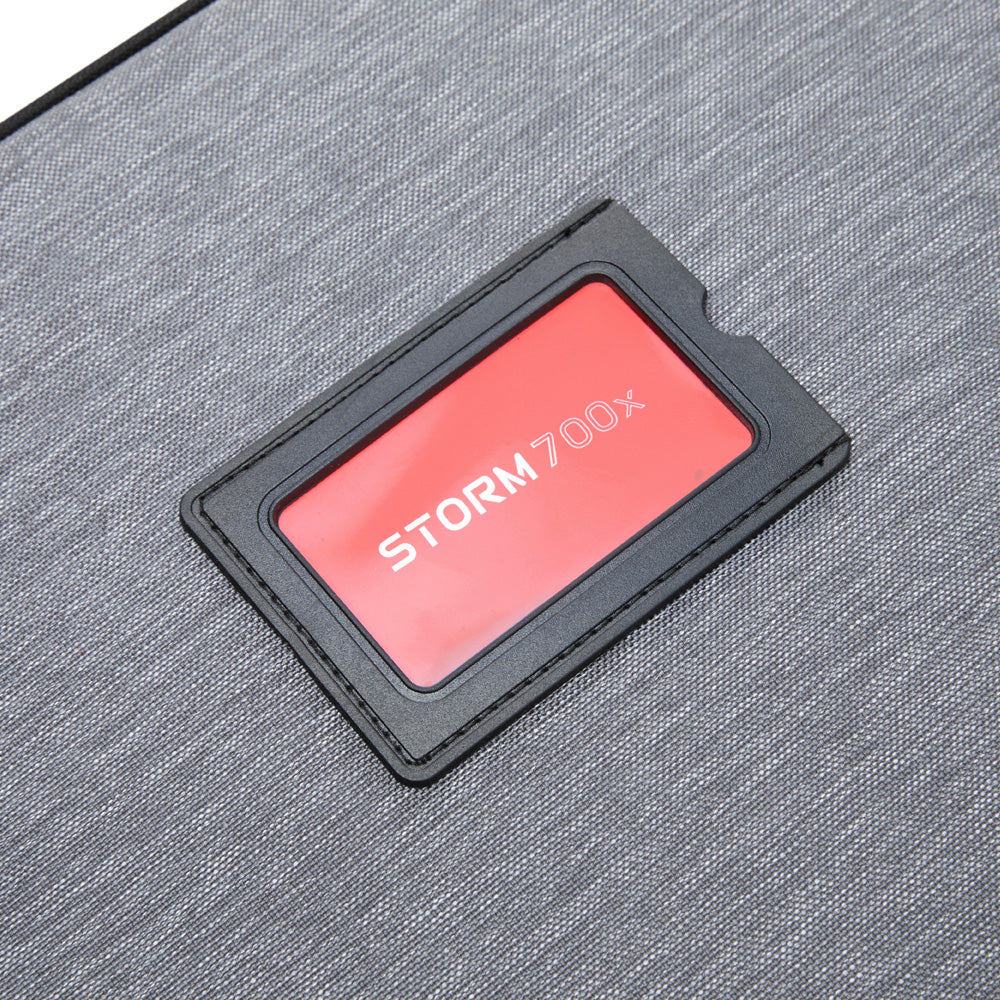

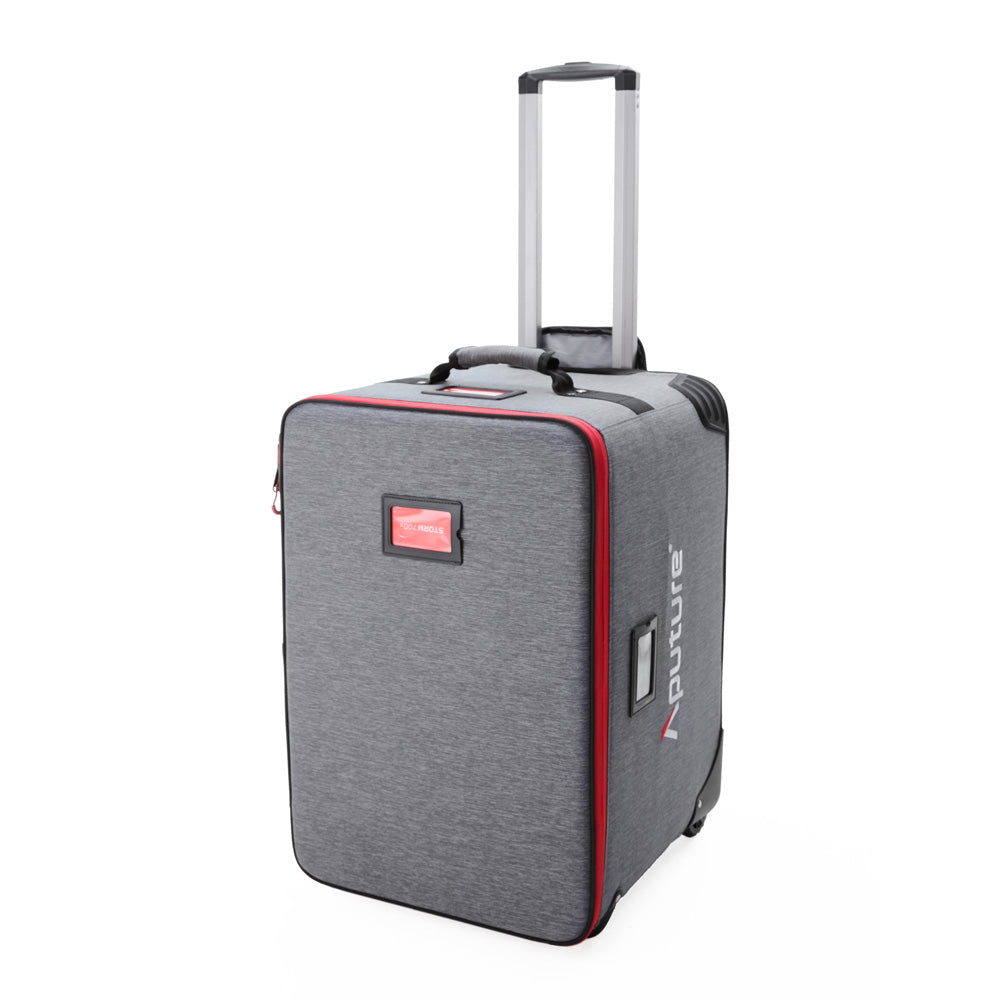

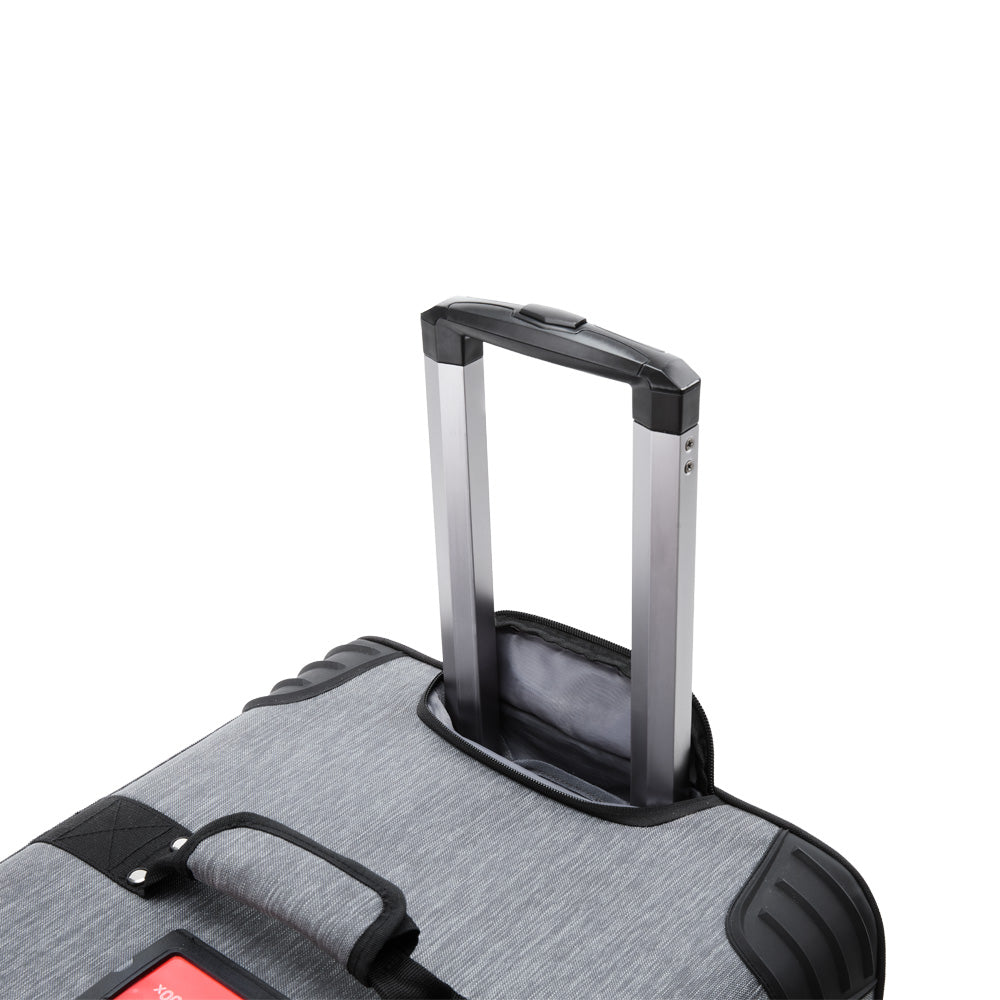

Soft Rolling Case 1
Photometrics:
CCT Dis.
No
Reflector
35º
Reflector
25º
Reflector
CF10 Full
Spot (15º)
CF10 Full
Flood
(40º)
2,500K
3m
4,200 lux
390 fc
12,480 lux
1,160 fc
18,120 lux
1,684 fc
37,400 lux
3,476 fc
7,850 lux
730 fc
5m
1,588 lux
148 fc
3,800 lux
353 fc
5,450 lux
507 fc
13,020 lux
1,210 fc
3,030 lux
282 fc
3,200K
3m
4,870 lux
453 fc
14,430 lux
1,341 fc
20,950 lux
1,947 fc
43,300 lux
4,024 fc
9,990 lux
928 fc
5m
1,839 lux
171 fc
4,430 lux
412 fc
6,350 lux
590 fc
15,050 lux
1,399 fc
3,510 lux
326 fc
4,300K
3m
6,210 lux
577 fc
18,120 lux
1,684 fc
26,430 lux
2,456 fc
54,700 lux
5,084 fc
11,590 lux
1,077 fc
5m
2,330 lux
217 fc
5,260 lux
489 fc
7,404 lux
688 fc
19,000 lux
1,766 fc
4,440 lux
413 fc
5,600K
3m
6,370 lux
592 fc
18,670 lux
1,735 fc
27,190 lux
2,527 fc
56,200 lux
5,223 fc
11,900 lux
1,106 fc
5m
2,394 lux
222 fc
5,390 lux
501 fc
7,700 lux
716 fc
19,550 lux
1,817 fc
4,570 lux
425 fc
6,500K
3m
6,190 lux
575 fc
18,250 lux
1,696 fc
26,520 lux
2,465 fc
54,700 lux
5,084 fc
11,570 lux
1,075 fc
5m
2,333 lux
217 fc
4,818 lux
448 fc
7,235 lux
672 fc
19,050 lux
1,770 fc
4,460 lux
414 fc
7,500K
3m
5,660 lux
526 fc
16,760 lux
1,558 fc
24,300 lux
2,258 fc
50,100 lux
4,656 fc
10,610 lux
986 fc
5m
2,136 lux
199 fc
4,793 lux
445 fc
7,087 lux
659 fc
17,470 lux
1,624 fc
4,080 lux
379 fc
10,000K
3m
4,720 lux
439 fc
13,930 lux
1,295 fc
20,200 lux
1,877 fc
41,700 lux
3,875 fc
8,850 lux
822 fc
5m
1,778 lux
165 fc
4,430 lux
412 fc
6,300 lux
586 fc
14,520 lux
1,349 fc
3,400 lux
316 fc
