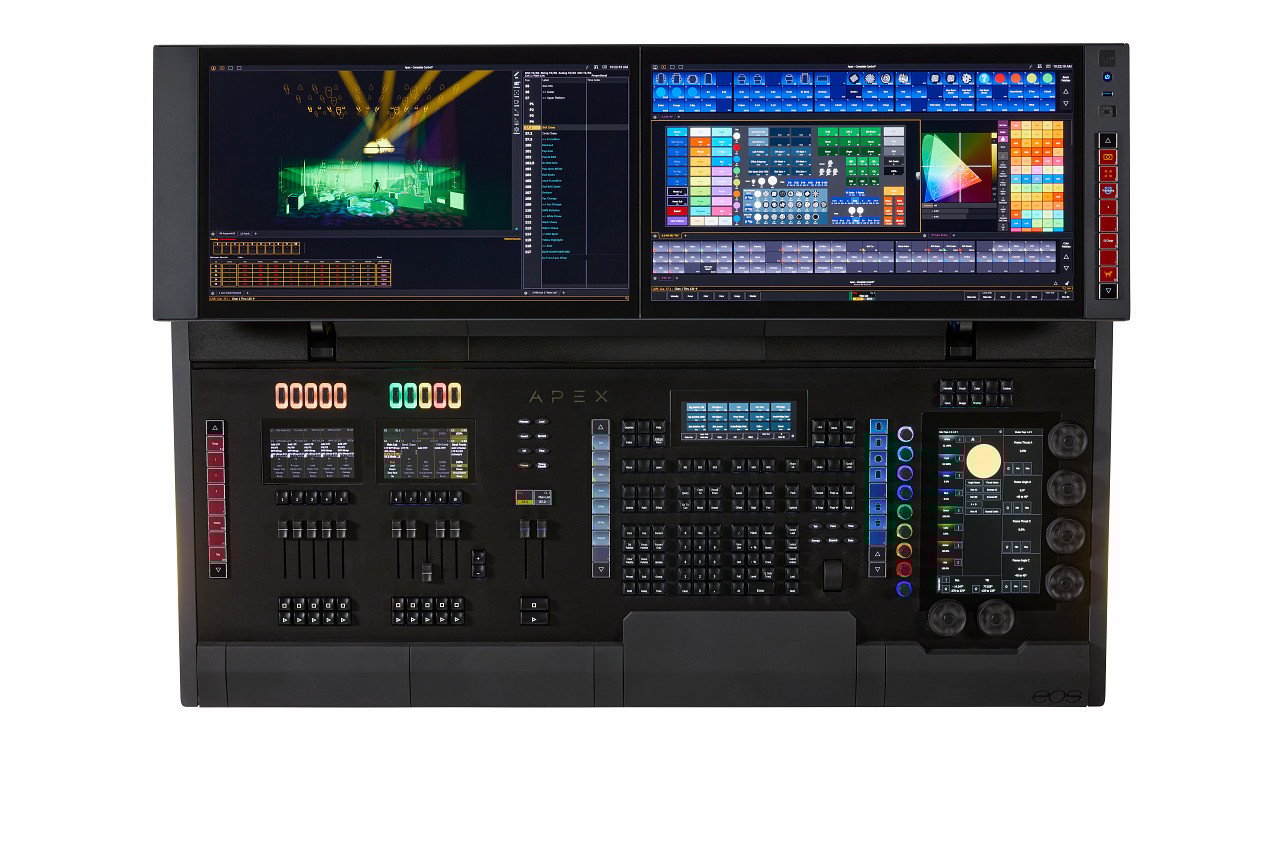

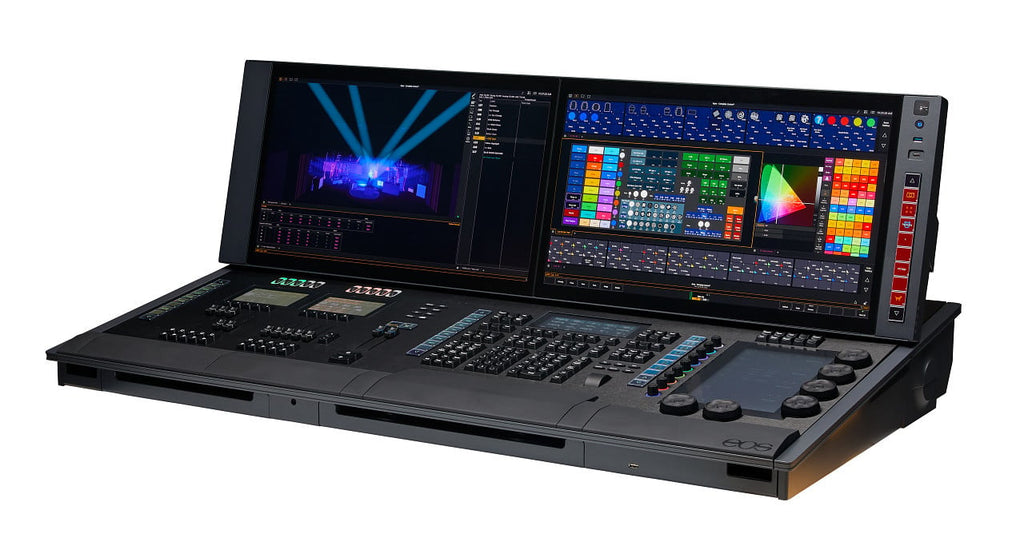

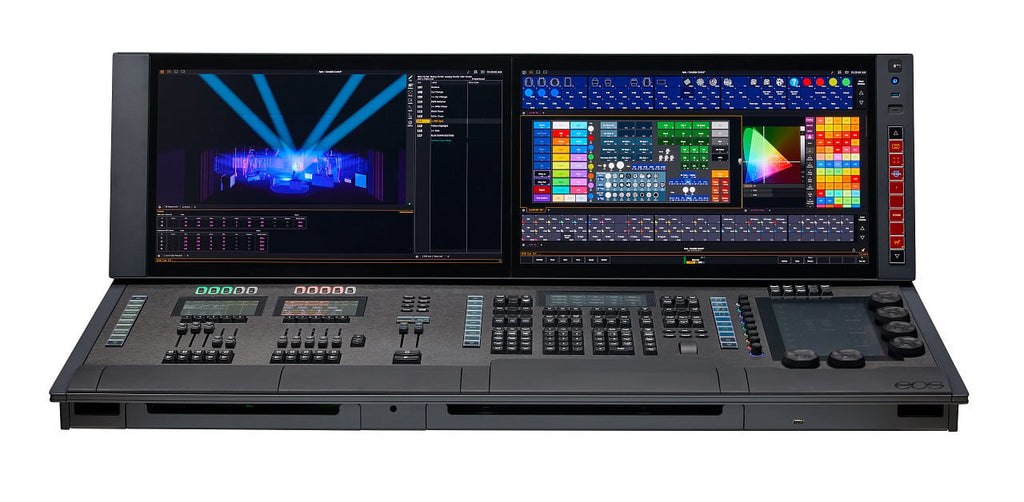

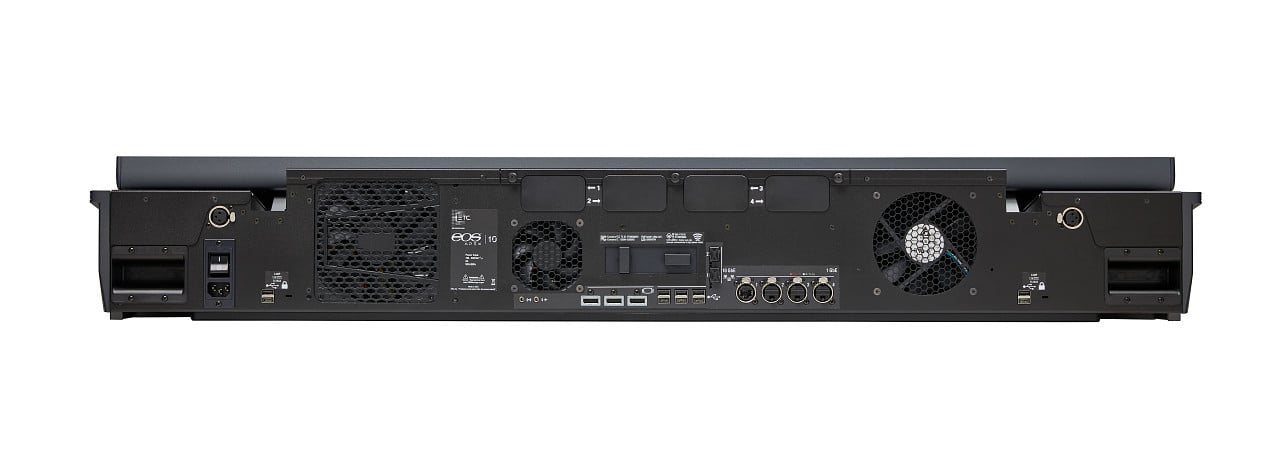

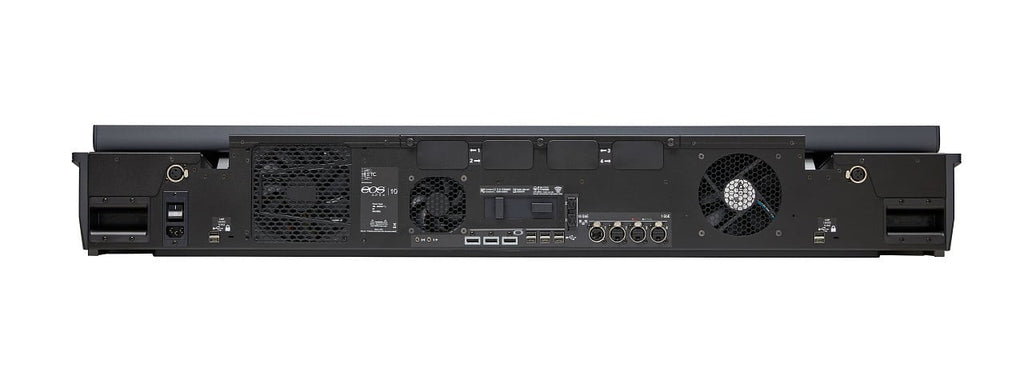

ETC's Apex 10 is a 24K output lighting control console with 10 motorized faders plus full customization including four banks of 10-button OLED Target keys for Direct Selects, a built-in soft keypad, book lights for paperwork, drawers for accessories, dual axis folding displays, and more encoders than on any Eos desk before. Each Apex console features four standard ethercon Gigabit ports, and two 10-Gigabit SFP+ ports for networking, as well as, four customizable I/O Garages that let you mix and match your outputs (gateways sold separately). The Apex 10 console is also compatible with the Eos Family's expansive universe for extra system options.

ETC APEX 10 Applications:
Theatres

Opera Houses

Live Events

Broadcast TV

ETC APEX 10 Includes:
Apex 10 24K Lighting Control Desk
One three-button scroll mouse and mousepad
Cherry tenkeyless backlit alpha-numeric keyboard
Locking regionalized IEC power cord
Two 24-inch LED gooseneck Littlites
Augment3d AR target kit
Dust cover
ETC APEX 10 Features:
24K output
Generous displays and playback surfaces
Palettes (Intensity, Focus, Color, Beam), Presets (all palette), Groups, Effects (relative, absolute or step), Macros, Snapshots, Curves, Color Paths
Partitioned control
Show import from Obsession, Express™, Expression®, Emphasis®, Congo®, Cobalt®, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
Magic Sheets suite for customized user programming and displays
Virtual Media Server function for pixel-mapping effects, images, and animations

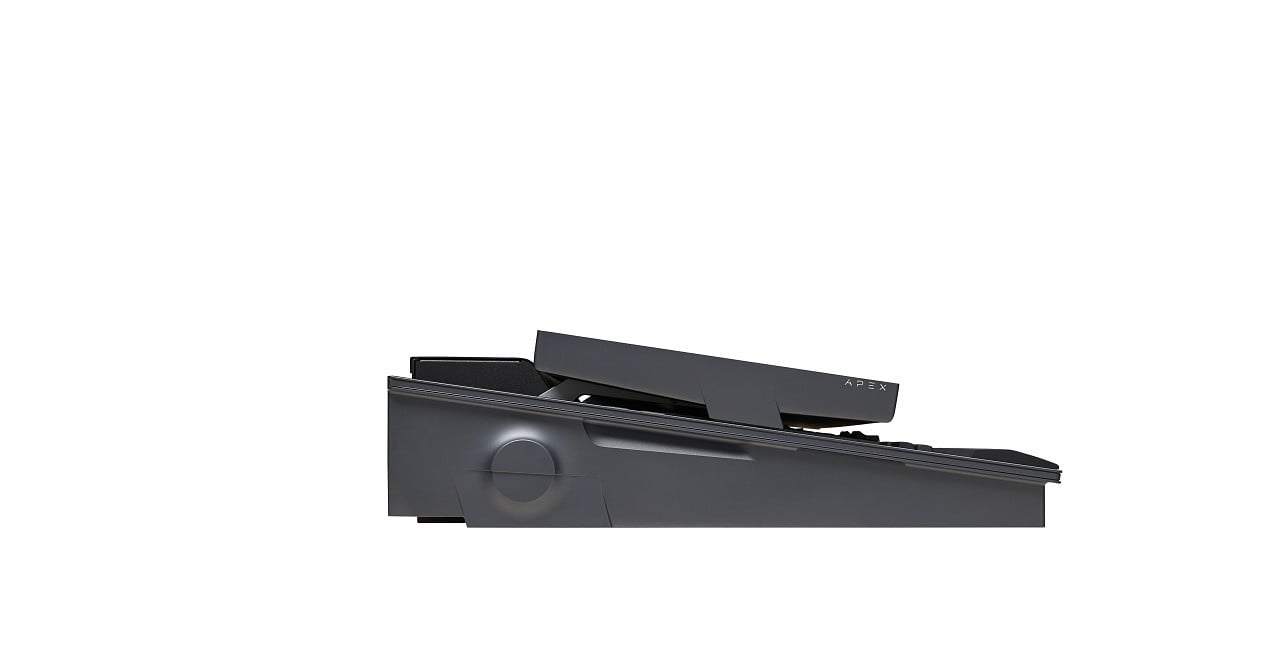

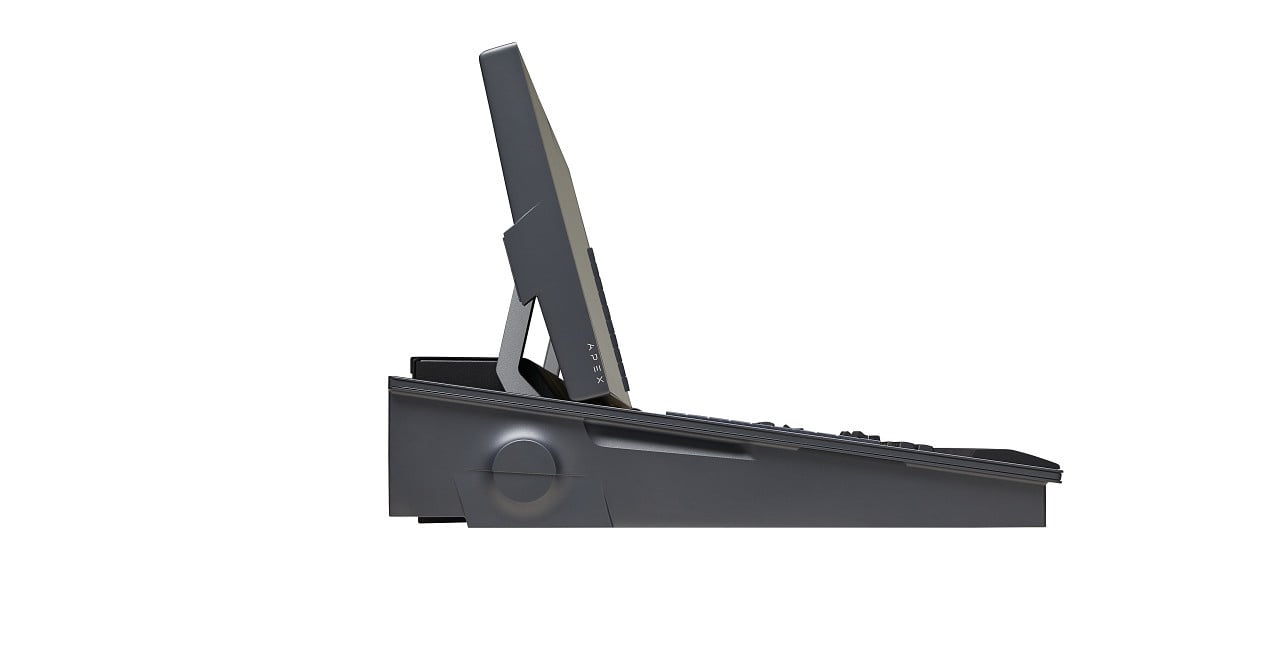

Two 23.8-inch 4K multi-touch LCD touchscreen, in an articulating dual-axis display panel
Ten 60mm motorized faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
Ten backlit scroll wheel faders with button, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
Two 5-inch high-resolution fader display, with multi-touch and haptic touch feedback
Main Playback with two 60mm motorized faders, and display load buttons
Four banks of 10-button user-definable Target Keys
Six force-feedback encoders for non-intensity parameter control
Eight backlit mini encoders for non-intensity parameter control, plus one mini encoder for navigation
Dedicated 10.1-inch high-resolution encoder display
Dedicated high-resolution intensity level wheel
Backlit expanded Eos keypad
6.3-inch keypad touchscreen, with haptic touch feedback, servicing softkeys and custom user layouts

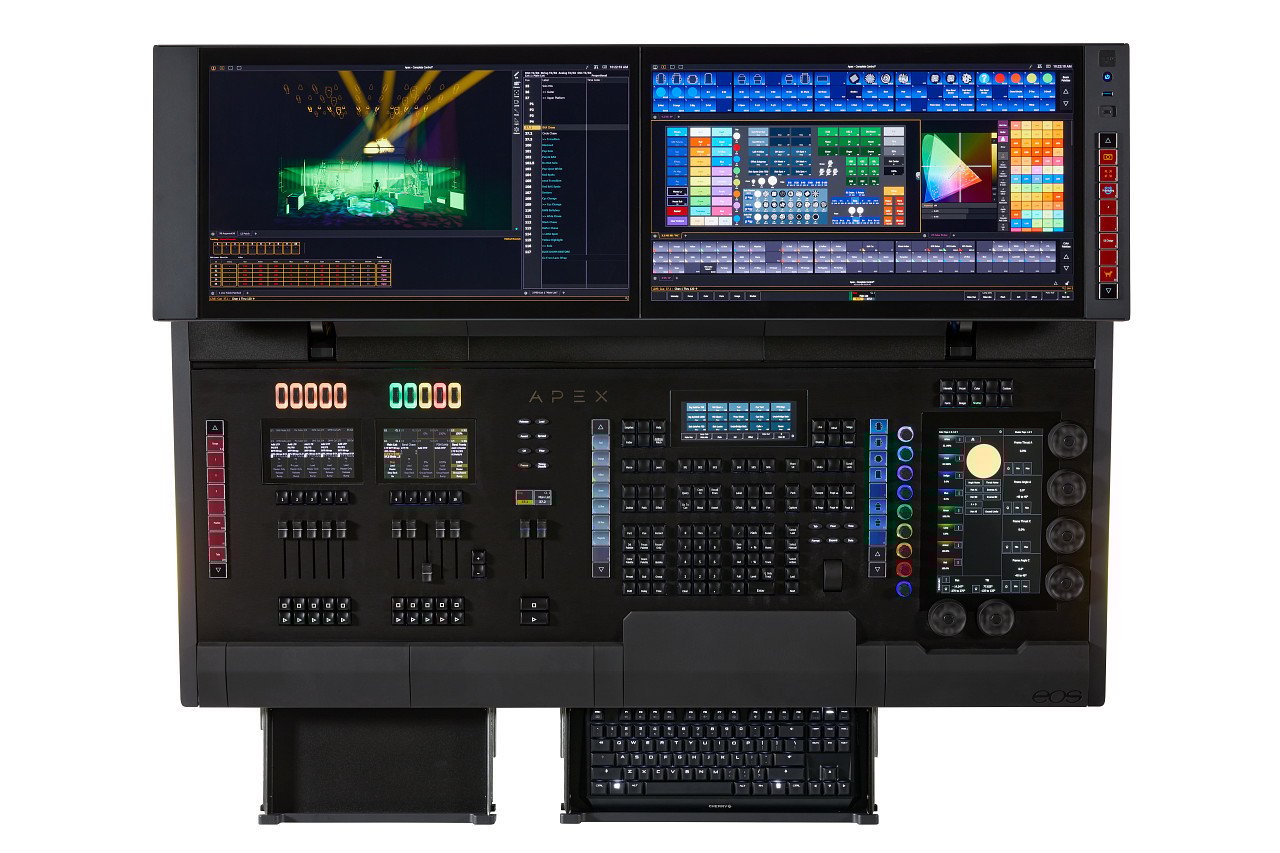

Built-in keyboard tray, with USB A & C ports
Built-in accessory tray, with USB A & C ports and dedicated 5-volt/2-amp USB-A charging port
One front-facing 5-volt/2-amp USB-A dedicated charging port
Two independently dimmable warm-white LED booklights to illuminate adjacent surfaces
Solid-state hard drive
Dedicated graphics processing
IEC power input (100-240 VAC at 50/60Hz), inset power switch with integrated breaker, locking regionalized power cable included
sACN and Art-Net network output protocols
USB 3.1 ports, for flash drives, pointing devices, keyboards
Two Littlite XLR ports
Two Kensington lock ports

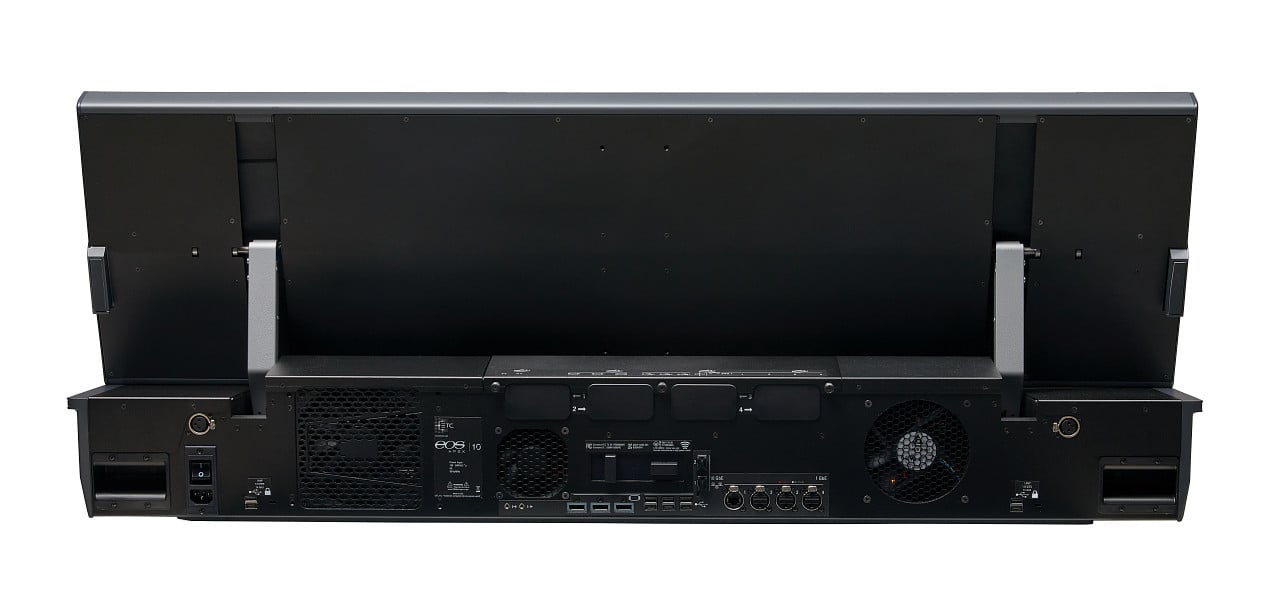

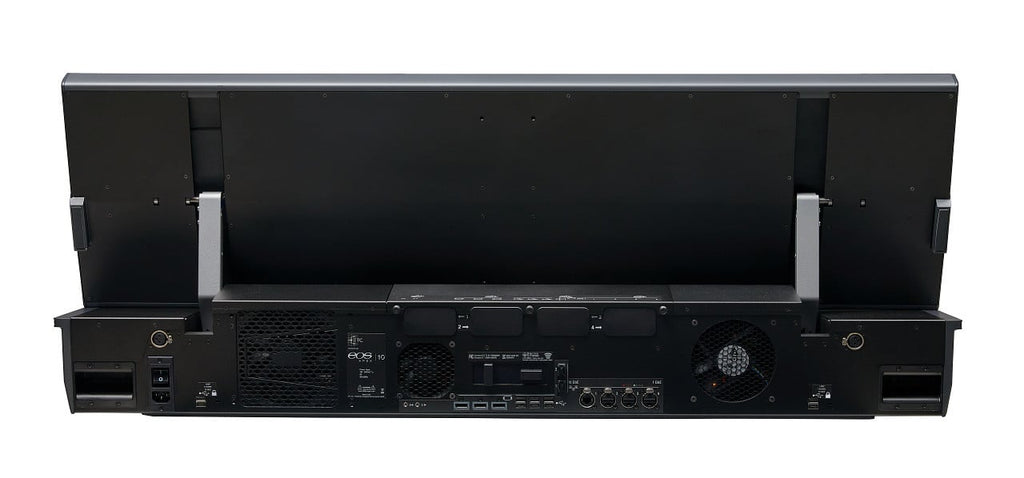

I/O Garage with four bays, which accept Response backpack-style show control gateways, or Gadget II DMX output modules
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian, and Chinese (Simplified and Traditional)
ETC APEX 10 Specifications:
Output Addresses: 24,576
Hardware Class Compatibility: Apex, Gio, Ion
USB 3.1 Ports:
12x USB-A
8x USB-C
Displays Supported: 3x Display Port, up to 4K multitouch
Networking Interface:
4x Gigabit Ethernet, ethercon connectors, PoE++ (802.3bt compliant PSE); individually configurable
2x SFP+ 10 Gigabit Ports (copper or fiber sleds sold separately); individually configurable
Power Consumption (approx.): 6A
Ambient Room Temperature: 0°–35°C (32°–95°F)
Ambient Humidity: up to 90% non-condensing
Dimensions (HxWxD): 17.58" x 48.00" x 25.53" (447 x 1219 x 648 mm)
Weight: 135 lbs (61.24 kgs)
Regulatory/Compliance:
CE compliant
cETLus listed
UKCA marked
FCC compliant
RoHS compliant
WEEE
