Description
Tested to AEA standards Includes: Integrated Flight Case
Control: 3-pin DMX, 5-pin DMX

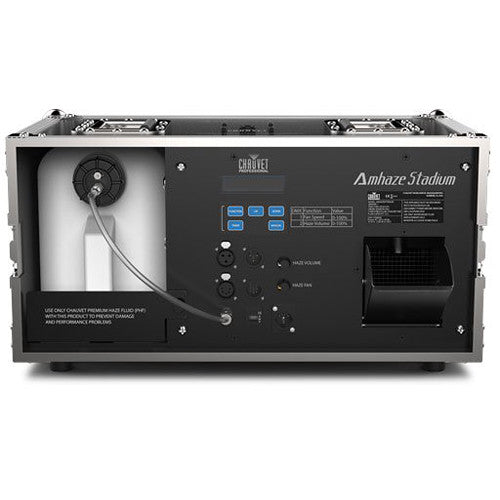

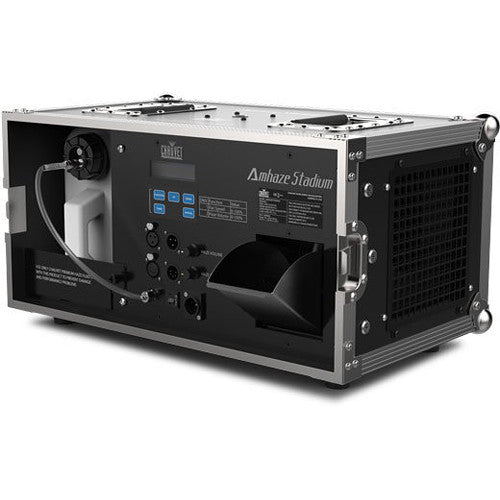

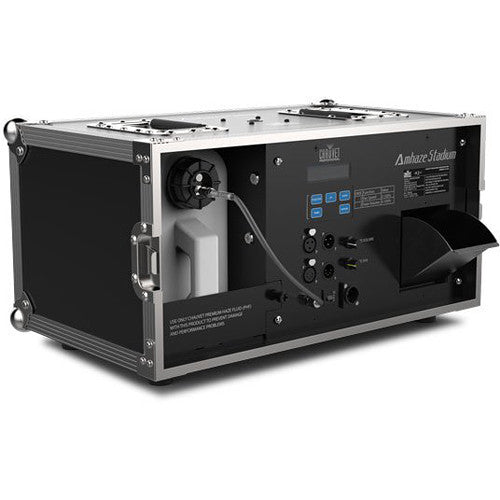

Create scenes with the AmHaze Stadium Haze Machine from CHAUVET PROFESSIONAL. Designed for large-scale applications, this professional water-based haze machine boasts an output of 14,000 ft³/min and a heat-up time of only 30 seconds. Portable and sturdy, it is integrated into a low-profile road case made to survive the rigors of touring and production. The volume and speed of the haze output can be easily adjusted via DMX or using the onboard knobs and LCD screen. The hazer is equipped with four rubber feet, as well as with an M12 threaded insert for easy rigging using a separately available clamp.
Adjustable vent louver for directional haze flow

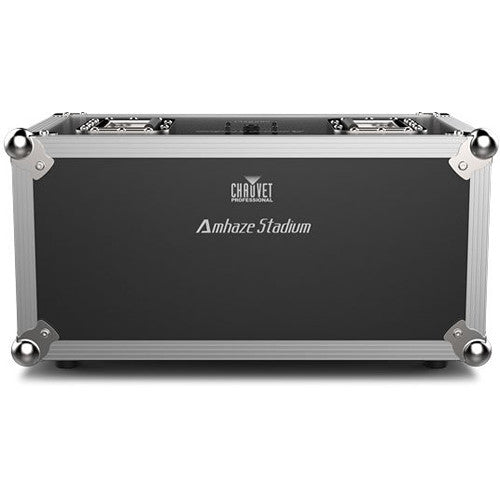

Tour-ready with a rugged road case and M12 threaded rigging insert
Runs up to 11 hours on full tank
Haze output and blower speed adjustment via DMX or manual knobs
Dynamic Effects
Output
14,000 ft³/min
Auto Shutdown
Low-Fluid Shutdown
Construction
Tank Capacity
1.3 gal / 4.92 L
Fluid Consumption
0.12 Gallons per Hour / 7.45 mL per Minute
Maximum Runtime
11 Hours on Full Tank
Connections
Power
Edison (Local) Plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Data
Input/Output: XLR 3-Pin and 5-Pin
Power Cable Length
5' / 1.5 m
Control
Protocol
DMX
DMX Channels
2
DMX Personalities
1
On-Board Control
Knobs for Fan Speed and Haze Volume
LCD Screen
Electrical
Input Voltage
120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current
1230 W, 10.25 A at 120 V, 60 Hz
2430 W, 10.56 A at 230 V, 50 Hz
Heat-up Time
30 Seconds
Certifications and Approvals
Certification
CE
IP Rating
IP20, for Use in Dry Locations
Physical
Dimensions
20.60 x 10.80 x 15.97" / 52.3 x 27.5 x 40. 6 cm
Weight
38.4 lb / 17.4 kg
Packaging Info
Package Weight
44.9 lb
Box Dimensions (LxWxH)
23.78 x 19 x 13.4"
