Description
Tested to AEA standards Includes: Integrated Flight Case
Control: 3-pin DMX, 5-pin DMX

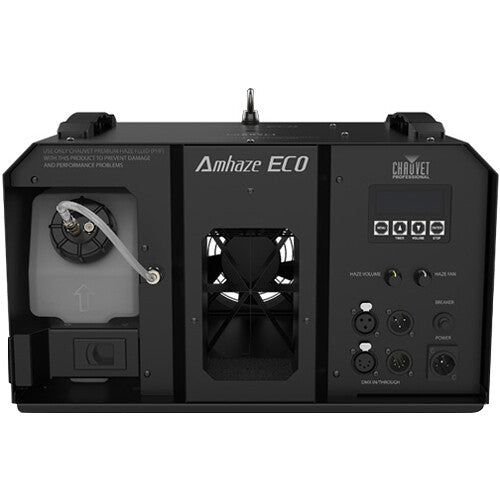

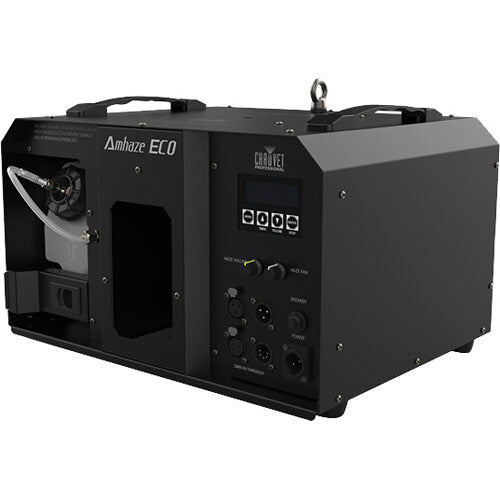

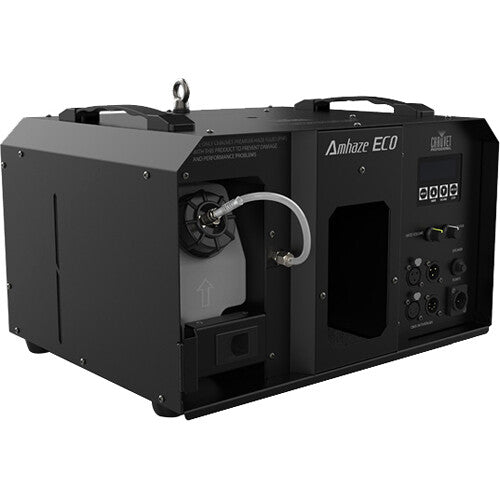

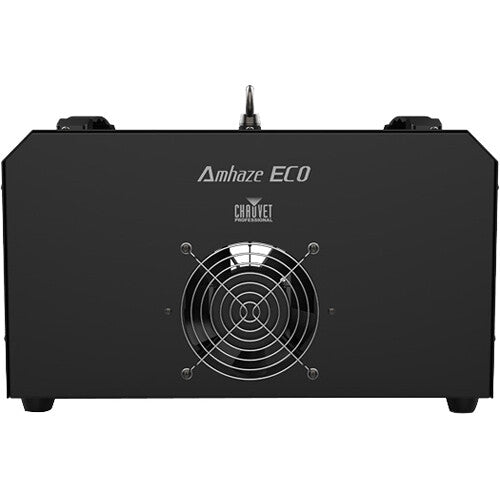

Event producers, club owners, television studios, and theatrical productions looking for a high-powered haze machine with continuous output should check out the CHAUVET PROFESSIONAL Amhaze ECO Haze Machine, a professional water-based haze machine with up to 120 cfm of continuous output with no reheating required.
The super-efficient heating element is ready to go in 30 seconds, nearly eliminating wait time for operation. Fluid consumption lasts more than eight hours on a single fluid container at maximum volume. The unit is designed to rest on the floor or mount on trussing via the M12 threaded insert for use with truss clamps. The hazer can be controlled via DMX or manual knobs. The Amhaze ECO ships with a Seetronic Powerkon power cord.
Benefits
Professional water-based haze machine
30-second heat-up time nearly eliminates wait time for operation
Continuous output with no reheating required
Tour-ready with a rugged, road-worthy casing and M12 threaded insert for truss clamps
Efficient fluid consumption lasts more than eight hours on a single fluid container
Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs
Dynamic Effects
Fan Speed: 120 cfm
Low Fluid Shutdown: Yes
Tank Capacity
0.92 gal / 3.5 L
Fluid Consumption
0.11 g/hr / 7 ml/min
Run Time
Maximum Runtime: >8 Hours at Full Volume
Connections
Power Connection: Edison (Local) Plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-Pin XLR
Cable Length (Power): 5' / 1.5 m
Control
Control Protocol: DMX, RDM
DMX Channels: 3
Modes/Personalities: 1 Personality
Onboard Control: Yes
Electrical
Input Voltage: 120 VAC, 60 Hz
Power and Current: 1070 W, 8.5 A at 120 V, 60 Hz
Heat-Up Time: 30 sec
Certifications & Ratings
MET, CEMET
Listing Number: E115095US
Safety: UL 499
Canadian Safety: CSA C22.2 No. 64-10
IP Rating
IP20, Dry Location
Dimensions
115.9 x 12.2 x 10.1" / 40.3 x 31.0 x 25.6 cm
Weight
25 lb / 11.3 kg
Packaging Info
Package Weight
27 lb
Box Dimensions (LxWxH)
20.5 x 16.8 x 12.95"
