Description

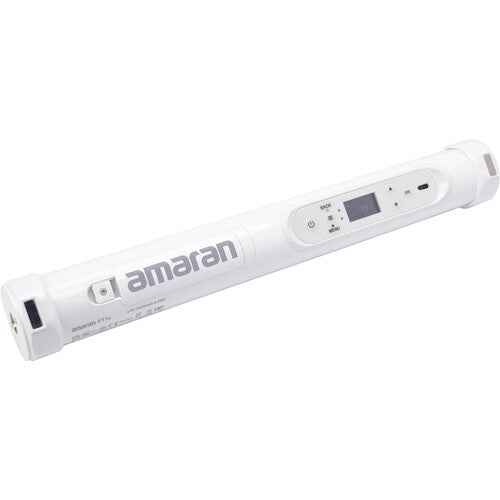

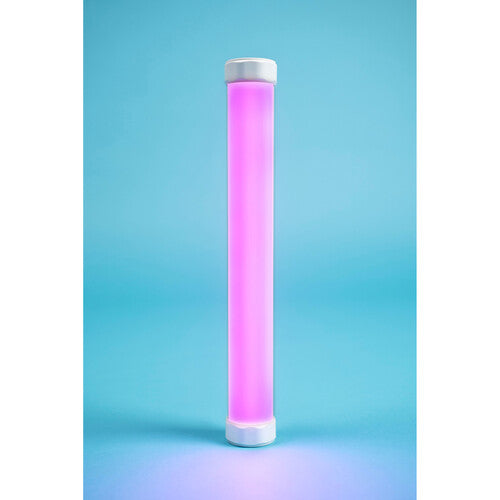

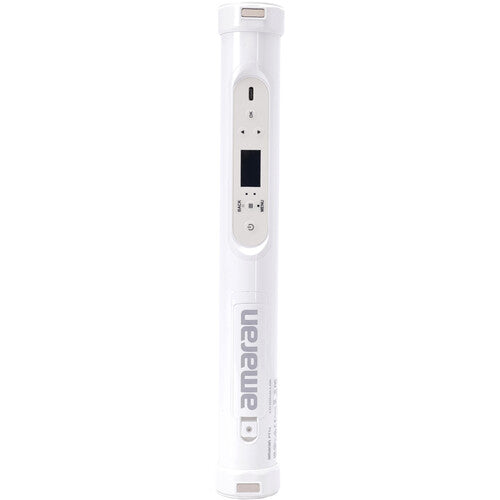

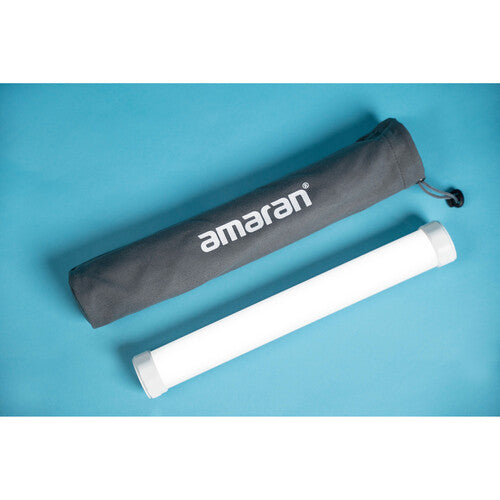

he PT1c RGB LED Pixel Tube Light from amaran is a 1' long RGBWW LED pixel tube made for image makers who want more unique lighting options and effects in product cinematography. The high-efficiency chipset produces stellar color quality and accurate skin tones throughout its CCT range of 2700 to 10,000K with full green-magenta control, achieving high CRI, TLCI, and SSI values across the board. The design features four built-in pixels that can be independently adjusted and assigned an HIS value via the integrated controls or remotely using the Sidus Link app for Bluetooth devices. The PT1c can also be controlled by DMX using the separately available USB-C to DMX Adapter.

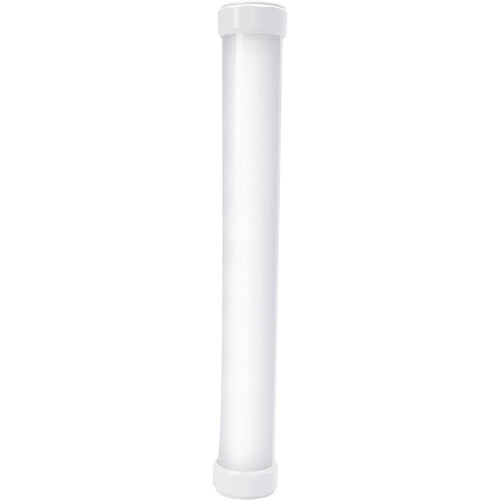

Inside its sleek T12 form factor, this lightweight LED tube is powered by an internal, rechargeable lithium-ion battery, which utilizes a ubiquitous USB-C port for easy charging. Each endcap houses a 3/8-16" threaded mount and has a 5-sided design to position it on flat surfaces without it rolling out of place.
Built-In Lighting Effects
9 System FX:
Fireworks, fire, paparazzi, faulty bulb, TV, pulsing, cop car, lightning, party lights
7 Pixel FX:

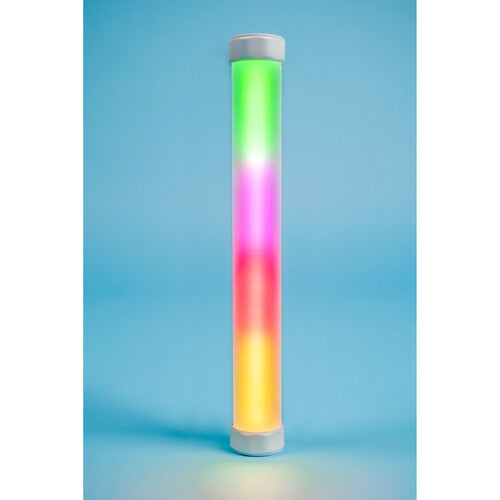

Color fade, color cycle, 1-pixel chase, 2-pixel chase, 3-pixel chase, rainbow, pixel fire
DMX Functionality
DMX control is available via a separately available USB-C to DMX adapter. DMX function adds 10 built-in DMX profiles and DMX loss behaviors.

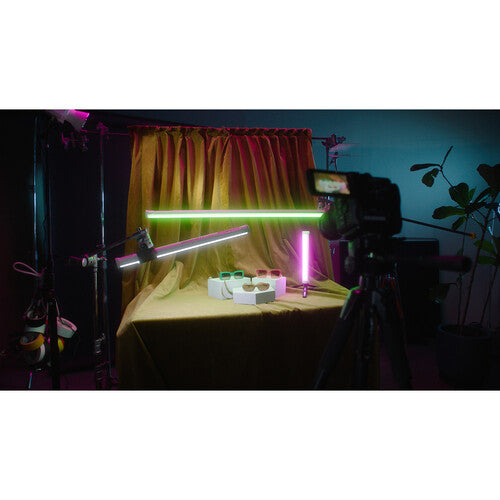

Create Multiple Shapes
The shape combinations that can be created using the PT1c are endless, with the ability to use separately available splicing connectors to arrange the tubes in multiple 3D shapes. The PT1c can be combined with other PT-Series LED
Item Type
1 x LED Array LED Light Tube/Wand

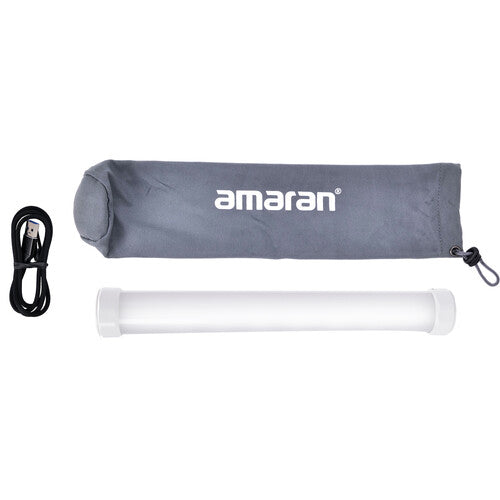

Included Storage Case
1 x Case
Photometrics
180° at 2700K:
8 fc / 87 Lux at 3.3' / 1 m*
180° at 3200K:
8 fc / 88 Lux at 3.3' / 1 m*
180° at 4300K:
8 fc / 91 Lux at 3.3' / 1 m*
180° at 5600K:
8 fc / 95 Lux at 3.3' / 1 m*
180° at 6500K:
8 fc / 94 Lux at 3.3' / 1 m*
180° at 7500K:
8 fc / 89 Lux at 3.3' / 1 m*
180° at 10000K:
7 fc / 83 Lux at 3.3' / 1 m*
Show More
Color Temperature
2700 to 10,000K
Color Modes
RGB
Color Accuracy Standard
CRI 95 at 5600K
TLCI 98 at 5600K
CQS 96 at 5600K
SSI 75 at 5600K
SSI 85 at 3200K
TM-30 Rf 92 at 5600K
TM-30 Rg 100 at 5600K
Show More
Dimming
Yes, Built-In Dimmer
Beam Angle
180°
Wireless Remote Control Type
Bluetooth
Power Source
Battery (Included)
Battery
1 x 18650 Lithium-Ion, 3.7 VDC, 2600 mAh, 9.6 Wh (1 x Included)
DC Input Power
5 VDC at 2 A
Power Consumption
8 W
Fixture Mounting
2 x 3/8"-16 Female Thread
Light Fixture
Item Type
1 x LED Array LED Light Tube/Wand
Included Storage Case
1 x Case
Lumens
370
Photometrics
180° at 2700K:
8 fc / 87 Lux at 3.3' / 1 m*
180° at 3200K:
8 fc / 88 Lux at 3.3' / 1 m*
180° at 4300K:
8 fc / 91 Lux at 3.3' / 1 m*
180° at 5600K:
8 fc / 95 Lux at 3.3' / 1 m*
180° at 6500K:
8 fc / 94 Lux at 3.3' / 1 m*
180° at 7500K:
8 fc / 89 Lux at 3.3' / 1 m*
180° at 10000K:
7 fc / 83 Lux at 3.3' / 1 m*
Color Temperature
2700 to 10,000K
Color Modes
RGB
Color Accuracy Standard
CRI 95 at 5600K
TLCI 98 at 5600K
CQS 96 at 5600K
SSI 75 at 5600K
SSI 85 at 3200K
TM-30 Rf 92 at 5600K
TM-30 Rg 100 at 5600K
Cooling System
Passive
Dimming
Yes, Built-In Dimmer
Beam Angle
180°
Umbrella Mount
No
Front Accessory Mount
None
Connectivity
Wireless Remote Control Type
Bluetooth

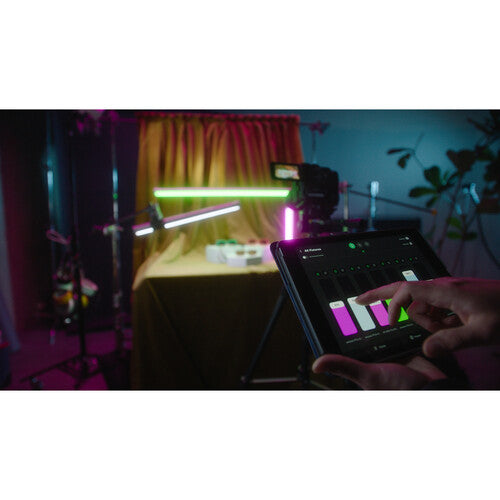

Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Linnk
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels
None
Wireless Groups
None
Wireless Range
262.5' / 80 m (Bluetooth)
Power & I/O
Power Source
Battery (Included)
Inputs/Outputs
Light Fixture
To Light Fixture: 1 x USB-C Female Power Input
Battery
1 x 18650 Lithium-Ion, 3.7 VDC, 2600 mAh, 9.6 Wh (1 x Included)
Battery Charging
Charging Cable (Included)
DC Input Power
5 VDC at 2 A
Included Adapter / Cable
1 x USB-C Male to USB-A Male Cable
Inline Switch
No
Power Pass-Thru
No
Power Consumption
8 W
Mounting
Fixture Mounting
2 x 3/8"-16 Female Thread
Environmental
Environmental Protection
Advertised as Dust Resistant
*Manufacturer Testing: IP20
Operating Temperature
22 to 72°F / -10 to 40°C
General

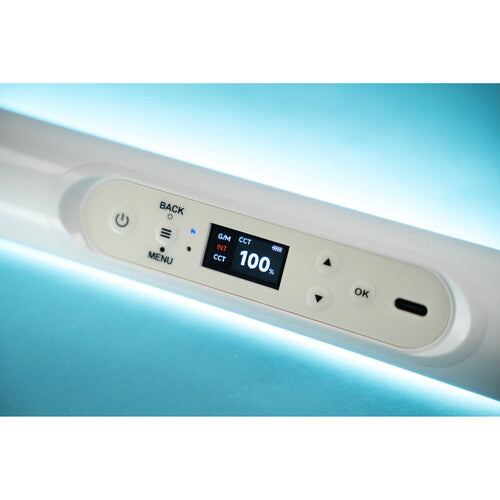

Display
LCD
Certifications
CE, FCC, RoHS
*as per Manufacturer
Materials
Plastic
Dimensions
ø: 1.7 x H: 11.8" / ø: 4.2 x H: 30 cm (Fixture)
Weight
0.7 lb / 315 g
