amaran F22c - 2'x2' LED Mat RGBWW (A-Mount)

AMN-AP30235A15
Regular price
$899.00
Sale price
$899.00

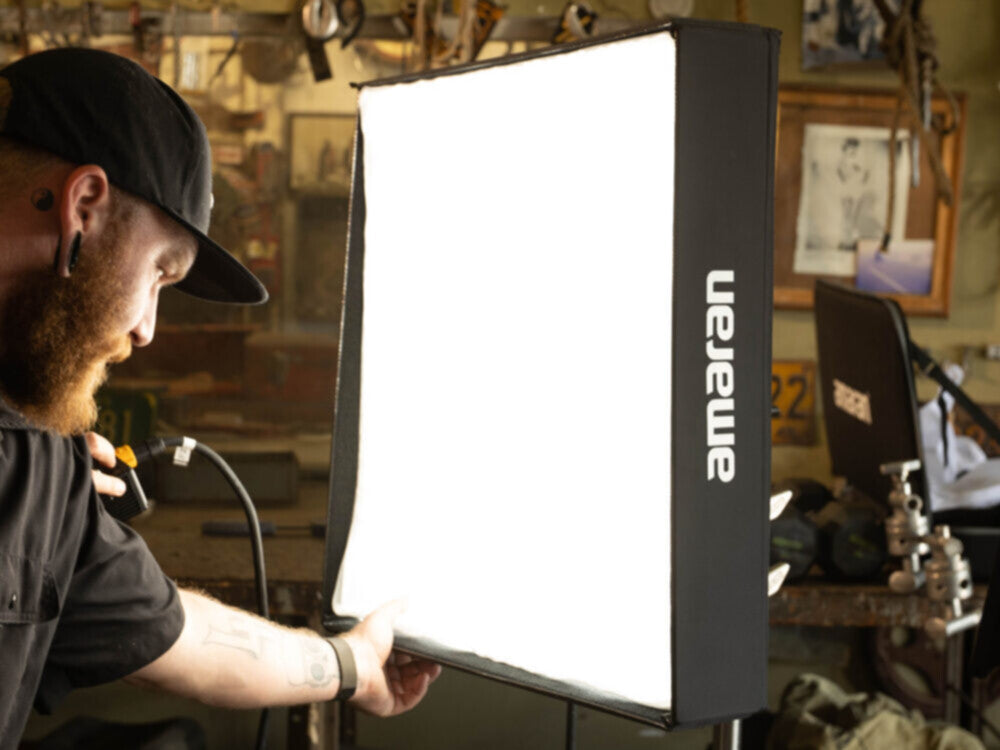

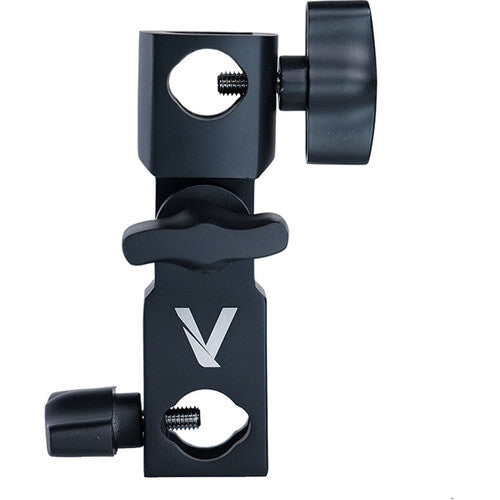

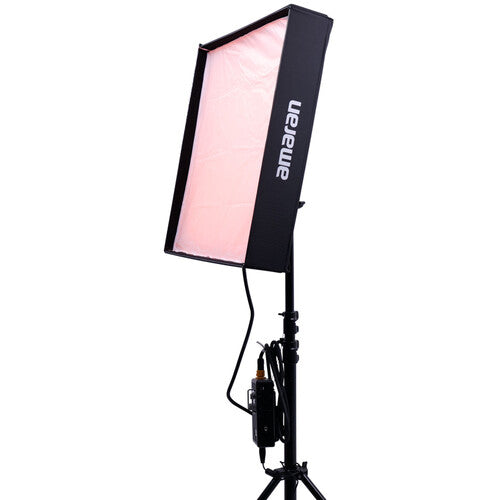

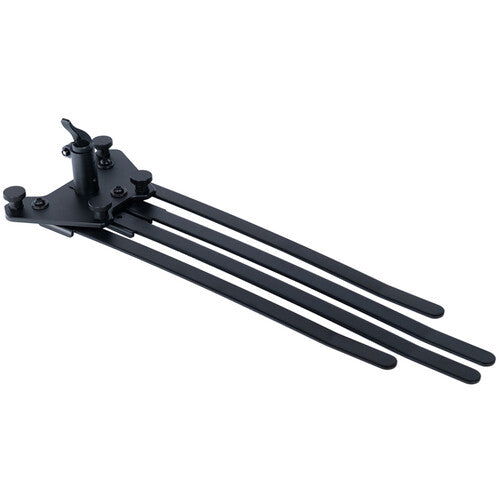

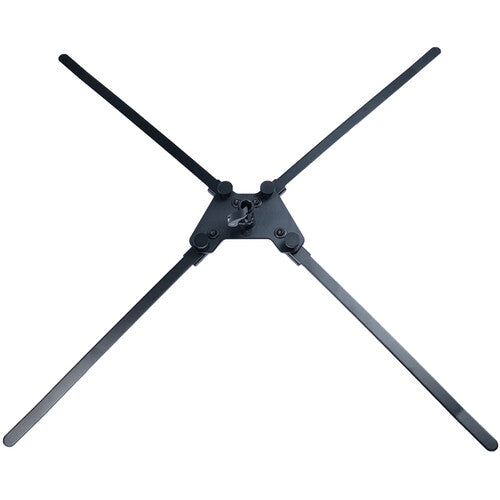

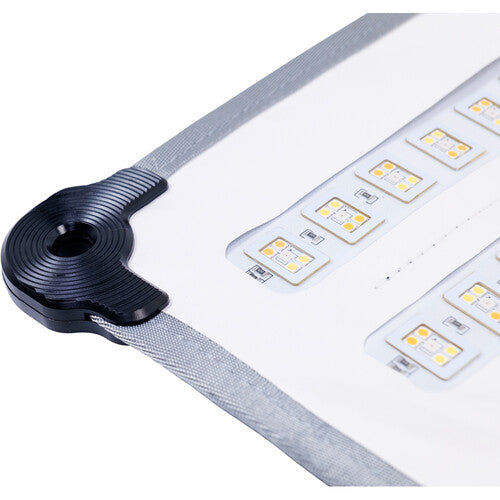

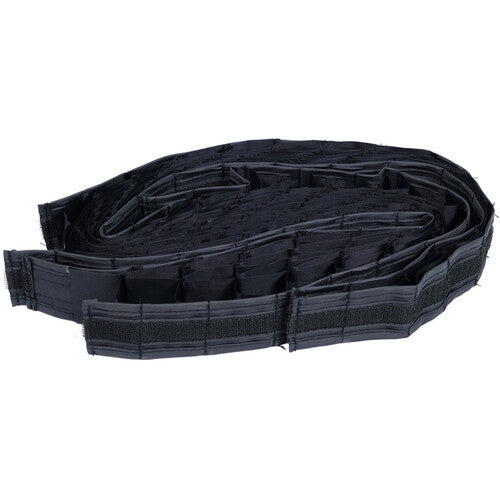

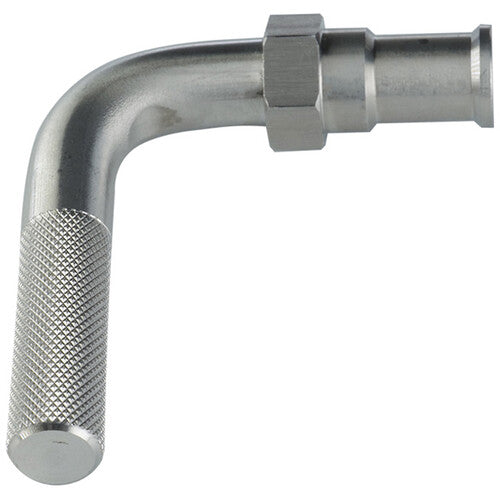

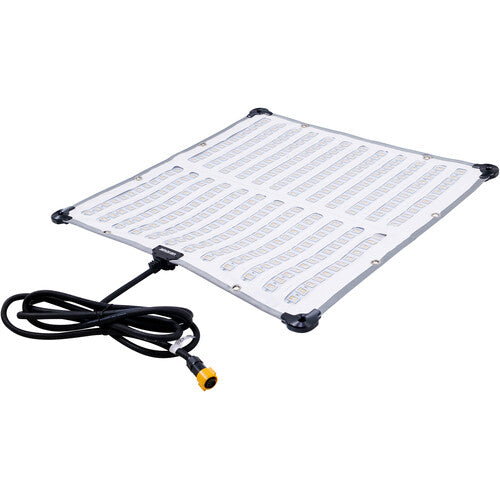

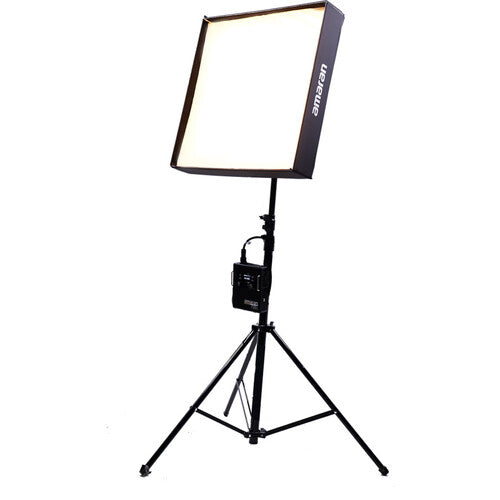

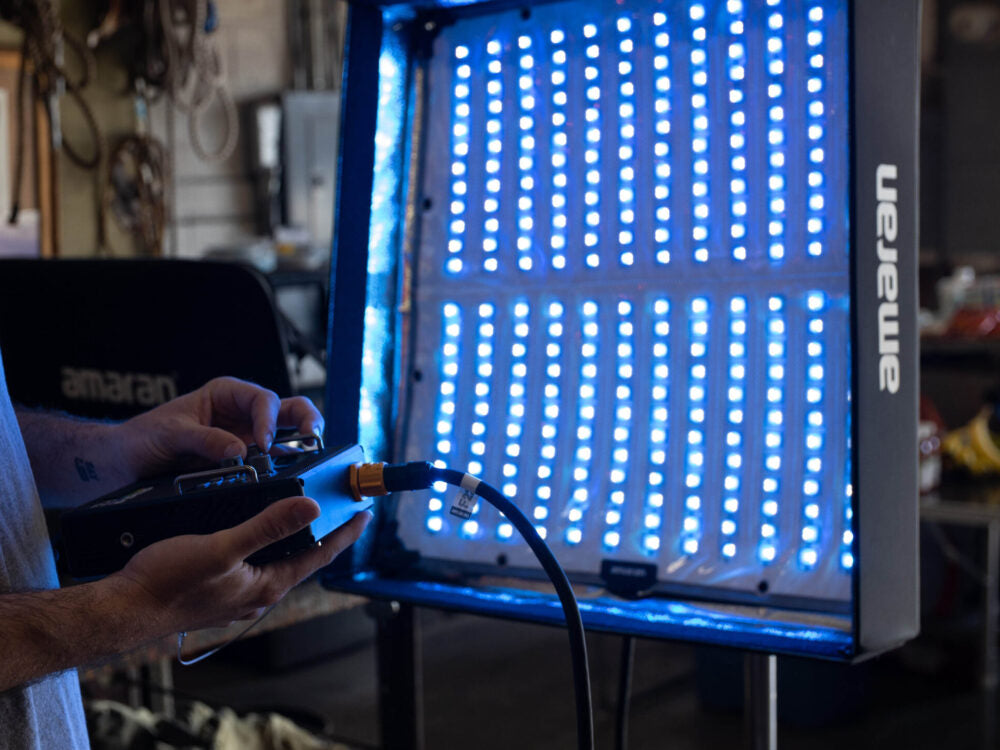

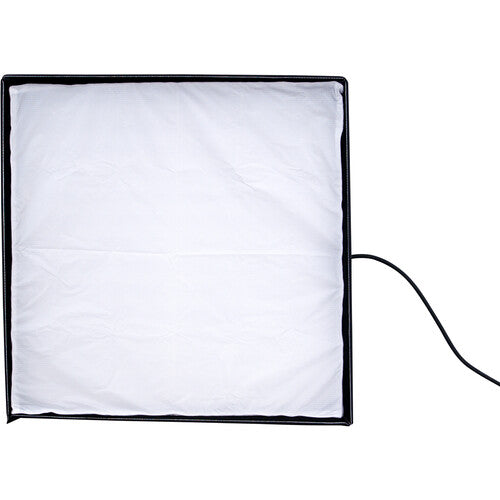

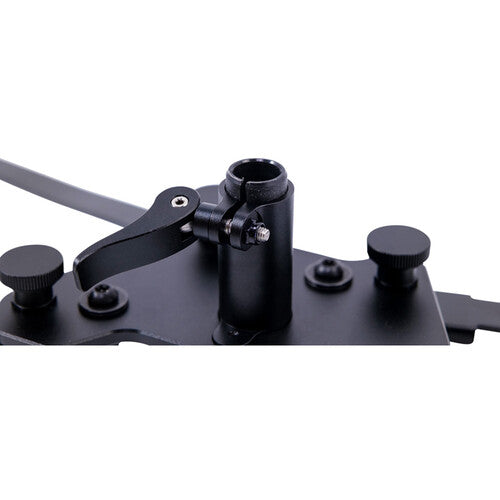

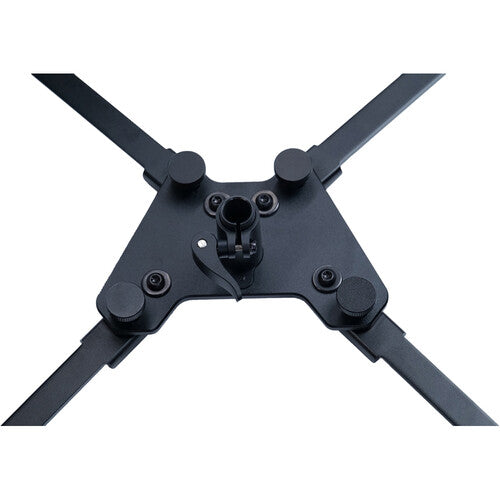

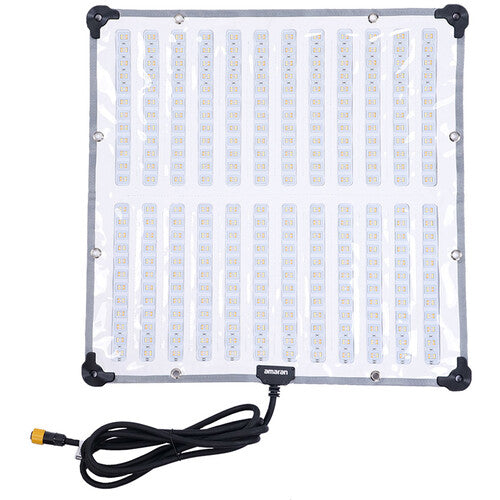

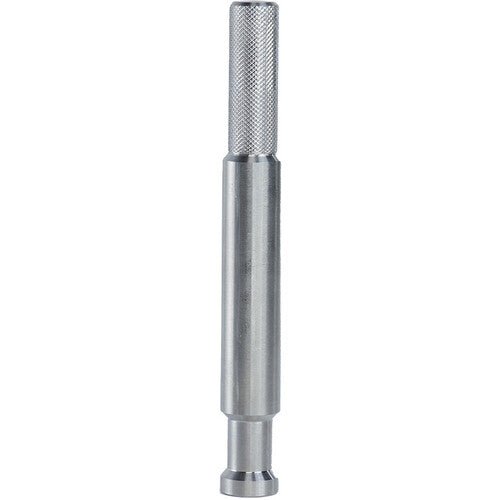

The F22c RGBWW LED Mat from amaran is a powerful, versatile, and flexible LED mat that measures 2 x 2'. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, it features RGBWW LEDs for complete color control, as well as tunable CCT from 2500 to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 color gel presets, and 15 unique customizable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion, and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.

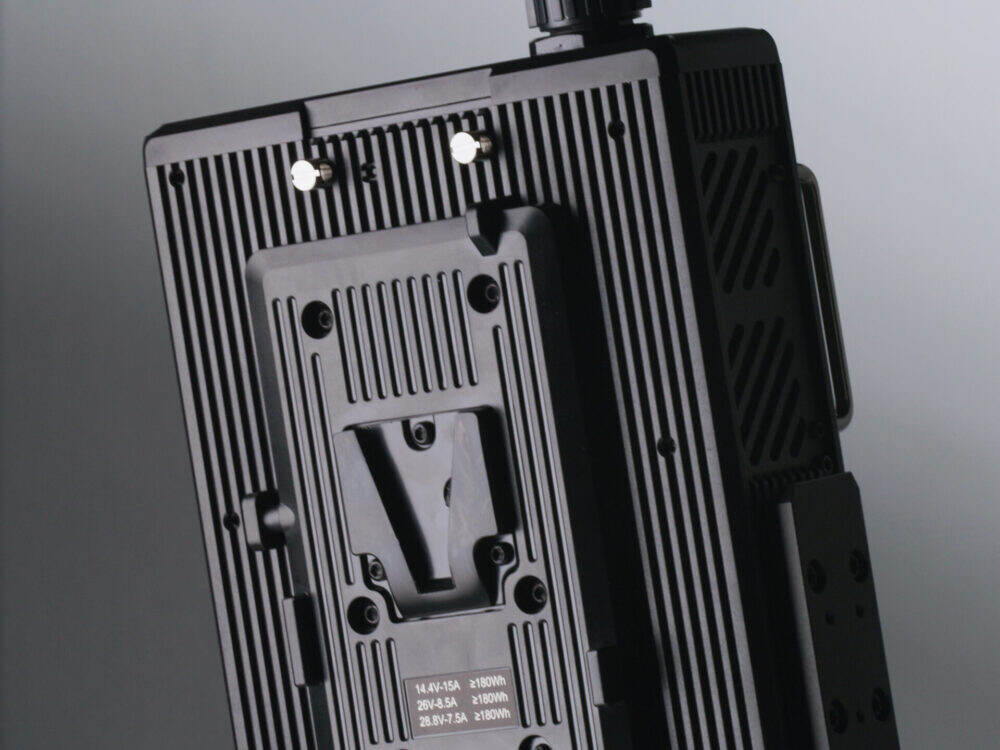

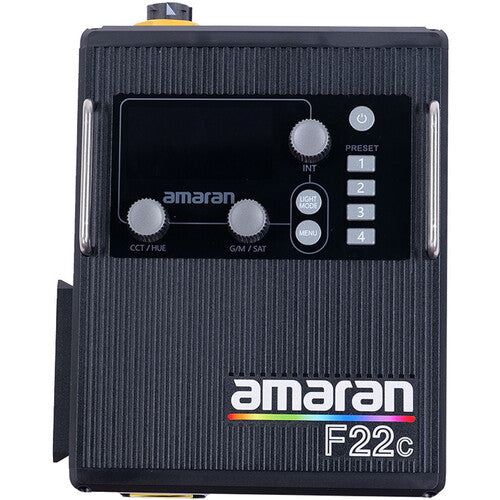

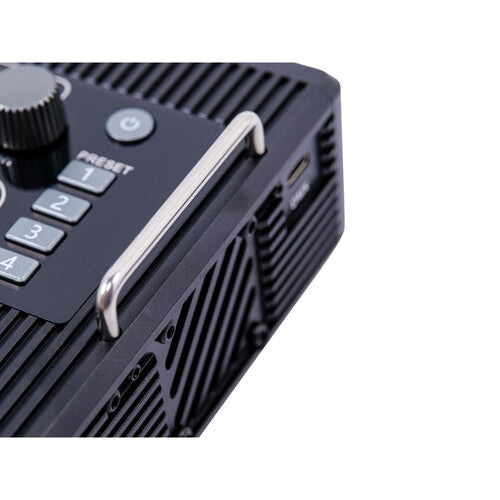

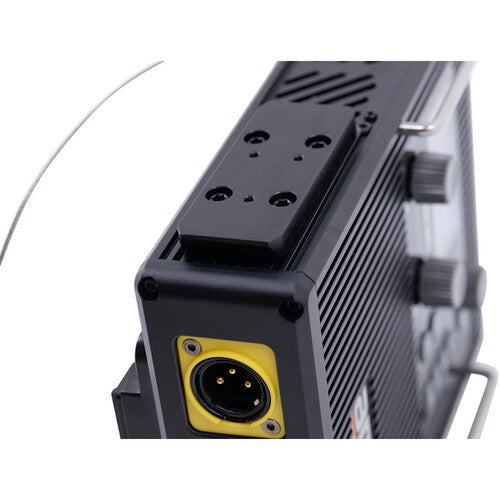

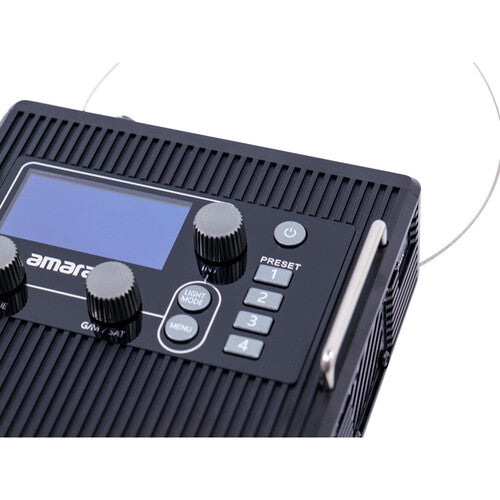

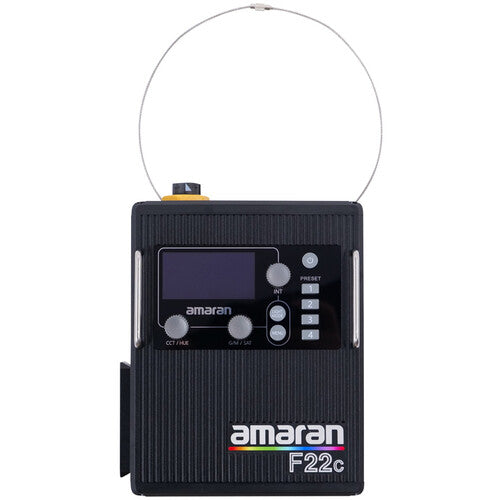

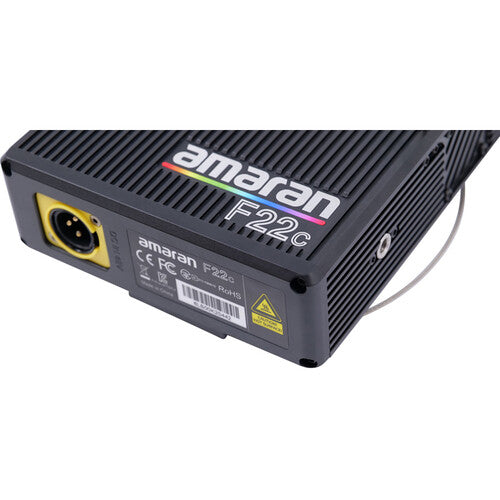

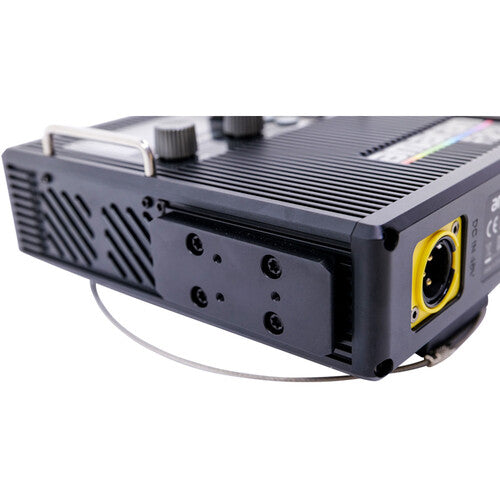

The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22c to be used at either half or full power, depending on battery strength.

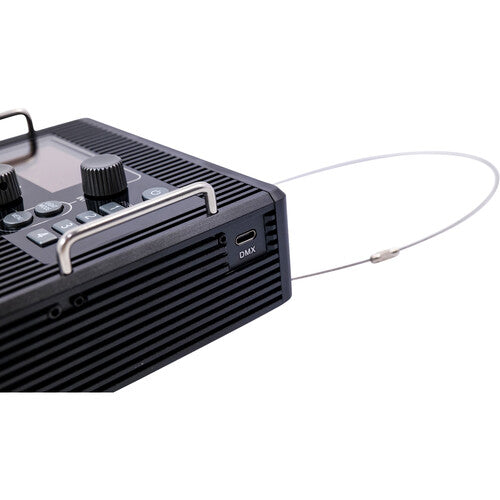

The free Sidus Link app makes it possible to utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F22c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

200W output

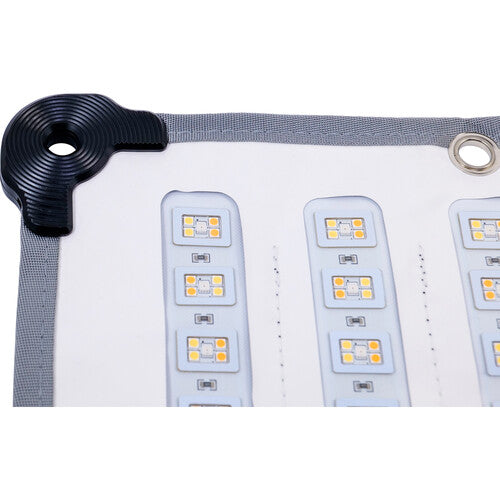

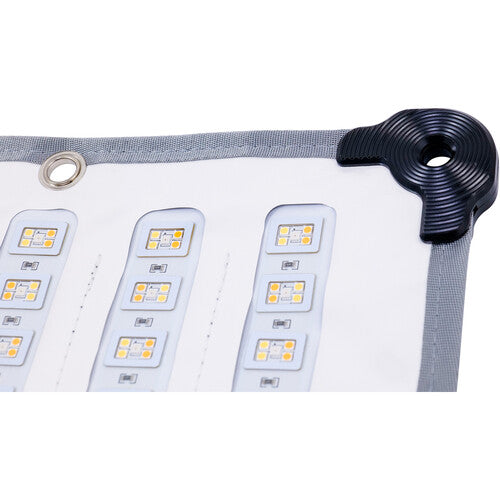

2 x 2'' RGBWW flexible LED mat
Color temperature from 2500-7500K
CRI: 95+, TLCI: 97+, CQS: 96+
SSI (Tungsten): 83+, SSI (D56): 74+
HSI Full Color Control
Tunable green-magenta adjustment (plus/minus green)
Stepless dimming from 0 to 100%
Ultralight LED mat
Sidus Link App control for smartphones & tablets

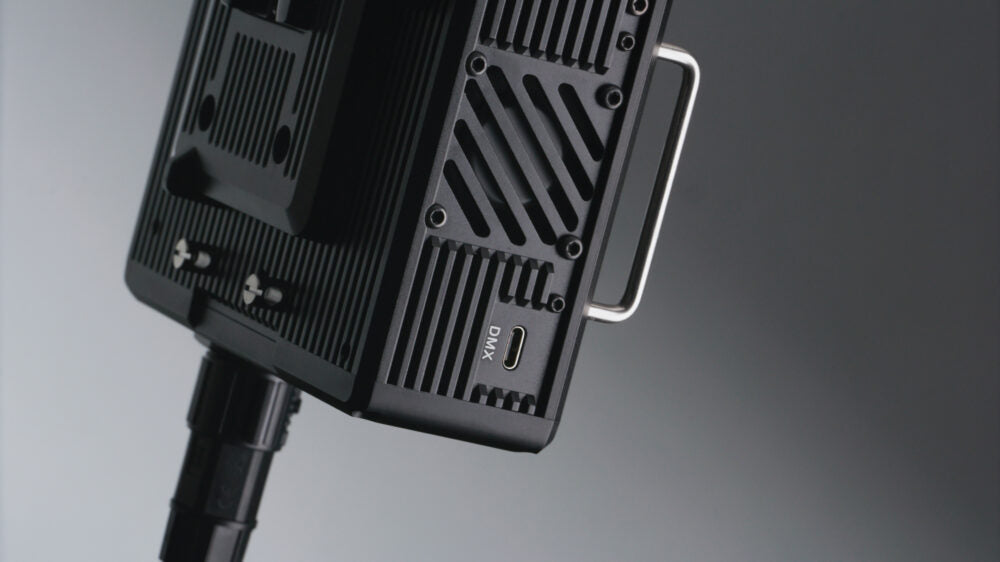

DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
15 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing, welding, police car, color chase, and more
46 color gel presets

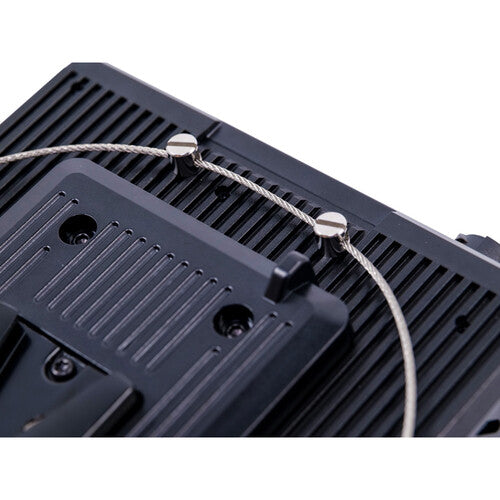

Easy-mounting multi-voltage AC power supply with included V-mount battery plate
Multiple DC power solutions: 14.4V/26V/28.8V/48V (3-Pin XLR)

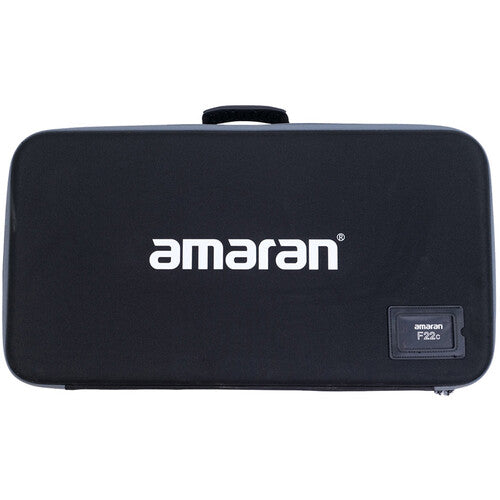

Soft carrying case

Item Type
1 x LED Flexible Light
Included Light Modifier

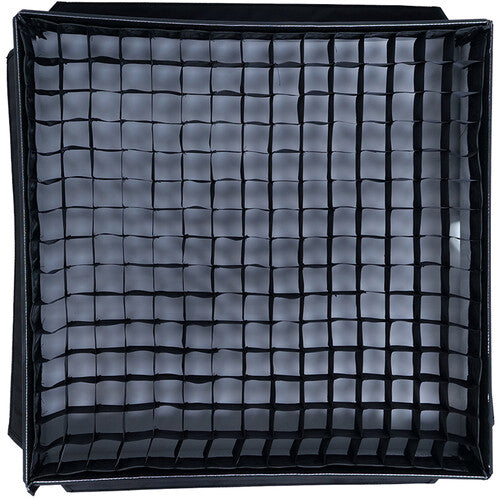

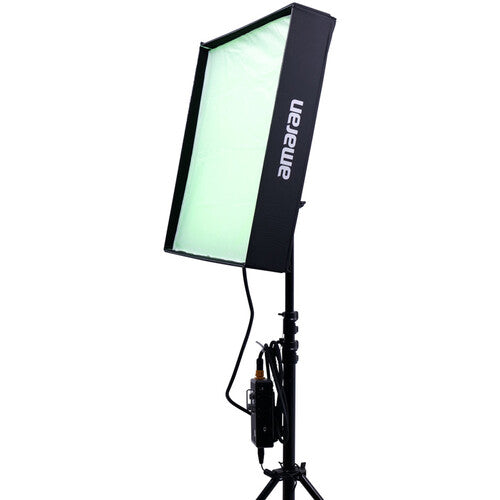

1 x Softbox with Removable Grid
Included Storage Case
1 x Case
Photometrics
180° at 3200K:
534 fc / 5750 Lux at 3.3' / 1 m*
65 fc / 703 Lux at 9.8' / 3 m
180° at 5600K:
596 fc / 6420 Lux at 3.3' / 1 m*
73 fc / 790 Lux at 9.8' / 3 m
180° at 7500K:
657 fc / 7080 Lux at 3.3' / 1 m*
80 fc / 870 Lux at 9.8' / 3 m

*Standardized Measurement Supplied by the Manufacturer
Show More
Color Temperature
2500 to 7500K
Color Modes
RGB
Color Accuracy Standard
CRI 95
TLCI 98
CQS 96
SSI 83 at 5600K
Show More
Dimming
Yes, Includes Hardware
0 to 100% (Continuous)
Beam Angle
180° Unmodified
45° with Included Grid
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type
1 x V-Mount (Built-In)
Battery
1 x Rechargeable, 14.4 to 28.8 VDC (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
48 VDC at 2.5 A
Power Consumption
240 W
Fixture Mounting
1 x 5/8" Receiver
Light Fixture
Item Type
1 x LED Flexible Light
Included Light Modifier
1 x Softbox with Removable Grid
Included Storage Case
1 x Case
Photometrics
180° at 3200K:
534 fc / 5750 Lux at 3.3' / 1 m*
65 fc / 703 Lux at 9.8' / 3 m
180° at 5600K:
596 fc / 6420 Lux at 3.3' / 1 m*
73 fc / 790 Lux at 9.8' / 3 m
180° at 7500K:
657 fc / 7080 Lux at 3.3' / 1 m*
80 fc / 870 Lux at 9.8' / 3 m

*Standardized Measurement Supplied by the Manufacturer
Color Temperature
2500 to 7500K
Color Modes
RGB
Color Accuracy Standard
CRI 95
TLCI 98
CQS 96
SSI 83 at 5600K
Cooling System
Passive
Dimming
Yes, Includes Hardware
0 to 100% (Continuous)
Expected Lamp Life
50,000 Hours (L70)
Beam Angle
180° Unmodified
45° with Included Grid
Built-In Flash
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link
*As of March, 2022: Check with manufacturer for the most up-to-date compatibility
Wireless Range
262.5' / 80 m (Bluetooth)
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs
1 x USB-C DMX Input
*Adapter Required (Not Included)

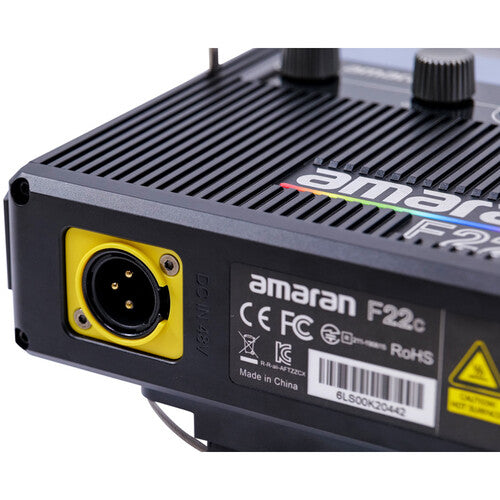

1 x XLR 3-Pin Power Input
1 x Proprietary Power Output
Battery Plate Type
1 x V-Mount (Built-In)
Battery
1 x Rechargeable, 14.4 to 28.8 VDC (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
48 VDC at 2.5 A
Included Adapter / Cable

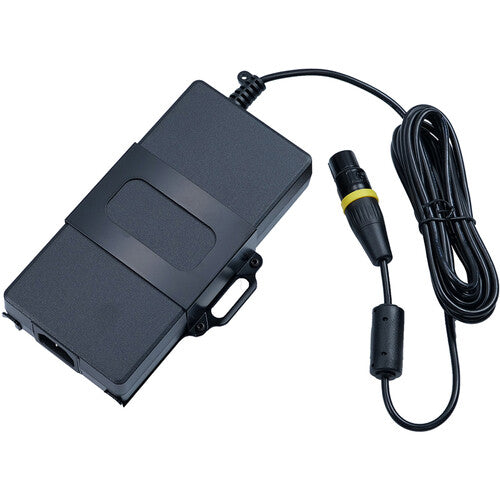

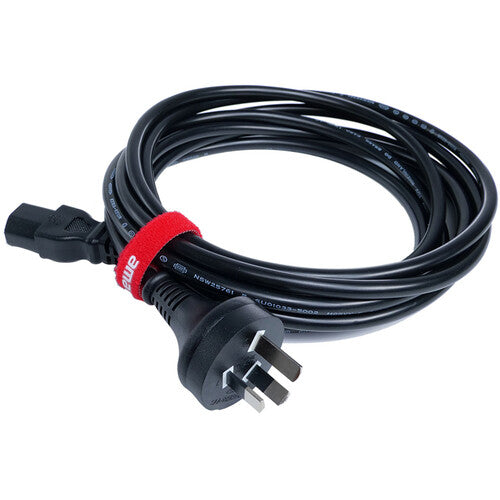

1 x Edison Plug to XLR 3-Pin AC to DC Adapter (48 VDC)
Inline Switch
No
Power Pass-Thru
No
Power Consumption
240 W
Mounting
Fixture Mounting
1 x 5/8" Receiver
Included Adapter
1 x Non-Swivel Mount: 5/8" Receiver to 5/8" Receiver
2 x Non-Swivel Mount: 5/8" Stud to 5/8" Stud
Environmental
Environmental Protection
None
Operating Temperature
14 to 104°F / -10 to 40°C (Recommended)
General
Display
OLED
Certifications
CE, FCC, RoHS, cTUVus
*as per Manufacturer
Materials
Plastic (Housing)
Dimensions
23.6 x 23.6 x 0.2" / 60 x 60 x 0.5 cm (Fixture)
Weight
1.94 lb / 0.88 kg (Fixture)
2.4 lb / 1.1 kg (Power Supply/Controller)
