Description
in-lite AIM LOW - 10401355 from in-lite built for clean, modern outdoor lighting systems.
AIM is available in three different heights: 80 cm, 40 cm and 16 cm. Perfect for illuminating plantings in borders and paths. By means of a modular connection, AIM is easily expandable to three light sources. This unique connection also allows for infinite 360° rotation of the light sources. Thus, AIM's light can be adjusted in any direction.
Choose both the desired height and the number of light sources below.
Please note! AIM comes standard with one light source.
Would you like multiple light sources?
Choose below for an extension with one extra light source or for an extension with two extra light sources.
Choose both the desired height and the number of light sources below.
Please note! AIM comes standard with one light source.
Would you like multiple light sources?
Choose below for an extension with one extra light source or for an extension with two extra light sources.
- Built in KILLFLASH
- Patented waterproof connection

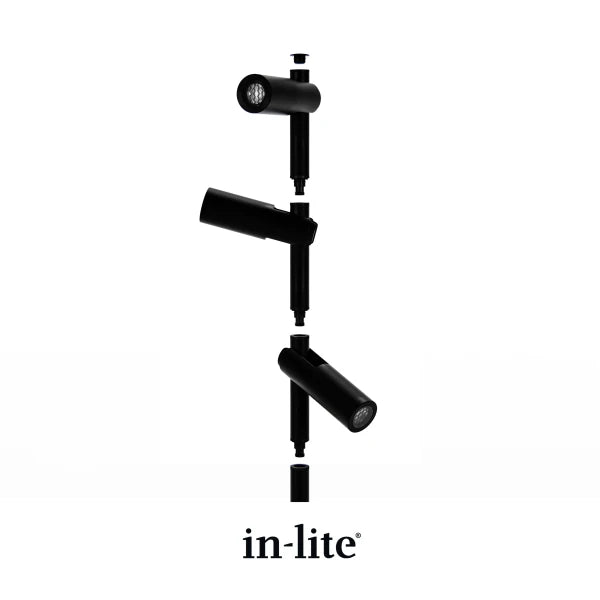

- Modular build up to three light sources
IN THE PACKAGE
INCLUDED IN PACKAGE
- AIM (in the desired hight)

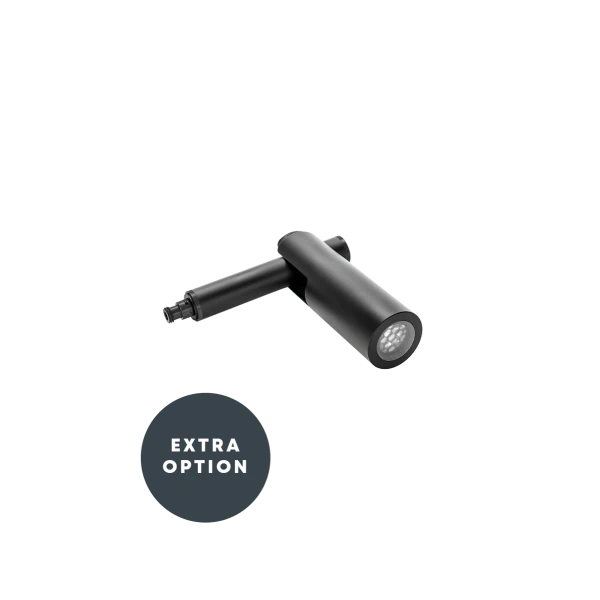

- 1x AIM LIGHT HEAD
- Groundpin
- EASY-LOCK
Product Details
AIM consists of two unique lighting fixtures, where each model can be complemented with additional AIM LIGHT HEADs. You have a choice of ceiling mount or spotlight in various heights. The spotlight is available in 80 cm, 40 cm and 16 cm.
Each fixture comes standard with one light source. By ordering separate LIGHT HEADs you easily expand.
Each AIM LIGHT HEAD is equipped with a killflash so the light does not dazzle. Please note that the killflash is not removable.
Each fixture comes standard with one light source. By ordering separate LIGHT HEADs you easily expand.
Each AIM LIGHT HEAD is equipped with a killflash so the light does not dazzle. Please note that the killflash is not removable.
Specs
Art. nr.
10401355
Application
Border, Driveway, Path
CRI
90
Diameter (inch)
1.1024
Diameter (mm)
28
EAN code
8717051006593
Energy label
G
Height (inch)
15.748
Height (mm)
400
IP class
55
Light direction
Adjustable
Types of Light
Direct
Efficiency (Lumen/Watt)
70
Net luminous flux (Lumen)
84
Power [W]
1.2
Processing
Grass, Gravel, Soil
Article group
Spotlights
Voltage
12 volt
VA value
2.1
Color temperature
3000
Material finishing/coating
Anodized
Kilowatt hour
1
Luminous intensity [Cd]
157.7
Power factor
0,56
Installation instructions
Twist the supplied soil pin under the AIM. This is then easily pricked into loose soil. Connect the luminaire with the EASY-LOCK and ready! To add additional light sources, see the manual.
- AIM EXTRA LOW is suitable for illuminating plants in a pot about 1.5 cm high. Place several AIM EXTRA LOW throughout for best results.
- AIM and AIM LOW suitable for illuminating paths and borders. Place an AIM every 2m to 4m, depending on the total length of the path/boundary.
- AIM CEILING suitable for illuminating sitting and dining areas and outdoor kitchens from walls and ceilings.
- AIM EXTRA LOW is suitable for illuminating plants in a pot about 1.5 cm high. Place several AIM EXTRA LOW throughout for best results.
- AIM and AIM LOW suitable for illuminating paths and borders. Place an AIM every 2m to 4m, depending on the total length of the path/boundary.
- AIM CEILING suitable for illuminating sitting and dining areas and outdoor kitchens from walls and ceilings.
Need help choosing compatible parts? Contact The LA Firm for project support.
