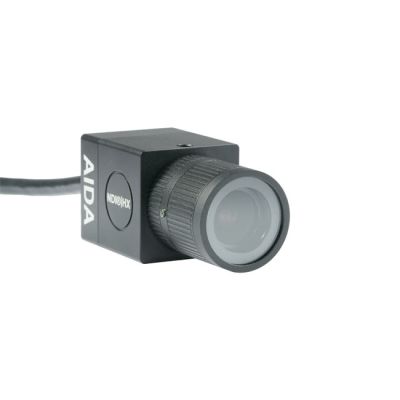

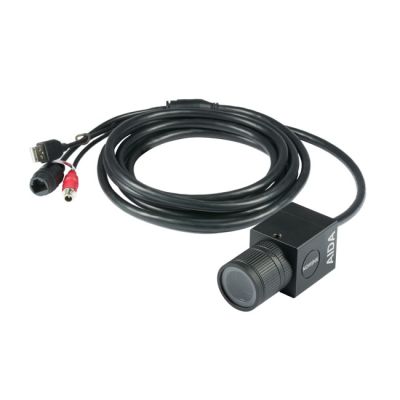

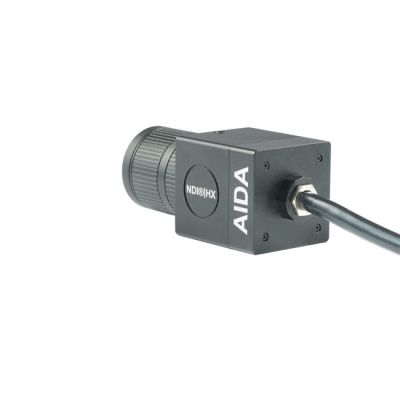

Stream 1080p60 video in broadcast, education, and live production applications either indoors or outdoors using this AIDA Imaging Full HD NDI|HX/IP Streaming Weatherproof POV Camera. This HD-NDI-VF model features a 2.8 to 12mm varifocal lens with a 120° field of view at its wide end. Rated at IP54, the camera is weatherproof for use in outdoor environments. An integrated 10' I/O cable facilitates the camera's RJ45 IP and NDI streaming output and USB-A port for tweaks to the camera's settings.
VISCA over IP control protocol is supported by the device as well as UDP, SRT, RTSP, and RTMP IP streaming. Both NDI and IP streams are simultaneously output via a single Ethernet connection. An included PoE+ dongle adapter allows the RJ45 connection to provide power to the camera. Alternatively, the 12 VDC input port connects to the included power supply for another installation option.
Features at a Glance
WebUI streams directly to social media platforms and controls image parameters over IP
Versatile design with top and bottom tripod mounts
IP54 rated varifocal lens with 120° wide FOV and 36° tele FOV
Small form-factor and rugged design
PoE+ dongle adapter and power supply included
Image Sensor
1/3" CMOS
Sensor Size
0.21 x 0.1" / 5.35 x 3 mm (16:9)
Effective Pixels
1920 x 1080
Pixel Size
2.75 x 2.75 μm
Lens
2.8 to 12mm
FOV
Wide: 120°
Tele" 36°
Minimum Illumination
0.2 lux (Day)
0.1 lux (Night)
White Balance
Auto, Manual (9000 to 11000K)
Color Space
4:2:2 (YCC) 10-bit
Output
IP (NDI|HX, SRT, RTMP, RTSP)
Protocols
IP: UDP|IP, RTSP|RTMP, SRT, NDI|HX
Control: VISCA over IP
Inputs / Outputs
USB I/O
1 x USB-A Integrated Male Input
Video I/O
1x RJ45 Output
Resolutions
1080p at 60, 59.94, 50, 30, 29.97, 25, 24
1080i at 60, 59.94, 50
720p at 60, 59.94, 50
Wireless
Wi-Fi
Yes
Power
Power Source
PoE, AC Adapter with Power Brick
DC Input Power
12 VDC
Environmental
Environmental Protection
Advertised as Weather Resistant
*Manufacturer Testing: IP54
Operating Temperature
32 to 104°F / 0 to 40°C
Physical
Mounting
2x Tripod Mount
Color
Black
Cable Length
10' / 3 m
Dimensions
2.9 x 1.6 x 1.6" / 73 x 41 x 41 mm
Weight
16 oz / 454 g
Packaging Info
Package Weight
2.245 lb
Box Dimensions (LxWxH)
10.9 x 5.7 x 4.1"
