Control the pan, tilt, and zoom functions of your camera and send video out simultaneously via 3G-SDI, HDMI, and IP with NDI|HX3 support using this black Full HD NDI HX3 PTZ Camera with 20x Optical Zoom from AIDA Imaging. Use the included remote control or employ RS-232 serial control to have full reign over the camera's functions and capture vibrant images at resolutions up to 1080p, with support for up to 120 fps via HDMI and NDI|HX3 over IP.
The camera boasts built-in OSD controls, PoE (Power over Ethernet) support, and a 20x optical zoom, and it can store and recall up to 128 presets over network control and 10 presets via remote. A 3.5mm TRS stereo audio port provides an input for external audio sources, such as a microphone or a signal coming from an audio mixer with multiple audio sources already blended together. IP protocol support includes UDP/IP, RTSP/RTMP, SRT, NDI|HX, and NDIHX3.
NDI|HX3 streaming is capable of even lower-latency video streaming and PTZ control over the NDI|HX3 protocol.
Image Sensor
1/3"-Type CMOS
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
Optical Zoom Ratio
20x
External Recording Modes
SDI/BNC / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
HDMI / RJ45
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100/120 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Show More
Broadcast Output
NTSC/PAL
IP Streaming
NDI|HX, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080
1280 x 720
Supported Control Protocols
IP
IR
NDI
RS-232
VISCA
Show More
PoE Support
PoE+ 802.3at
Imaging
Image Sensor
1/3"-Type CMOS
Horizontal Resolution (TV Lines)
1080 TV Lines
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1 Second
White Balance
Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
4.9 to 98mm
Optical Zoom Ratio
20x
Field of View
60 to 4°
Maximum Aperture
f/1.5 to 3
Video Capture
External Recording Modes
SDI/BNC / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
HDMI / RJ45
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100/120 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
NDI|HX, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080
1280 x 720
Control
Presets
10 via IR
128 via IP, RS-232, VISCA
Move Speed
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec
Movement Range
Pan: 340°
Tilt: 120° (-30 to 90°)
Supported Control Protocols
IP
IR
NDI
RS-232
VISCA

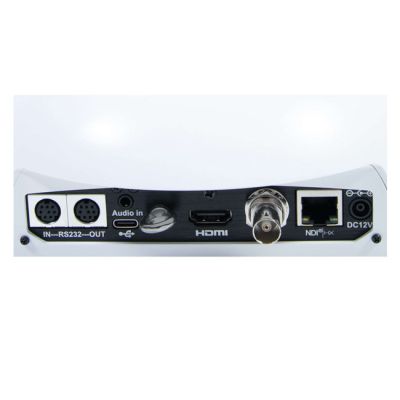

Interface
Video I/O
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output
1x RJ45 (NDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O
1x Mini-DIN 8-Pin (RS-232, VISCA) Input
1x Mini-DIN 8-Pin (RS-232, VISCA) Output
1x RJ45 (LAN) Output
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (9 to 15VDC) Input
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
General
Dimensions (W x H x D)
7.75 x 7.48 x 6.95" / 19.68 x 19 x 17.65 cm
Weight
3.1 lb / 1.4 kg (Body Only)
Packaging Info
Package Weight
7.57 lb
Box Dimensions (LxWxH)
12.3 x 10.8 x 10.5"
