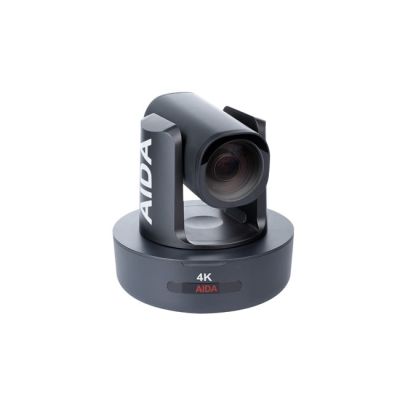

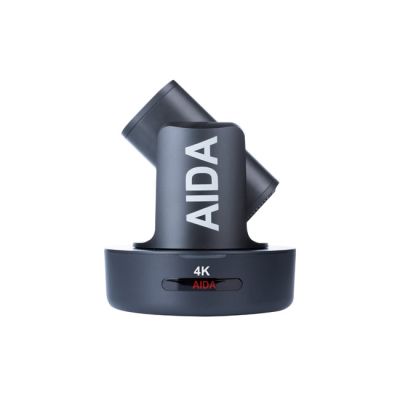

Add the black 4K NDI|HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom from AIDA to your NDI network, which offers simultaneous video outputs as well as NDI|HX workflows over IP. You can output/stream up to UHD 4K60 via HDMI and IP/NDI|HX, and simultaneously output up to UHD 4K60 via HDMI and USB-C 3.0. The camera features a 30x optical zoom, and pan, tilt, and zoom functions can be controlled via IP, NDI, serial control, or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur. The camera is powered via the included power adapter or by PoE+ on a supported network.
Key Features
Simultaneous SDI, HDMI, USB, and NDI|HX output
Up to UHD 4K resolution video output
30x optical zoom
NDI|HX, RTSP, RTMP, SRT streaming
RS-232 input/output
VISCA-over-IP control protocol
10 presets via included IR remote controller, 128 presets over IP/serial control
Motion-compensated temporal noise reduction filter allows for noise reduction without blur
Built-in OSD controls
4:2:2 (YCbCr) 10-bit color space
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
1 to 1/10,000 Seconds
Optical Zoom Ratio
30x
External Recording Modes
4:2:2 10-Bit via HDMI / RJ45 / USB
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Show More
Broadcast Output
NTSC/PAL
IP Streaming
NDI|HX, RTMP, RTSP, SRT
1280 x 720 to 3840 x 2160 at 60p
Supported Control Protocols
IR
NDI
RS-232
VISCA
Show More
PoE Support
PoE+ 802.3at
Imaging
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
1 to 1/10,000 Seconds
Minimum Illumination
0.1 Lux
Lens
Focal Length
6.9 to 214.6mm
Optical Zoom Ratio
30x
Field of View
Horizontal: 59 to 1.98°
Video Capture
External Recording Modes
4:2:2 10-Bit via HDMI / RJ45 / USB
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
NDI|HX, RTMP, RTSP, SRT
1280 x 720 to 3840 x 2160 at 60p
Control
Presets
10 via IR
128 via RS-232, VISCA
Move Speed
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec
Movement Range
Pan: 340°
Tilt: 120° (-30 to 90°)
Supported Control Protocols
IR
NDI
RS-232
VISCA

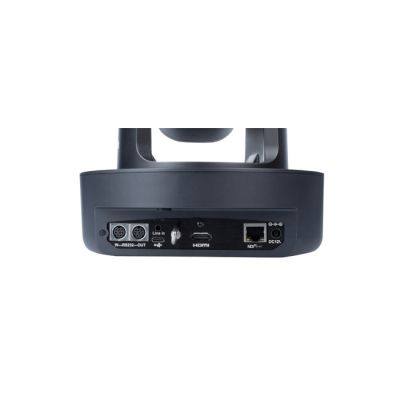

Interface
Video I/O
1x HDMI (Unspecified Signal) Output
1x RJ45 (Unspecified Signal) Output
1x USB-C (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body
Other I/O
1x D-Sub 8-Pin (RS-232) Input
1x D-Sub 8-Pin (RS-232) Output
Power
PoE Support
PoE+ 802.3at
Power I/O
1x DC (12VDC) Input
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
General
Mobile App Compatible
No
Dimensions (W x H x D)
7.8 x 7.8 x 7.3" / 197 x 197 x 186 mm
Weight
4.6 lb / 2.1 kg
Packaging Info
Package Weight
8.79 lb
Box Dimensions (LxWxH)
12.3 x 11 x 10.6"
