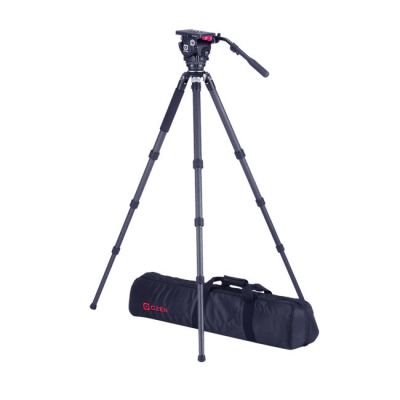

OZEN 8CF3 75mm AGILE 8 E-Z LOAD Tripod System
75mm affordability delivering 100mm-class capability & features.
Counterbalance
(10) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.
AGILE 8enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 1-10kg (2.2-22 lbs).
Fluid drag
AGILE 8features a 5/5 + 0 "TRUE" fluid drag mechanism, which is incrementally adjustable and repeatable for fast setting.
It makes broadcast level footage attainable by delivering smooth and uniform drag that neither deviates nor deteriorates over time and usage.
The tremendous amount of fluid drag available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.
Camera Mounting Interface
AGILE 8 offers the choice of two industry-standard camera mounting interfaces enable seamless integration with nearly any brand of camera support already in use.
AGILE 8 with E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.
Ergonomics and compatibility
Experienced operators will appreciate:
-- the familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls,
-- distinguishable 90 degree-opposed pan & tilt brakes,
-- replaceable pan bar rosettes for longer fluid head usability,
-- an illuminated bubble-level and spare camera plate screws,
-- and many other use-friendly features.
They' re all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory”.
Tech Specs:
E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.
Weight: 7.17Lbs
Counterbalanced Payload1-10kg (2.2-22 lbs)
Counterbalance Increments10
Pan/tilt Fluid Drag Increments5/5+0
Tilt Range +90°/-80°
Mounting Base75 mm
Operating Temperature -40/+60 °C
Bubble Level- Illuminated
Pan Bar – (1) telescopic pan bar included
75CF3
75mm lightweight telescopic 3-stage carbon fiber tripod
15 kg / 33 lbs. payload capacity.
Tremendous height range - 15-62" / 38-159cm
Twist ring type brakes.
Compact- 23" /59cm transport length.
Lightweight - 5.89 lbs /2.68kg carry weight.
No spreader needed.
