Description

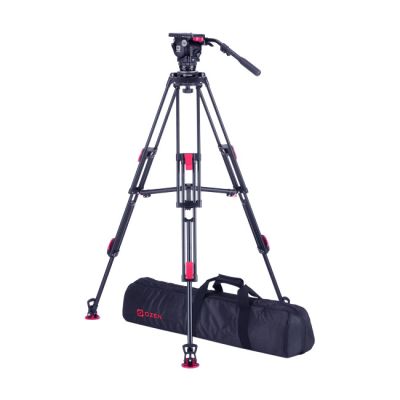

OZEN 6AL2HD 75mm AGILE 6 Mini E-Z LOAD Tripod System
Broadcast-echelon features & ergonomics with 75mm size, weight, & affordability.
Counterbalance
(8) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.
AGILE 6 enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 1-8kg (2.2-17.6 lbs).
Fluid drag
AGILE 6 features a 3/3 + 0 "TRUE" fluid drag mechanism, which is incrementally adjustable and repeatable for fast setting.
It makes broadcast level footage attainable by delivering smooth and uniform drag that neither deviates nor deteriorates over time and usage.
Camera Mounting Interface
AGILE 6 offers the choice of two industry-standard camera mounting interfaces that enable seamless integration with nearly any brand of camera support already in use.
AGILE 6 with mini E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.
Ergonomics and compatibility
Experienced operators will appreciate:
-- the familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls,
-- distinguishable 90 degree-opposed pan & tilt brakes,
-- replaceable pan bar rosettes for longer fluid head usability,
-- an illuminated bubble-level and spare camera plate screws,
-- and many other use-friendly features.
They' re all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory”.
Tech Specs:
Mini E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.
Weight: 5.6 Lbs
Counterbalanced Payload1-8kg (2.2-17.6 lbs)
Counterbalance Increments8
Pan/tilt Fluid Drag Increments3/3+0
Tilt Range +90°/-80°
Mounting Base75 mm
Operating Temperature -40/+60 °C
Bubble Level- Illuminated
Pan Bar – 1 Included
75AL2HD
75mm premium light weight 2-stage carbon fiber tripod
25 kg / 55 lbs. payload capacity
Anodized aluminum tubes are pinned to their joints – not glued.
Hi-visibility flip lock-type brakes are operator-adjustable for wear
100 mid-level spreader & deep-tread rubber feet - INCLUDED AT NOT EXTRA COST.
9.4 lbs. / 4.28 kg. transport-weight
24 - 65” / 62 – 165cm minimum/maximum height range with CONTENDER
4 - 61” / 62 – 154cm minimum/maximum height range with MLS100 mid-level spreader
