Description

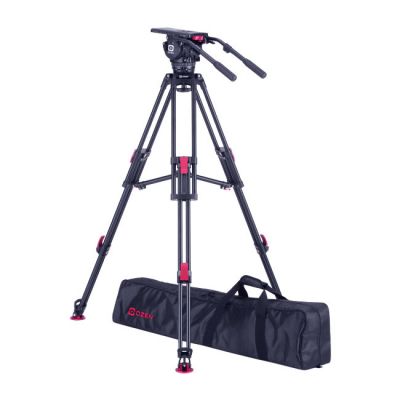

OZEN 20AL2HD 100mm AGILE 20 E-Z LOAD Tripod System
Counterbalance
(16) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.
AGILE 20/20S enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 4-28kg (8.8-61.6lbs).
Fluid Drag
AGILE 20/20S features a 9/9 + 0 fluid drag mechanism, which is incrementally adjustable and repeatable. The smooth, uniform fluid drag neither deviates nor deteriorates over time and usage.
The tremendous amount of fluid drag available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.
Camera Mounting Interface
E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.
Ergonomics and Compatibility
Experienced operators will appreciate:
-- the familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls,
-- distinguishable 90 degree-opposed pan & tilt brakes,
-- replaceable pan bar rosettes for longer fluid head usability,
-- an illuminated bubble-level and spare camera plate screws,
-- and many other use-friendly features.
They're all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory'.
Weight: 5.98KG (13.1lbs)
Counterbalanced Payload: 4-28kg (8.8-61.6 lbs)
Counterbalance Increments: 16
Pan/tilt Fluid Drag Increments: 9/9+0
Tilt Range: +90°/-80°
Mounting Base: 100 mm
Operating Temperature: -40/+60 °C
Bubble Level: Illuminated
Pan bar: (2) telescopic pan bar included
100AL2HD
100mm 2-stage heavy duty aluminum tripod for heavy payload/high fluid drag applications
99 lbs (45kg) payload capacity.
22mm-diameter heavy duty aluminum tubes are pinned to their joints - not glued.
CONTENDER heavy-duty 2-position (flat & angled) mid-level spreader – INCLUDED AT NOT EXTRA COST.
Deep-tread rubber feet for better traction on smooth surfaces – INCLUDED AT NOT EXTRA COST.
Conspicuous red flip-type brake levers for fast deployment & stowage.
Features unique brake adjustment mechanism
Heavy-duty 2-position (flat & angled) mid-level spreader (CONTENDER) – INCLUDED
Deep tread rubber feet for better traction on smooth surfaces – INCLUDED
10.9 lbs. / 4.98kg. carry-weight
22” - 57” / 57 – 154 cm height range
