Description
in-lite ACE UP-DOWN White - 10301955 from in-lite built for clean, modern outdoor lighting systems.

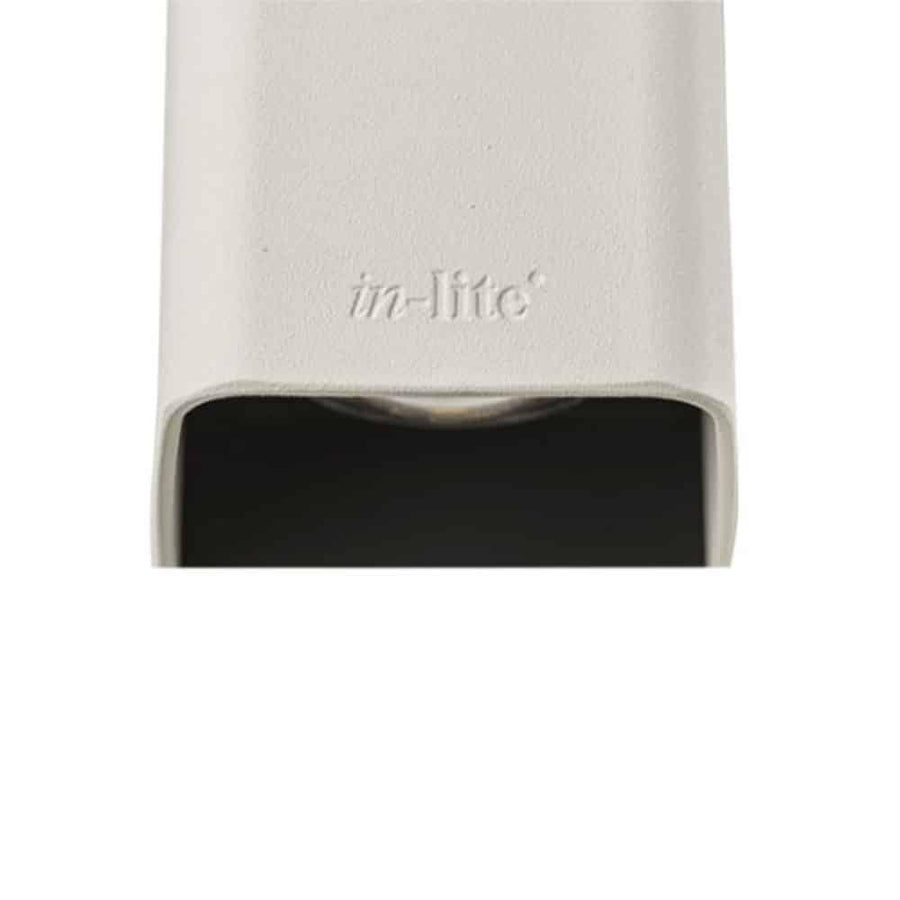

Wall fixture ACE UP-DOWN provides a directional beam of light upward and downward, and is suitable for mounting on a wall or fence. The light sources are located deep inside the fixture so the light does not glare. The light can be adjusted in width with the separately available SHUTTER 1. ACE UP-DOWN is available in 5 different colors: Dark Grey, White, Rose Silver, Corten and Flat Grey.
TIP: Consider an extension cord.
TIP: Consider an extension cord.
- Produces a focused upward and downward light

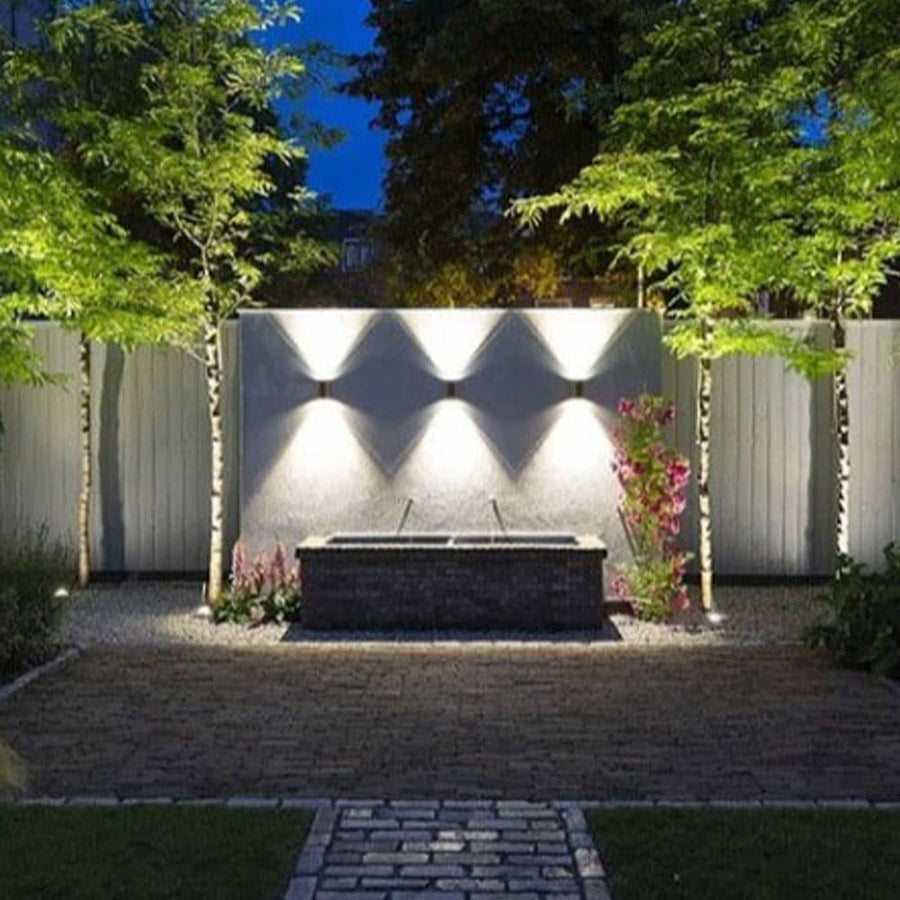

- Suitable for lighting a fence and wall
- Light image adjustable with multiple accessories
Installation advice:
An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

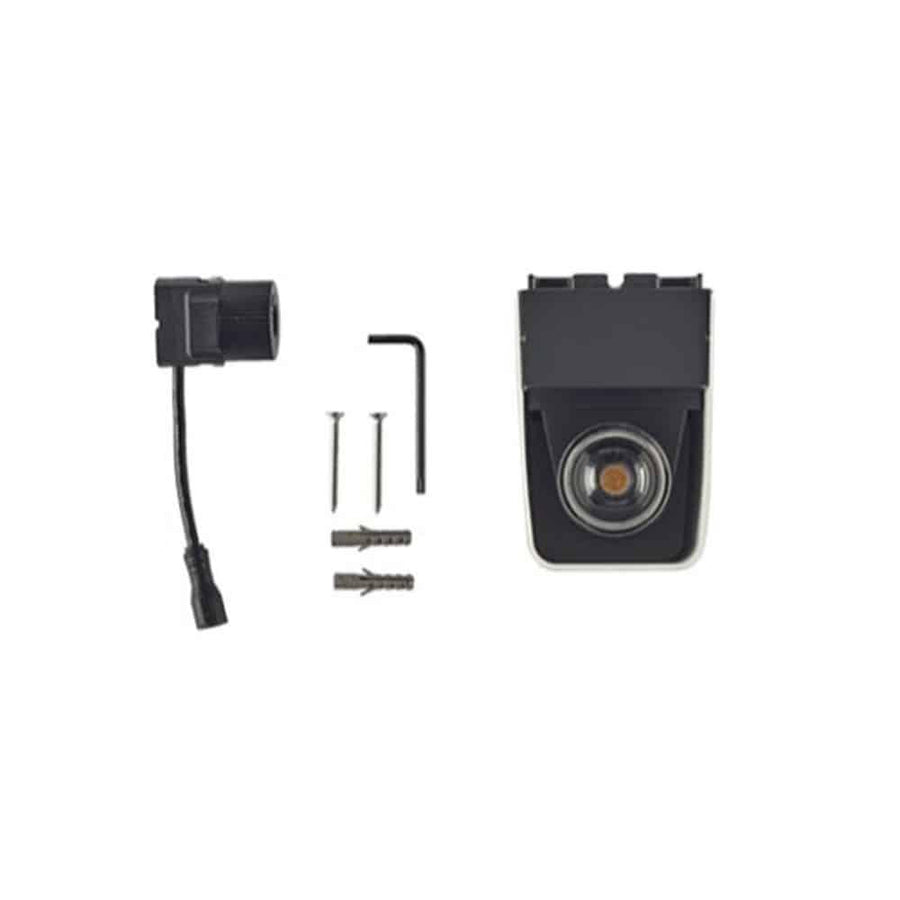

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.
Specs
Art. nr.
10301955
Application
Canopy, Facade, Fence/wall , House
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
92
Color
White
EAN code
8717051003783
Energy label
G
Height (inch)
4.7244
Height (mm)
120
IP class
55
Length (inch)
3.7402
Length (mm)
95
Light direction
Down and up
Types of Light
Direct
Efficiency (Lumen/Watt)
55
Net luminous flux (Lumen)
355
Power [W]
6.5
Processing
Concrete, Wood
Article group
Wall lights
Voltage
12 volt
VA value
10.3
Width (inch)
2.5197
Width (mm)
64
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
205.8
Power factor
0.63
Installation instructions
Mount using the included screws and plugs. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
