Description
Contractors! Email us to get your approved installer discount code used at checkout* (subject to review)
For custom quotes and layout design inquiries, email contact@TheLAFirm.com
Wall light - ↨ 120mm/4.72"
RoseSilver

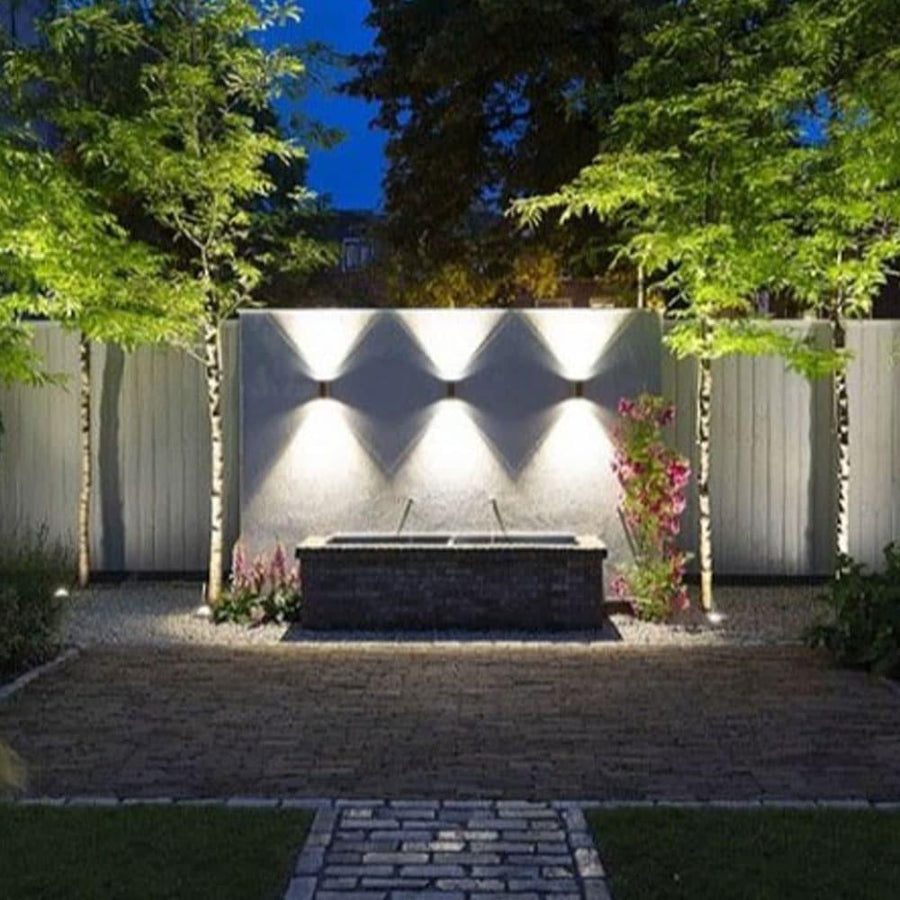

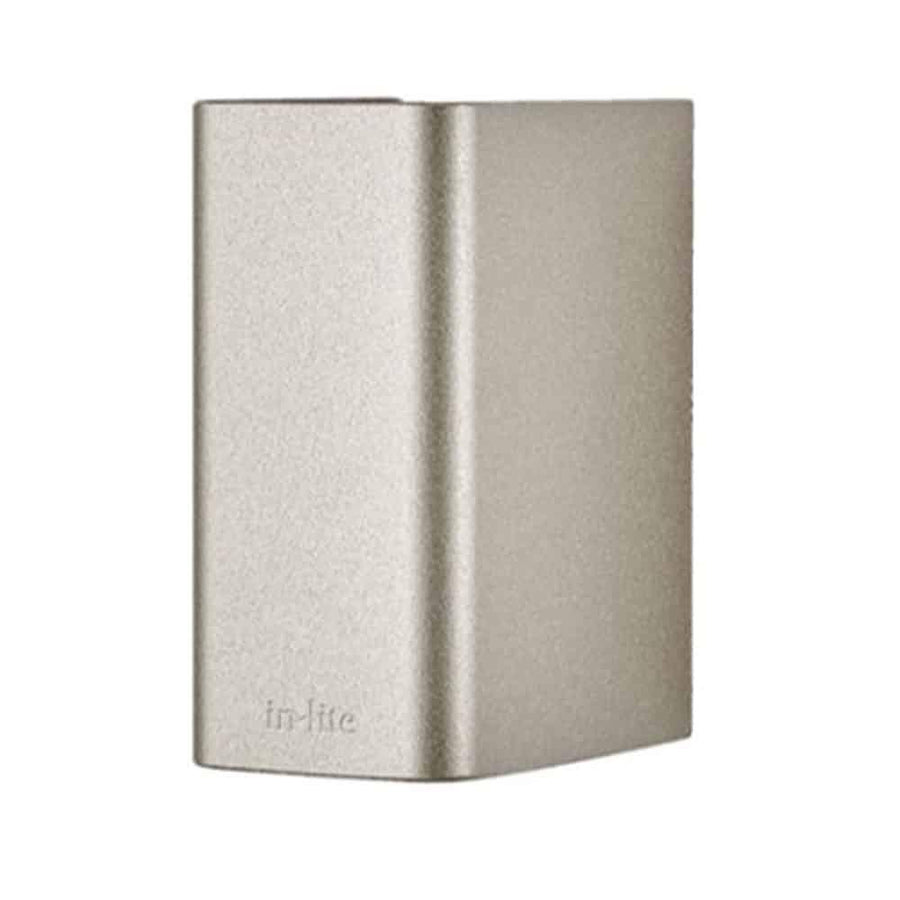

Wall fixture ACE UP-DOWN provides a directional beam of light upward and downward and is suitable for mounting on a wall or fence.
A high-quality FCBV coating in the color Rosé Silver. Combines well with other fixtures in the same color.
A high-quality FCBV coating in the color Rosé Silver. Combines well with other fixtures in the same color.
- Produces a focused upward and downward light
- Designed for illuminating a fence or wall
- Lighting effect can be adjusted with several accessories
Installation advice:
An ACE UP DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters
IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
Wall fixture ACE UP-DOWN provides a directional beam of light upward and downward. The fixture is suitable for on a fence or wall. The two light sources are located deep inside the fixture so the light does not dazzle. Do you prefer a narrower beam or a softer light image? With accessories SHUTTER and LENS, the light source can be adjusted as desired.
Specs
Art. nr.
10301900
Application
Facade, FenceWall, House, ShedRoof
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
92
Color
RoseSilver
EAN code
8717051003554
Energy label
G
Height (inch)
4.7244
Height (mm)
120
IP class
55
Length (inch)
3.7402
Length (mm)
95
Light direction
DownAndUp
Light type
Direct
Efficiency (Lumen/Watt)
55
Net luminous flux (Lumen)
355
Order unit
6
Power [W]
6.5
Article group
Wall
Voltage
12V
VA value
10.3
Width (inch)
2.5197
Width (mm)
64
Color temperature
3000
Luminous intensity [Cd]
205.8
Power factor
0.63
Installation instructions
Installation advice
Mount using the included screws and plugs. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
