in-lite ACE UP-DOWN Dark Grey - 10301950

in-liteSKU: INL-10301950

Price:
Sale price$199.00

Description

Contractors!  Email us to get your approved installer discount code used at checkout* (subject to review)

For custom quotes and layout design inquiries, email contact@TheLAFirm.com

Wall light - ↨ 120mm/4.72"

DarkGrey

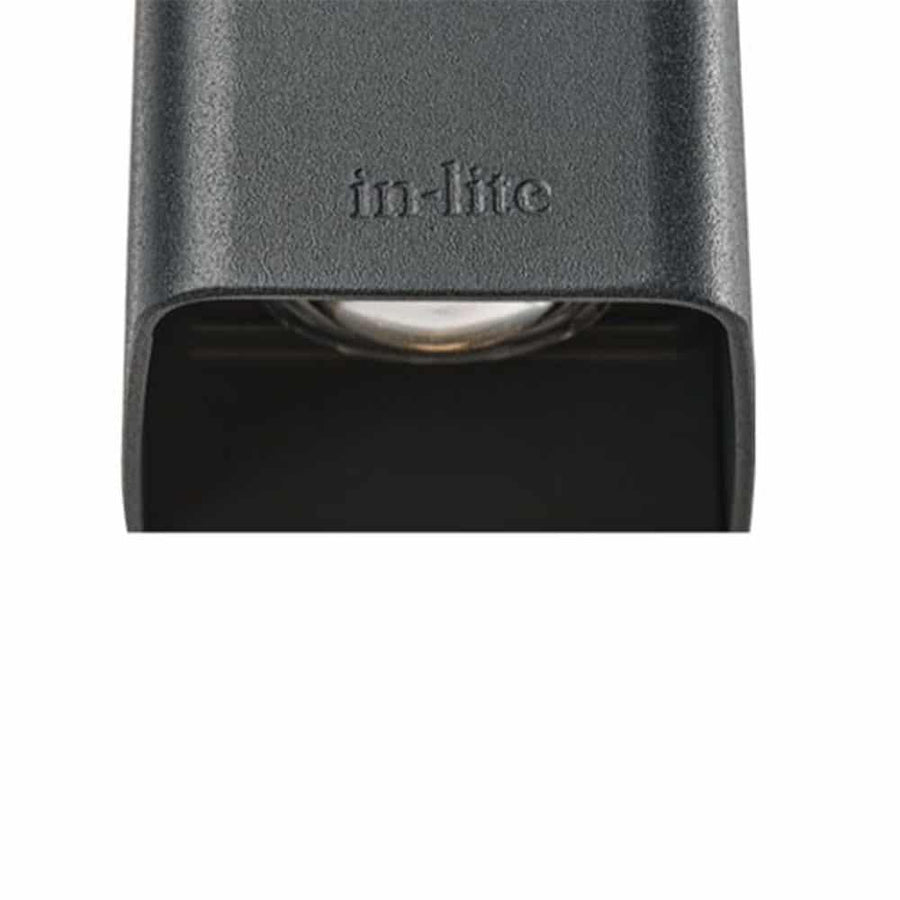

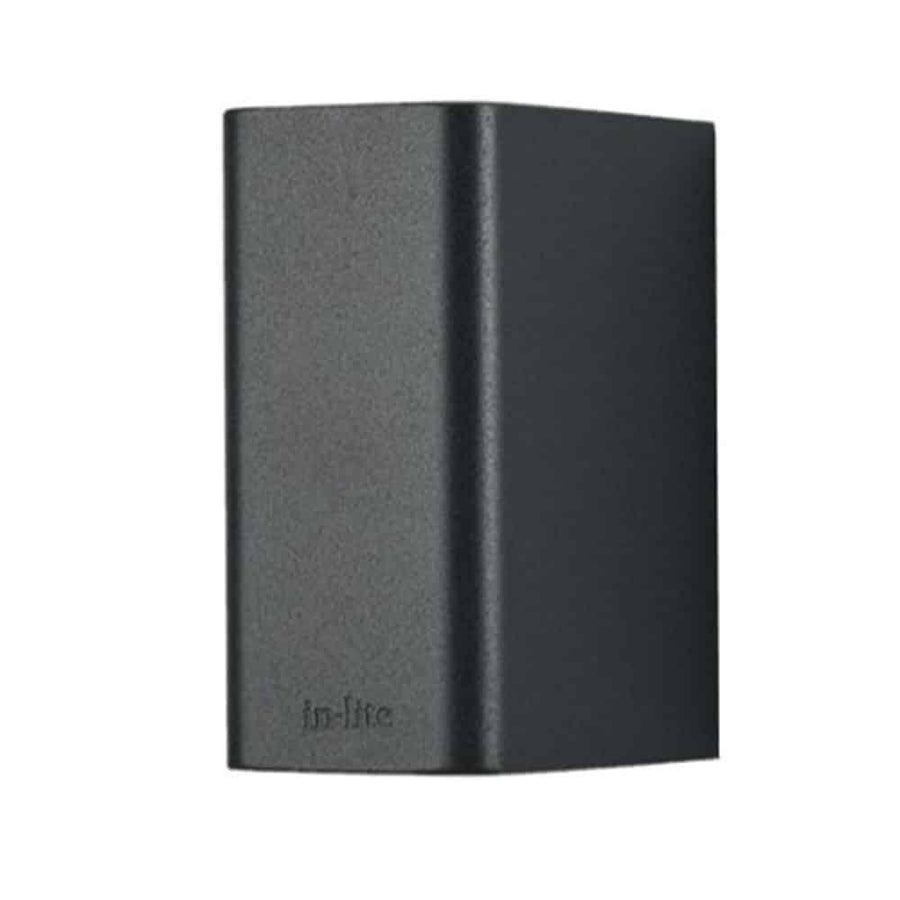

Wall fixture ACE UP-DOWN provides a directional beam of light upward and downward and is suitable for mounting on a wall or fence.
A high-quality FCBV coating in the color Dark Grey. Combines well with other fixtures in the same color.
  • Produces a focused upward and downward light
  • Designed for illuminating a fence or wall
  • Lighting effect can be adjusted with several accessories
Installation advice:

An ACE UP DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

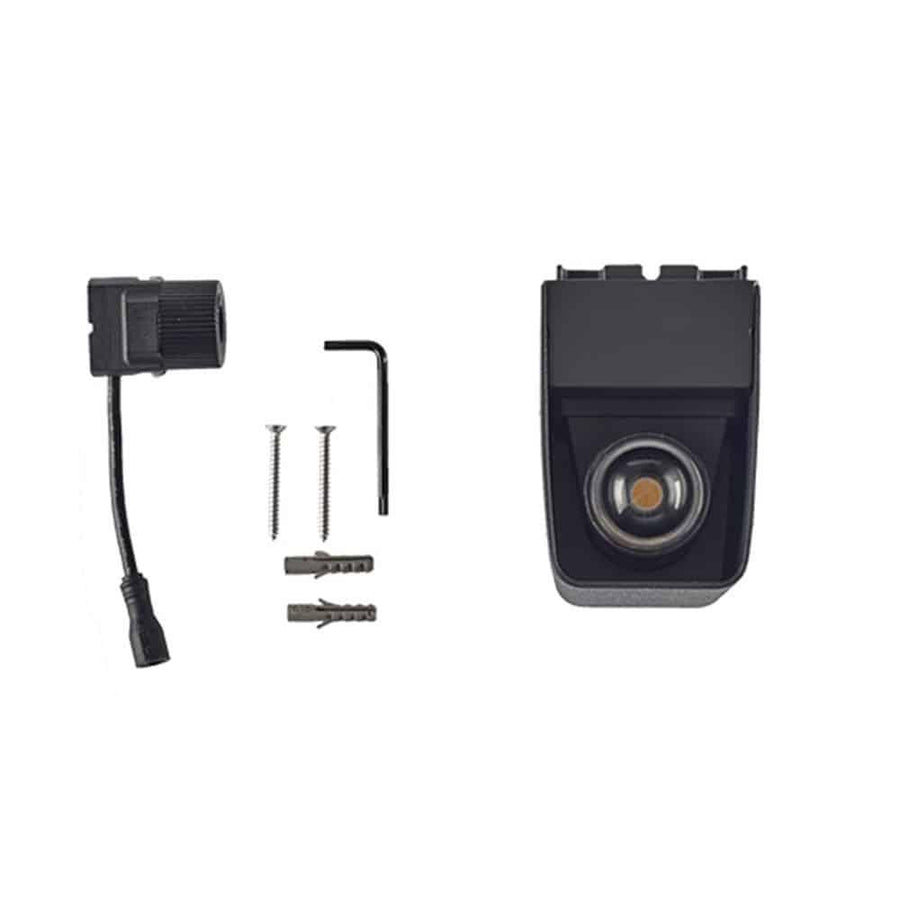

IN THE PACKAGE
INCLUDED IN PACKAGE



  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench
  • Wall fixture ACE UP-DOWN provides a directional beam of light upward and downward. The fixture is suitable for on a fence or wall. The two light sources are located deep inside the fixture so the light does not dazzle. Do you prefer a narrower beam or a softer light image? With accessories SHUTTER and LENS, the light source can be adjusted as desired.
    Art. nr.
    10301950
    Application
    Facade, FenceWall, House, ShedRoof
    Mounting depth (inch)
    0
    Recessed depth (mm)
    0
    CRI
    92
    Color
    DarkGrey
    EAN code
    8717051003561
    Energy label
    G
    Height (inch)
    4.7244
    Height (mm)
    120
    IP class
    55
    Length (inch)
    3.7402
    Length (mm)
    95
    Light direction
    DownAndUp
    Light type
    Direct
    Efficiency (Lumen/Watt)
    55
    Net luminous flux (Lumen)
    355
    Order unit
    6
    Power [W]
    6.5
    Article group
    Wall
    Voltage
    12V
    VA value
    10.3
    Width (inch)
    2.5197
    Width (mm)
    64
    Color temperature
    3000
    Luminous intensity [Cd]
    205.8
    Power factor
    0.63
    Installation advice
    Mount using the included screws and plugs. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
