Description

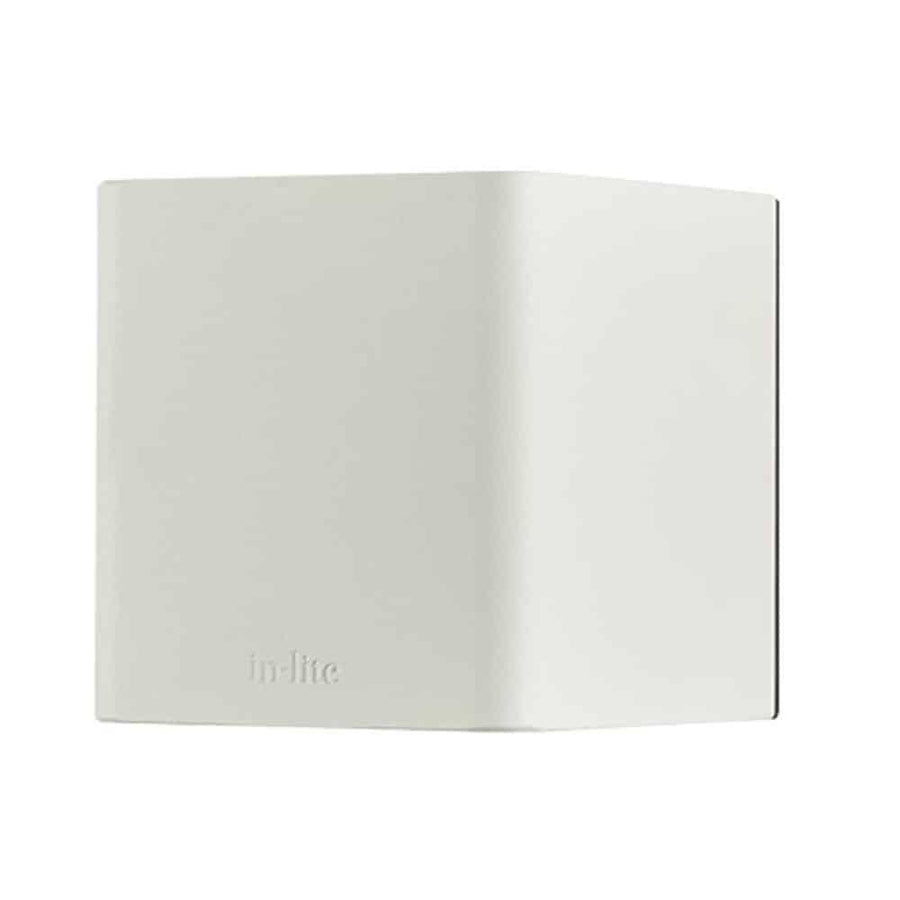

in-lite ACE UP-DOWN 100-230V White - 10302055 from in-lite built for clean, modern outdoor lighting systems.
Wall fixture ACE UP-DOWN 100-230V provides a directional beam of light upward and downward, and is suitable for mounting on a facade and walls. This wall light can only be connected to the regular power supply and cannot be controlled via an in-lite HUB or SMART HUB transformer. Please consult an electrician or professional for installation.

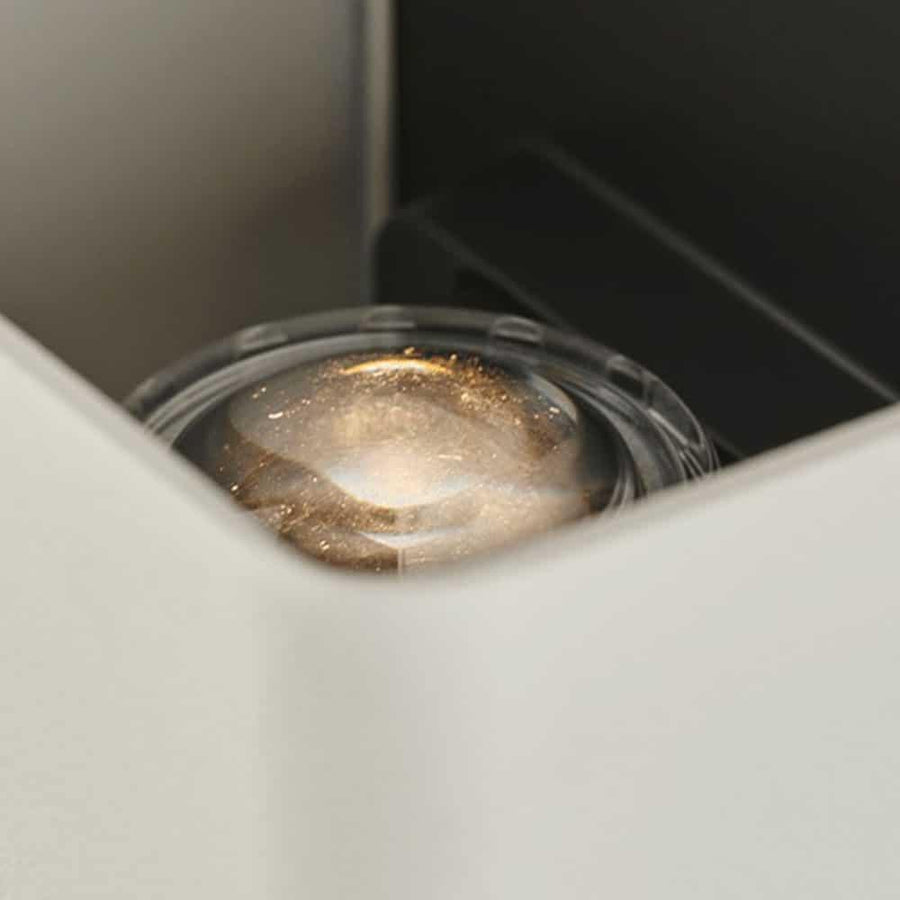

The light sources are located deep inside the fixture so the light does not glare. The light can be adjusted in width with the separately available SHUTTER 2. ACE UP-DOWN is available in 4 different colors: Dark Grey, White, Rosé Silver and Corten.
TIP: Use an extension cord.
The light sources are located deep inside the fixture so the light does not glare. The light can be adjusted in width with the separately available SHUTTER 2. ACE UP-DOWN is available in 4 different colors: Dark Grey, White, Rosé Silver and Corten.
TIP: Use an extension cord.
- Produces a focused upward and downward light

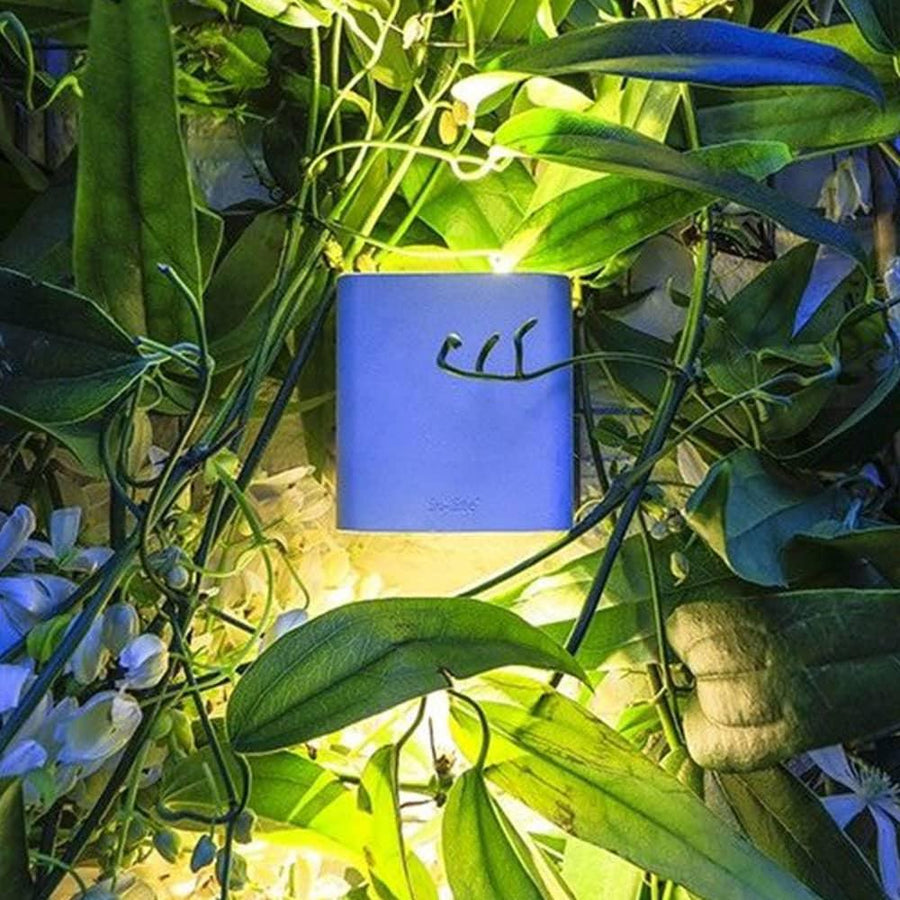

- Suitable for illuminating a facade or canopy
- Connects directly to 120 volt
Installation advice:
An ACE UP DOWN 100-230 V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

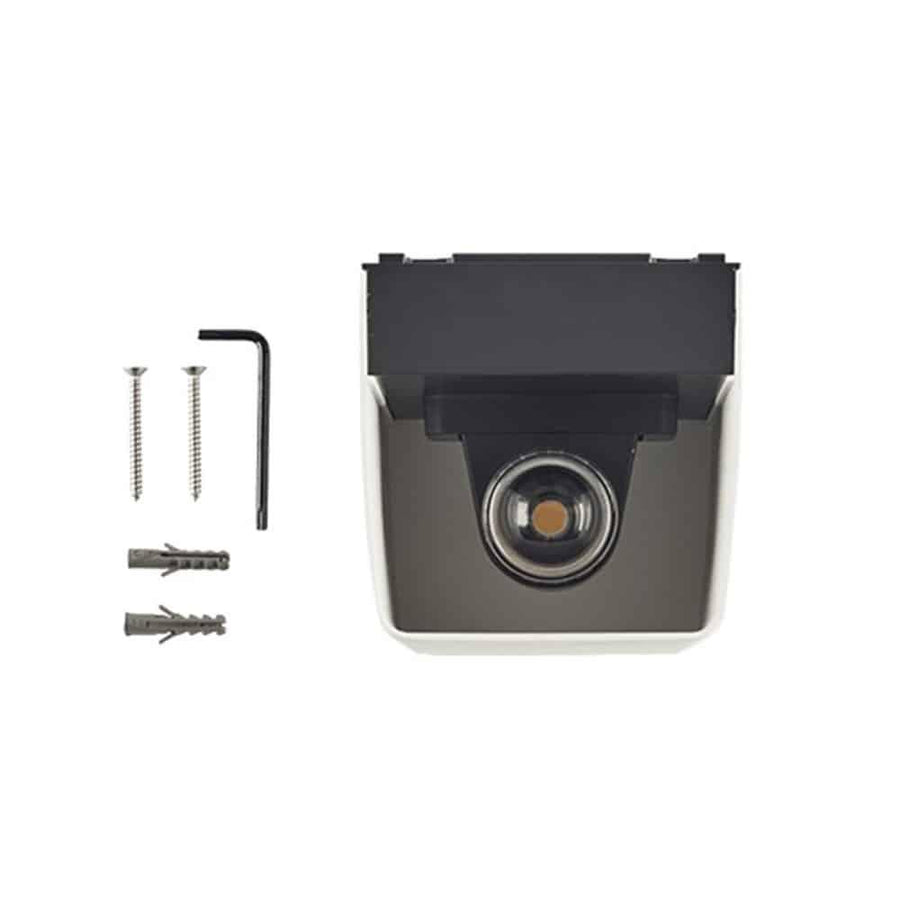

IN THE PACKAGE: INCLUDED IN PACKAGE
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
Wall fixture ACE UP-DOWN 100-230V is suitable for mains connection only. This makes the fixture suitable for mounting on a home, garage or shed. The fixture provides a directional beam of light in two directions.
Tip: The beams can be adjusted to any width with accessory SHUTTER 2.
Tip: The beams can be adjusted to any width with accessory SHUTTER 2.
Specs
Art. nr.
10302055
Application
Canopy, Facade, Fence/wall , House
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
92
Color
White
EAN code
8717051003806
Energy label
G
Height (inch)
3.937
Height (mm)
100
IP class
55
Length (inch)
4.0551
Length (mm)
103
Light direction
Down and up
Types of Light
Direct
Efficiency (Lumen/Watt)
41
Net luminous flux (Lumen)
346
Power [W]
8.5
Article group
Wall lights
Voltage
120 volt
VA value
20
Width (inch)
3.937
Width (mm)
100
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
206.5
Power factor
0.43
Installation instructions
ACE UP-DOWN 100-230V can only be connected to the regular power grid and cannot be controlled via an in-lite HUB or SMART HUB transformer. Please consult an electrician or professional for installation.
Need help choosing compatible parts? Contact The LA Firm for project support.
